Mild steel 25mm Rebar Coupler

About Mild steel 25mm Rebar Coupler

What is a Mild Steel 25mm Rebar Coupler?

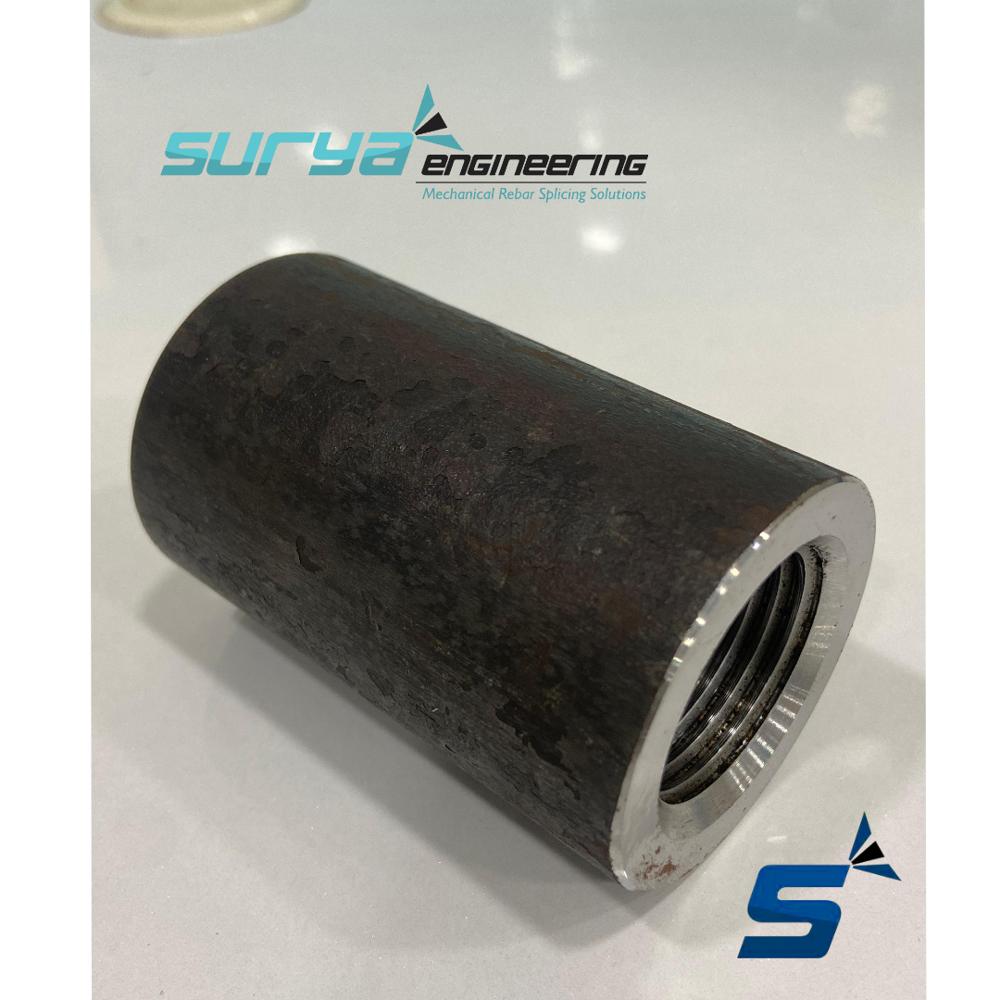

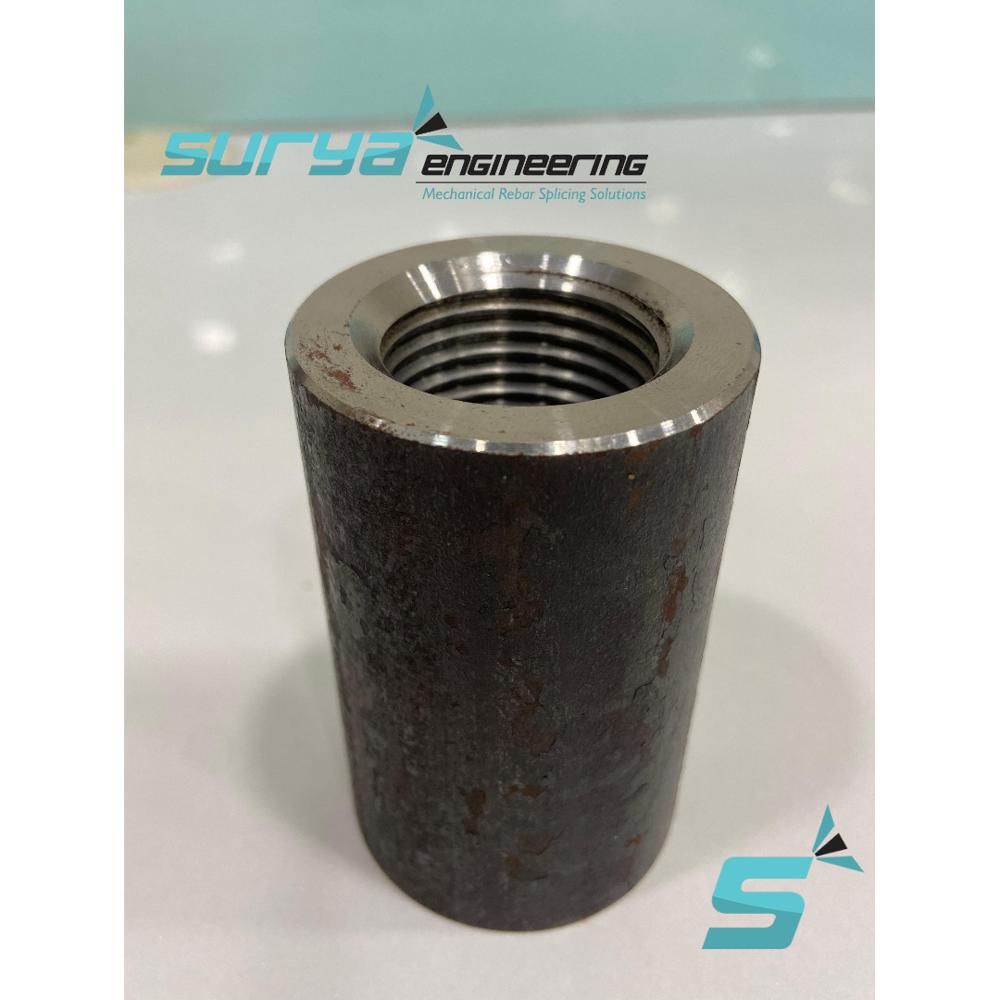

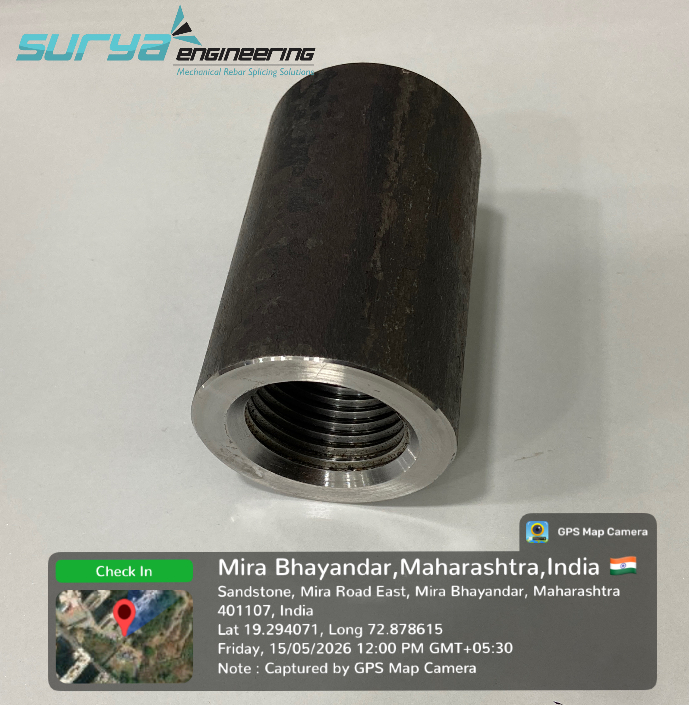

A Mild Steel 25mm Rebar Coupler is a heavy-duty, internally threaded steel sleeve used to join two separate 25mm TMT reinforcing bars end-to-end.

Traditionally, when workers needed to extend a 25mm thick steel rebar, they would overlap the two bars side-by-side (called a lap splice) and tie them tightly with binding wire. A 25mm coupler replaces this old method entirely. It acts as a mechanical bridge, screwing directly onto the ends of the 25mm bars to create a single, continuous, straight length of steel.

Why is it Used for 25mm Rebars?

When reinforcement bars reach a thickness of 25mm, traditional overlapping becomes highly inefficient and difficult for several reasons:

• Massive Steel Waste: To safely overlap a 25mm bar using traditional lap splicing, you need an extra overlap length of about $40d$ to $50d$ (where $d$ is the diameter). For a 25mm bar, that means wasting over 1 to 1.25 meters of steel per joint! A coupler slashes this wastage to zero.

• Severe Concrete Congestion: Overlapping 25mm bars creates a thick, double-layer steel cluster. This blocks concrete from flowing smoothly, creating dangerous air gaps, voids, and "honeycombing" inside columns and beams.

• Superior Load Transfer: Mild steel couplers ensure that the structural load (tension and compression) transfers instantly in a perfectly straight line, rather than relying on the surrounding concrete to pass the load between overlapped bars.

Classification of 25mm Rebar Couplers

At Surya Engineering, we manufacture diverse types of 25mm mild steel couplers to fit different construction blueprints:

1. 25mm Parallel Threaded Couplers

The standard variation. The ends of the 25mm rebars are cut flat and threaded to a uniform metric size. The coupler is then twisted onto the bars until a tight lock is achieved.

2. 25mm Cold Forged Parallel Threaded Couplers

The absolute safest choice for high-rise buildings. Before threading, the end of the 25mm rebar is hydraulically squeezed (cold forged) to expand its thickness slightly. When threads are cut into this swollen end, the core bar remains thick and strong. This guarantees a "Bar Break" outcome, meaning the parent TMT steel bar will fail before our coupler joint ever gives way.

3. 25mm Transition / Reducer Couplers

Used when your structural design changes between floorsfor example, when joining a heavy 25mm column rebar to a lighter 20mm or 16mm rebar on higher levels.

Key Engineering Applications

Our 25mm MS Couplers are high-demand components across India for medium-to-heavy load structures:

• High-Rise Columns & Shear Walls: Essential for residential and commercial skyscrapers in crowded metropolitan hubs like Mumbai, Navi Mumbai, and Thane.

• Metro Rail Piers & Viaducts: Heavily utilized in the construction of metro pillars and elevated tracks stretching across PAN India.

• Bridge Abutments & Flyovers: Ideal for handling heavy, moving vehicular loads where dynamic structural stress is high.

• Raft Foundations: Simplifies the massive steel mesh nets required for heavy building bases.

Step-by-Step On-Site Installation

Installing a Surya Engineering 25mm coupler is clean, fast, and requires simple training for site laborers:

[Step 1: Square Cutting]  [Step 2: Forging & Threading]  [Step 3: Protection Caps]  [Step 4: Torque Tightening]

1. Square Cutting: The 25mm rebar end is cut perfectly straight using a specialized heavy-duty cutting machine.

2. Forging and Threading: The rebar end goes through our high-speed threading machine to form precise, sharp metric threads.

3. Rust Prevention: Plastic thread protectors or caps are placed on the freshly cut threads to shield them from rain, dust, and rust until the day of concrete casting.

4. Site Assembly: The protective caps are pulled off, and the 25mm mild steel coupler sleeve is tightened onto the rebar using a manual pipe wrench or a calibrated torque wrench to lock it into place.

Indian Standard (BIS) Testing Guidelines: IS 16172

Every single batch of 25mm mild steel couplers manufactured by Surya Engineering strictly follows the Bureau of Indian Standards code IS 16172.

Under this code, couplers must pass rigorous independent testing to verify structural soundness:

• Static Tensile Test: The joint must withstand extreme pulling forces. The coupler assembly must safely cross the minimum tensile strength threshold required for the bar grade (such as Fe 500D or Fe 550D).

• Slip Test: Under heavy structural tension, the relative movement (slip) inside the coupler sleeve must not exceed a microscopic $0.1\text{ mm}$.

• Cyclic Tensile Test: The joint is repeatedly pulled and released to ensure it can survive earthquakes and heavy vibrations without cracking.

Unmatched Advantages of Surya Engineering's 25mm Couplers

• Unbeatable Cost Savings: Eliminating a 1.25-meter overlap on every single 25mm bar saves metric tons of steel, cutting structural steel costs by up to 15% to 20%.

• Faster Project Handover: Threading and twisting couplers is significantly quicker than tying heavy lap splices, shaving weeks off your structural casting schedule.

• Seismic and Earthquake Resistance: Unlike lap splices that can slip apart during ground tremors if the concrete fails, a mechanical coupler provides continuous hold, making buildings safer.

• Sleek Designs: Keeps columns slim and aesthetically pleasing, maximize carpet area for premium properties.

Surya Engineering: Your PAN India 25mm Coupler Supply Partner

Operating from our advanced industrial manufacturing facilities in Mumbai, Maharashtra, Surya Engineering delivers top-tier mechanical splicing solutions across the entire PAN India map.
