Bubble Guard Sheet

Name: Bubble Guard Sheet
Brand: SURYA ENGINEERING
Price: 4.0 INR
Availability: InStock

Price 4.0 INR/ Square Meter

Get a Price/Quote

MOQ : 10 Pieces

Bubble Guard Sheet Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
24 Hours

About Bubble Guard Sheet

Bubble Guard Sheet

Bubble Guard Sheet is an advanced polypropylene-based cellular protective sheet manufactured using an engineered multi-layer structure. Depending on the design, the sheet consists of smooth outer layers combined with a thermoformed bubble or honeycomb core. This structure creates internal air spaces that help reduce weight while providing rigidity and impact resistance. Similar PP honeycomb products are used as alternatives to cardboard, conventional corrugated plastic, plywood and other temporary protection materials.

For construction and renovation applications, Bubble Guard Sheet can be placed over finished flooring and other surfaces to help protect them from dust, paint, scratches, falling materials and general site activity. PP construction-protection sheets are also valued for their moisture resistance, lightweight handling and reusability.

What is it exactly?

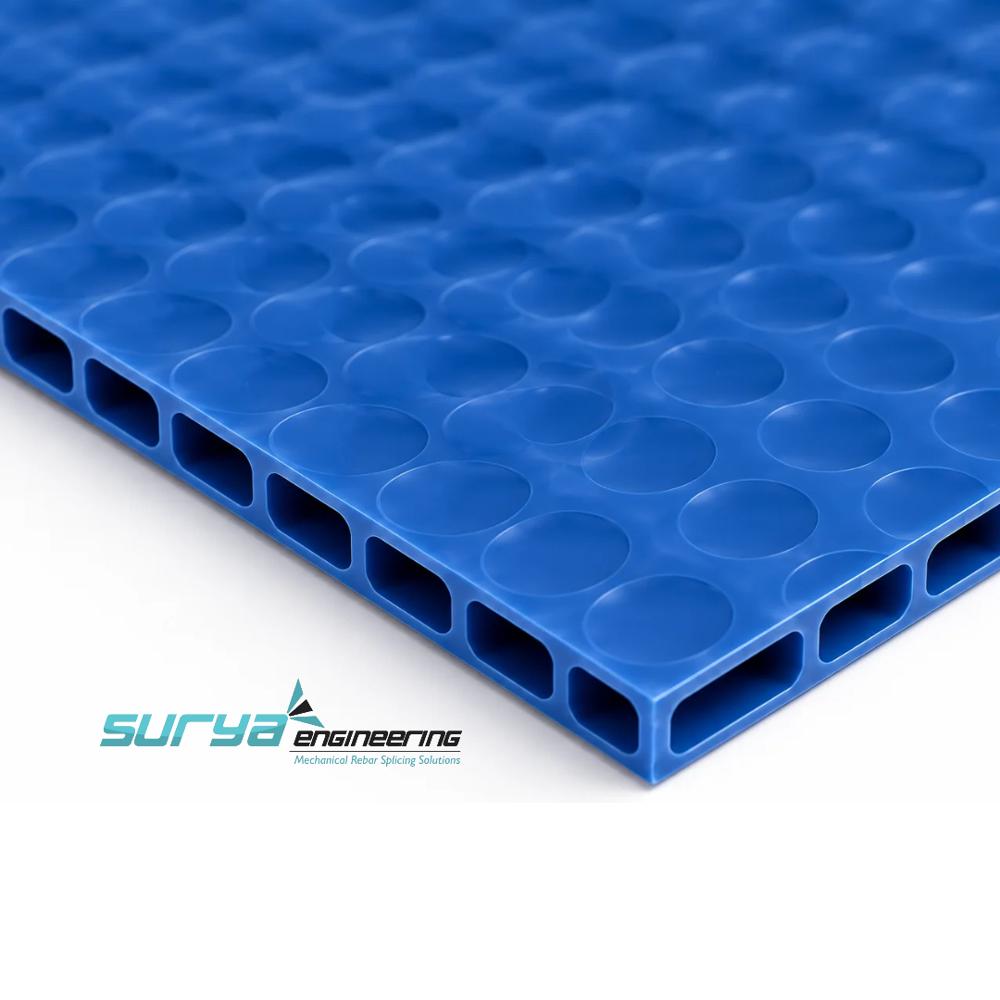

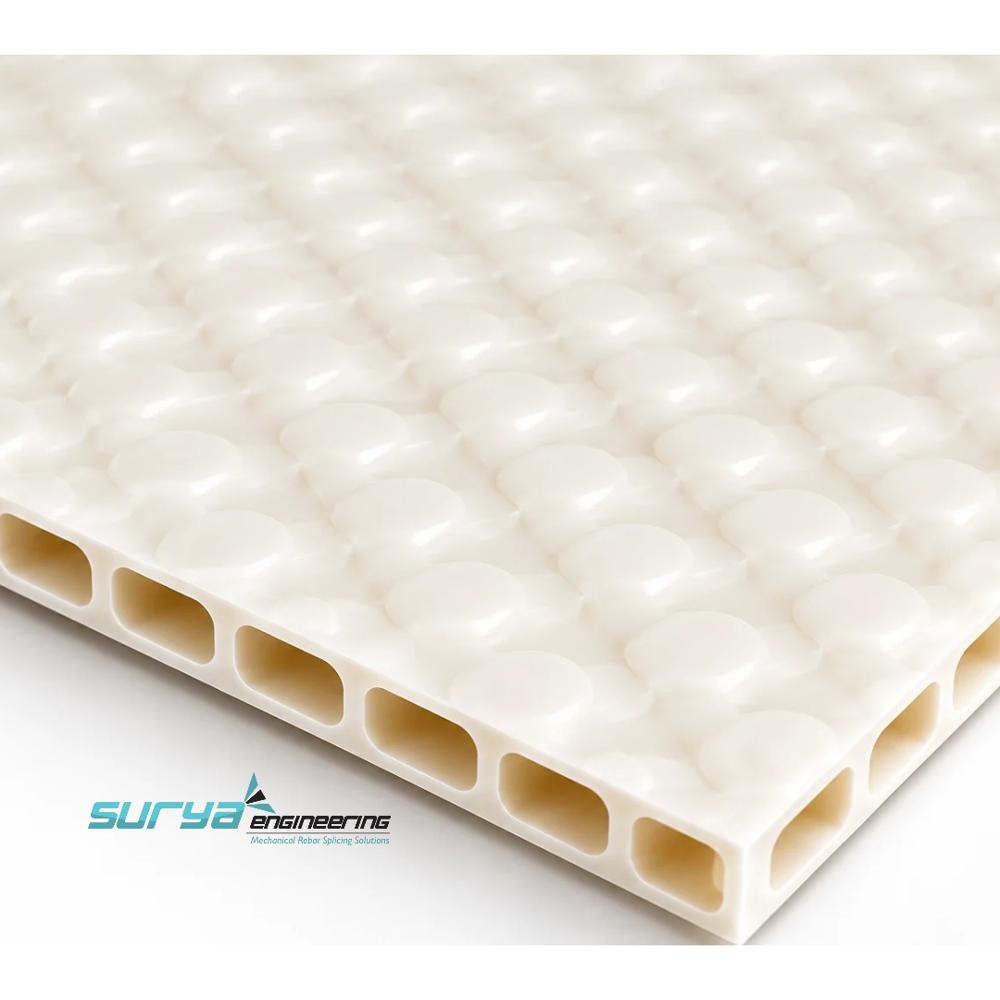

Bubble Guard is a multilayer cellular polypropylene board featuring a unique circular honeycomb core.

Structure is 3 layers:

Top Layer: Flat Polypropylene (PP) sheet
Middle Layer: Solid rigid hollow bubbles / circular honeycomb core that provides strength and shape
Bottom Layer: Flat Polypropylene (PP) sheet

The outer and the inner layer is sheet of PP which holds the solid rigid hollow bubble that provides strength and shape to the sheet.

Material is 100% polypropylene, 100% eco-friendly & recyclable.

There is now also world's first DOUBLE LAYER BUBBLE GUARD board with the highest weight range up to 6000 GSM.

Technical Specifications

Standard size in India is 4ft x 6ft, 4ft x 8ft (1.22m x 2.44m) but width up to 1300mm and length is customizable.

Common range:
MATERIAL :- POLYPROPYLENE, THICKNESS:- 2MM-6MM, WIDTH :- UPTO 1300MM, GSM:- 250-2200 GSM

Detailed commercial range:

Thickness	GSM Range	Width	Length	Packing
1.8 MM	175 to 600 GSM	1.22 Meter	2.44 Meter	75 Sheets
2 MM	200 to 750 GSM	1.22 Meter	2.44 Meter	60 Sheets
3 MM	400 to 1000 GSM	1.22 Meter	2.44 Meter	40 Sheets
4 MM	800 to 1200 GSM	1.22 Meter	2.44 Meter	30 Sheets
5 MM	1200 to 2500 GSM	1.22 Meter	2.44 Meter	20 Sheets
8 MM	2500 to 3500 GSM	1.22 Meter	2.44 Meter	10 Sheets

Data from manufacturer spec table

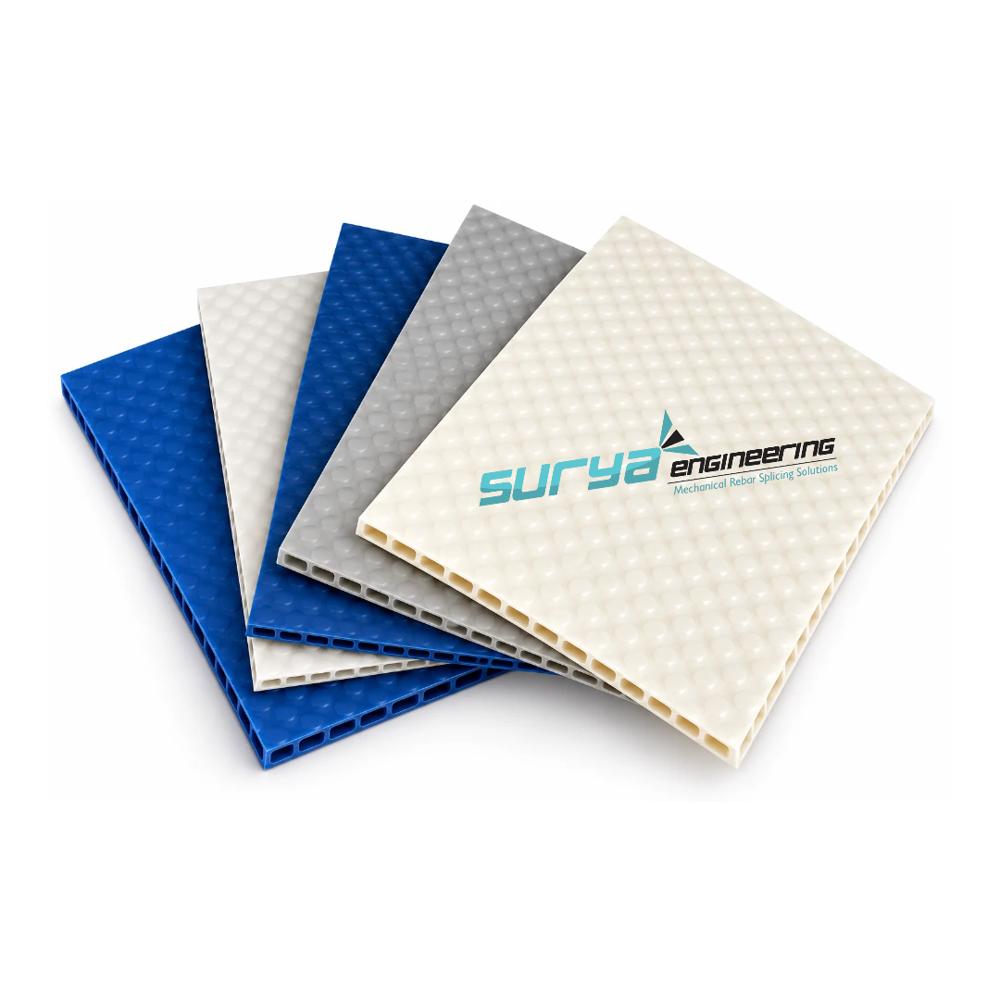

Colors: Natural, White, Grey, Blue, Black, Yellow. Yellow and Grey are most used for floor protection on sites.

Other properties of PP:

Low density
High heat resistance
High tensile strength
Very high chemical resistance
Tensile Strength @ Yield 26.5 MPa
Working temperature: +5C to +100C

Key Benefits

Why construction and engineering companies use it over cardboard / plastic film:

High Impact Resistance: The "bubble" core acts as a shock absorber against falling tools or debris
100% Waterproof: Protects your floors from liquid spills, paint, and chemicals
Lightweight & Durable: Easy to handle and move, yet tough enough to withstand heavy foot traffic
Reusable: Can be easily cleaned and rolled back up for the next project, making it cost effective
Slip-Resistant: Provides a safe walking surface for workers compared to traditional plastic films

Types Available

Standard Triplex (3-Ply): 2mm to 6mm, for general floor and packaging use
Double Layer / 6-Ply: 2 bubble cores, up to 12mm thick, 5000-6000 GSM, for heavy-duty protection
With Felt Backing: Felt laminated on one side to prevent scratches on Italian marble / wooden floors
Colored / Printed: Company logo printing for branding - Cello Bubble Guard, Nilkamal are big brands in India
Roll Form vs Sheet Form: Available in both Rolls (for large areas) and Sheets (for easy handling)

Where it is used

A. Construction / Interior - Main use in India:

Flooring Protection: Ideal for Italian marble, tiles, granite, and wooden flooring during construction
Wall Cladding: Can be used to protect wall surfaces and elevators during material transport
Furniture Shielding, Waterproofing Layer over membranes

B. Industrial Packaging - For Surya Engineering type use:

A 3-ply or 6-ply polypropylene (PP) sheet having a honeycomb structure as the middle layer to make a strong, rigid composite sheet, offering high mechanical properties for multiple applications like packaging boxes and false ceiling
Auto parts bins, collapsible boxes, partition / divider sheets in crates, tool kits
Die-cut boxes for fragile engineering components

Bubble Guard vs Bubble Wrap

Feature	Bubble Guard Sheet	Air Bubble Roll / Wrap
Material	Rigid PP	Soft LDPE film
Structure	3-layer solid board with rigid bubble	2-layer film with air-filled bubbles
Protection	Impact + scratch + water	Only cushioning
Reusable	10-15 times	1-2 times

If you need to protect floors or make reusable boxes - use Bubble Guard. If you need to wrap a product for courier - use bubble wrap.

Material

Primary Material: Polypropylene (PP)

Polypropylene is used for Bubble Guard products because it provides a combination of low weight, durability, moisture resistance, impact resistance and recyclability. Products using virgin PP can also be designed for repeated-use applications.

Water & Moisture Performance

This is a major buyer question for construction sites.

What buyers want to know:

Can it be used in wet areas?

You can write:

Bubble Guard Sheet is manufactured from polypropylene and is designed for moisture-resistant surface protection. Its cellular PP structure does not behave like paper or cardboard when exposed to normal site moisture.

Some commercial Bubble Guard products are explicitly described as waterproof.

Reuse Potential

Can be removed after completion of work
Can be cleaned and stored
Suitable for repeated temporary protection applications
Resistant to moisture compared with paper-based protection
Reusability depends on site conditions and handling

Manufacturers of Bubble Guard products explicitly market them as reusable solutions.

Surface Protection Capability

Create a visual section:

Protects Against

Foot Traffic
Dust & Dirt
Paint Spillage
Construction Debris
Scratches
Minor Impact
Material Movement

But don't claim that it protects against heavy machinery, structural loads or severe impacts unless you have appropriate testing.

Installation Data

This is something many product pages don't explain properly.

Installation Method

Loose Lay

Place directly over the prepared surface.
Suitable for temporary/light-duty applications.

Tape Down

Join sheets and secure them using appropriate tape.
Useful for areas with regular foot traffic.

Custom Fixing

Depending on the surface and application.

Superior Floor and Surface Protection

Bubble Guard Sheets offer robust and reliable floor protection for construction, renovation, or heavy-duty movement areas. Made from rigid polypropylene, their honeycomb structure provides high impact resistance, ensuring surfaces remain undamaged during heavy traffic or material movement. The boards are lightweight, reusable, and easy to install, making them ideal for protecting valuable surfaces without extensive setup.

Multiple Sizes, Thicknesses, and Custom Colors

Available in a range of thicknesses (from 2mm to 8mm) and standard sizes of 4x6 feet and 4x8 feet, Bubble Guard Sheets can be customized up to 1300mm wide. Choose from opaque yellow, grey, blue, white, black, and natural for easy identification or branding. This customization makes them highly adaptable for diverse industries and specific onsite requirements.

Reusable and Environmentally Responsible

Designed to be used 10 to 15 times without losing structural integrity, Bubble Guard Sheets are an eco-friendly, cost-efficient alternative to single-use floor protection materials. Their durable polypropylene construction ensures resistance to moisture, chemicals, and impacts, while supporting sustainable practices in construction and logistics.

FAQ's of Bubble Guard Sheet:

Q: How can Bubble Guard Sheets be used for floor or surface protection?

A: Bubble Guard Sheets are placed directly onto floors or surfaces needing protection during construction, renovation, paintwork, or shifting heavy items. Their rigid honeycomb design absorbs impact and prevents scratches, stains, or dents.

Q: What thickness and size options are available for Bubble Guard Sheets?

A: They are offered in thicknesses from 2mm to 8mm (with selectable options between 3mm and 5mm) and two main sizes: 4 x 6 feet (1220 x 1830 mm) and 4 x 8 feet (1220 x 2440 mm). Custom sizing is available up to 1300mm in width.

Q: When is it beneficial to use Bubble Guard Sheets over traditional protection materials?

A: Bubble Guard Sheets are highly beneficial in projects requiring repeated use, durability, moisture resistance, or impact protection, making them superior to cardboard, plywood, or single-use plastic sheets.

Q: Where can Bubble Guard Sheets be applied?

A: They are suitable for use in residential, commercial, and industrial settings such as construction sites, warehouses, factories, and for packaging or interior surface protection during moves.

Q: What is the process for installing Bubble Guard Sheets?

A: Installation is straightforward-simply lay the sheet flat over the desired surface and trim to fit as needed. Their lightweight design allows for quick repositioning or removal as projects progress.

Q: What are the benefits of choosing Bubble Guard Sheets for protection needs?

A: Their durability, reusability (up to 10-15 cycles), chemical and moisture resistance, and customizable color/size options provide flexible, long-lasting protection, reducing both costs and environmental impact.
