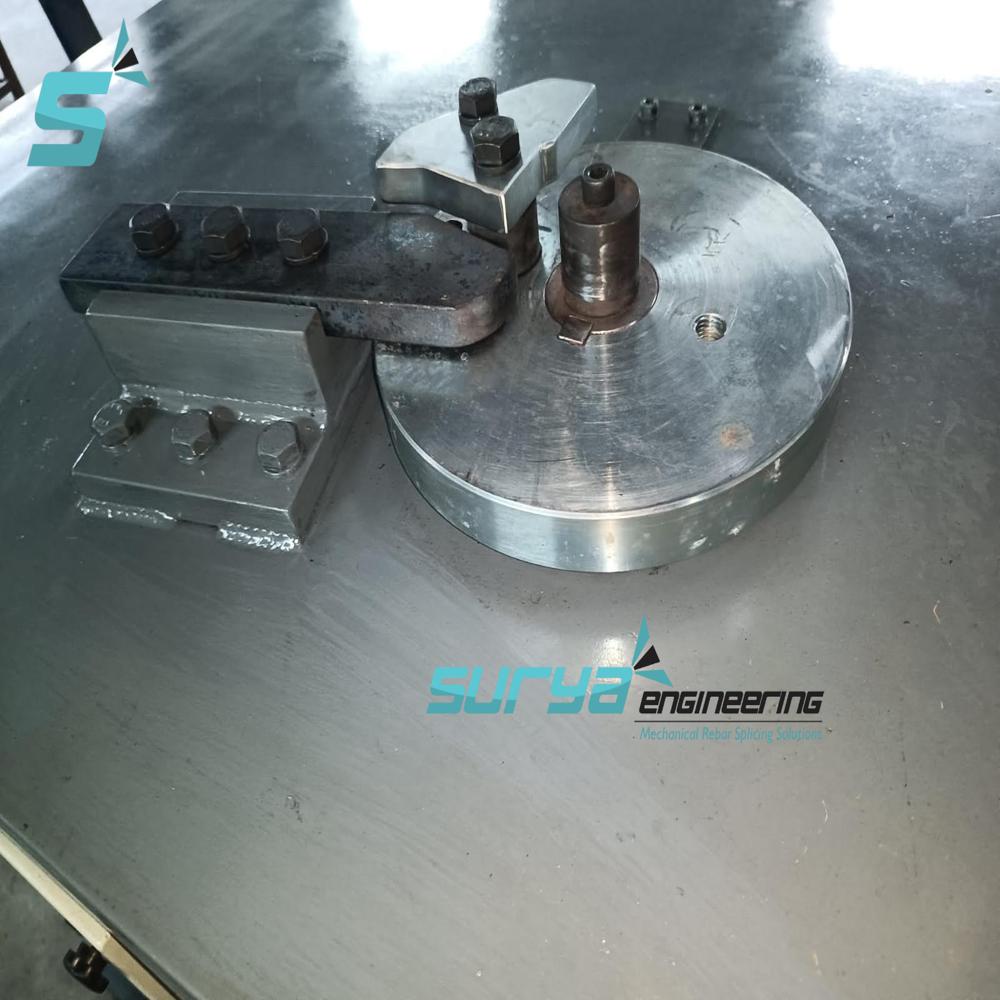

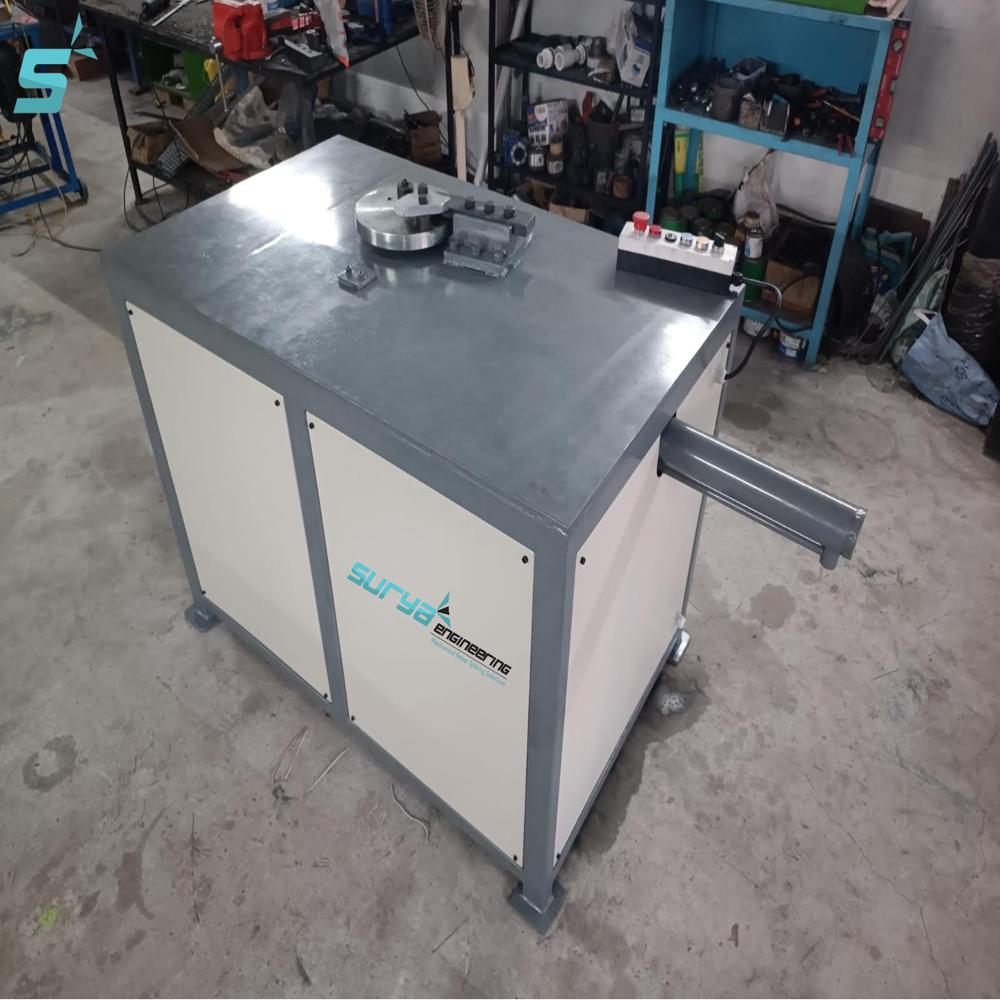

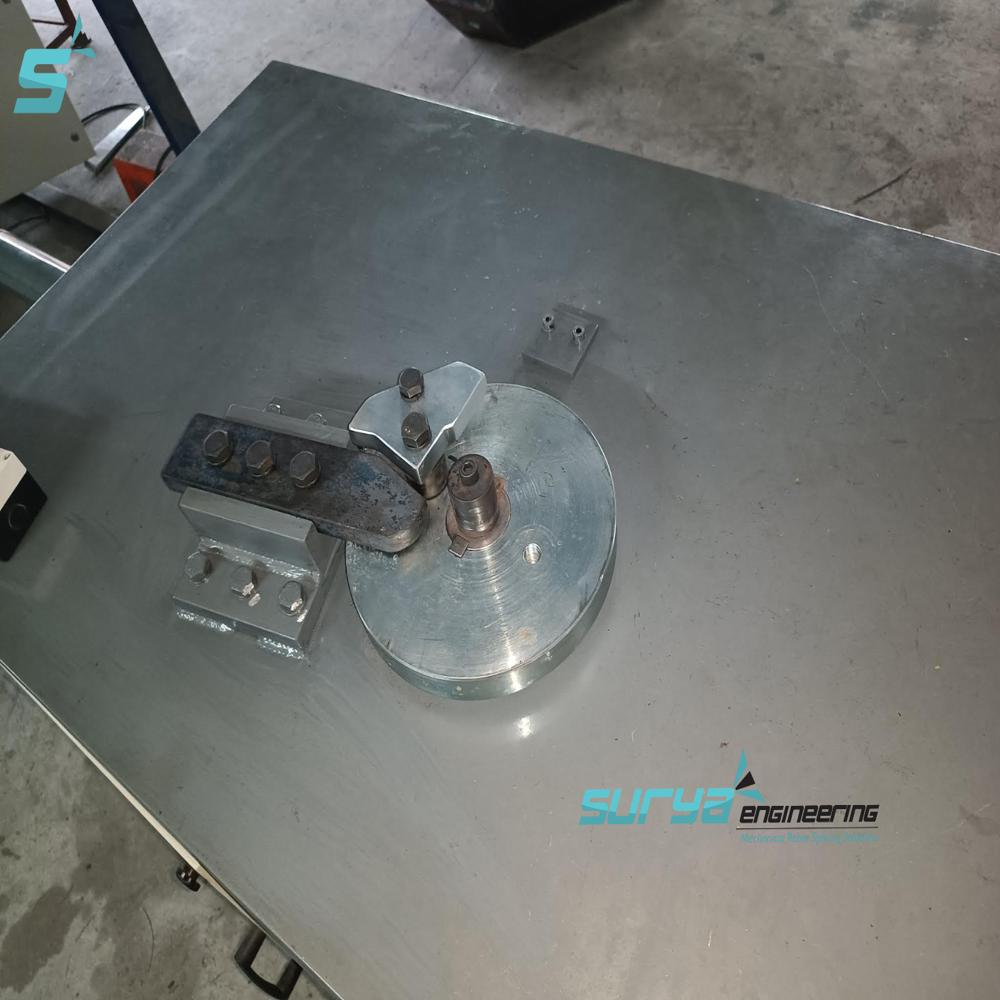

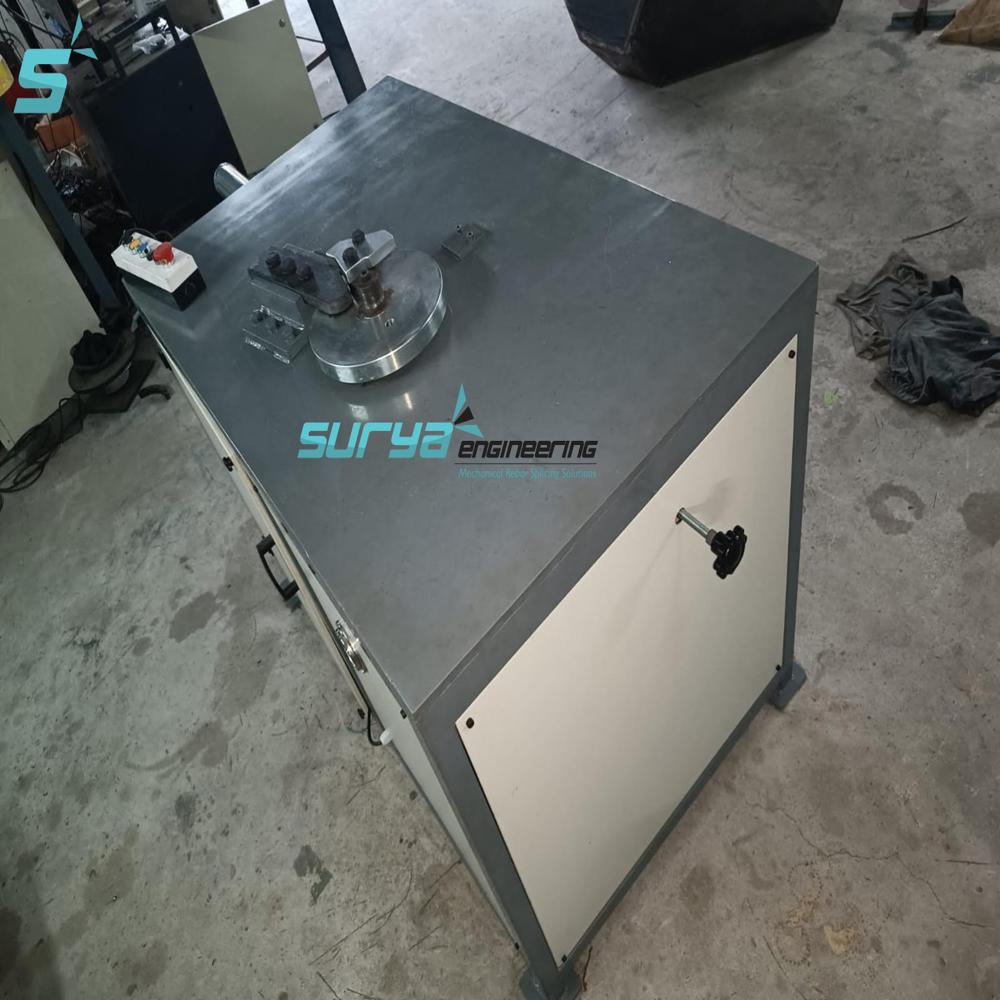

About Eye Bolt Banding Machine

What is an Eye Bolt Machine?

An Eye Bolt Machine is an automated or semi-automated heavy industrial production system engineered to form a circular structural loop (the "eye") on one end of a solid metal blank, while leaving or preparing the remaining shank for precision thread rolling.

Why is it Used?

Lifting eye bolts can never be manufactured by simply bending cold steel rods or welding a metal ring onto a threaded screw. Welded rings or poorly bent cold steel create high-stress concentrations along structural joints. Under heavy tension, these weak points break, causing catastrophic accidents.

An industrial eye bolt machine uses hot forging or precision cold forming to align the internal grain flow of the steel continuously around the circular eye. This uninterrupted internal structure ensures maximum tensile strength and allows the eye bolt to handle extreme lifting forces.

Technical Classification of Eye Bolt Manufacturing Systems

Surya Engineering classifies eye bolt production machinery into three primary categories based on manufacturing volume, structural design, and raw material specifications:

1. Automatic Hydraulic Eye Bolt Bending Machines

Ideal for manufacturing wire-drawn or lower-tonnage tie-down eye bolts. This machine takes cold-drawn steel rods, cuts them to exact lengths, and utilizes heavy-duty hydraulic cylinders to bend the loop over a precision mandrel in a continuous, high-speed cycle.

2. Hot Forging Friction Screw Press Systems

The gold standard for heavy-duty lifting hardware, such as collared lifting eye bolts. The machine works in tandem with an induction bar-heater.

The heated steel rod blank is placed inside a custom forging die block, and a high-tonnage vertical friction press strikes the glowing metal, forging the eye, collar, and shank simultaneously out of a single monolithic steel segment.

3. Combined Forging & Threading Production Lines

Fully integrated multi-stage machinery designed for massive industrial throughput. It combines induction heating, flash trimming, eye-punching, and high-speed rotary thread rolling into one unified, automated assembly line.

Primary Applications of the Finished Product

The high-load eye bolts produced by these machinery lines are critical components across a wide range of industrial applications:

• Heavy Electrical Machinery: Permanently threaded into the castings of massive industrial alternators, generators, and distribution transformers to allow overhead crane handling.

• Marine & Shipping Infrastructure: Anchored into port docks, vessel decks, and shipping containers for structural tie-down rigging.

• Automotive Die Tooling: Fastened into multi-ton stamping dies within automotive manufacturing plants to facilitate safe tool changes.

Step-by-Step Manufacturing & Installation Sequence

To produce heavy-duty lifting hardware that complies with international safety margins, production plants must follow a precise manufacturing and site installation workflow:

Bureau of Indian Standards (BIS) & Quality Testing Criteria

Lifting hardware must pass strict structural safety checks before it can be cleared for industrial supply chains. At Surya Engineering, our machinery outputs are tailored to fulfill strict Indian Standard criteria:

• Product Specifications (IS 4190:1984): Dictates the dimensional tolerances, thread profiles, and design requirements for classic lifting eye bolts used across mechanical engineering setups.

• Material Selection (IS 2062 / IS 1875): Ensures raw steel feeds feature high-tensile structural integrity, utilizing fully killed carbon or alloy steels to prevent brittle failures under low temperatures.

• Proof Load Testing: Every lifting eye bolt must undergo destructive or non-destructive pull testing. The hardware must safely withstand a proof load equal to twice its Rated Working Load Limit (WLL) without showing any permanent deformation or micro-cracking.

Unique Quality Assurance: The Surya Engineering UIN Advantage

What truly sets Surya Engineering apart from generic equipment suppliers is our implementation of a strict Unique Identification Number (UIN) System across our entire B2B product catalog.

 [BATCH INDUCTION] ---> [UIN LASER MARKING] ---> [DIGITAL COMPLIANCE LOG]
   (Raw Steel Heat)       (Individual Code)        (Tensile & NDT Proofs)

The UIN Advantage: Every eye bolt machine setup we install and every batch of heavy structural hardware we supply features a permanently stamped, traceable batch code.

This tracking system allows developers, project auditors, and site safety engineers to trace the product line all the way back to its raw material chemical analysis, forging parameters, heat treatment logs, and certified proof load testing sheets. This structural transparency makes passing international safety audits straightforward.

Key Advantages of Surya Engineering Production Machinery

• Uninterrupted Grain Flow: Our hot forging dies ensure the steel grain flows continuously around the circumference of the loop, providing exceptional fatigue resistance and high safe working load limits.

• High Production Efficiency: Engineered with advanced hydraulic logic and fast-cycle press mechanics, our production machinery maximizes output while minimizing scrap-metal waste.

• Flawless Thread Precision: Integrated rotary thread rolling units forge incredibly durable threads that prevent cross-threading and thread stripping during heavy rigging lifts.

• Comprehensive Supply Infrastructure: Operating out of our primary industrial hubs in Mumbai and Taloja MIDC, we provide rapid logistics to deliver bulk industrial machinery and structural accessories directly to sites across Navi Mumbai, Thane, Pune, Ahmedabad, Bengaluru, and Hyderabad.
