Buy CDRG 45 bar threading machine

Buy CDRG 45 bar threading machine Specification

Phase
3

Torque
Horizontal Stationary dyn-mm

Diameter
16mm - 40mm Millimeter (mm)

Shape
Horizontal Stationary

Product Type
Rebar Thread Rolling Machine / Bar Threading Machine

General Use
Rebar Splicing, Parallel Threading for Couplers

Material
Carbon Steel

Type
Drilling

Capacity
16mm to 40 mm (16mm 45 mm) m3/hr

Weight (kg)
380 Kilograms (kg)

Computerized
No

Automatic
No

Touch Screen
No

Control System
PLC Control

Surface Treatment
Chrome Plating

QC System
ISO Certified, Tested for Thread Pitch Accuracy

Tolerance
+0.05 mm Millimeter (mm)

Drawing
3D

Voltage
415 Volt (v)

Dimension (L*W*H)
1200mm*600mm*1100 Millimeter (mm)

Feature
Low Noise, High Efficiency, Simple Control, Stable Operation, High Performance, ECO Friendly

Color
Black / Yellow / Orange

Warranty
1 Year

Buy CDRG 45 bar threading machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About Buy CDRG 45 bar threading machine

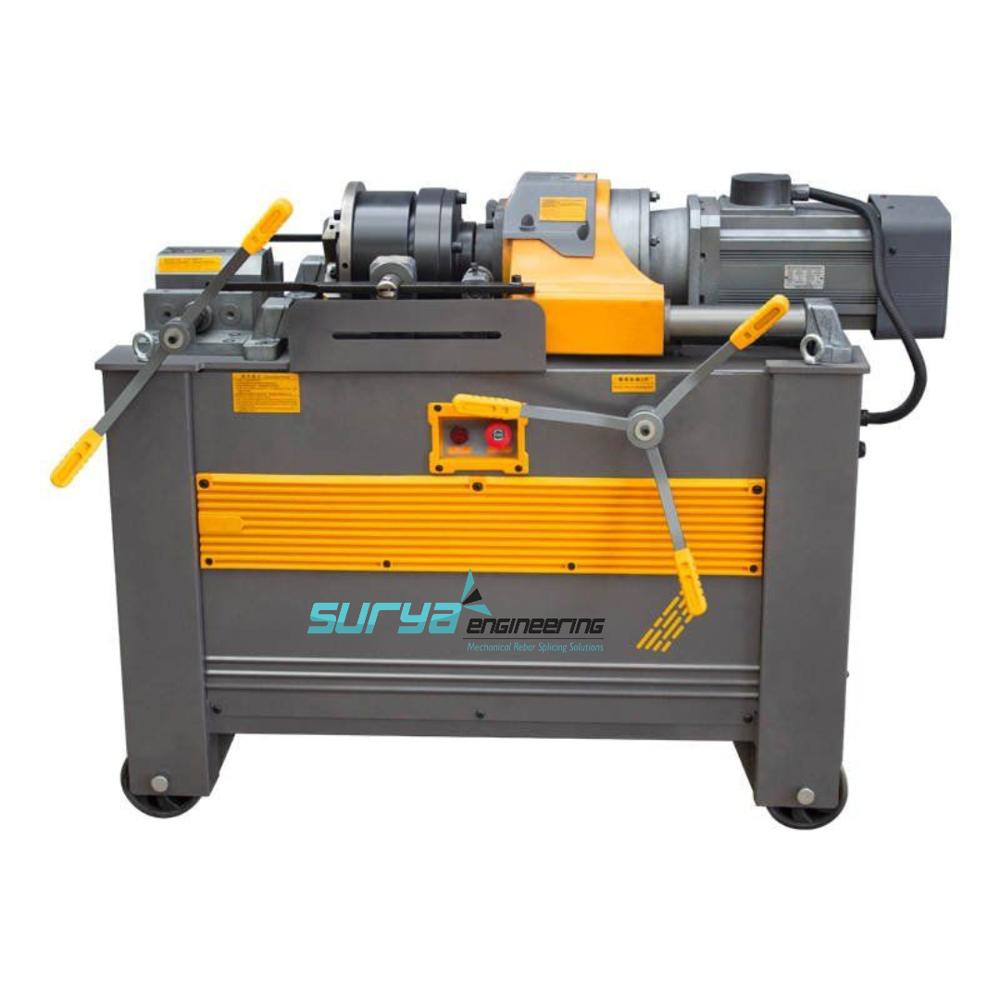

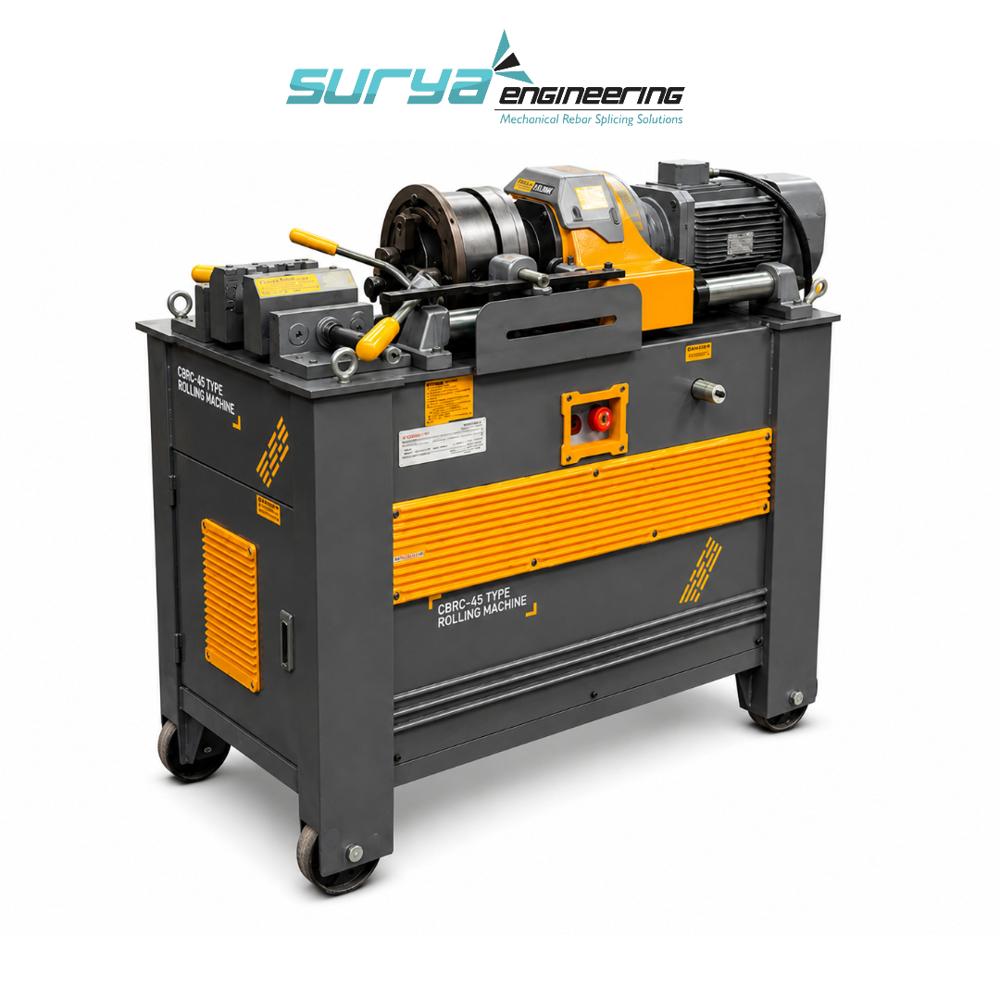

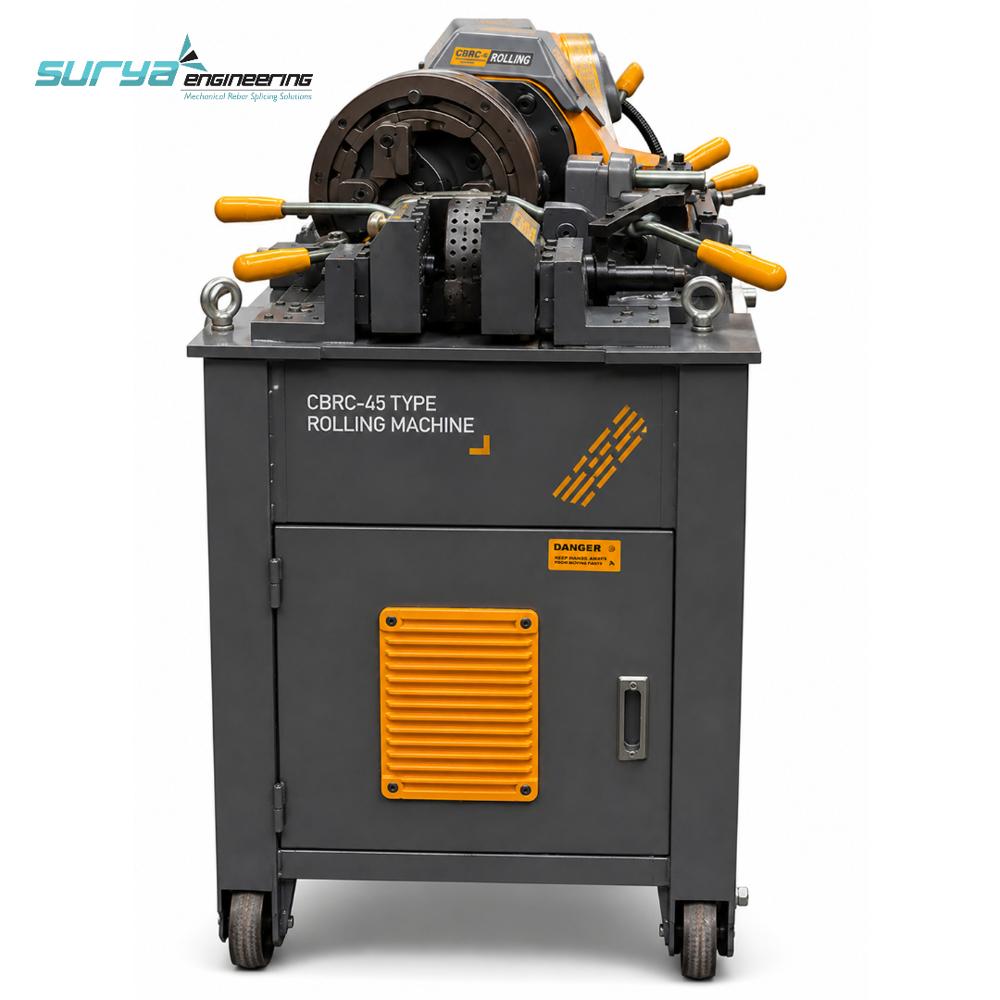

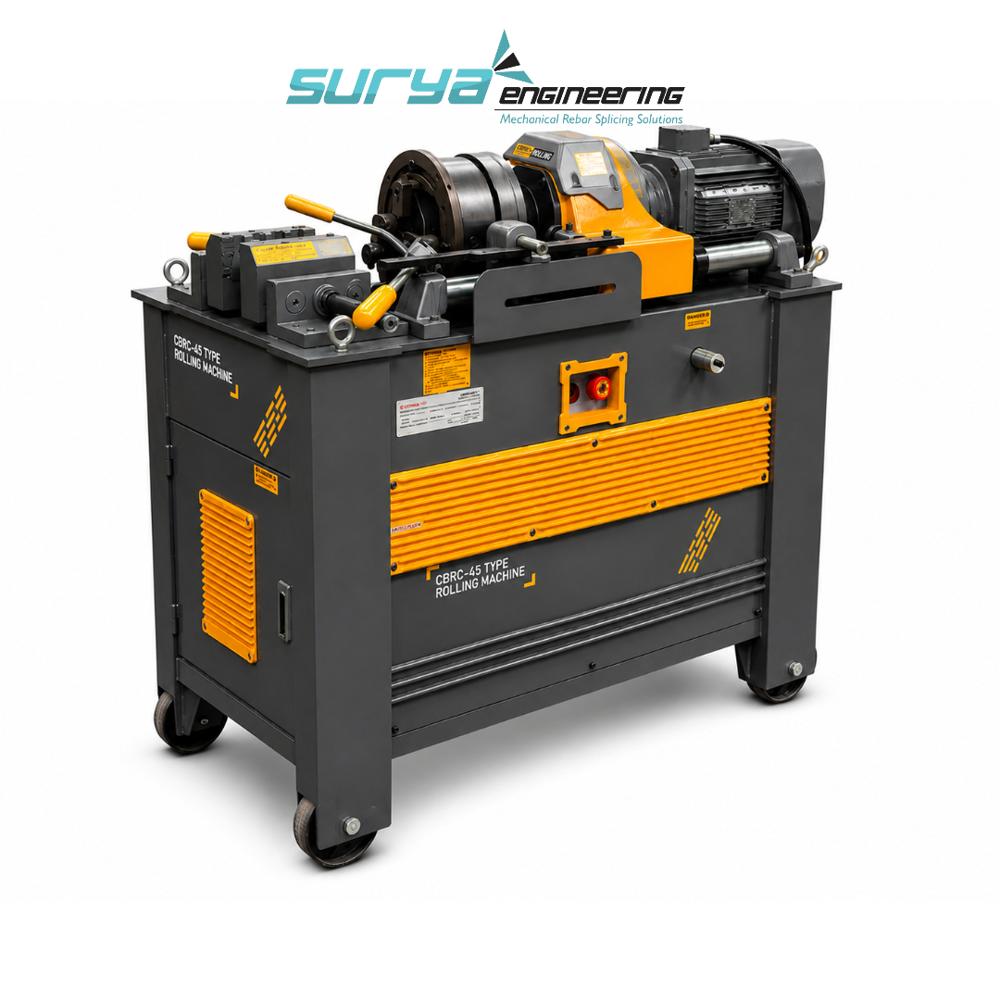

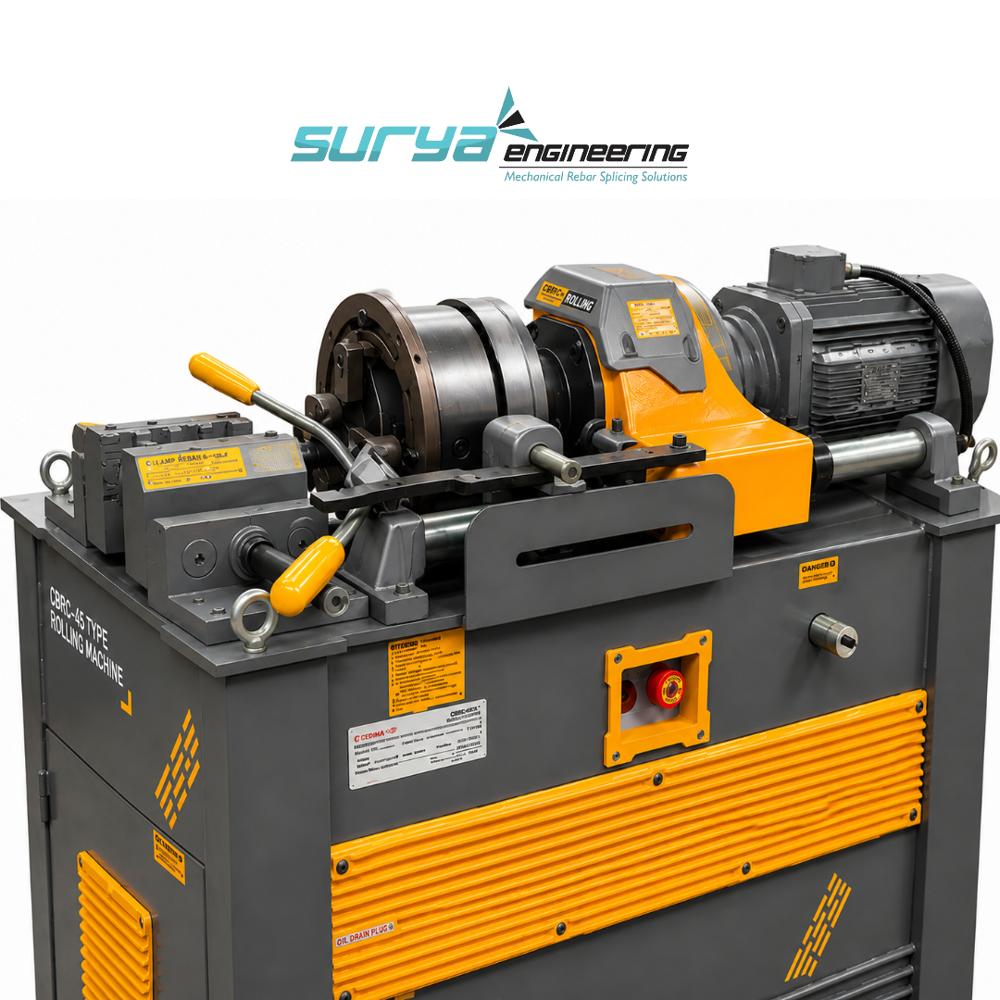

CDRG-45 Bar Threading Machine

The CDRG-45 bar threading machine, also known as a rebar threader or thread rolling machine, is essential for construction projects requiring high-strength rebar connections. This guide provides detailed product specifications, supplier information, and expert guidance for purchasing the CDRG-45 online.

What is the CDRG-45 Bar Threading Machine?

The CDRG-45 is a heavy-duty machine designed to create precise threads on reinforcement bars (rebar) ranging from 14mm to 45mm in diameter . It uses a cold thread rolling process for one-time molding, stripping ribs and rolling threads simultaneously .

Key Applications:

Infrastructure projects (bridges, dams, high-rise buildings)
Reinforced concrete structures requiring high-strength connections
Prefabrication yards (300-600 threads per 8-hour shift)
On-site construction for fast, reliable bar jointing

CDRG-45 Technical Specifications Comparison

Specification	Variant A (Standard)	Variant B (High-Power)	Variant C (Heavy-Duty)
Model	CDRG-45	CDRG-45 / CDRG-45R	CDRG-45
Threading Diameter	1640 mm	1645 mm	1440 mm
Motor Power	34 kW	5.5 kW	7.5 kW (10 HP)
Shaft Speed	4062 r/min	6280 r/min	4062 r/min
Threading Length	80100 mm	Up to 100 mm	80 mm
Thread Pitch	2.5 mm	2.5 / 3.0 / 3.5 mm	1.75, 2.0, 2.5, 3.0 mm
Weight	380 kg	380430 kg	380 kg
Automatic Grade	Semi-Automatic	Automatic (Sensor Type)	Semi-Automatic
Thread Angle	75/60	75/60	75/60
Voltage	220V / 380V / 415V	380V / 415V	415V
Price Range	85,00090,000	90,00095,000	1,05,000

CDRG-45 Product List: Suppliers & Models

A. Standard Models (16-40mm Capacity)

SONARY HGS40 Rebar Threading Machine
- Price: 90,000/piece
- Power: 4 kW, 100mm threading capacity
- Supplier: Sonary Industries, Delhi
SVR CDRG45 Rebar Thread Cutting Machine
- Price: 85,000/piece
- Capacity: 1440mm, 80mm threading length
- Supplier: SVR Company
Sunglow Machinery CDRG45
- Price: 1,05,000/piece
- Power: 5.5 kW, 1440 RPM, 3-phase 415V
- Supplier: Sunglow Machinery, Delhi

B. High-Capacity Models (16-45mm)

Fasta CDRG-45R Bar Threading Machine
- Price: 90,000/piece
- Power: 5.5 kW, 6280 RPM, up to 100mm threading
- Special Feature: Automatic sensor type, three-phase 50-60Hz
- Supplier: Reliflex Trades LLP, Bengaluru
Yantralink CDRG-45 Rebar Threading Machine
- Price: 95,000/piece
- Power: 5.5 kW, 62 r/min, 80mm working length
- Special Feature: Single phase option (220V) available
- Supplier: Yantralink Machine Tools, Ahmedabad
Reliflex CDRG-45 (Standard)
- Price: 90,000/piece
- Weight: 380 kg, 3 kW motor
- Production: 600 threads in 8 hours
- Supplier: Reliflex Trades LLP, Bengaluru

C. Fully Automatic Models

CDRG 45 Fully Automatic Threading Machine
- Capacity: 1440mm, 62 RPM speed
- Special Feature: Fully automatic operation
- Supplier: Various manufacturers
R.A CDRG-45 Rebar Threading Machine
- Features: 4562 r/min speed, 80mm threading length
- Thread Pitch Options: 2.5mm, 3.0mm, 3.5mm
- Supplier: RA Enterprises, Mumbai

D. Accessories & Consumables

CDRG45 Rebar Threading Rollers

Price: 5,500/set
Diameter: 79mm or 71mm
Capacity: Sets available for 16-20mm, 25-32mm, 36-40mm
Supplier: Qsm Machineries, Rajkot

Key Factors to Consider When Buying CDRG-45 Online

1. Bar Diameter Range

Most models handle 16-40mm; verify if your project requires the extended 45mm capability (CDRG-45R variant) .

2. Power Requirements

3kW (4 HP): Suitable for lighter duty
5.5kW (7.5 HP): Ideal for standard heavy-duty work
7.5kW (10 HP): Maximum productivity

Check voltage compatibility (220V single-phase vs. 380V/415V three-phase) at your site .

3. Threading Speed & Production Rate

Standard models operate at 40-62 r/min, producing 300-600 threads per shift . High-performance models reach 62-80 r/min for faster output .

4. Automation Level

Semi-automatic: Standard, cost-effective
Automatic/Sensor type: Higher precision, reduced operator fatigue

5. Roller Sets

Each model typically includes multiple roller sets for different bar diameters (16-22mm, 25-32mm, 36-40mm) .

6. Delivery & Warranty

Delivery: 24 hours (stock) to 30 days (manufacturing)
Warranty: 1-year on core components
Packaging: Wooden case or as requested

Where to Buy CDRG-45 Online

India

IndiaMART: Multiple suppliers, price range 85,000-1,05,000
MachanX: Verified listings with specifications
Machinio: New & used equipment

International

Alibaba.com: Models from USD 600-720, plus shipping
Afrimart South Africa: 380V models, 24-hour support

Verified Suppliers (India)

Supplier	Location	Rating	Response Rate
Hutaib Machinery & Spares	Bengaluru	4.1/5 (46 reviews)	66%
Reliflex Trades LLP	Bengaluru
Yantralink Machine Tools	Ahmedabad
Sona Construction Technologies	Thane
Qsm Machineries	Rajkot	4.0/5 (34 reviews)	85%
