60mm Mivan Pins: Specifications, Applications, and Installation.

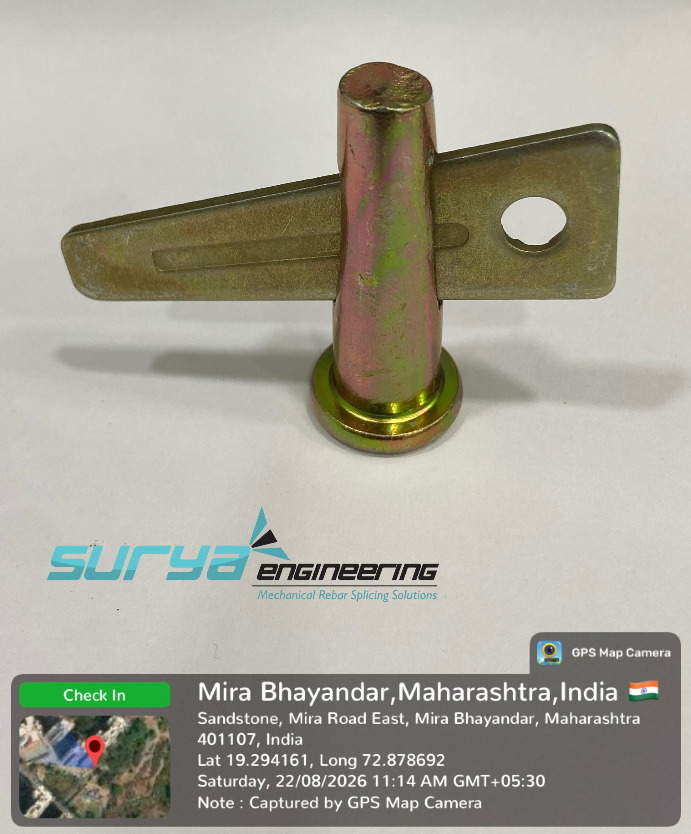

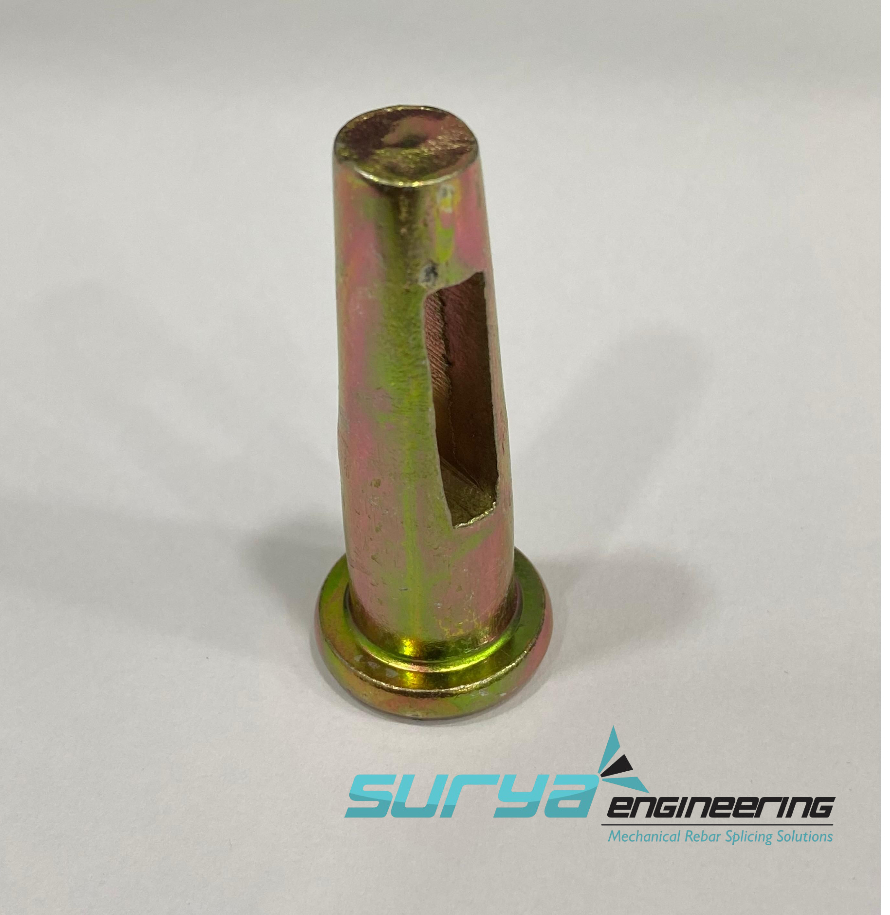

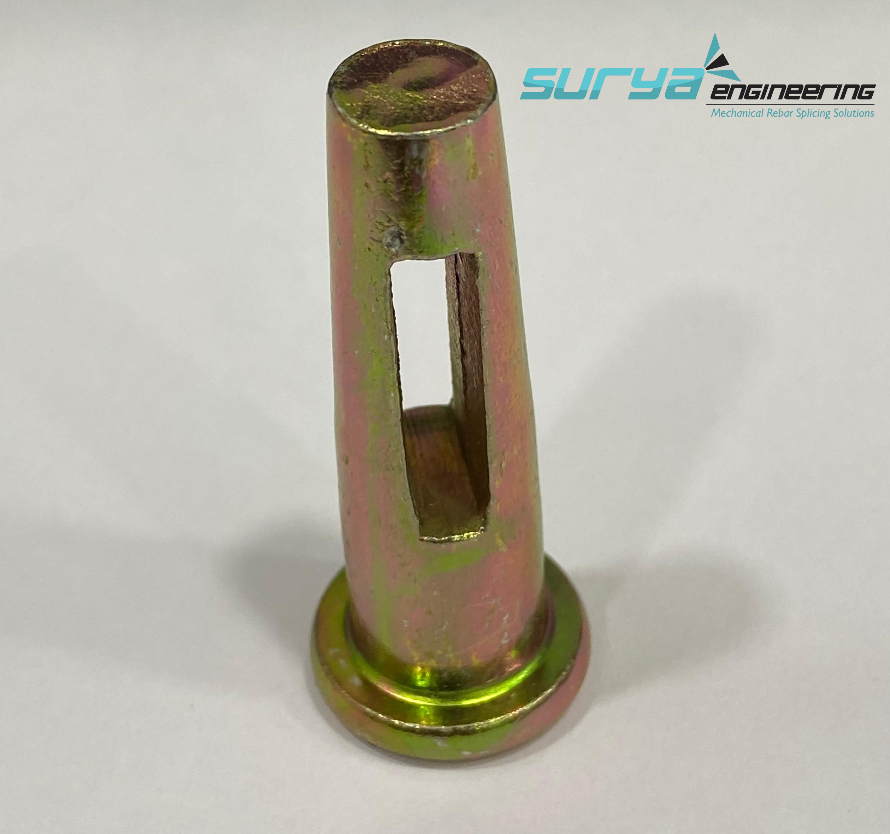

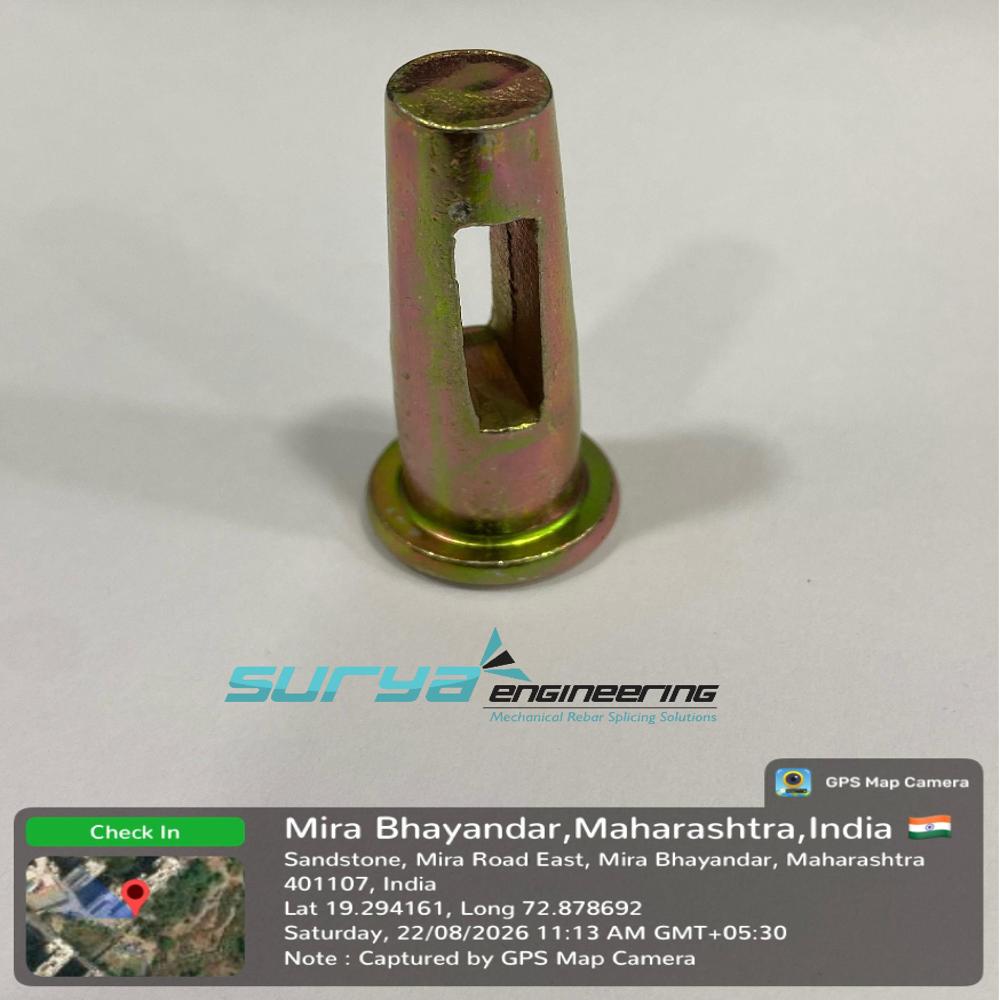

A 60mm long Mivan Pin is a high-strength connecting pin specifically designed for aluminum formwork systems used in modern construction. These pins, manufactured by Surya Engineering in India, are essential components that join aluminum panels together during concrete casting operations .

The "60mm" dimension refers to the length of the pin, making it suitable for standard panel connections in Mivan shuttering systems. These pins typically feature a 16mm diameter and are manufactured from high-grade carbon steel with zinc galvanization for superior corrosion resistance .

Why Mivan Pins Are Used

Mivan pins serve a critical function in the Mivan construction method, which has revolutionized construction in India. The primary purposes include:

Panel Alignment: The pins are inserted into pre-drilled holes in aluminum formwork joints, ensuring precise alignment of panels, Surya Engineering Mivan Pin.

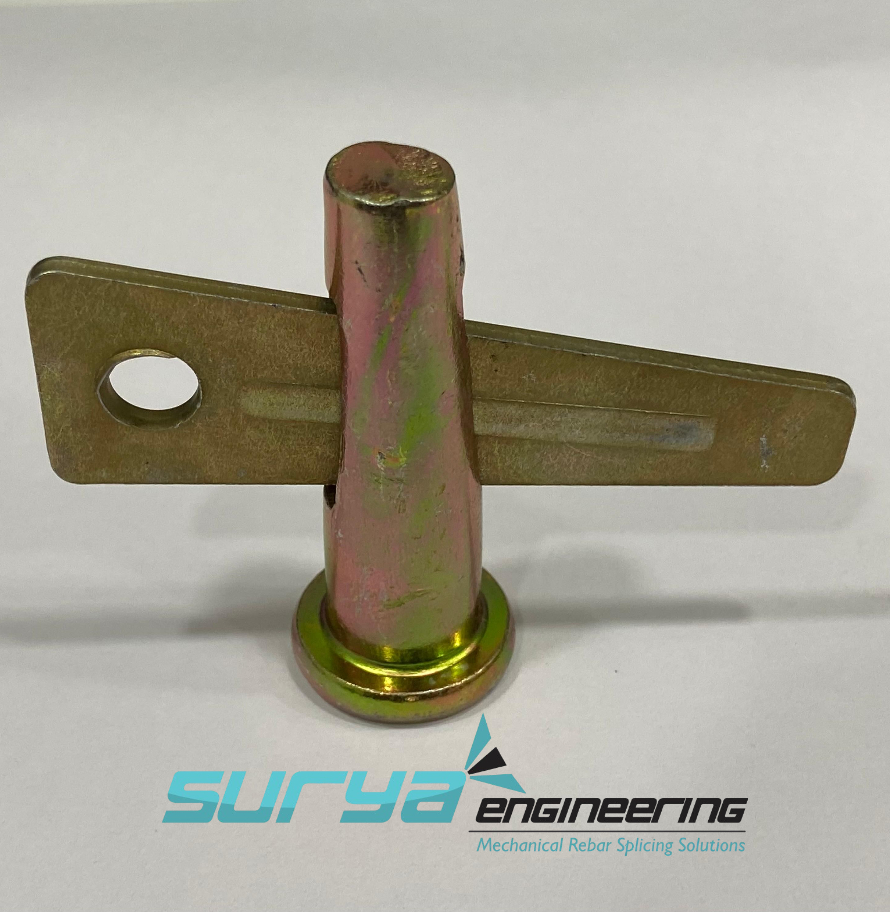

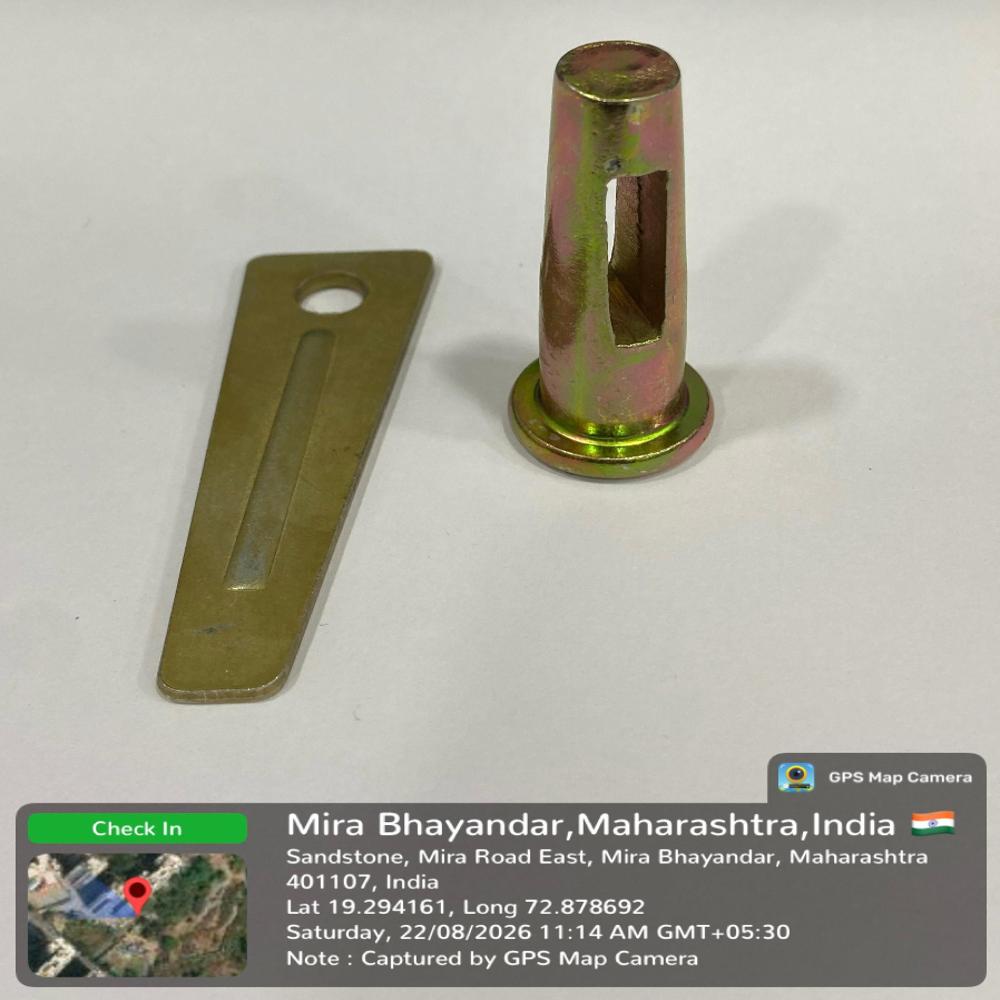

Secure Connection: Working in conjunction with wedges, these pins create tight, secure connections that remain stable during concrete pouring

Quick Assembly: The pin and wedge system enables rapid assembly and dismantling, significantly reducing construction time

Reusability: Unlike traditional formwork systems, Mivan pins are reusable across multiple construction cycles

Classification of Mivan Pins

Mivan pins are classified based on several parameters:

By Size

length: 50mm, 60mm

Diameter: Typically 16mm for standard applications

Weight: Available in 47g, 50g, and 60g variants

By Type

Solid Pins: Full-body construction for maximum strength

Hollow Pins: Lightweight design for reduced material usage

By Head Type

Round Head: Standard configuration for most applications

Flat Head: Specialized applications requiring flush fit

By Surface Treatment

Zinc Galvanized: Standard protection against corrosion

Plain/Silver Finish: Uncoated for specific applications

Yellow Coating: Enhanced visibility on site

Applications of 60mm Mivan Pins

Wall Panel Connections

The 60mm pin is specifically used for connecting internal and external wall panels in the Mivan system. During assembly, these pins secure panels together at designated joint points .

Corner Connections

Internal and external corner panels are fixed using round pins and wedges, creating the structural framework of the building .

Slab Panel Assembly

When assembling slab panels from the corner section outward, pins are used to connect individual panels together with link beams .

Beam Connections

Middle and end beams are combined using joint bars with long pins and wedges at the bottom section .

Installation Process: Step-by-Step Guide

Pre-Installation Checklist

Apply form oil on the surface of all panels for easy demoulding

Verify that all components are available and in good condition

Ensure proper grid lines are established

Installation Steps:-

Step 1: Initial Panel Setup

Start by fixing outer corners to external wall panels using round pins and wedges

Secure inner corners to internal wall panels following the same method

Step 2: Wall Panel Assembly

Insert 60mm pins into the pre-drilled alignment holes

Drive wedges into the joints to create a tight connection

Repeat for both internal and external walls

Step 3: Slab Panel Installation

Begin slab assembly from the corner section

Pin slab panels together using link beams

Ensure proper alignment throughout

Step 4: Quality Checks

Verify grid line alignment

Check slab deck levelling

Ensure proper supporting structure

IS Testing Standards for Mivan Pins

While specific IS (Indian Standards) for Mivan pins may vary, manufacturers like Surya Engineering adhere to rigorous quality standards:

Material Standards

IS 2062: Standard for structural steel

IS 1570: Specifications for steel for general engineering purposes

Quality Parameters

Hardness Testing: Typically measured in HRC.

Tensile Strength: Minimum standards for load-bearing capacity according to strength

Corrosion Resistance: Salt spray testing for galvanized coatings strong

Dimensional Accuracy: Precise measurement of diameter and length according to project

Surface Treatment Standards

IS 1573: Standard for hot-dip galvanized coatings

IS 2633: Specifications for electroplated coatings

Key Advantages of Using Mivan Pins

Speed and Efficiency

The Mivan pin and wedge system allows for remarkably rapid assembly and dismantling, significantly reducing overall construction timelines . The 7-day cycle approach to Mivan construction makes it ideal for projects requiring quick turnaround .

Superior Accuracy

The tight connections created by the wedges ensure precise panel alignment, resulting in high-quality concrete finishes with minimal defects . This precision reduces the need for plastering and finishing work.

Cost-Effectiveness

Being reusable, Mivan pins offer significant cost savings over traditional formwork methods . The system's durability ensures long-term value for construction projects.

Environmental Benefits

The reusable nature of Mivan pins reduces waste generation, making construction more environmentally sustainable . This aligns with modern green building practices.

Enhanced Safety

The robust connection system reduces the risk of formwork failure during concrete pouring, ensuring worker safety on construction sites .

Surya Engineering: Your Trusted Manufacturer in India

Surya Engineering, a leading manufacturer in India, specializes in producing high-quality Mivan pins meeting international standards. With a strong presence in Mumbai and across India, Surya Engineering ensures:

Quality Assurance: Rigorous testing and adherence to international standards

Custom Solutions: Various sizes and configurations available

PAN India Delivery: Efficient supply chain management

Technical Support: Expert guidance on installation and application

Factory Location

Head Office: With operations across India, including manufacturing capabilities serving Mumbai and other major cities

Supply Chain: Ensuring timely delivery to construction sites nationwide,

Mivan Pin 60mm

Specifications, Applications, and Installation

Specification Details

Length 60mm

Diameter 16mm
