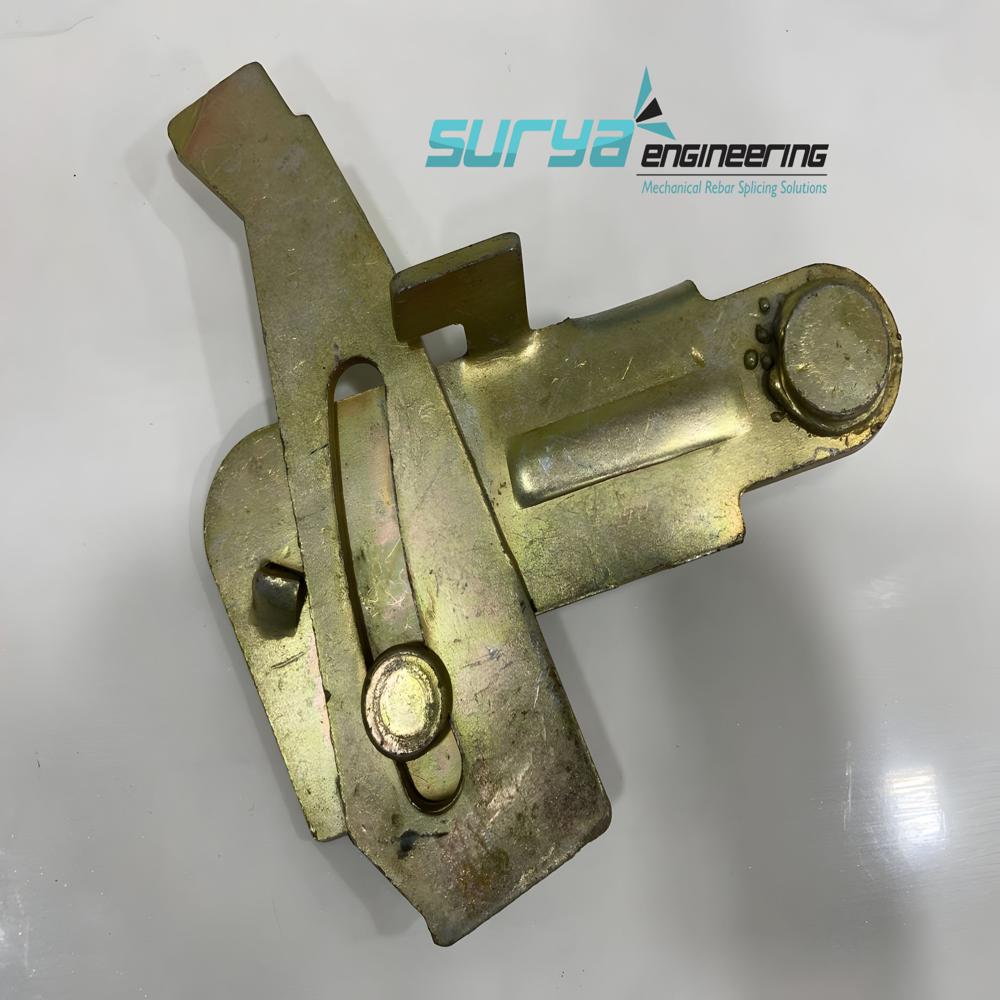

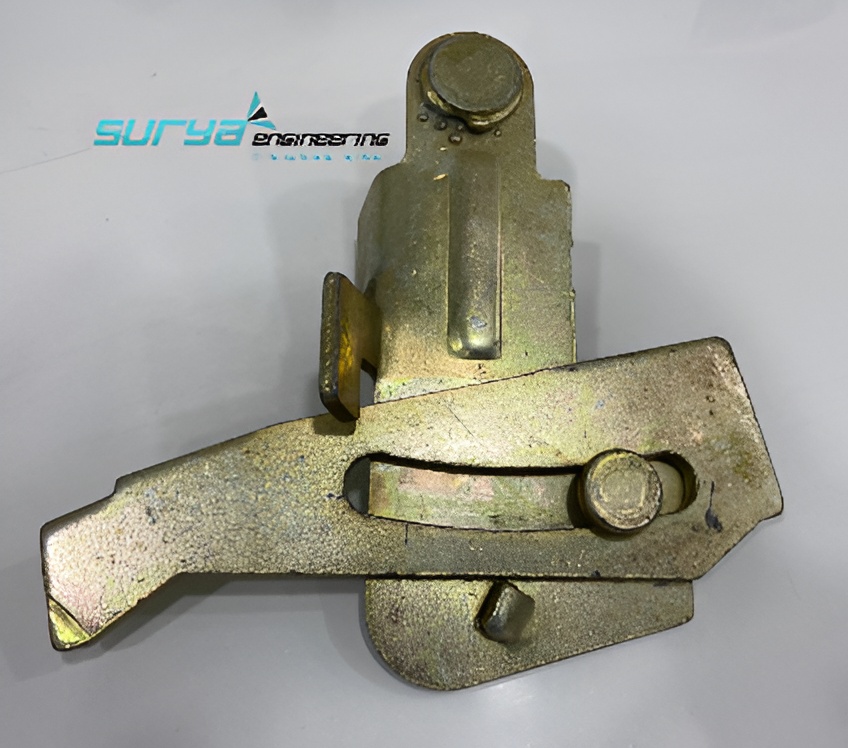

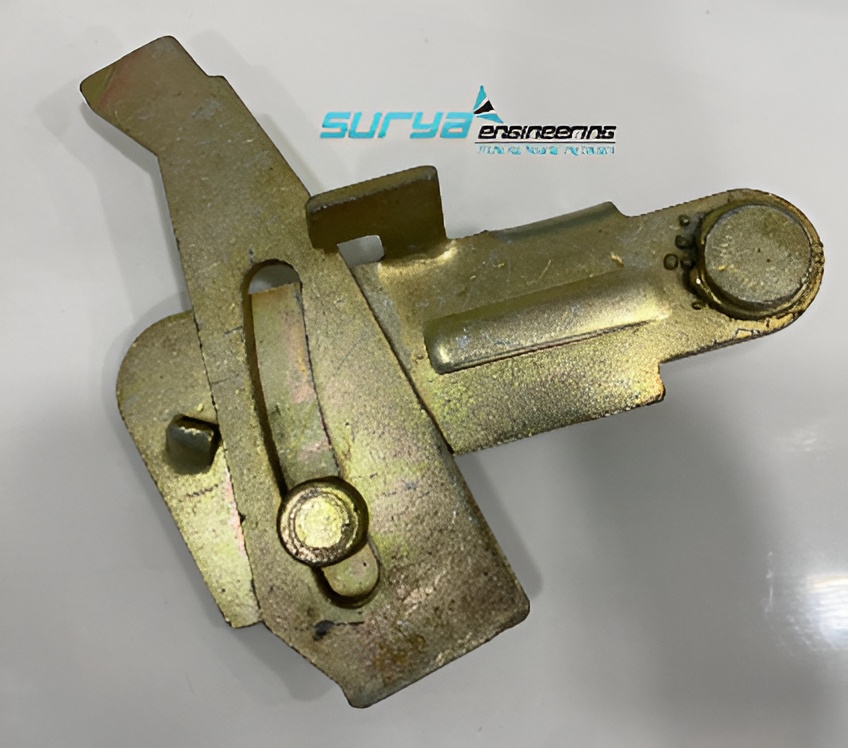

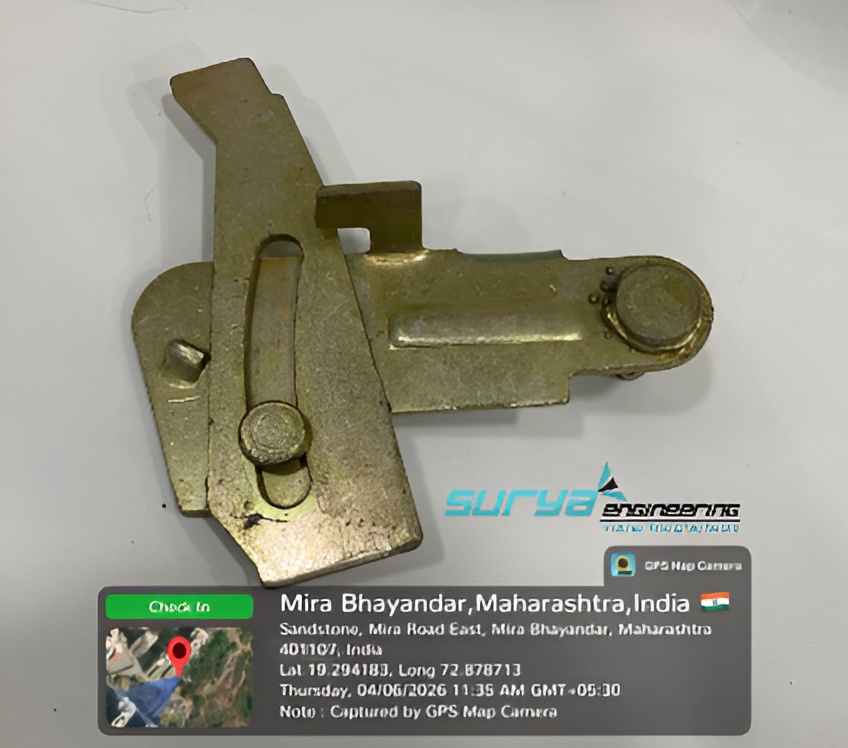

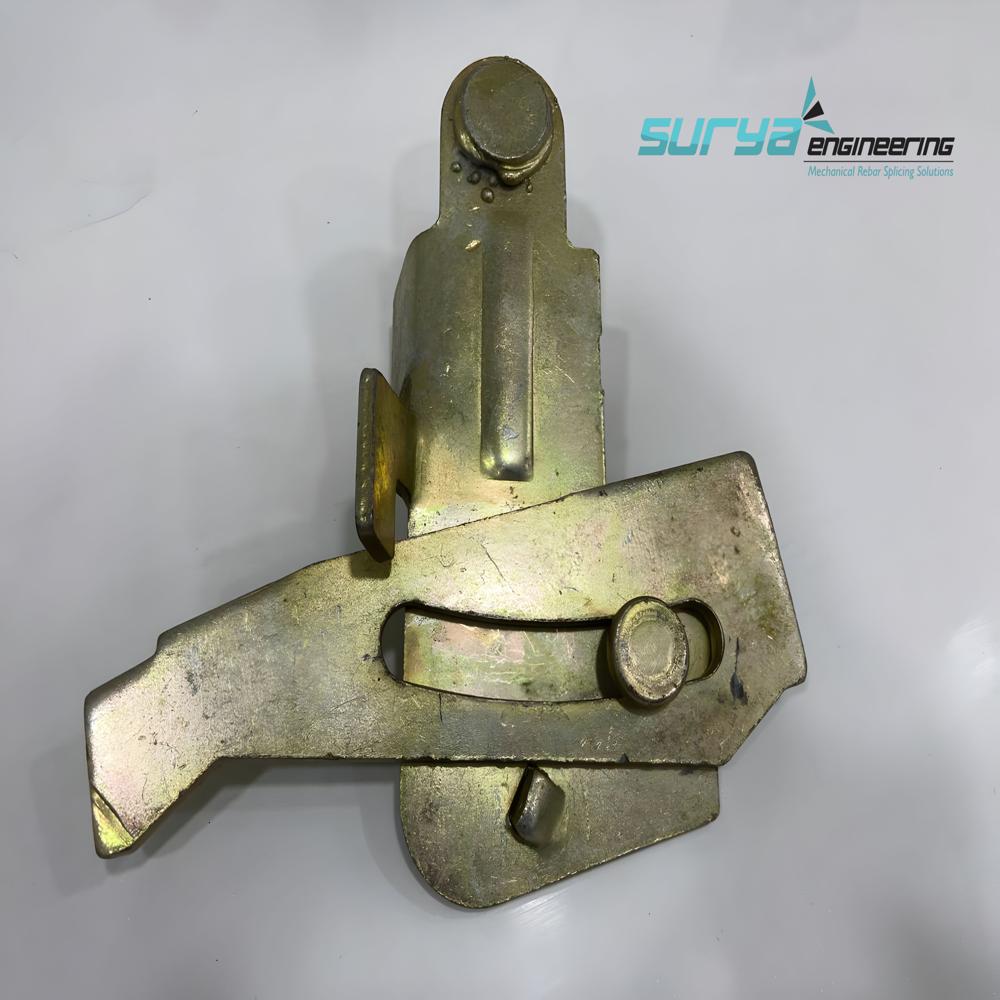

Waller Clamp for Concrete Formwork & Shuttering

A Waller Clamp is a heavy-duty formwork accessory used to hold, align, and secure concrete shuttering panels during concrete construction. It is commonly used with steel formwork, wall formwork, column formwork, and other temporary formwork systems where panels need to remain properly positioned during concrete placement.

For contractors, a waller clamp is a small component with an important job: it helps keep the formwork assembly together and supports accurate panel alignment before and during concreting.

What Exactly is a Waller Clamp?

In simple terms, a Waller Clamp is a high-strength metal bracket used to securely fasten horizontal waling beams to vertical support structures in formwork and scaffolding systems.

It goes by many names: Waling Clamp, Waler Clamp, German Clamp, Mivan Clamp, or sometimes just a "wall clamp." Different names, same job tying everything together into one rigid, rock-solid unit that can withstand the massive outward pressure of wet concrete.

Think of it as a super-strong "joint" that locks horizontal beams (the walers) to vertical supports (the uprights). It turns a bunch of loose pipes and panels into a single, unified structure that acts like a solid steel wall.

Why Is a Waller Clamp Important?

Fresh concrete creates significant pressure against formwork. The formwork system must therefore be properly designed, assembled, supported, and inspected to withstand the expected loads.

A waller clamp forms part of this overall system. It helps secure compatible walers and formwork components so that the assembly maintains its intended position.

However, a clamp should never be considered a substitute for proper formwork design or structural support. Its load capacity and application must match the manufacturer's specifications and the approved formwork arrangement.

Why is It So Important?

Using a cheap or poorly made Waller Clamp or skipping them altogether can lead to serious problems:

• Bulging Walls: The concrete pressure pushes the formwork outward, resulting in walls that are fat in the middle and not flat. This requires expensive patching and grinding later.

• Misaligned Walls: The formwork shifts, so the finished wall isn't vertical or straight. This compromises structural integrity.

• Blowouts (Formwork Failure): In the worst case, the formwork bursts open. Tons of wet concrete spill out. This is dangerous, messy, expensive, and can cause serious injuries.

• Extra Labor and Material Costs: Fixing these problems takes time, labor, and materials all of which eat into your profits.

A good Waller Clamp ensures your walls are straight, smooth, and dimensionally accurate. It reduces the need for plastering and patching, saving you time and money.

Applications of Waller Clamps

Waller clamps are used in suitable formwork applications including:

• Concrete wall formwork
• Steel shuttering
• Column formwork
• Foundation formwork
• Industrial construction
• Commercial buildings
• Residential construction
• Infrastructure projects
• Bridge construction
• Heavy-duty concrete structures
• Precast and site-cast concrete work
