Tie Rod

Tie Rod Specification

Length
1mm/2mm Millimeter (mm)

Height
1 Inch (in)

Operating System
Manual

Material
High-Strength Steel

Color
Black / Silver

Load Capacity
220 Kilograms (kg)

Diameter
15 mm / 16 mm / 17 mm Millimeter (mm)

Application
Mivan Formwork, Aluminium Formwork & RCC Construction

Usage
Formwork Panel Tying, Alignment & Concrete Shuttering

Surface Treatment
Galvanized / Zinc Plated

Weight
2.3 Kilograms (kg)

Feature
High Strength, Durable, Reusable, Precise Threading

Tie Rod Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
24 Hours

About Tie Rod

Tie Rod Supplier in India

Surya Engineering is a Tie Rod supplier and manufacturer in India, providing tie rods for construction, concrete formwork, shuttering, Mivan formwork, wall formwork, and other suitable applications.

A Tie Rod is an important component of a formwork system. It helps hold opposing formwork panels together and counteracts the pressure created by fresh concrete during casting. When used with compatible wing nuts, anchor nuts, water stoppers, waler plates, and other accessories, it becomes part of a complete formwork tie system.

For buyers, choosing the right Tie Rod is not simply about finding the lowest price. Diameter, length, thread type, material, load requirement, accessories, and formwork compatibility should all be checked before placing an order.

What Is a Tie Rod?

A Tie Rod is a threaded steel rod used to connect and restrain formwork components during concrete construction.

When wet concrete is poured into a formwork system, it creates lateral pressure on the panels. The Tie Rod helps resist this pressure by creating a tension connection between the formwork faces.

Main Site Applications

High-Rise Commercial & Residential: Shear wall shuttering, lift cores, and column pours.
Water Retaining Structures: Basement retaining walls, water tanks, and sewage treatment facilities (paired with central water stoppers).
Civil Infrastructure: Bridge abutments, metro station piers, culverts, and dam walls.

We Are Tie Rod Specialists

As a specialized Tie Rod supplier, we understand that strength and threading accuracy is critical.

Material: Mild Steel, Stainless Steel 304 / 316, EN8, EN24
Sizes: M6, M8, M10, M12, M16, M20, M24, M30, M36 - any length
Threading: Full Thread, Half Thread, UNC, UNF, Metric
Finish: Zinc Plated, Hot Dip Galvanized, Black Oxide, Plain
Application: Hydraulic Cylinders, Tie Rod Cylinders, Shuttering Work, Formwork, Steering Systems

We provide material test certificates, precise dimensional accuracy and ready stock for urgent requirements.

Our Tie Rod for Construction

Surya Engineering's published product information describes its Tie Rod as a high-tensile steel formwork tie designed to counteract concrete pressure. The company lists multiple sizes and configurations, along with compatibility with commonly used accessories such as wing nuts, water stops, and waler plates.

For example, Surya Engineering's published Mivan Tie Rod specification lists a 16 mm diameter, 1500 mm length, MS material, full thread, 15/17 mm thread size, black oxide coating, and 120 kN breaking load for that particular product configuration.

Always confirm the exact specification for the product variant you are purchasing.

Product Selection

Requirement	What to Check
Diameter	Required project size
Length	Formwork/wall thickness + connection allowance
Material	MS / specified steel grade
Thread	Compatible thread system
Finish	Black oxide / galvanized / other
Load	Required design capacity
Accessories	Wing nut, plate, water stopper, etc.
Application	Mivan / wall / column / other
Quantity	Project requirement

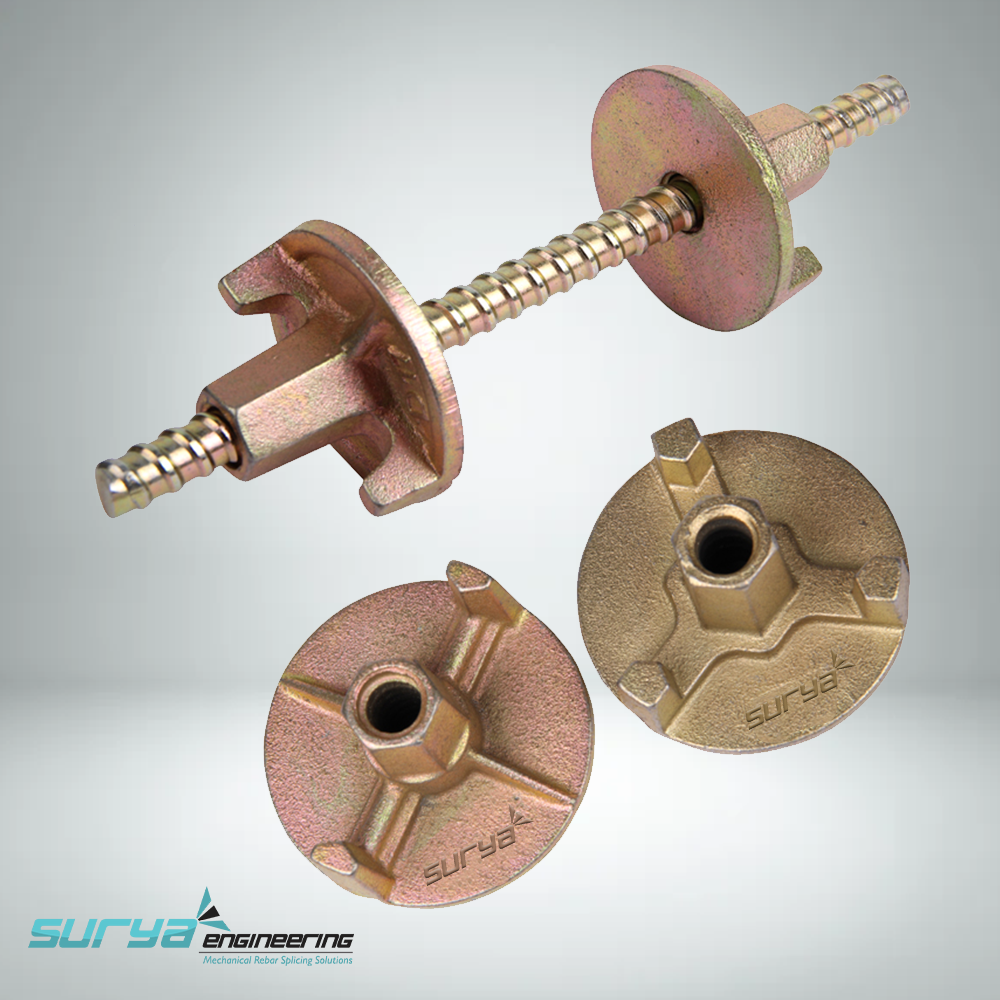

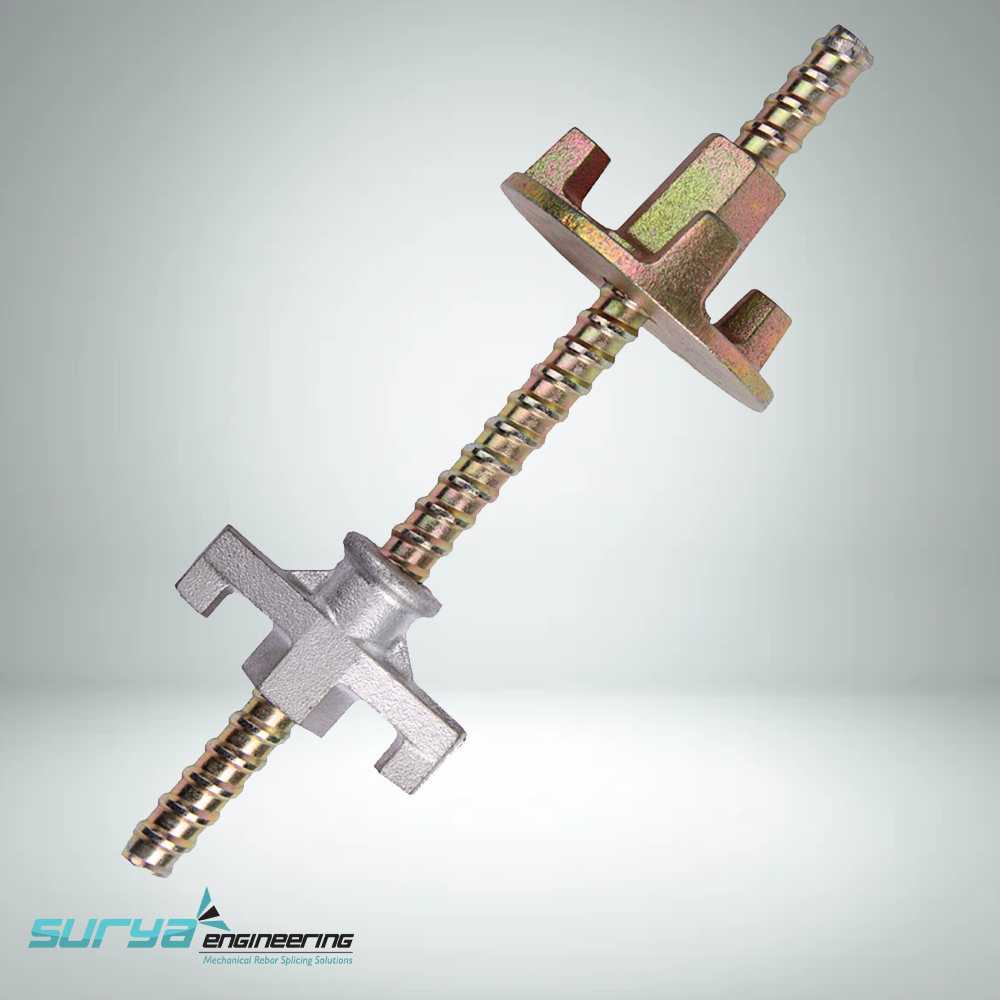

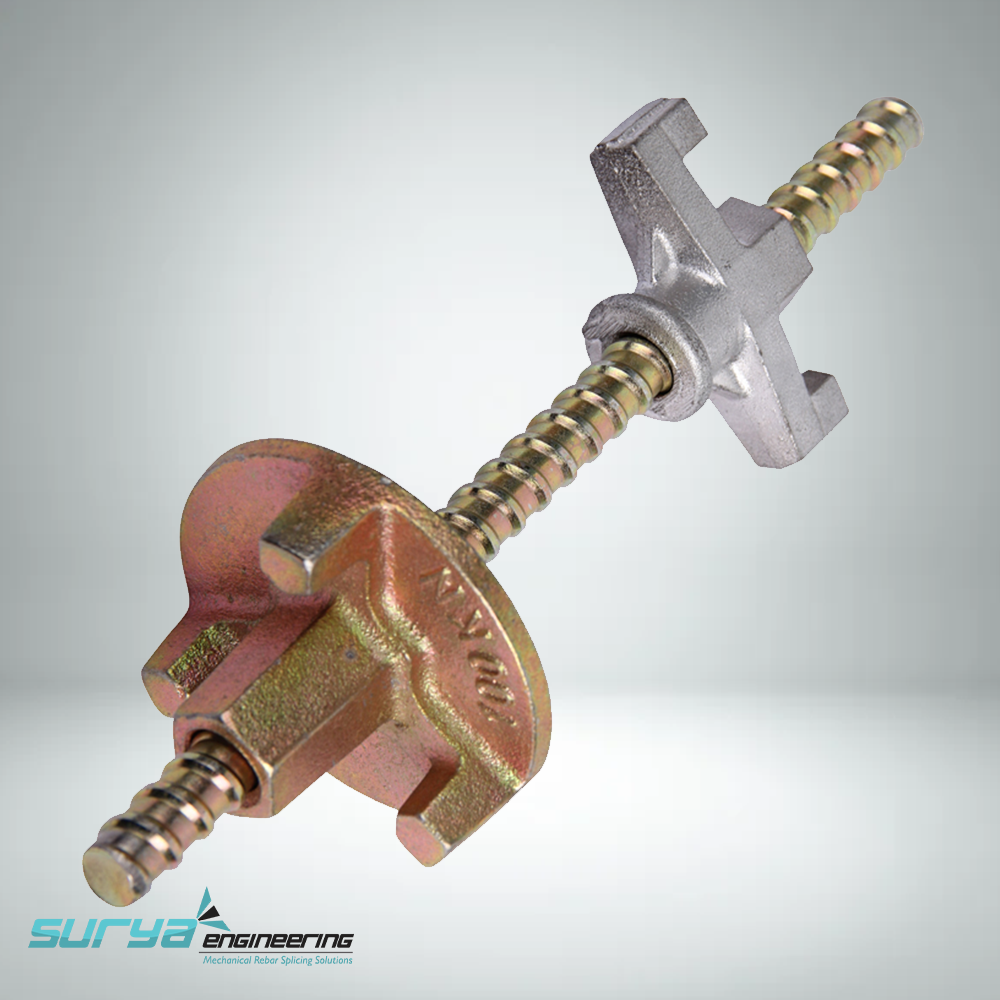

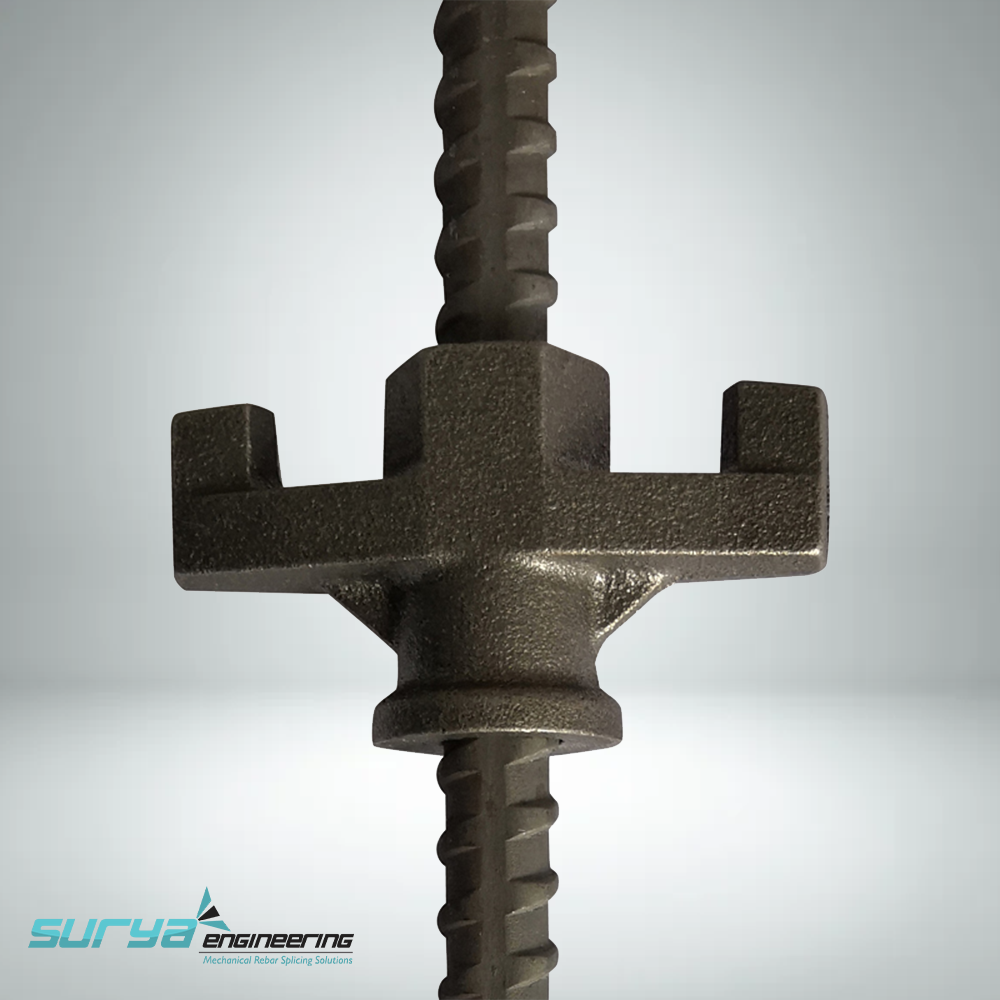

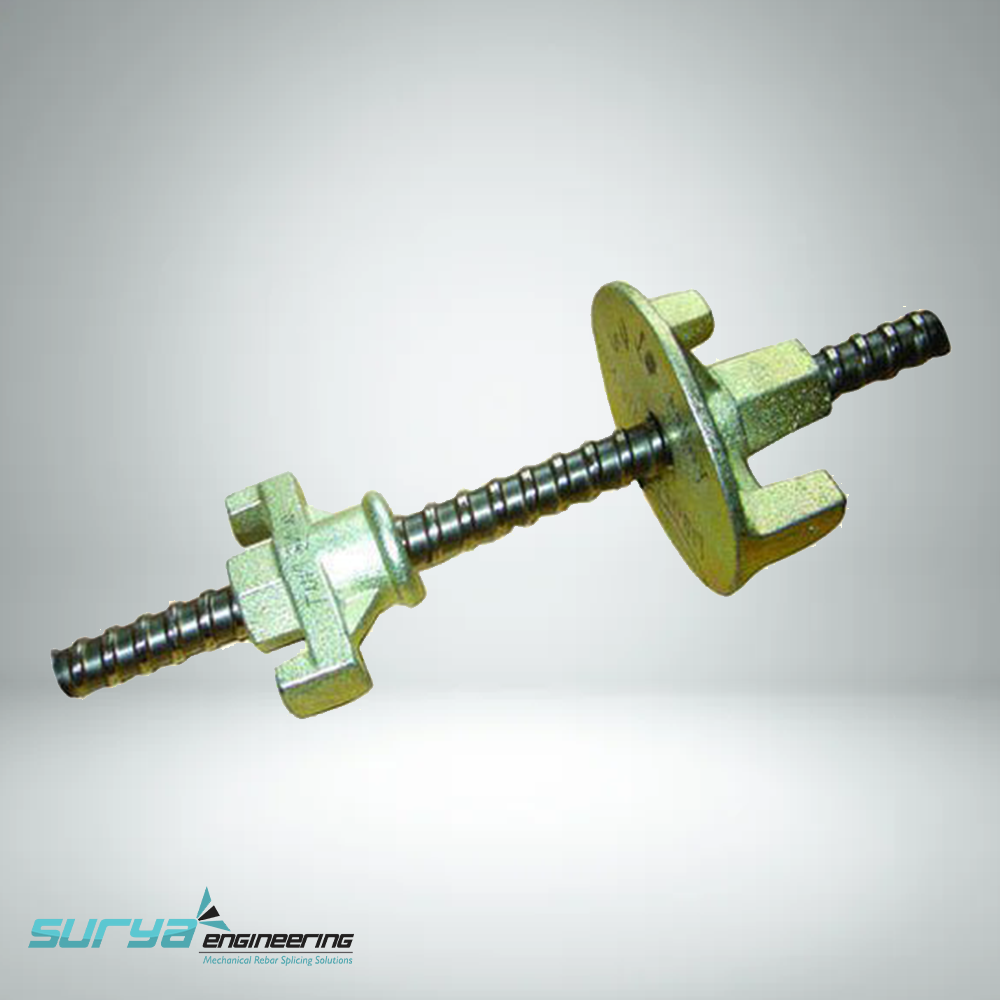

Integrated Accessories (Complete Formwork Systems)

Cast Iron Wing Nuts & Flange Nuts: High-grade ductile iron nuts with wide bearing plates for secure clamping against waler channels.
Water Stoppers (Water Barriers): Cast iron center units that disrupt capillary action to ensure 100% watertight integrity in basement pours.
PVC Sleeve Tubes & Cones: Protects the inner tie rod from contacting concrete matrix for effortless extraction post-curing.

ie Rod Accessories

A Tie Rod normally works with other components.

Depending on the application, these may include:

Wing Nut
Anchor Nut
Waler Plate
Water Stopper
Tie Rod Coupler
PVC Sleeve
Plastic Cone
Washer Plate

Why Buy Tie Rods From Surya Engineering?

Surya Engineering supplies Tie Rods for construction and formwork applications with PAN-India supply support. Its published information highlights high-tensile steel construction, dimensional accuracy, thread consistency, and compatibility with commonly used formwork accessories.

For project requirements, buyers can discuss:

Standard Tie Rods
Mivan Tie Rods
Construction Tie Rods
Different lengths
Different configurations
Compatible accessories
Bulk orders
Project-specific requirements

This makes the purchasing process easier when the requirement is more specific than simply "Tie Rod."

Frequently Asked Questions

What is a Tie Rod?

A Tie Rod is a threaded steel component used to connect and restrain compatible formwork panels during concrete construction.

What is a Tie Rod used for?

It is used in concrete formwork, shuttering, Mivan formwork, wall formwork, column formwork, foundations, retaining walls, bridges, tunnels, and other suitable applications.

What Tie Rod size should I use?

The correct size depends on the formwork design, expected concrete pressure, tie spacing, required length, and complete accessory system. It should not be selected from diameter alone.

Can Tie Rods be reused?

Tie Rods designed for reuse can be reused after proper inspection. Rods with damaged threads, bending, cracks, excessive corrosion, or deformation should be removed from service.

Can a Tie Rod be used with a Wing Nut?

Yes, when the Tie Rod and Wing Nut have compatible thread dimensions and are intended to work together.

What is a Mivan Tie Rod?

A Mivan Tie Rod is a Tie Rod configuration used with compatible Mivan/aluminium formwork systems. The required dimensions and accessories depend on the particular system.

Can I order Tie Rods in bulk?

Yes. Bulk orders can be arranged according to the required diameter, length, specification, and quantity.

What should I send when asking for a quotation?

Send the diameter, length, thread type, material requirement, application, quantity, accessories required, and delivery location. A photo or drawing is useful for replacement orders.
