Parameter	Details

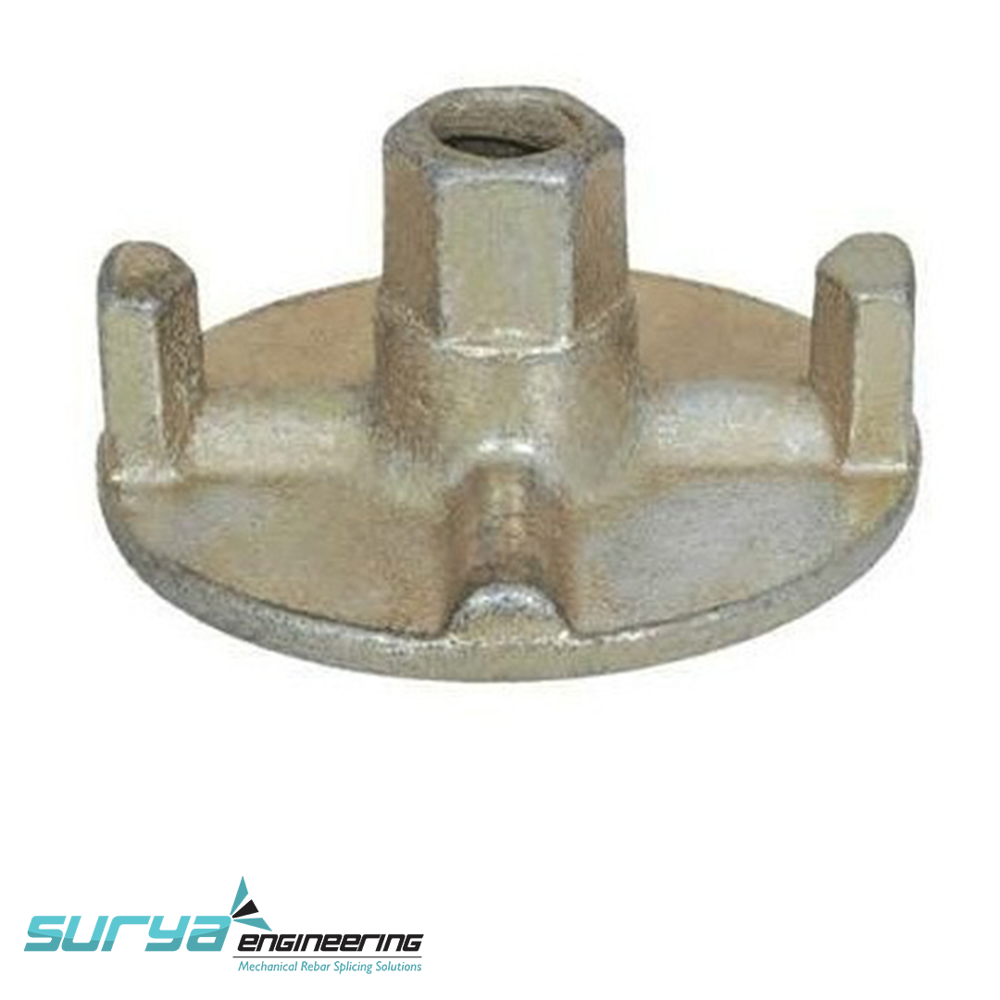

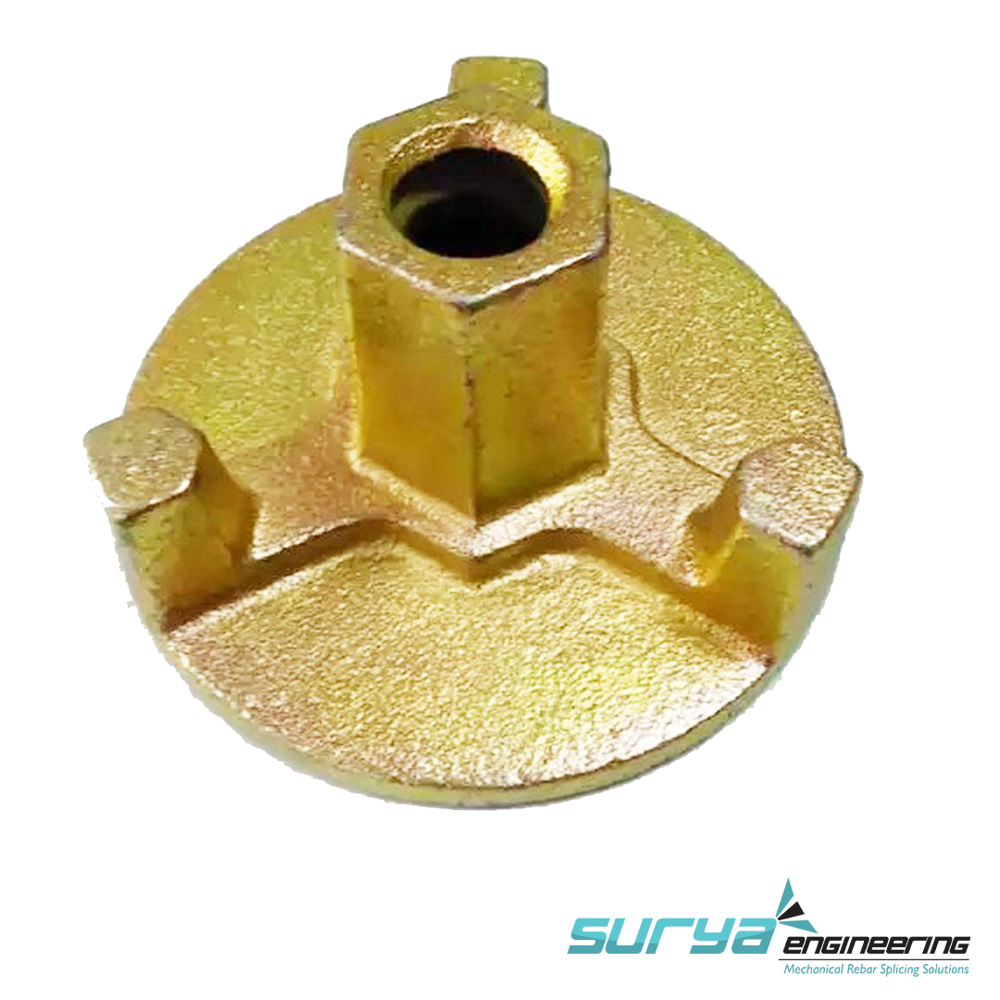

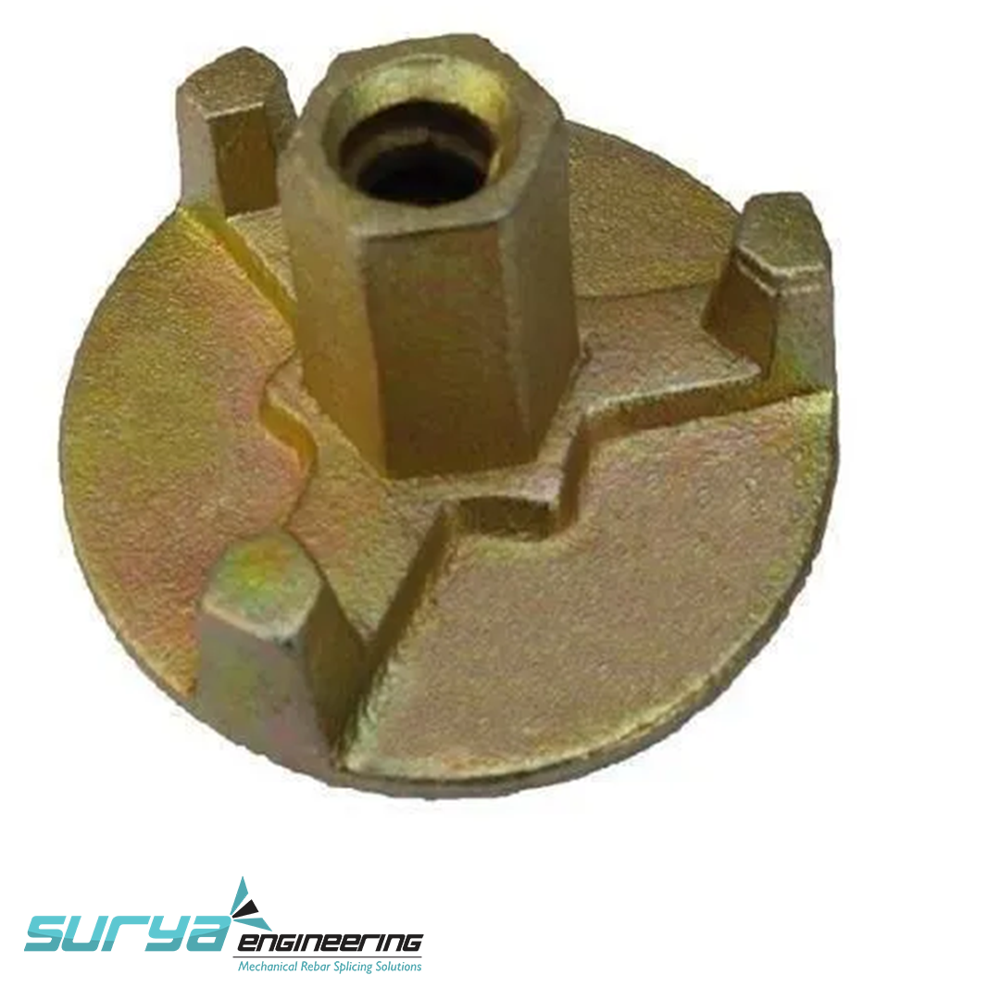

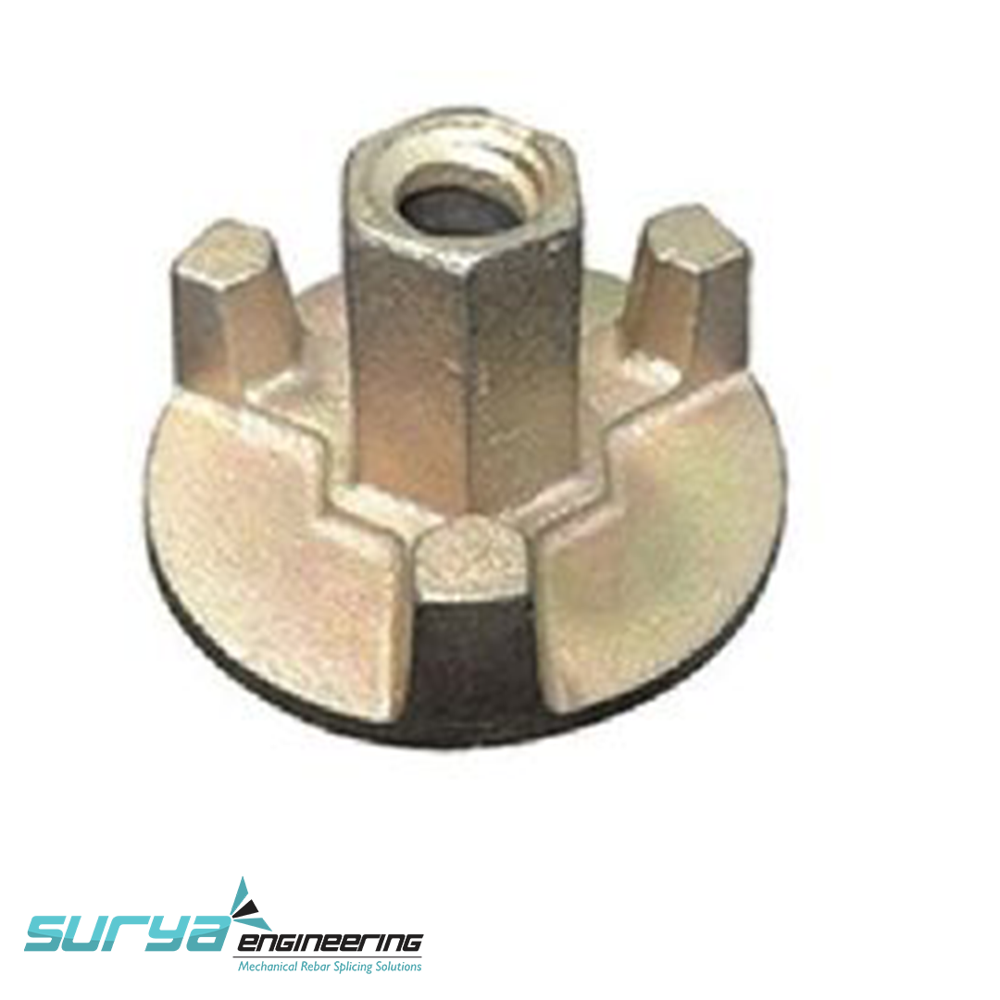

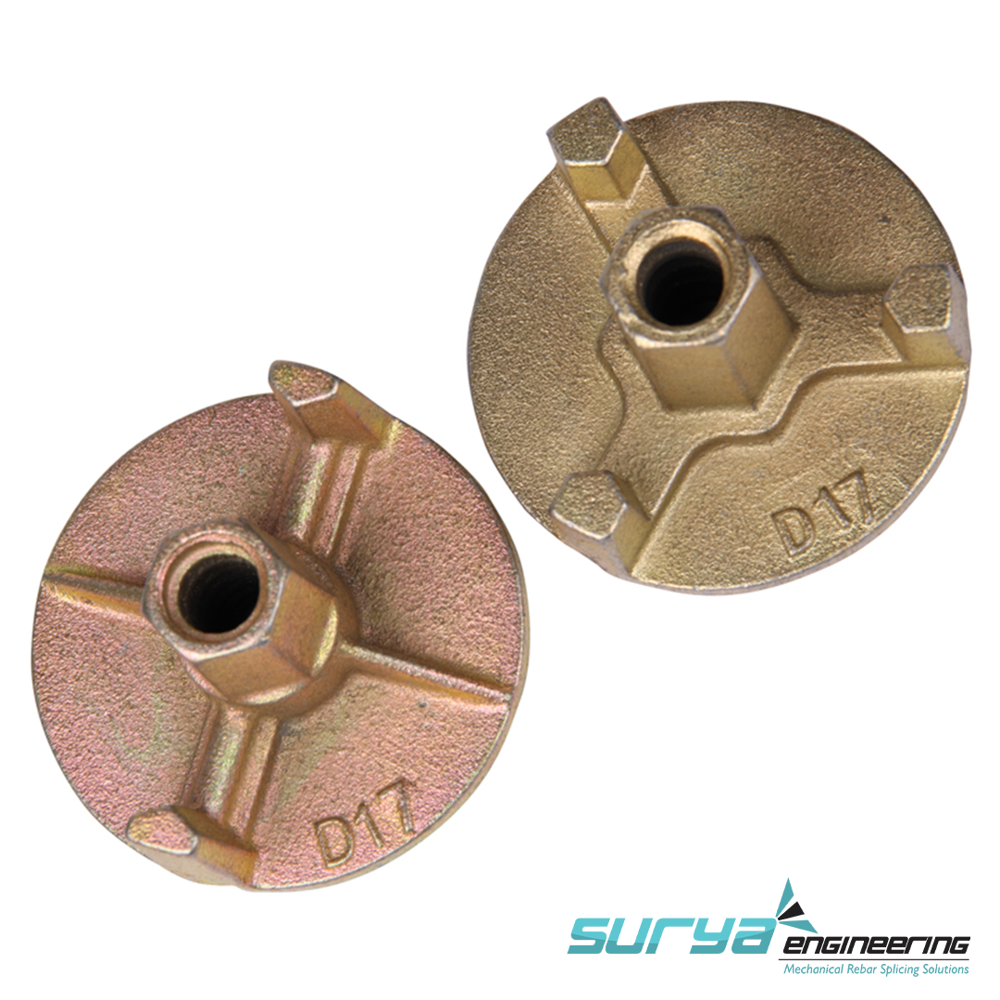

Name	Anchor Nut / Anchonut / Tie Nut
Rod Diameter	16 mm
Size	50mm, 15-17mm
Material	MS, Cast Iron
Weight	200-400 gm
Surface Treatment	Hot Dip Galvanized
Shape	Round, Hex
System	Formwork, Scaffolding, Shuttering

Why Is an Anchor Nut Important?

During concrete placement, fresh concrete creates pressure against the formwork panels. The complete formwork system needs to resist this pressure and maintain the required dimensions.

The anchor nut works with the tie rod and other supporting components to create a secure connection.

A properly selected anchor nut can help:

• Secure the tie rod
• Maintain formwork positioning
• Distribute the load through a suitable plate or waler
• Support accurate panel alignment
• Make formwork assembly and dismantling easier
• Support repeated construction cycles

The anchor nut is only one part of the system. Formwork design, tie spacing, concrete pressure, walers, plates, braces, and other components must also be considered.

Anchor Nut for Mivan & Aluminium Formwork

In Mivan and aluminium formwork, anchor nuts are commonly used with compatible tie rods and other formwork accessories.

For a repetitive high-rise project, formwork may be assembled and dismantled many times. The connection components therefore need to be practical to install, remove, inspect, and reuse.

A suitable Anchor Nut for Mivan formwork helps secure the tie system while keeping the formwork assembly properly positioned.

Anchor Nut vs Wing Nut

The terms can sometimes be used differently by suppliers, so buyers should check the actual design.

A Wing Nut generally has extended wings that allow manual tightening.

An Anchor Nut is a broader term for a nut designed to secure a tie or anchor system and may have different shapes depending on the application.

For Mivan and aluminium formwork, the terms may overlap in some product listings. The actual dimensions and thread compatibility are more important than the name.

Anchor Nut for Heavy-Duty Formwork

For heavy concrete construction, the anchor nut should be selected as part of the complete tie system.

Consider:

• Concrete pressure
• Tie rod capacity
• Tie spacing
• Waler arrangement
• Bearing plate size
• Formwork height
• Concrete placement rate
• Project design

A heavy-duty label by itself is not enough. Buyers should ask for the actual product specification and applicable capacity information.

Anchor Nut Manufacturer & Supplier in India

Surya Engineering supplies Anchor Nuts for construction and formwork applications in India.

Our products can be considered for compatible:

• Mivan formwork
• Aluminium formwork
• Wall shuttering
• Column shuttering
• RCC construction
• Infrastructure projects
• Industrial construction

For a quotation, send your tie rod size, thread specification, quantity, application, and delivery location.

For replacement requirements, a clear photograph with dimensions is especially useful.
