55mm Long Mivan Pin is a important locking part used in aluminium formwork systems for connecting and holding together adjacent formwork panels. It works with a Mivan Wedge to create an secure connection between panels during concrete building.



For companies in the construction field looking for a 55mm Mivan Pin manufacturer in India choosing the pin size, material, exact measurements and surface quality is essential because the pin plays a big role in the stability and alignment of the formwork setup.



Surya Engineering. Delivers Mivan formwork parts from Mumbai, Maharashtra and supplies them all over India for builders, contractors, infrastructure companies and formwork suppliers.

surya Engineering truted & reliable mivan Pin.

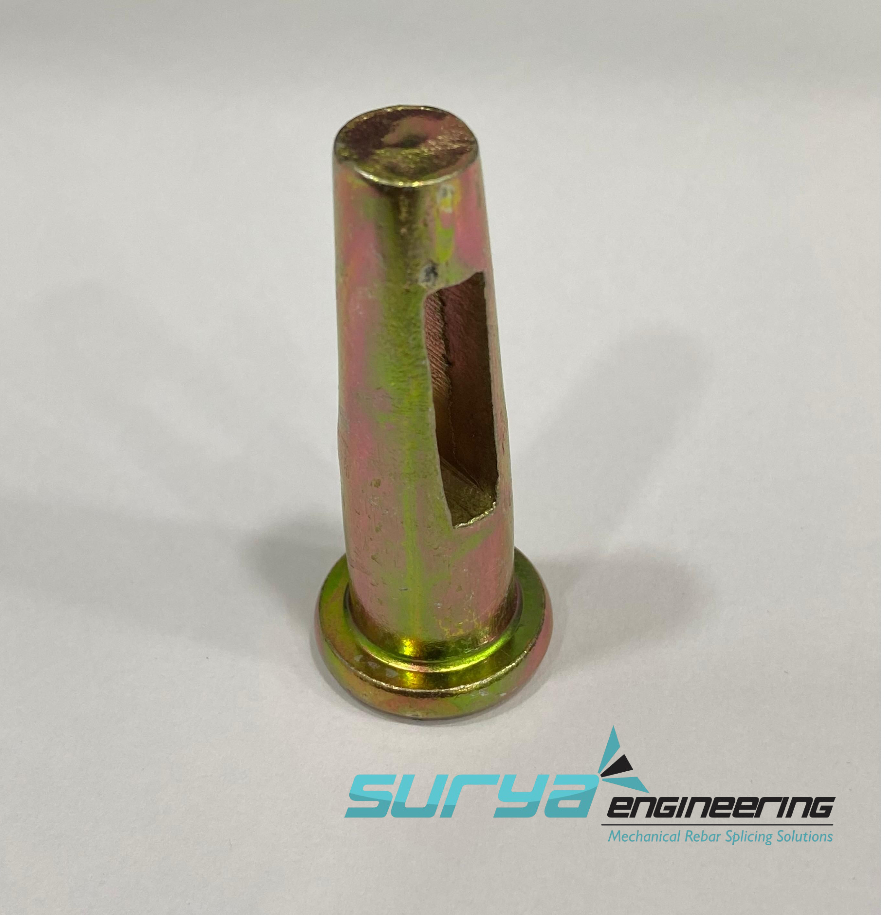

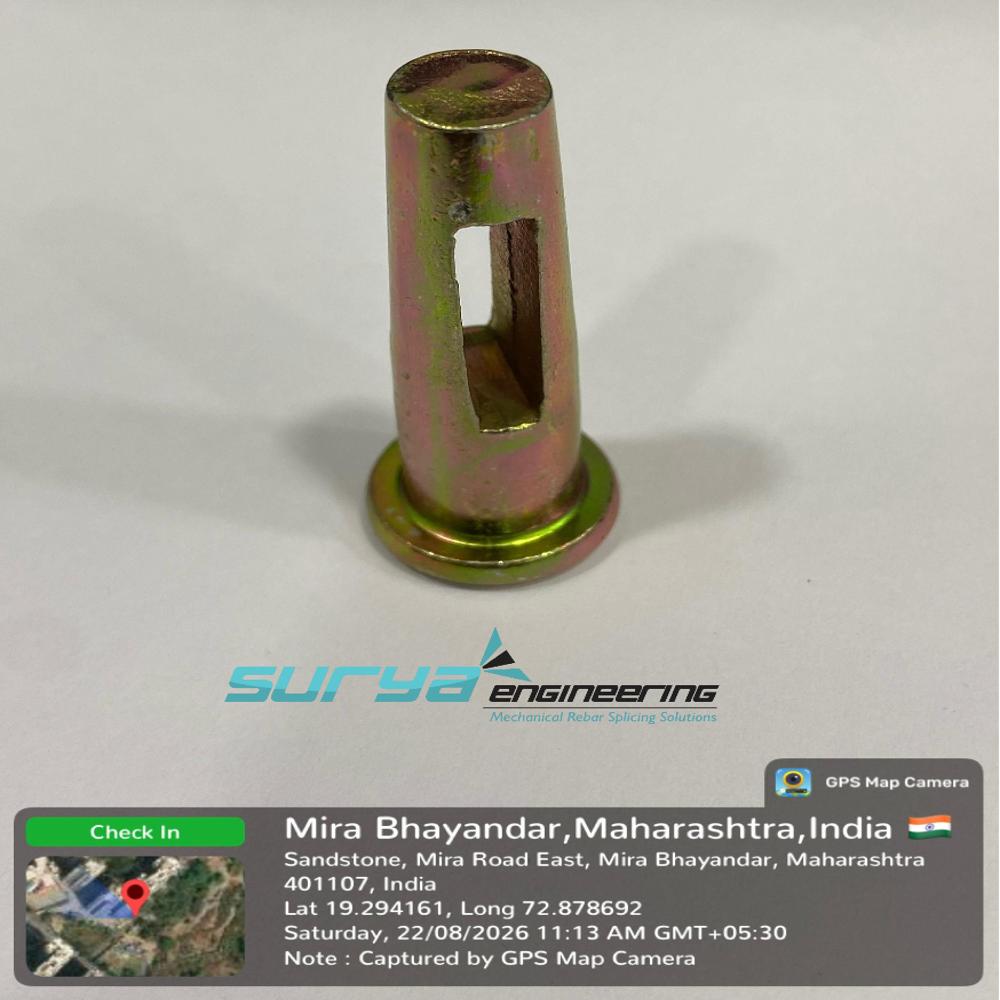

What is a 55mm Long Mivan Pin?



A 55mm Long Mivan Pin, also called a mivan Stub Pin, Locking Pin or Formwork Pin is a metal pin used to join aluminium formwork panels.

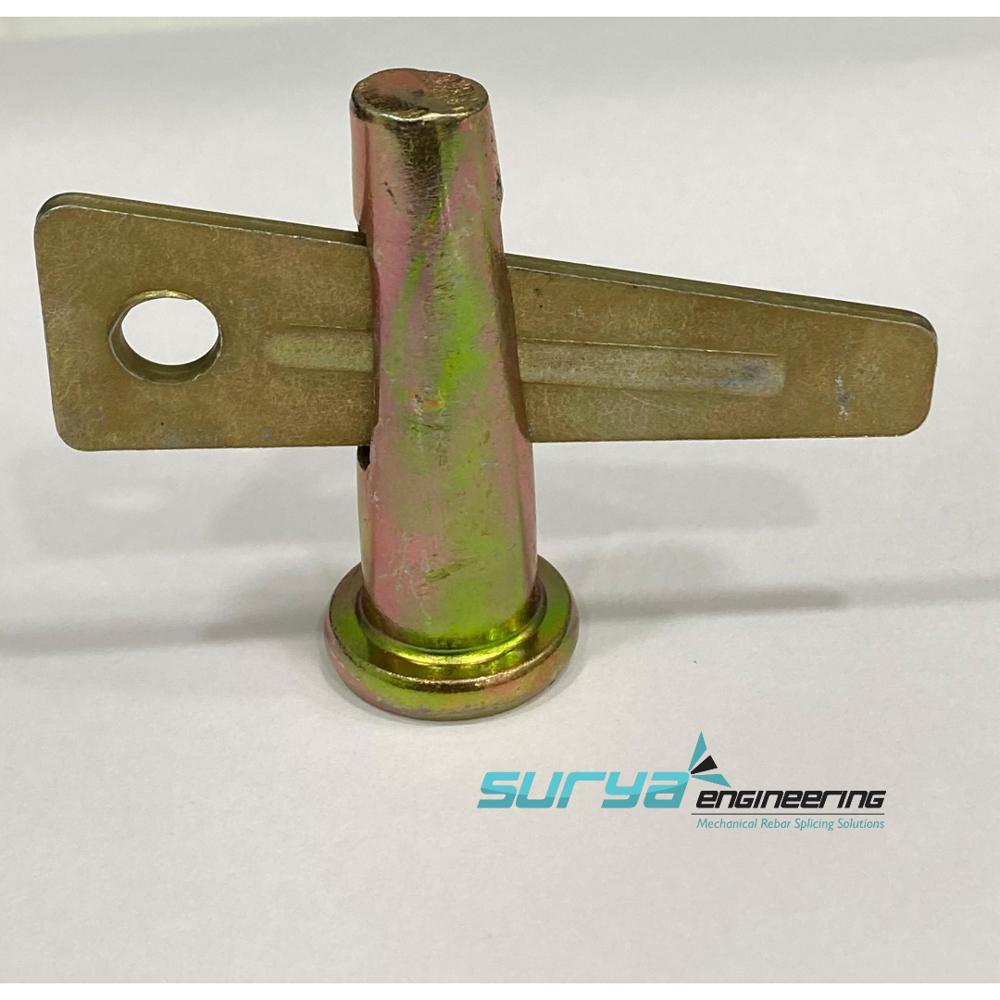

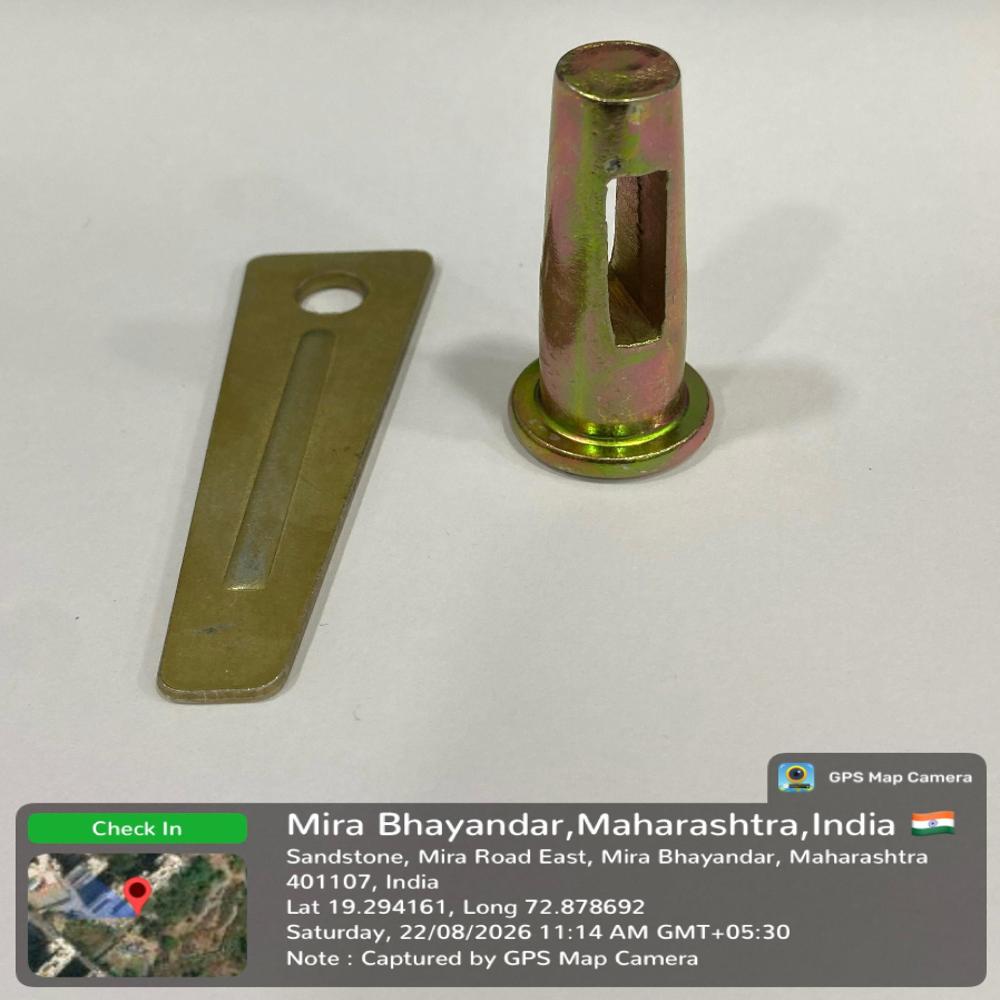

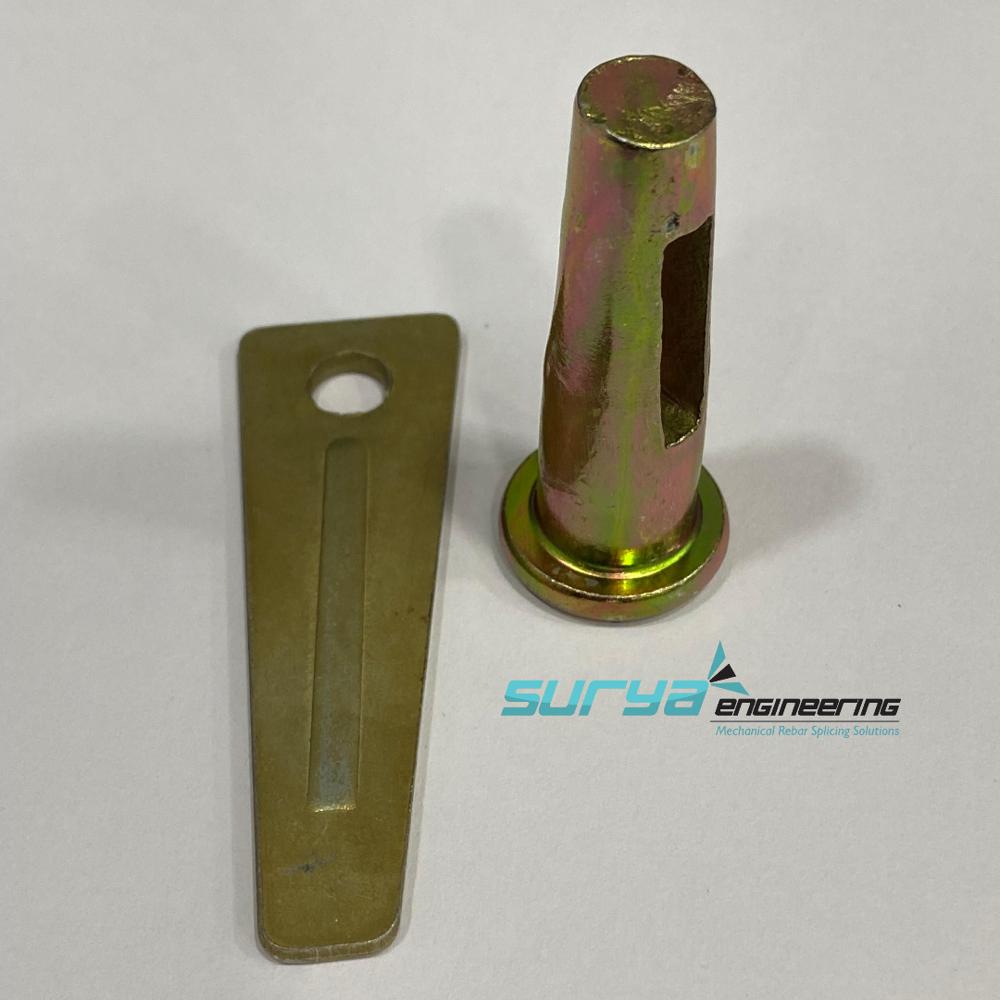

During Mivan or aluminium formwork construction two nearby panels are placed together. Their connecting holes are lined up. The Mivan Pin is put through the holes. A special Mivan Wedge is then pushed into the pins slot to lock the panels

Why is a 55mm Mivan Pin Used?



The main reason for using a Mivan Pin is to join and secure aluminium formwork panels Surya Engineering is manufacturer of long miavn Pin.



A pin and wedge setup can help with:



1. Panel Connection



The pin joins two formwork panels through their holes.



2. Panel Alignment



It helps keep the panels in the position during formwork work.



3. Formwork Stability



The wedge locks the pin. Stops the panels from moving or separating.



4. Faster Formwork Installation



Mivan formwork is made for repeated use. Pin and wedge connections can be put together quickly without fastening systems.



5. Faster Dismantling



Once the formwork is ready to be removed the wedge can be taken out. The pin pulled out for the next time.



6. Repeated Use



A made and properly cared for 55mm Mivan Pin can be used again and again depending on its condition and project needs.



55mm Mivan Pin Classification



Mivan pins can be grouped in ways depending on their length, material, finish, design and use.

Classification by Length



Depending on the formwork system manufacturers may offer pin lengths, such as:



• 50mm Mivan Pin
•
• 55mm Mivan Pin
•
• 60mm Mivan Pin
•
• Long Mivan Pin
•
• Custom-length Mivan Pin



The right length should be chosen based on the panel join and formwork manufacturers design by surya Engineering.



Classification by Finish



Mivan pins can also come with surface finishes, such as:



• Natural steel finish
•
• Polished finish
•
• Zinc-plated finish
•
• Electro-galvanized finish
•
• Electro-yellow plated finish



The correct finish depends on the needed resistance to rust working conditions and customers requirements.



Classification by Application



Mivan pins can be used for formwork joins, including:



• Wall panel connections
•
• Column formwork
•
• Corner connections
•
• Slab formwork
•
• Beam and slab formwork
•
• Shear wall formwork
•
• Repetitive aluminium formwork systems



55mm Mivan Pin Technical Specification

A typical product description can have the following details:



Parameter                          Typical Description



Product Name                   55mm Long Mivan Pin



Product Type                     Mivan Stub / Locking Pin



Application                         Aluminium Formwork



Length                  55mm



Material                               Steel / Mild Steel as per approved specification



Locking Method                               Pin & Wedge



Surface Finish                    As specified by customer



Application                         Formwork Panel Interlocking



Reusability                          Yes, subject to inspection and condition



Country of Origin                              India



Supply Area                        Pan India



Manufacturer                    Surya Engineering, Mumbai

Where is a 55mm Mivan Pin Used?



55mm Mivan Pins are mainly used with aluminium formwork systems in projects where quick assembly, correct panel positioning and repeated construction cyclesre important.

installation is important for a strong formwork connection.



Step 1: Position the Panels



Put the two aluminium formwork panels together according to the approved formwork plan.



Step 2: Align the Holes



Make sure the matching holes in the panels are properly lined up.



Step 3: Insert the 55mm Mivan Pin



Place the Mivan Pin through the panel holes.



The pin should go through the connection without much force or damage to the aluminium panel.



Step 4: Insert the Mivan Wedge



Put the wedge into the slot on the pin.



Step 5: Lock the Connection



Push the wedge into place using the method on the site. The wedge creates the locking action that holds the panels together.



Step 6: Check the Connection

IS Testing Standard for 55mm Mivan Pin



One thing for buyers is that there is no well-known BIS/IS product standard titled "55mm Mivan Pin."



So it's better not to say that a 55mm Mivan Pin is IS certified" just because it is used in an aluminium formwork system.



IS 14687



IS 14687:1999 Falsework for Concrete Structures. Guidelines is an Indian Standard related to falsework for concrete structures.



BIS describes IS 14687 as covering requirements for materials, design and building of falsework for regular buildings and small civil engineering works. The standard was confirmed again in 2019.



However IS 14687 is a guideline for falsework and not a specific standard for a 55mm Mivan Pin.



Material Testing



Depending on the material required for the pin, suitable material standards and the customers approved specification may be used for checking the material.

In Surys Engineering we insure every product should be tested.

Advantages of 55mm Mivan Pin



1. Installation



The pin and wedge system makes it quick to connect formwork panels.



2. Simple Locking System



The connection is straightforward and easy for trained workers to manage.



3. Supports Repeated Building



Mivan formwork is often used where panels are assembled and taken apart times.



4. Reusable



Pins can be used again if they are in condition and meet the projects requirements.



5. Helps Keep Panels Aligned



A fitted pin and wedge help keep adjacent panels in line.



6. Easy to Remove



The pin and wedge system is made to be taken quickly compared to complicated fastening systems.



7. Works with Aluminium Formwork



The pin is especially useful where the formwork system is built for pin and wedge connections.



8. Makes Assembly Simpler

Why Choose Surya Engineering for 55mm Mivan Pin?


Surya Engineering, located in Mumbai, Maharashtra makes and sells Mivan formwork accessories including Mivan Stub Pins, Locking Pins, Long Pins and Wedges.



The companys Mivan pin range is made for connecting wall and column formwork with a focus on assembly and easy use on the construction site.



For people who need a 55mm Mivan Pin, Surya Engineering can talk about the size, material, finish and use before making the product or sending it in bulk.



Surya Engineering focuses on:



Mivan formwork accessories



Mivan Stub Pins



Mivan Locking Pins



Mivan Wedges



Aluminium formwork accessories



Construction formwork components



Bulk manufacturing



PanIndia supply



Custom specifications based on drawings or samples



55mm Mivan Pin Manufacturer in Mumbai India

Frequently Asked Questions About 55mm Mivan Pin



What's a 55mm Mivan Pin?



A 55mm Mivan Pin is a metal locking pin that connects aluminium formwork panels. It is usually used with a Mivan Wedge to hold the panel connection tight.



What is the main use of a Mivan Pin?



The main job is to link and line up formwork panels made of aluminium and stop them from moving when concrete is being made.



Is a 55mm Mivan Pin to be used again?



Yes Mivan Pins can usually be used again if they are still in condition. They need to be checked for bending, shape changes, much wear, rust and damage before being used again.



What is used with a Mivan Pin?



A Mivan Wedge is normally used with the pin to make the locking work.



Is there an IS code for 55mm Mivan Pin?



There is not a known BIS product standard that is only for a "55mm Mivan Pin." IS 14687:1999 gives advice for falsework for structures and is connected to formwork design but it should not be seen as the only standard for the pin.



Where can I find a 55mm Mivan Pin in India?



A 55mm Mivan Pin can be found from makers and sellers of aluminium formwork accessories. Surya Engineering. Sells Mivan formwork accessories from Mumbai and supplies them across India.



Can Surya Engineering supply Mivan Pins in amounts?



Yes. Surya Engineering provides Mivan formwork accessories for construction uses. For a 55mm need buyers should give the needed size, drawing or sample finish and amount.



A 55mm Long Mivan Pin is a important part of an aluminium formwork system. When it matches the formwork panel and Mivan Wedge it makes an quick way to connect panels next to each other.
