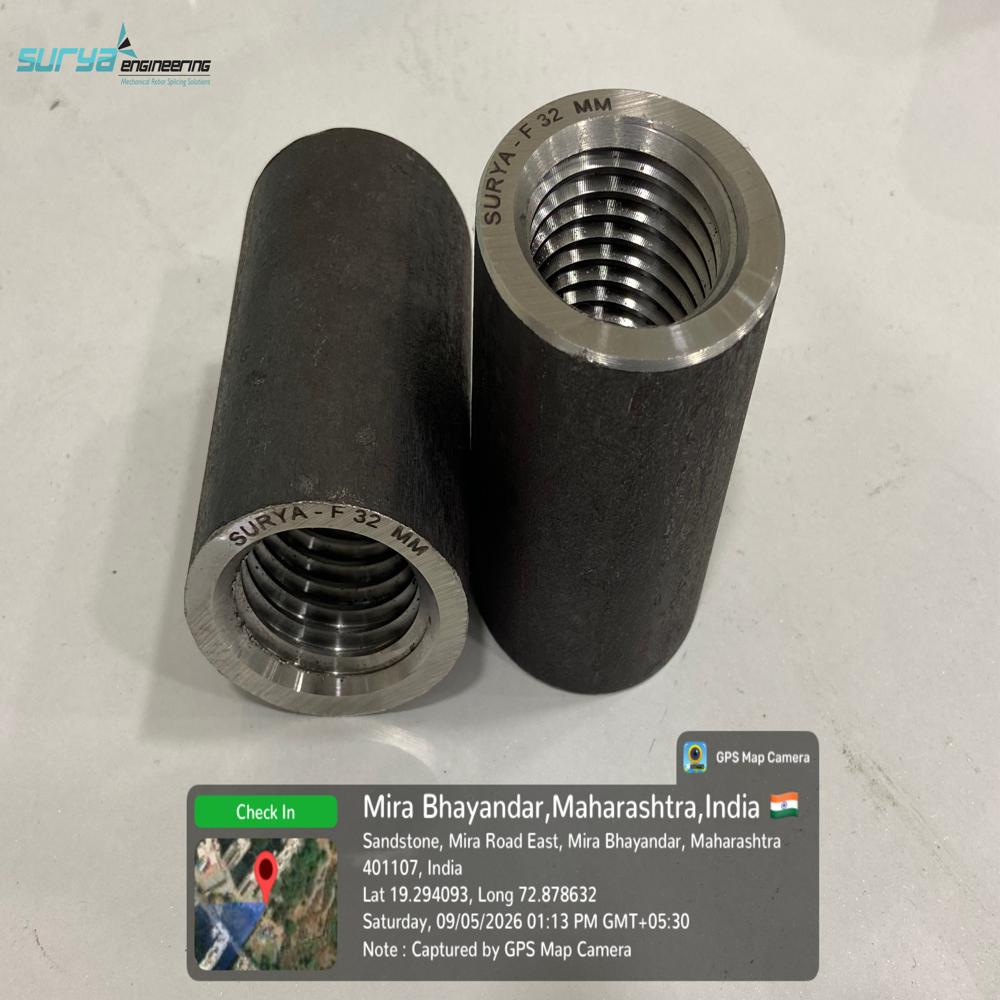

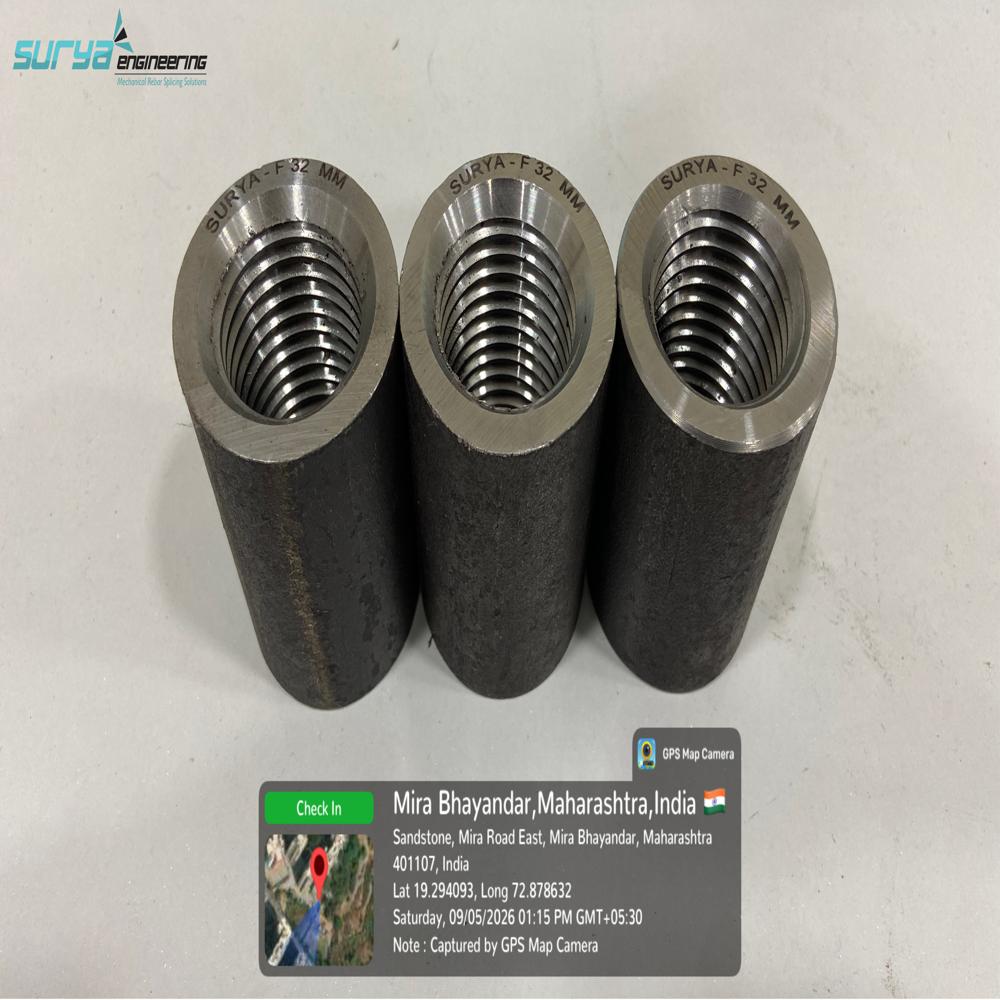

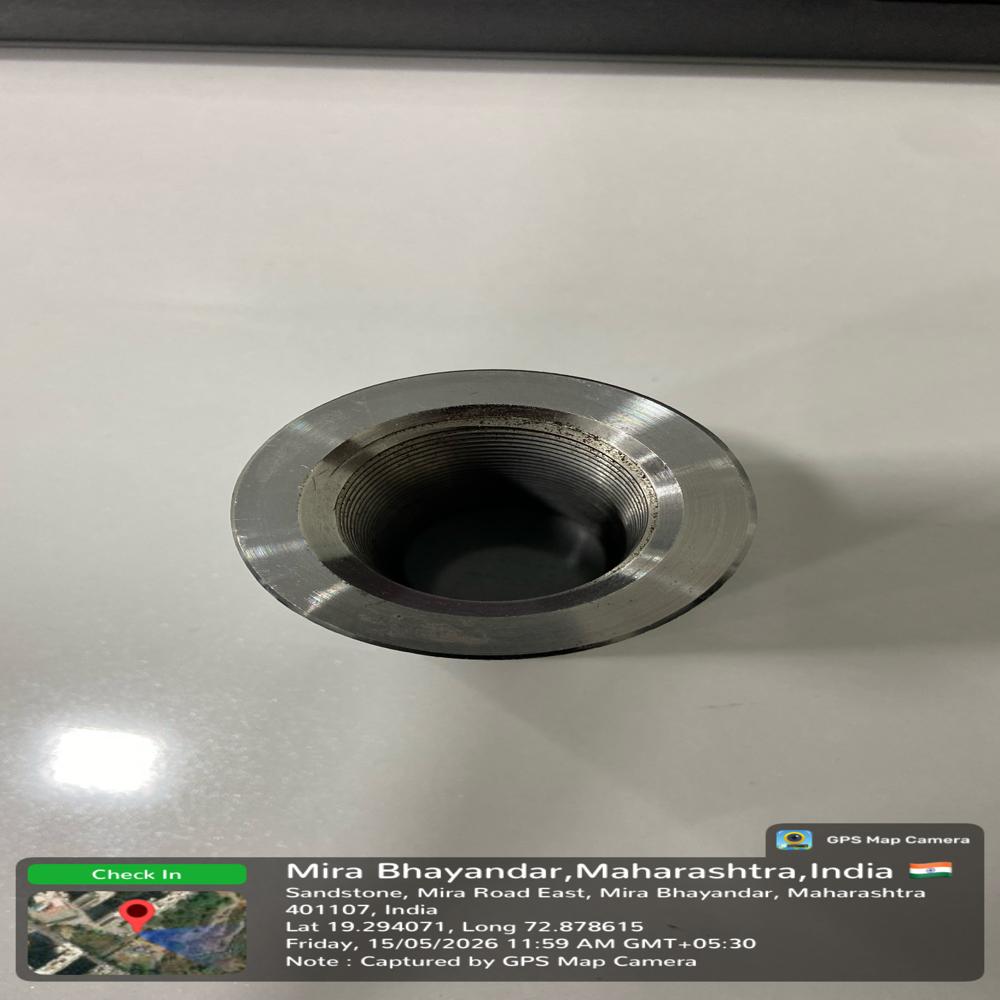

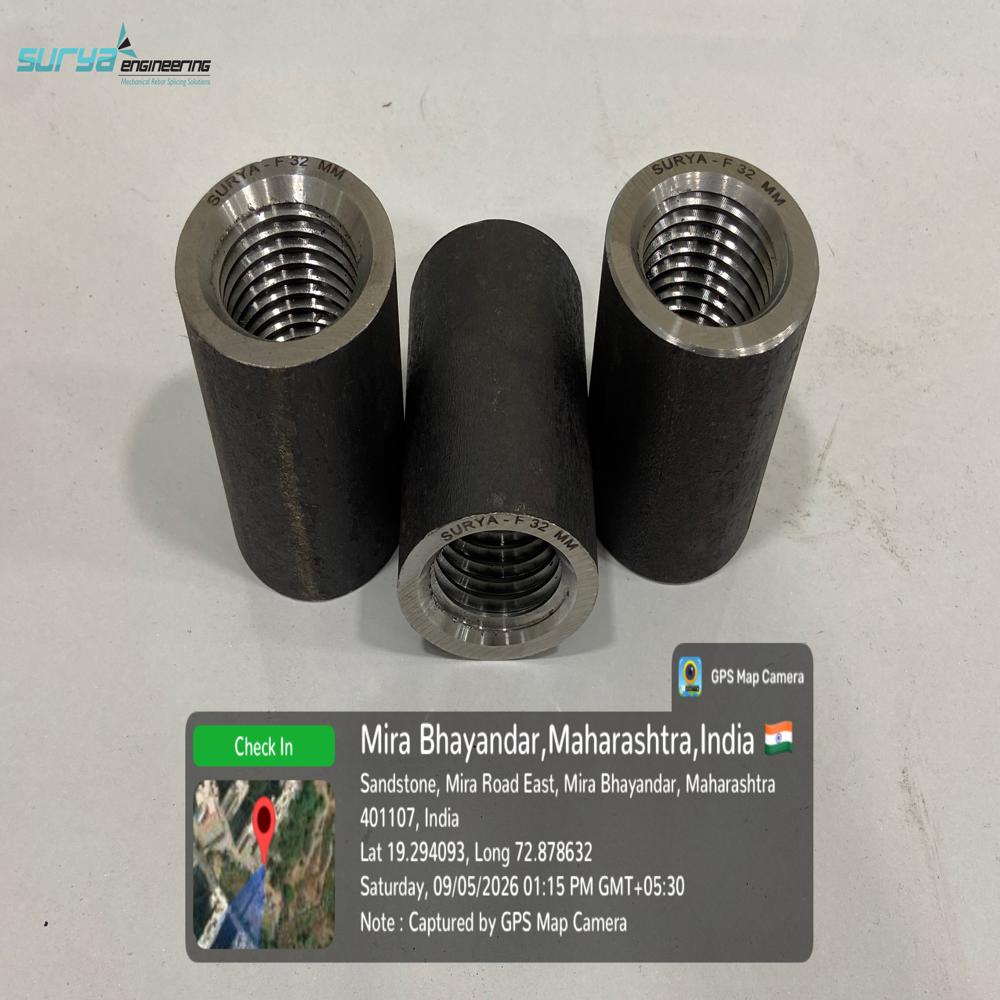

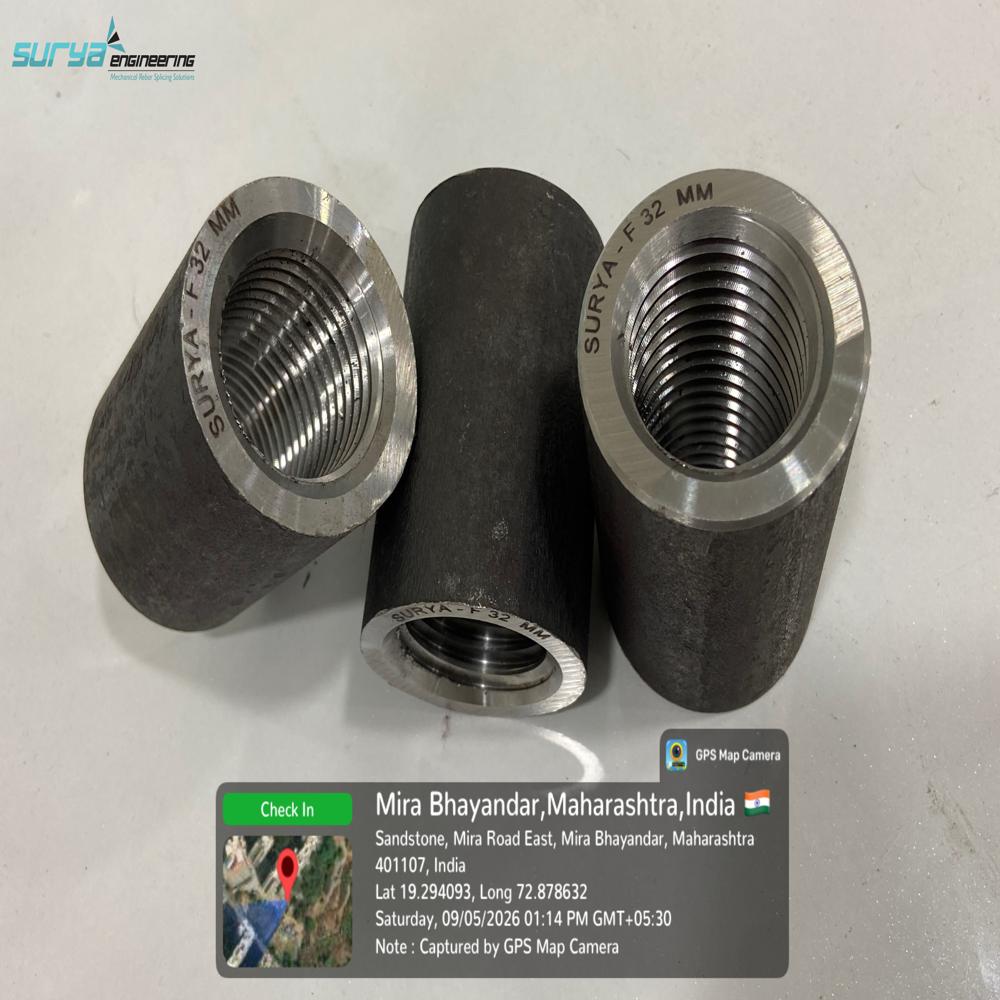

Steel Bar Coupler

What is a Steel Rebar Coupler?

A Steel Rebar Coupler is a mechanical connector used to join two reinforcing bars (rebars) end-to-end. Instead of overlapping steel bars through conventional lap splicing, rebar couplers create a direct mechanical connection that transfers tensile, compressive, and cyclic loads efficiently.

These couplers are manufactured from high-grade alloy steel or carbon steel and are widely used in high-rise buildings, bridges, metro projects, dams, tunnels, and industrial structures.

Why is a Steel Rebar Coupler Used?

Steel Rebar Couplers offer several advantages over traditional lap joints and welding methods.

Key Reasons for Using Rebar Couplers

• Reduces steel consumption
• Eliminates lengthy lap splices
• Improves structural strength
• Reduces reinforcement congestion
• Provides full load transfer
• Saves construction time
• Simplifies bar continuity
• Enhances earthquake resistance
• Improves concrete placement quality

Classification of Steel Rebar Couplers

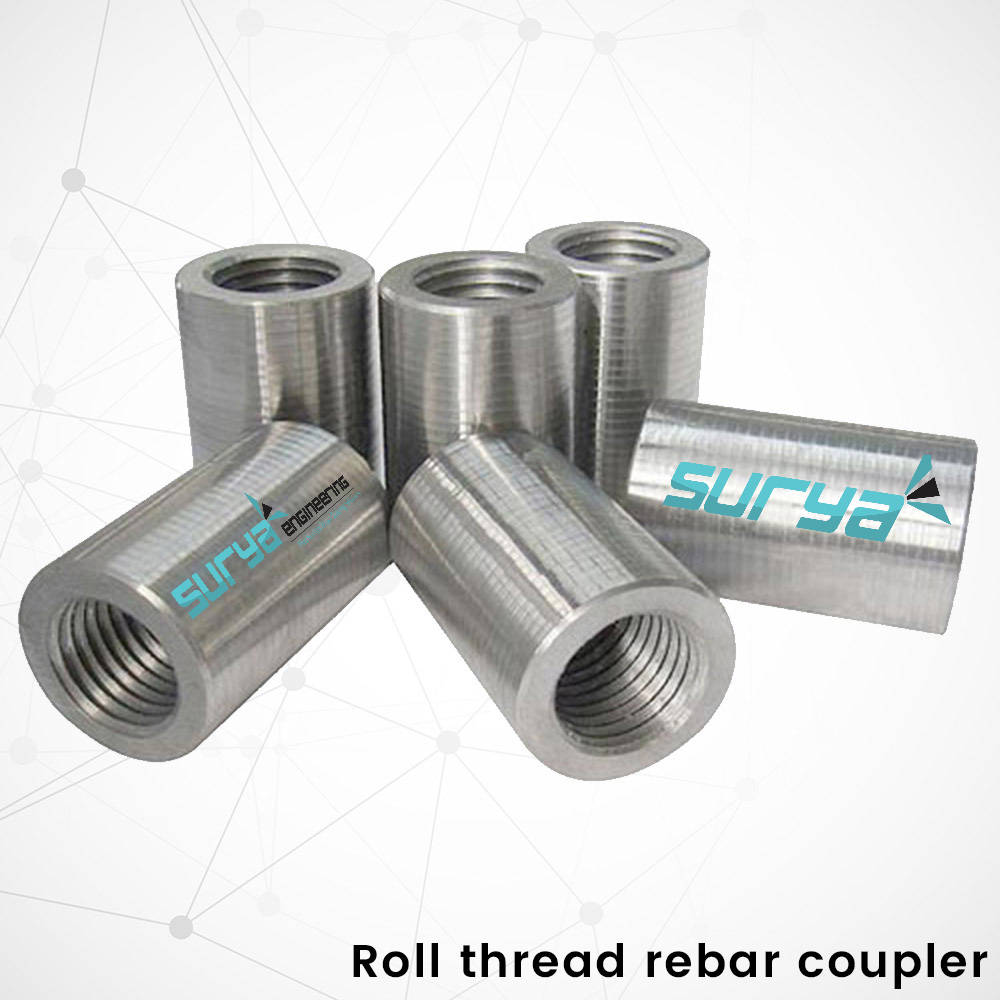

Parallel Thread Rebar Coupler

The most common type, using threaded bar ends for secure mechanical connections.

MBT Coupler (Mechanical Bolted Coupler)

Uses locking bolts to connect reinforcement bars without threading.

Transition Coupler

Used to connect rebars of different diameters.

Position Coupler

Designed for applications where one bar cannot be rotated.

Weldable Coupler

One side is welded to a steel structure while the other connects to reinforcement bars.

Seismic Rebar Coupler

Specially designed for structures located in earthquake-prone regions.

Applications of Steel Rebar Couplers

Steel Rebar Couplers are widely used in:

High-Rise Buildings

• Residential towers
• Commercial complexes
• Office buildings

Infrastructure Projects

• Bridges
• Flyovers
• Metro rail projects
• Airports

Industrial Structures

• Manufacturing plants
• Power stations
• Refineries

Water Retaining Structures

• Dams
• Water treatment plants
• Reservoirs

Transportation Projects

• Tunnels
• Railway stations
• Highway structures

Precast Construction

• Precast beams
• Columns
• Wall panels

Installation Procedure

Step 1: Bar Preparation

Cut reinforcement bars to the required length.

Step 2: Threading Process

Create precise threads on the bar ends using a rebar threading machine.

Step 3: Coupler Fixing

Install the coupler onto one threaded bar.

Step 4: Bar Alignment

Align the second reinforcement bar properly.

Step 5: Tightening

Rotate and tighten the bars to achieve the required connection.

Step 6: Inspection

Verify alignment, thread engagement, and connection quality.

Step 7: Concrete Placement

Proceed with reinforcement assembly and concreting operations.

IS Testing Standards & Quality Control

Steel Rebar Couplers are generally tested according to Indian and international standards to ensure reliable performance.

Relevant Standards

• IS 16172:2014 Mechanical Splices for Reinforcing Bars
• IS 1786 High Strength Deformed Steel Bars and Wires
• IS 456:2000 Plain and Reinforced Concrete Code of Practice

Quality Tests

• Tensile Strength Test
• Ultimate Load Test
• Slip Test
• Fatigue Test
• Cyclic Load Test
• Dimensional Inspection
• Hardness Testing
• Material Composition Testing

Advantages of Steel Rebar Couplers

Reduced Steel Consumption

Eliminates unnecessary overlap lengths.

Stronger Connections

Provides full-strength reinforcement continuity.

Faster Construction

Reduces installation time significantly.

Better Concrete Flow

Minimizes reinforcement congestion.

Cost Effective

Lowers material and labor expenses.

Improved Structural Performance

Enhances load transfer efficiency.

Earthquake Resistance

Suitable for seismic applications.

Easy Installation

Simple and reliable joining method.

Quality Assurance

Factory-manufactured for consistent performance.

Space Saving

Ideal for heavily reinforced structural members.

Why Choose Surya Engineering?

Surya Engineering is a trusted manufacturer and supplier of rebar couplers and reinforcement connection systems in India.

Our Strengths

Premium Quality Steel Rebar Couplers
Precision Manufacturing Technology
High Load Carrying Capacity
Compliance with Industry Standards
Competitive Pricing
Technical Support & Installation Guidance
Bulk Supply Capability
Customized Coupler Solutions
Reliable After-Sales Service
Pan India Delivery Network

Pan India Supply Network

Surya Engineering supplies Steel Rebar Couplers across:

Mumbai, Pune, Thane, Nashik, Nagpur, Ahmedabad, Surat, Vadodara, Rajkot, Bengaluru, Mysuru, Hyderabad, Chennai, Coimbatore, Delhi, Noida, Gurugram, Faridabad, Jaipur, Jodhpur, Udaipur, Indore, Bhopal, Lucknow, Kanpur, Chandigarh, Ludhiana, Kolkata, Durgapur, Kochi, Visakhapatnam, Vijayawada, Bhubaneswar, Raipur, Ranchi, Patna, Guwahati and all major cities across India.

Steel Rebar Coupler Manufacturer India, Rebar Coupler Supplier Mumbai, Mechanical Rebar Coupler, TMT Bar Coupler Manufacturer, MBT Coupler India, Reinforcement Coupler Supplier, Parallel Thread Rebar Coupler, Steel Bar Connector India, Construction Coupler Manufacturer, Rebar Splicing System India, Seismic Rebar Coupler Supplier, Industrial Rebar Coupler Mumbai, Surya Engineering India.
