Rebar Cold Forging Machine Hydraulic Rebar Cold Forging Machine

Surya Engineering manufactures and supplies Rebar Cold Forging Machines, Hydraulic Rebar Cold Forging Machines and TMT Bar Cold Forging Machines in Mumbai, Maharashtra, India. These machines are used in the production of mechanically spliced reinforcement bars, especially where the bar end needs to be enlarged before threading and connecting with a suitable rebar coupler.

Surya Engineering's current public listing describes its Rebar Cold Forging Machine as equipment for cold forging of reinforcement bars and lists models/products at different configurations and prices. One listed machine is priced at about 1.81 lakh per unit, while other listed configurations are around 2.002.60 lakh. These are indicative public listing prices and should be confirmed with Surya Engineering for the required model.

What is a Rebar Cold Forging Machine?

A Rebar Cold Forging Machine is a specialized hydraulic/mechanical machine used to increase or reshape the end portion of a reinforcement bar at room temperature.

The enlarged bar end can then be machined/threaded to create a mechanical connection with a compatible threaded rebar coupler.

Simple Definition

A Rebar Cold Forging Machine is a machine that uses high pressure to enlarge and form the end of a TMT/reinforcement bar without heating it, preparing the bar for a mechanical threaded coupling system.

The basic reinforcement-processing sequence can be:

Cut Rebar Cold Forge Bar End Thread Bar Install Coupler Inspect Connection

Surya Engineering's published product information specifically describes the cold-forging machine as part of its rebar-processing machinery range.

What is a Hydraulic Rebar Cold Forging Machine?

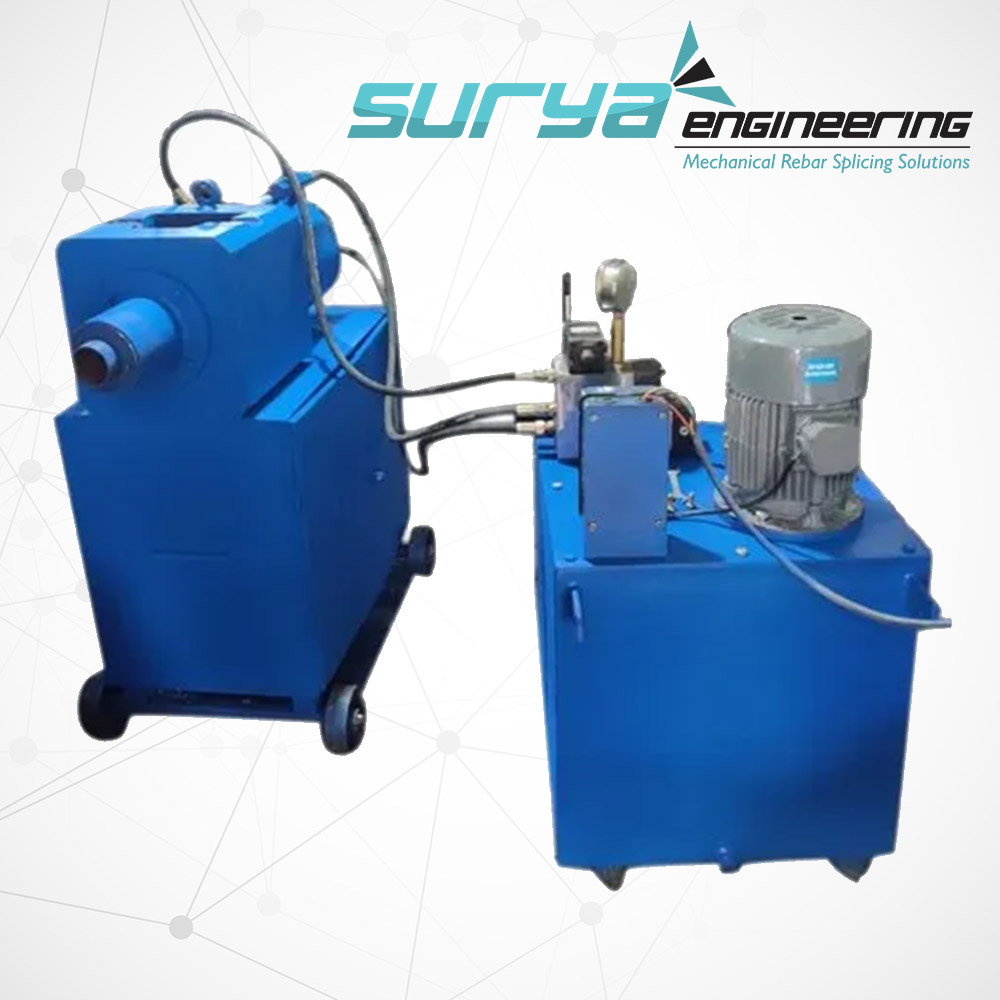

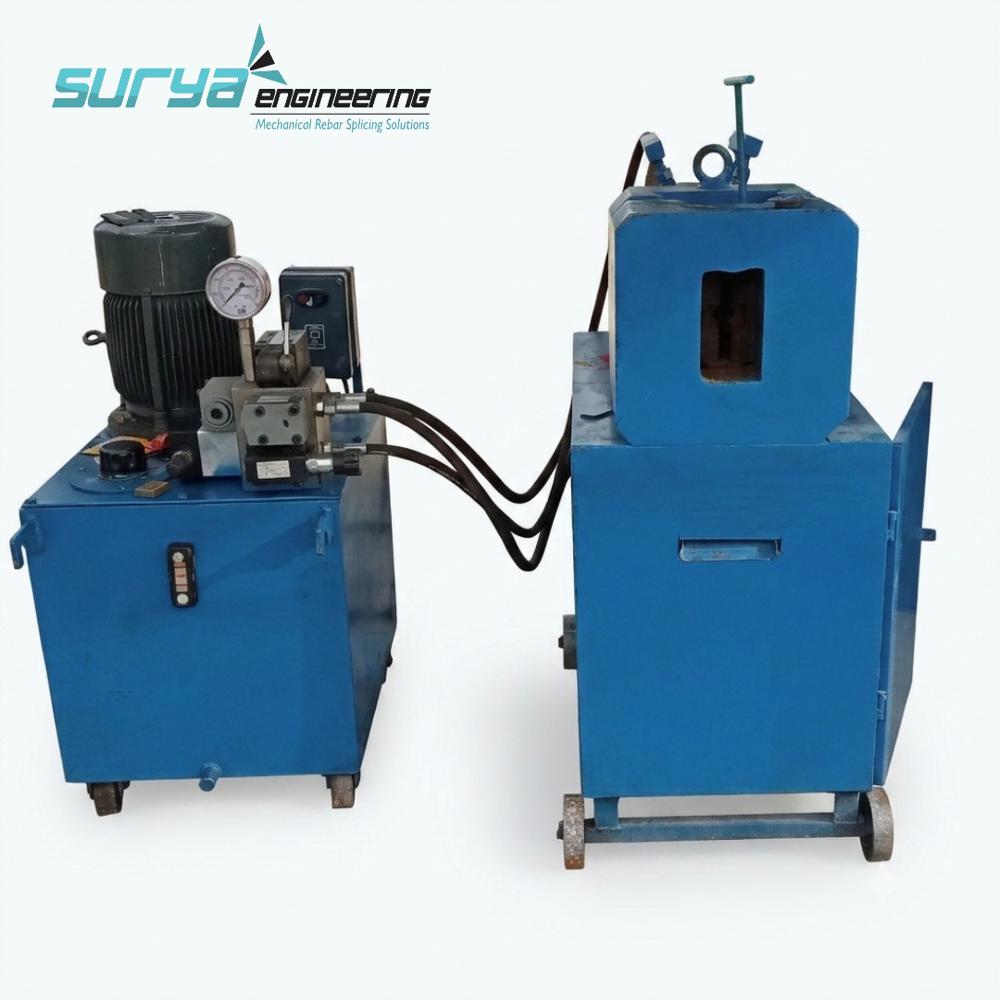

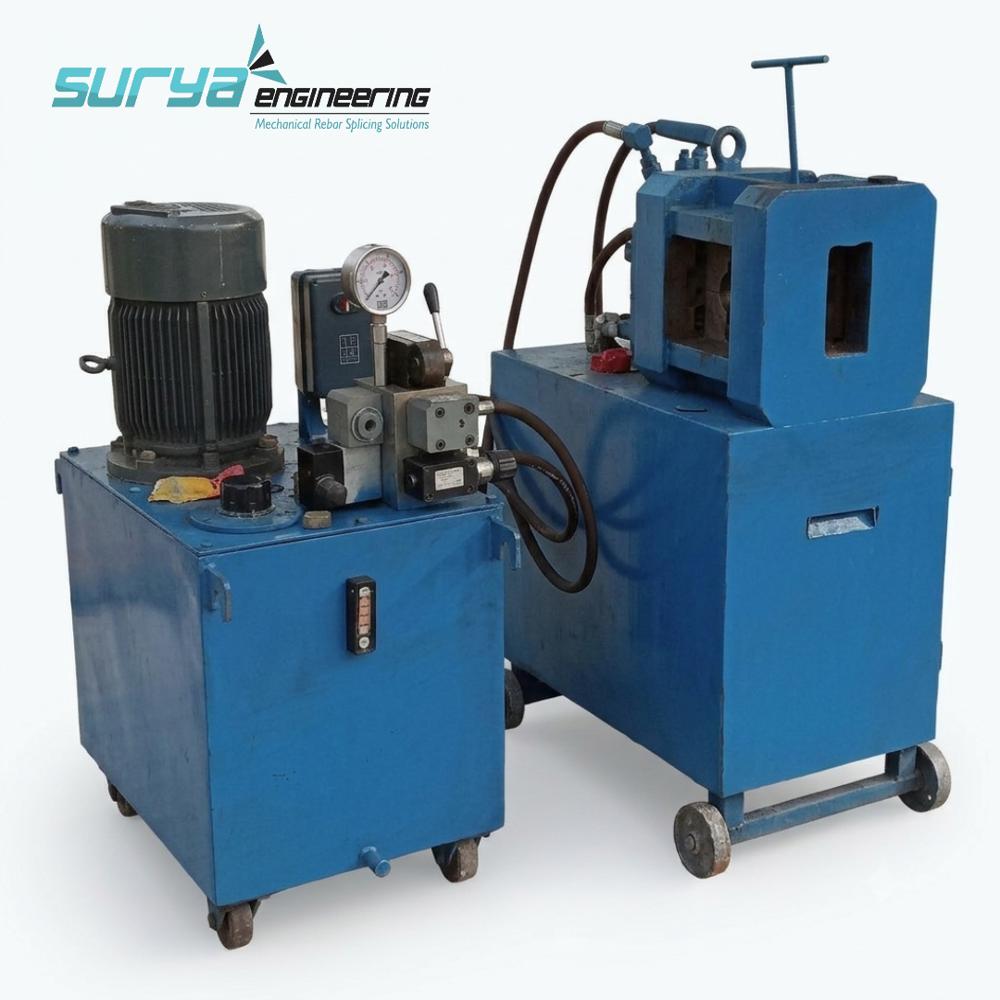

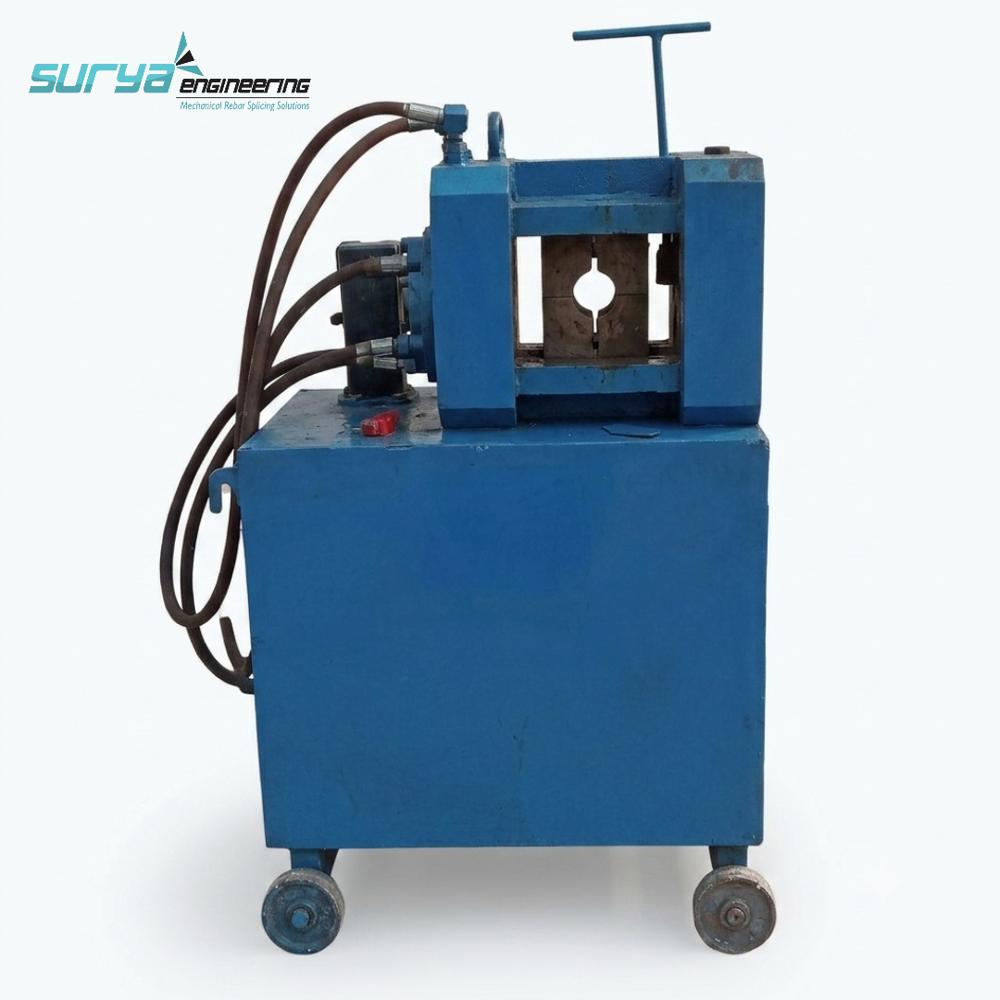

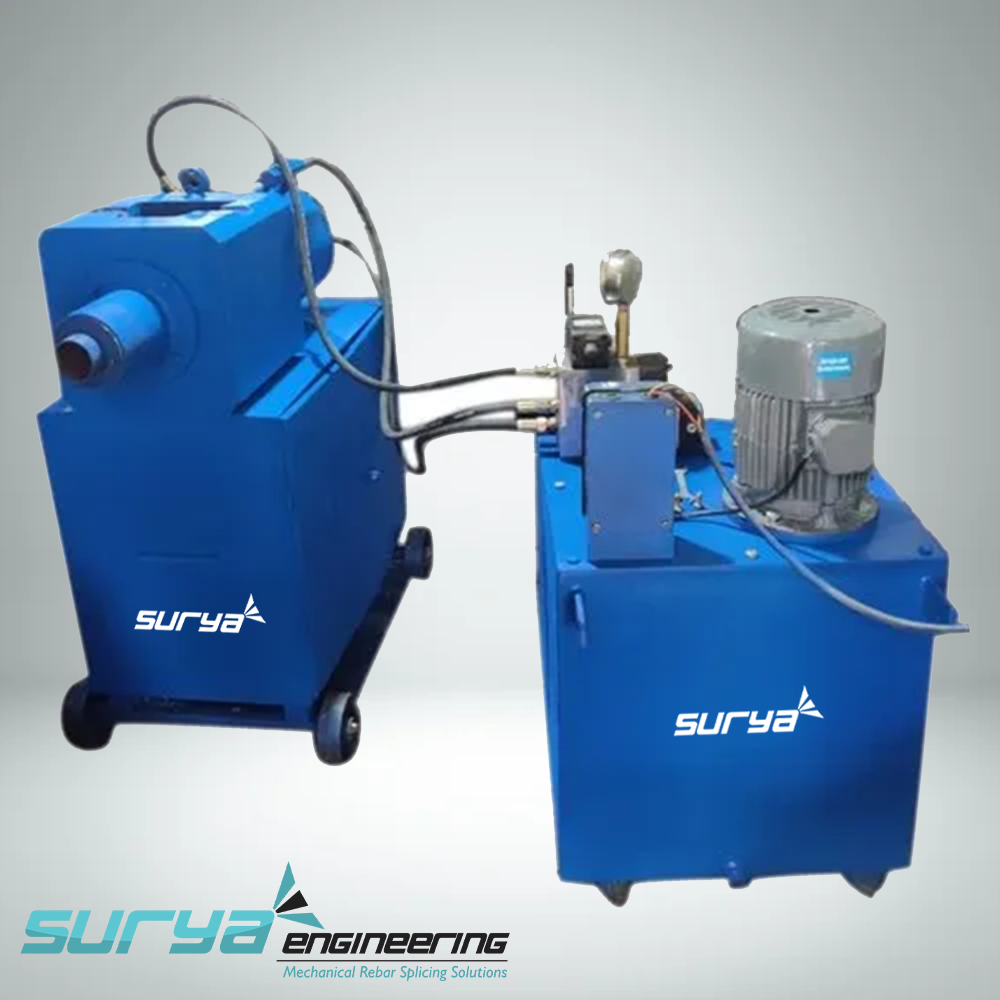

A Hydraulic Rebar Cold Forging Machine uses hydraulic pressure to apply a controlled compressive force to the end of the reinforcement bar.

The process can increase the cross-sectional area of the prepared end before threading. This is important in certain mechanical splicing systems because the threaded section can otherwise become a critical reduced section.

The exact forging pressure, bar diameter, forging length and tooling depend on the machine model, reinforcement grade and coupler system.

Why is a Rebar Cold Forging Machine Used?

A cold forging machine is primarily used when a forged-and-threaded rebar connection system requires an enlarged bar end before threading.

Main purposes include:

• Enlarging the end of reinforcement bars
• Preparing bars for threaded rebar couplers
• Supporting mechanical reinforcement splicing
• Maintaining a suitable cross-sectional area around the threaded section
• Creating repeatable bar-end preparation
• Improving production efficiency
• Reducing manual bar-end preparation
• Supporting large-diameter reinforcement processing
• Producing bars suitable for compatible mechanical couplers
• Supporting high-volume rebar fabrication

Cold forging is performed without heating the bar, which distinguishes the process from hot forging.

How Does Rebar Cold Forging Work?

The typical process is:

1. Bar Cutting

The reinforcement bar is cut to the required length with a suitable cutting machine.

2. Bar End Preparation

The bar end is positioned correctly in the forging tooling.

3. Hydraulic Clamping

The machine securely holds the reinforcement bar.

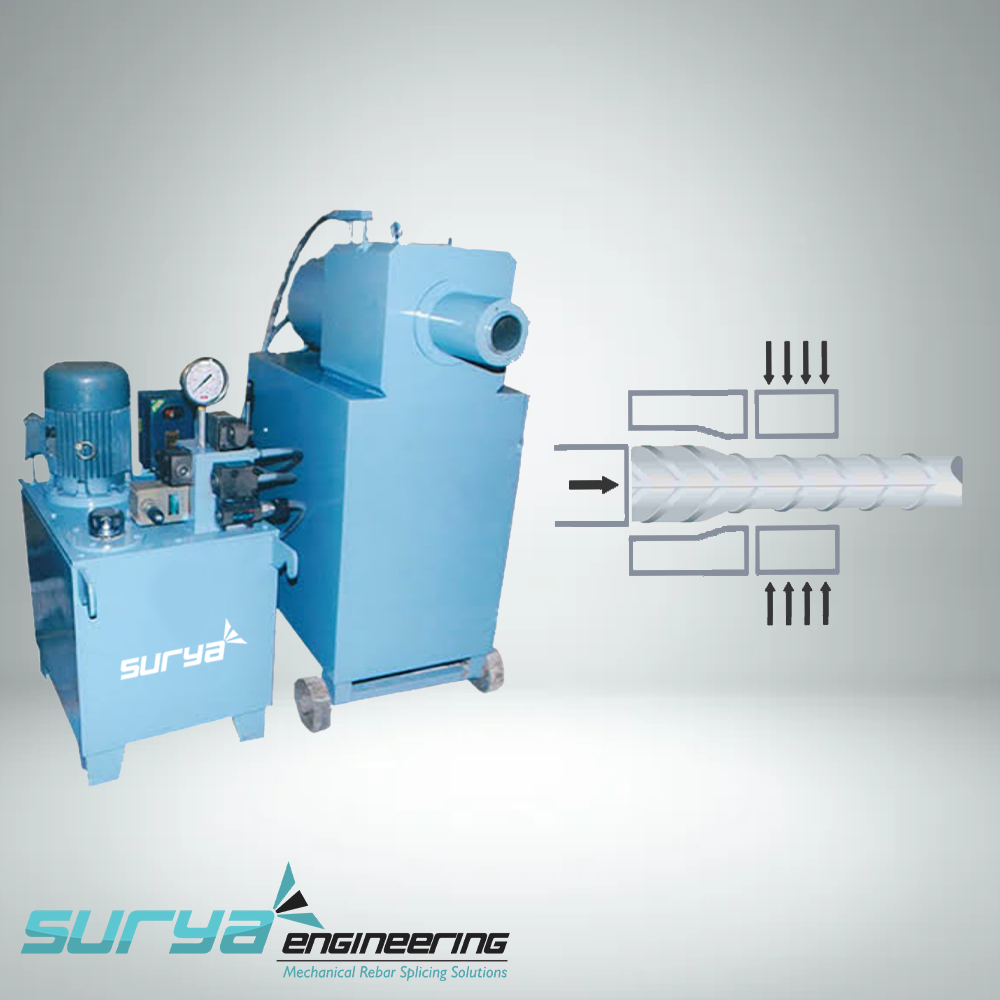

4. Cold Forging

Hydraulic/mechanical force compresses and reshapes the bar end, increasing its diameter over the specified length.

5. Inspection

The forged section is inspected for:

• Correct diameter
• Forging length
• Surface condition
• Alignment
• Cracks or visible defects
• Dimensional consistency

6. Threading

The forged end is processed using a suitable Rebar Thread Rolling Machine or Rebar Threading Machine.

7. Coupler Installation

The threaded bar is connected with the corresponding threaded rebar coupler.

Surya Engineering's published installation guidance for its rebar coupling system describes the sequence as bar-end preparation cold forging threading coupler fixing.

Classification of Rebar Cold Forging Machines

Rebar cold forging machines can be classified according to their operating mechanism, automation and application.

1. Hydraulic Rebar Cold Forging Machine

Uses hydraulic pressure to perform the forging operation.

Suitable for: High-force reinforcement bar end preparation.

2. Mechanical Cold Forging Machine

Uses a mechanical force mechanism for bar-end forming.

3. Semi-Automatic Cold Forging Machine

Requires an operator for bar loading/unloading while the machine performs the forging cycle.

4. Automatic Rebar Forging Machine

Automates more of the forging cycle and is suitable for higher production requirements.

5. TMT Bar Cold Forging Machine

Designed specifically for cold forging the ends of TMT/reinforcement bars.

6. Portable / Site-Oriented Forging Machine

Designed where reinforcement processing needs to be performed closer to the construction location.

Applications of Rebar Cold Forging Machine

Rebar cold forging machines are used in reinforcement-processing operations for:

Building Construction

• Residential buildings
• Commercial buildings
• High-rise buildings
• RCC structures

Infrastructure

• Bridges
• Flyovers
• Metro projects
• Railway projects
• Tunnels
• Industrial structures

Reinforcement Components

• Columns
• Beams
• Shear walls
• Foundations
• Pile reinforcement
• Raft foundations
• Precast reinforcement

Rebar Fabrication
