What Buyers Should Check Before Buying Mivan Stub Pins

If you are purchasing Mivan Stub Pins for a construction project, check these points:

1. Compatibility

Make sure the pin is designed for your particular aluminium formwork connection.

2. Dimensions

Confirm the diameter, length, and other critical dimensions before ordering.

3. Material Quality

The pin should be suitable for repeated construction use and handling.

4. Surface Finish

A suitable finish can help protect the component during repeated handling and storage.

5. Reusability

If the formwork will be reused across multiple floors, ask about the expected service life and inspection requirements.

6. Quantity

Large projects require significant numbers of small formwork accessories. Calculate the requirement based on the number of panels, connections, and expected construction cycles.

What Sizes and Specifications are Available?

Stub pins come in different sizes for different applications. The most common is the standard 50mm pin.

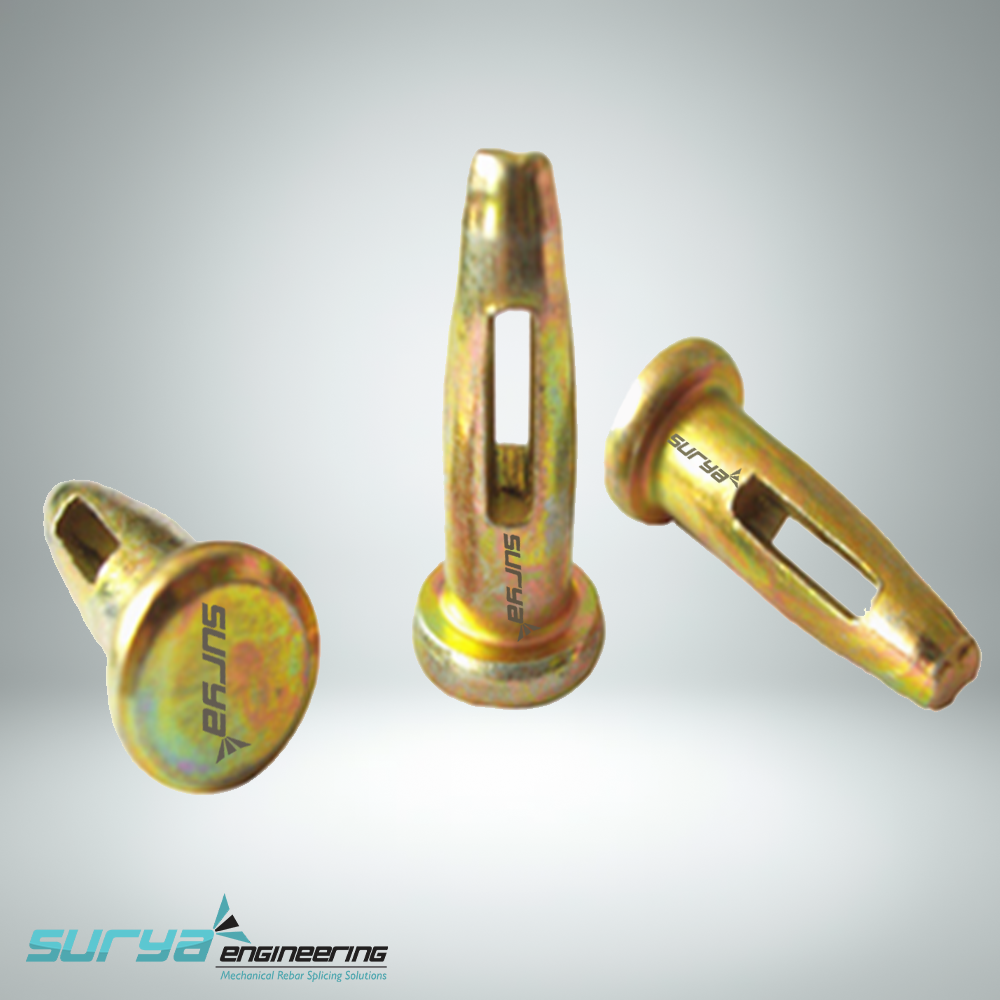

1. Standard Stub Pin (50mm)

• Length: 50mm

• Material: Typically Mild Steel (e.g., Grade EN8)

• Finish: Often Zinc-Plated or Galvanized for corrosion resistance

• Weight: A typical 16x50mm pin weighs around 50 to 70 grams

• Best For: Residential projects, standard Mivan systems, and fast, repetitive daily construction cycles

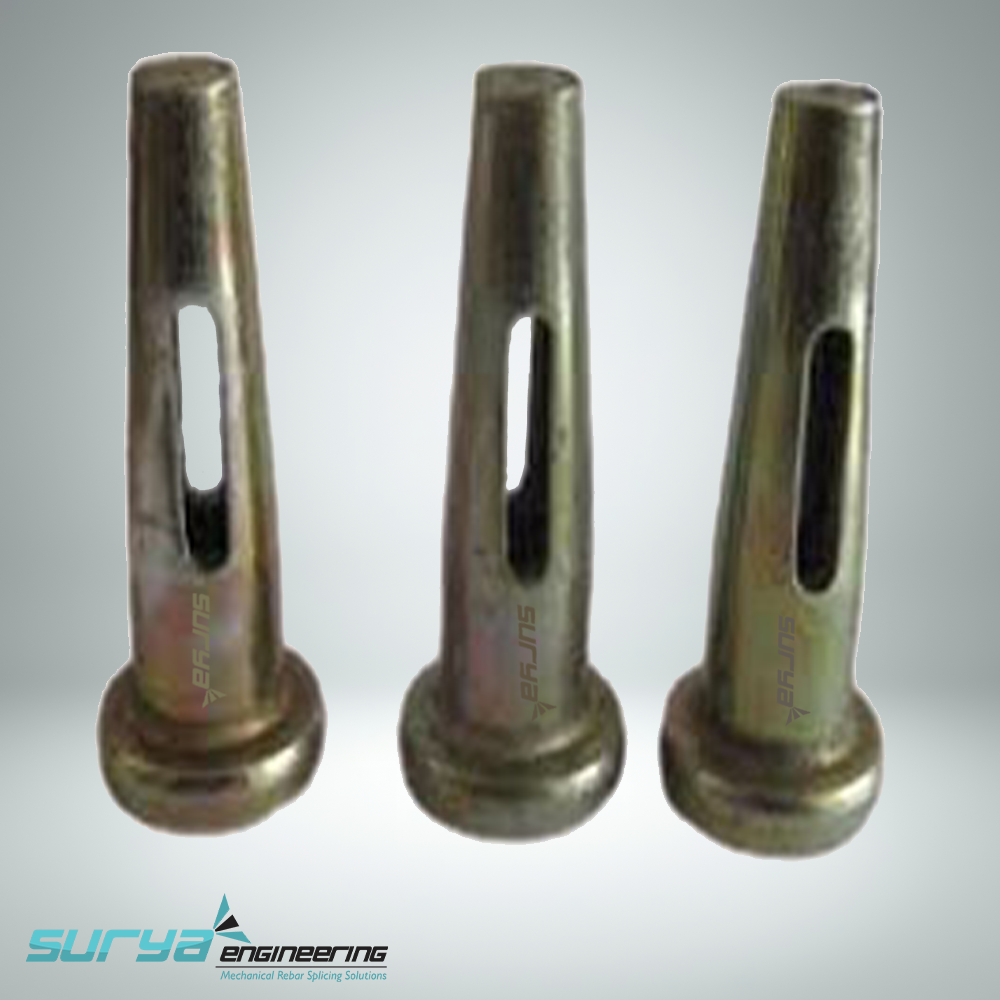

2. Long Mivan Stub Pin (127mm)

• Length: 127mm

• Best For: Heavy-duty applications like high-rise towers, commercial buildings, metro projects, and infrastructure where greater stability and engagement are needed

A good rule of thumb: for standard residential work, the 50mm pin is the go-to, but for complex infrastructure or export projects, many engineers prefer the 127mm pin for its superior stability.

Where is it Used in Mivan Shuttering?

1. To connect wall panel with concrete kicker
2. To align beam side panels with wall panels
3. At deck and wall junction for perfect 90-degree alignment
4. Anywhere you need quick locking without welding

Why Our Stub Pin is Different?

Most cheap stub pins bend after 10-15 uses. Ours doesn't.

• Made from solid EN8 rod, not hollow pipe
• Proper zinc plating so it never rusts and comes out easily after casting
• Exact diameter tolerance so it fits perfectly in Mivan holes, no loose movement
• Tested for 200+ repetitions on site

Mivan Stub Pin vs Other Formwork Pins

Different formwork systems use different types of pins, wedges, bolts, and connection accessories.

A Mivan Stub Pin is specifically associated with compatible aluminium formwork systems and should not automatically be treated as interchangeable with pins from other shuttering systems.

Before replacing an existing pin with another product, compare:

• Dimensions
• Connection design
• Material
• Load requirements
• Panel compatibility
• Manufacturer specifications

Compatibility should always come before price.

Maintenance and Storage of Mivan Stub Pins

Although the Stub Pin is a small component, proper handling helps maintain its usability during repeated formwork cycles.

After dismantling:

• Remove concrete residue.
• Check for bending or deformation.
• Inspect the head and body for damage.
• Separate damaged pins from usable stock.
• Keep pins in a designated container.
• Store them in a dry location.
• Avoid mixing different pin sizes.

A simple storage system can save considerable time on large projects because workers can quickly find the required accessories during the next formwork cycle.

How Many Mivan Stub Pins Do You Need?

The requirement depends on the number of formwork connection points and the specific panel system.

For a large project, don't estimate quantity only from the building's floor area.

Instead, consider:

Number of panels Number of connection points Number of formwork sets Reuse cycles Spare requirement

Keeping a reasonable spare quantity is also useful because small accessories can be misplaced or damaged during repeated installation and dismantling.

Key Advantages in Monolithic Concrete Construction

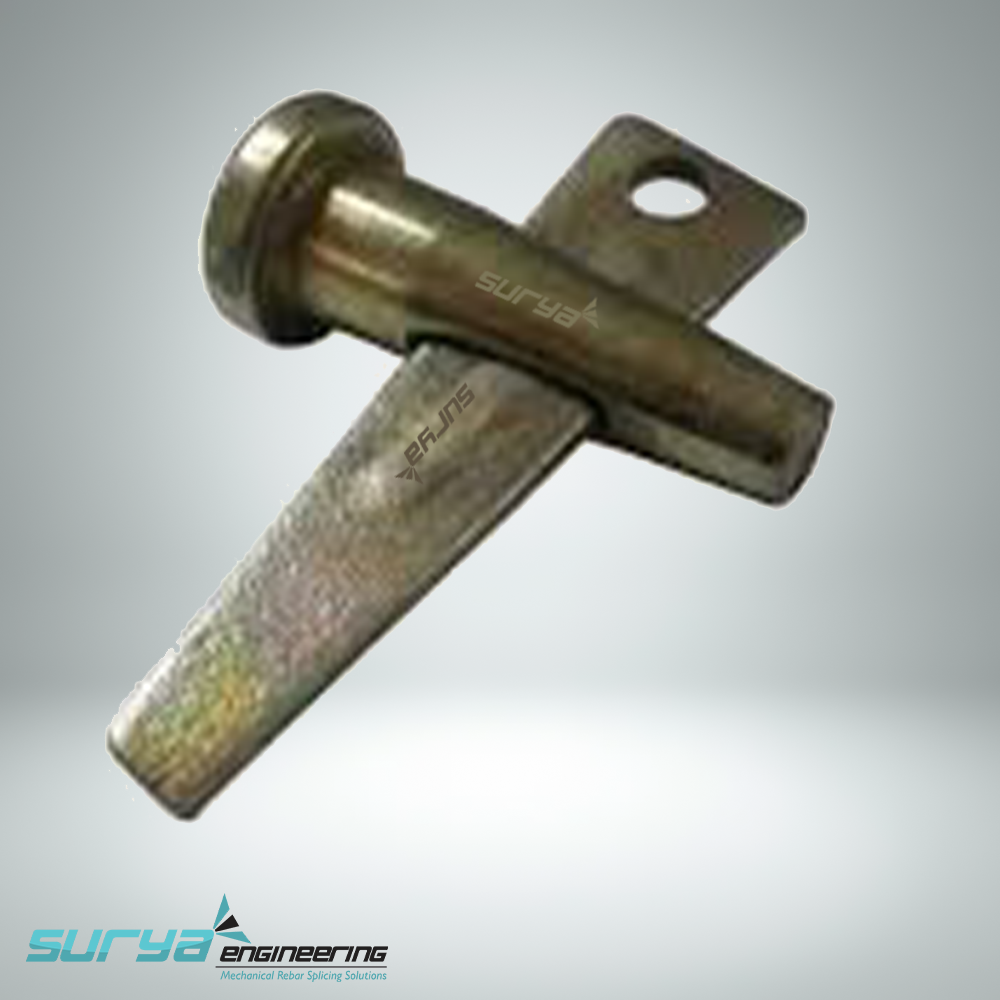

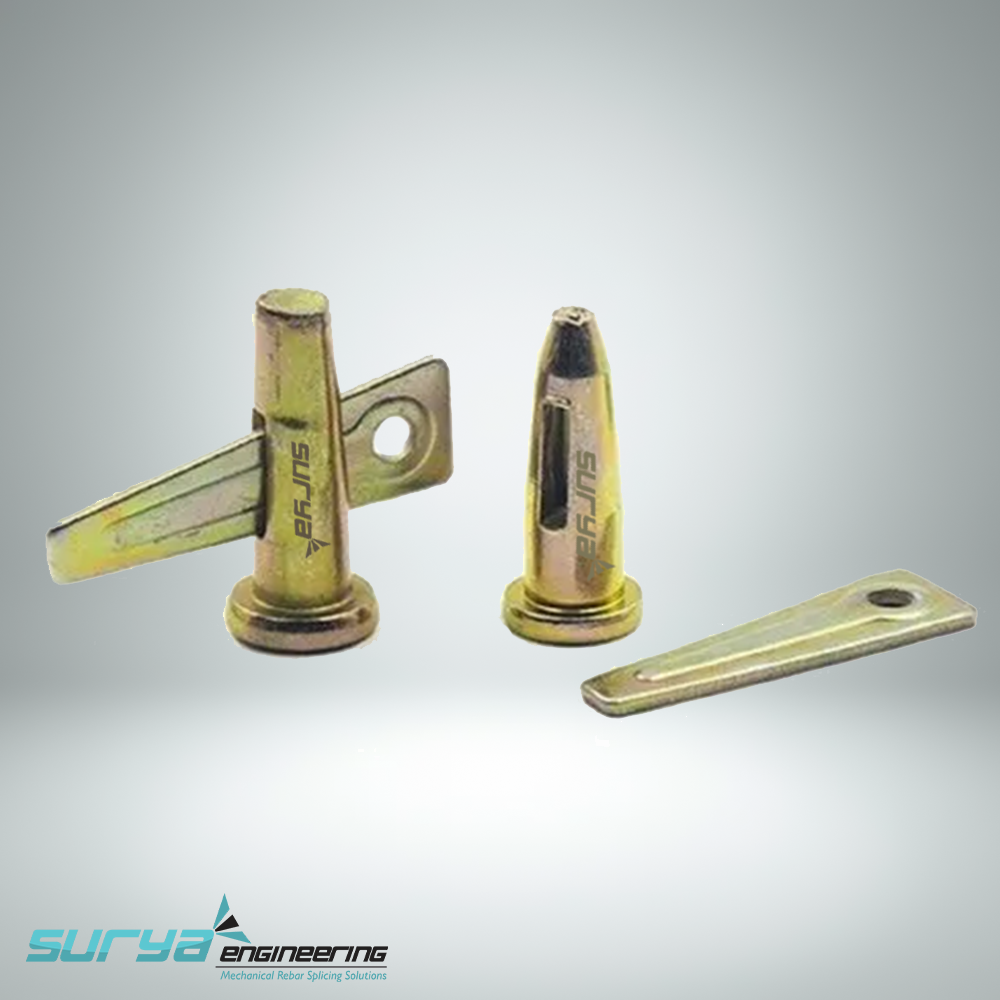

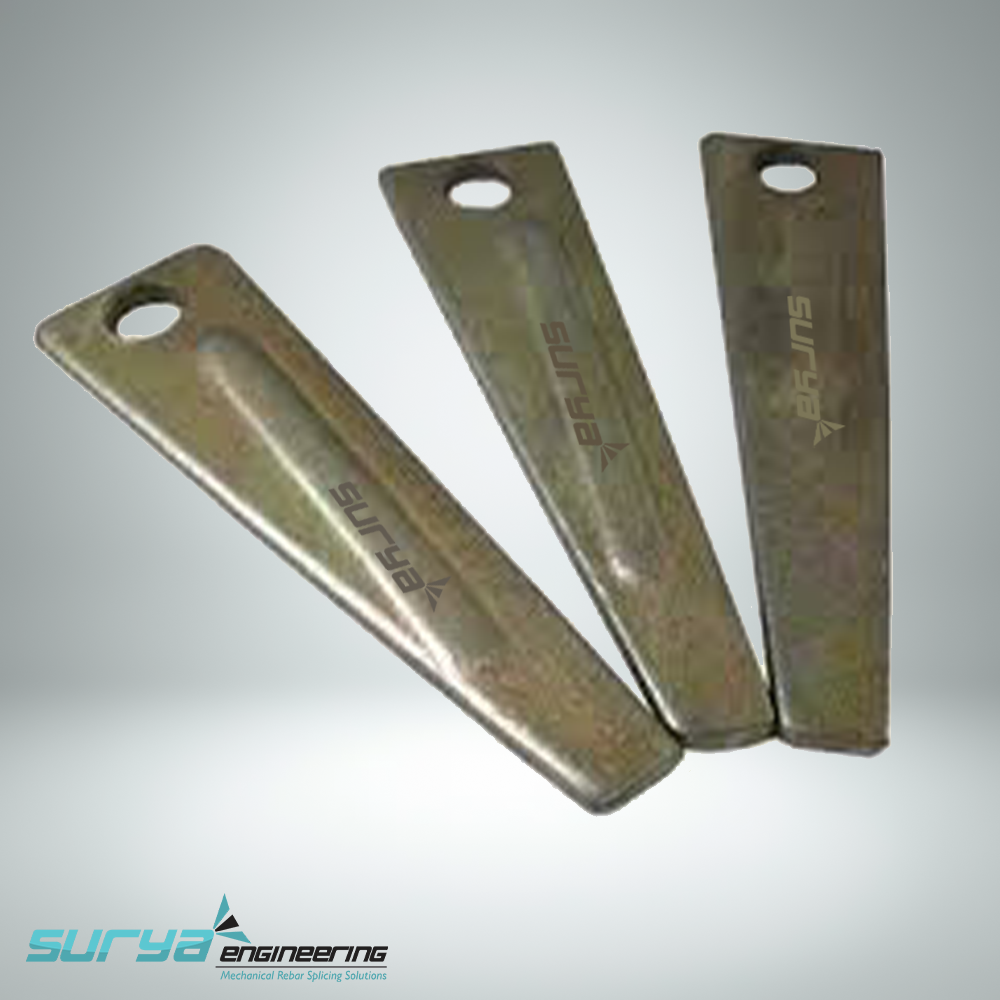

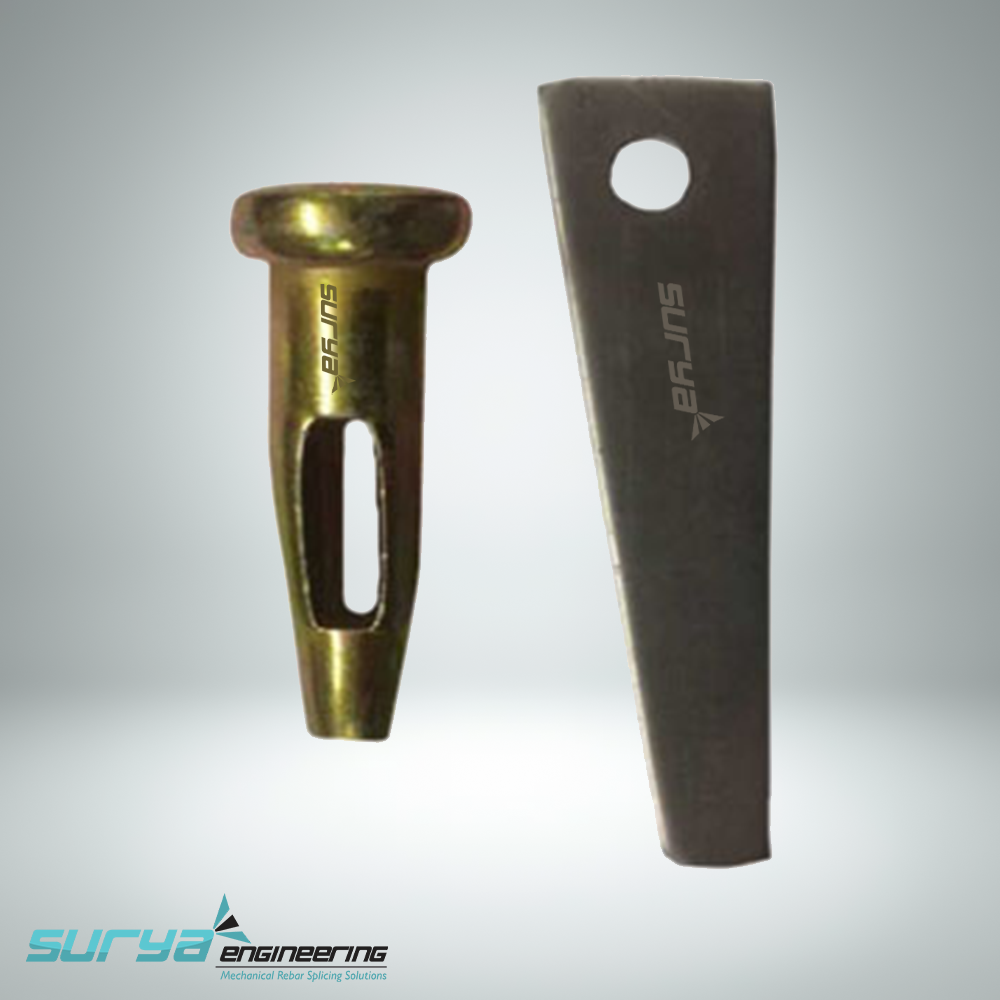

• Rapid Assembly & Stripping: The simple pin-and-wedge mechanism allows construction workers to lock and strike down formwork panels quickly using just a hammer, speeding up floor-to-floor cycle times.

• High Reusability: Cold-forged from high-grade steel and heat-treated, stub pins resist deformation under heavy hammer strikes and can be reused across dozens of high-rise building cycles.

• Tight Panel Seam Jointing: Pulls aluminum panel extrusions flush against each other, eliminating grout leakage and reducing post-pour plastering/finishing costs.

• Precision Wall Thickness: Works in tandem with flat wall ties to ensure precise structural wall dimensions throughout monolithic casting.

Why Buy Mivan Stub Pins From Surya Engineering?

At Surya Engineering, we understand that formwork accessories may be small components, but they can have a direct effect on the efficiency of a construction team's daily work.

Our Mivan Stub Pins are intended for compatible aluminium formwork applications where reliable and repeatable panel connections are required.

Before ordering, buyers can share their:

• Existing formwork system
• Pin dimensions
• Panel type
• Required quantity
• Application
• Project requirements

This makes it easier to identify a suitable product rather than simply choosing a pin based on its name.

Mivan Stub Pin Manufacturer and Supplier in India

Surya Engineering supplies Mivan Stub Pins and construction formwork accessories for contractors, builders, formwork companies, and construction projects in India.

If you are looking for a Mivan Stub Pin manufacturer or supplier in India, confirm the required dimensions and compatibility with your existing aluminium formwork system before placing an order.

For bulk requirements, product specifications, pricing, and application guidance, contact Surya Engineering with your project detail.
