SURYA ENGINEERING
GST : 27AQFPP9378P1ZO

construction joint Armour Joint manufacturer

construction joint Armour Joint manufacturer Specification

Surface Treatment
Polish, Galvanized, Plating

Media
Other

Head Code
Square

Material
Stainless Steel, Zinc, Carbon Steel

Usage
Constraction, Flooring

Technique
Forging

Type
Plug

Size
16 - 40

Height
120 Millimeter (mm)

Connecting Type
Male

Shape
Equal

Product Type
Armour Joint

Weight
10 Kilograms (kg)

Color
Sliver

Width
23 Millimeter (mm)

Length
60 Millimeter (mm)

construction joint Armour Joint manufacturer Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
24 Hours

construction joint Armour Joint manufacturer About

Construction Joint Armour Joint Manufacturer in India

A Construction Joint Armour Joint is designed to protect concrete joint edges from damage caused by heavy traffic, repeated impact, and everyday use. It is commonly used in industrial floors, warehouses, factories, parking areas, loading bays, and other concrete structures where joint edges need extra protection.

What Is a Construction Joint Armour Joint?

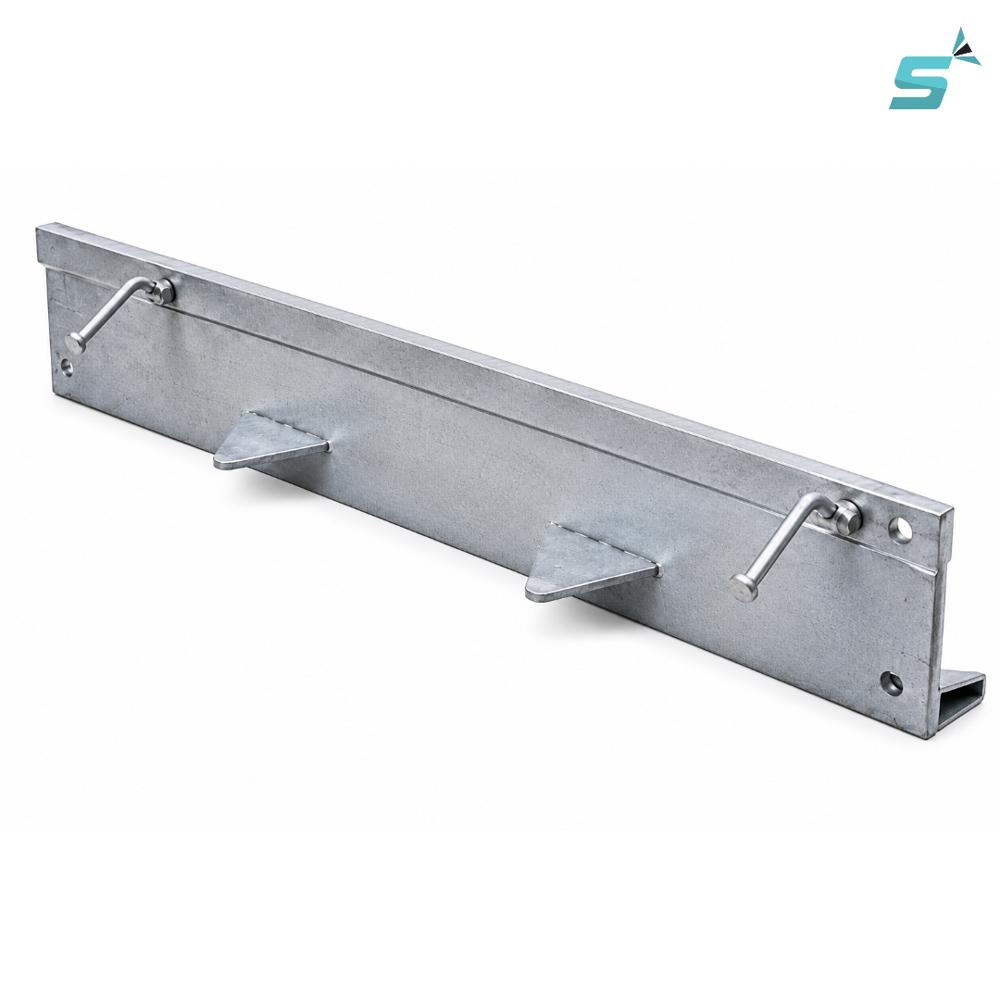

A Construction Joint Armour Joint is a protective joint profile installed at concrete construction joints. Its main purpose is to reinforce and protect the exposed edges of the concrete joint.

Concrete joint edges can become vulnerable when heavy wheels repeatedly pass over them. Over time, this can result in chipping, cracking, or broken edges. An Armour Joint provides a stronger edge at the joint and helps reduce this type of damage.

In simple terms, it acts as a protective barrier between the concrete joint and the traffic moving across it.

Why Is an Armour Joint Important?

Concrete floors are built to withstand considerable loads, but the edges around joints can experience concentrated impact. This is particularly noticeable in warehouses and industrial facilities where forklifts and other vehicles cross the same joints throughout the day.

A properly selected construction joint Armour Joint helps protect these areas and can contribute to a stronger and more durable floor.

It can also help maintain a clean, straight joint line, which is important for both floor performance and finishing quality.

What Makes an Armour Joint Manufacturer Essential for Industrial Floors?

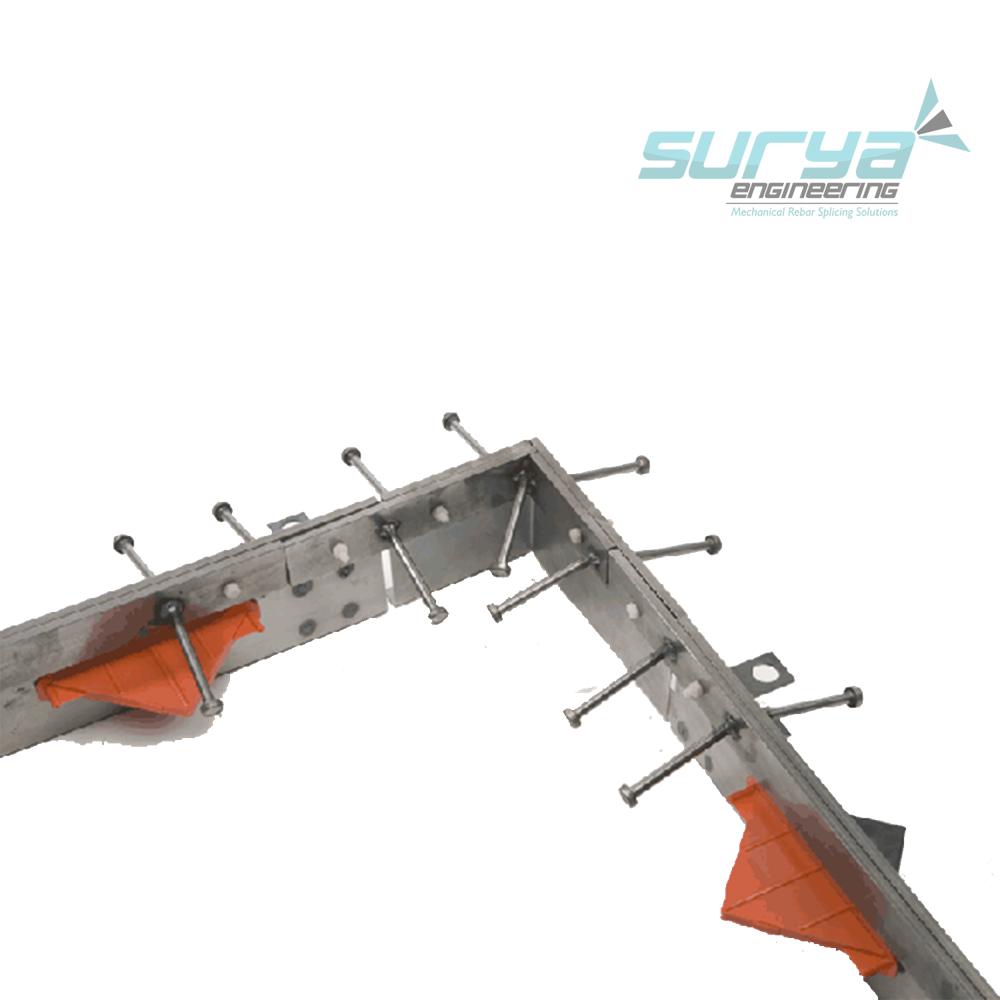

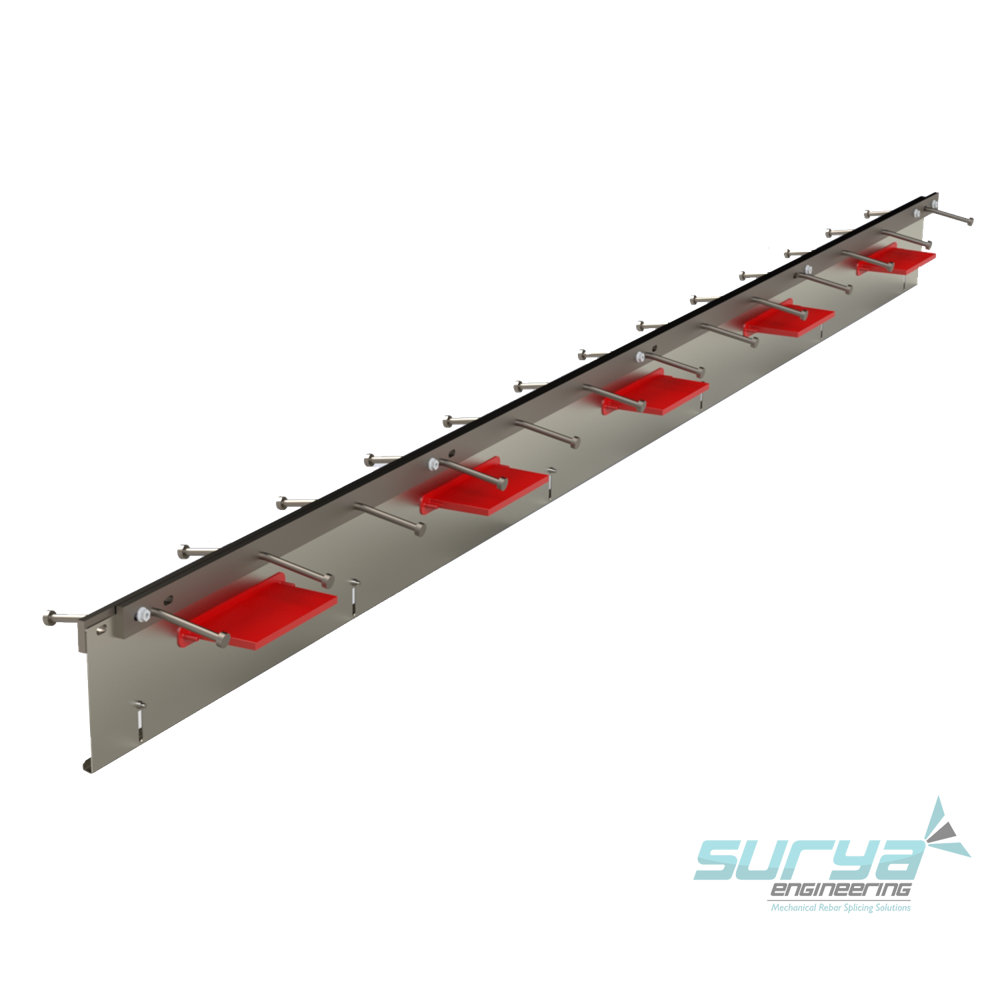

An Armour Joint (also referred to as an armored expansion joint or heavy-duty floor profile) is a permanent, leave-in-place steel joint system installed prior to pouring concrete slabs-on-ground.

As an OEM manufacturer, the production process integrates high-tensile cold-rolled steel top rails with continuous anchor studs and precision plate dowel systems. When the concrete cures and shrinks, the two interlocking steel profiles separate laterally. The heavy steel top edge shields the concrete arris from impact, while internal plate dowels transfer dynamic vertical loads smoothly without vertical stepping.

Key Technical Specifications

Parameter	Manufacturer Engineering Standard
Top Profile Material	Cold-Rolled Carbon Steel, Hot-Dip Galvanized, or Grade 304/316 Stainless Steel
Slab Height Compatibility	Custom fabricated for slab depths from $120\text{ mm}$ to $350\text{ mm}+$
Load Transfer System	Integrated high-tensile plate dowels with HDPE/PP continuous sleeves
Standard Lengths	$3.0\text{ meter}$ prefabricated extruded/formed sections
Arris Steel Dimensions	Solid dual $10\text{ mm} \times 40\text{ mm}$ or $6\text{ mm} \times 40\text{ mm}$ top rails
Anchorage Mechanism	Continuous rigid steel divider plates with welded shear anchor studs

Applications of Construction Joint Armour Joint

Construction Joint Armour Joints are commonly used in:

Industrial concrete floors
Warehouse flooring
Factory floors
Manufacturing facilities
Distribution centers
Logistics warehouses
Loading and unloading areas
Parking facilities
Heavy-duty workshops
Commercial buildings
Concrete pavements
Areas with frequent forklift movement

How Does a Construction Joint Armour Joint Work?

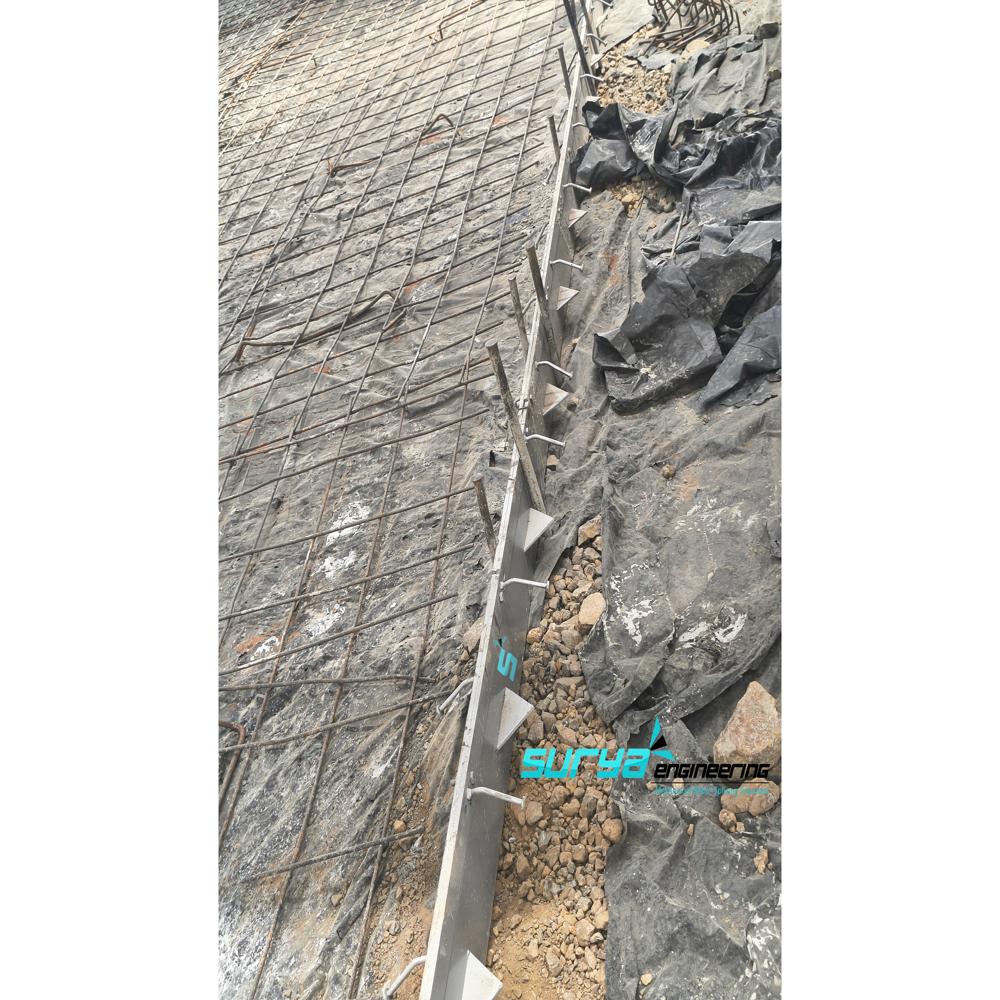

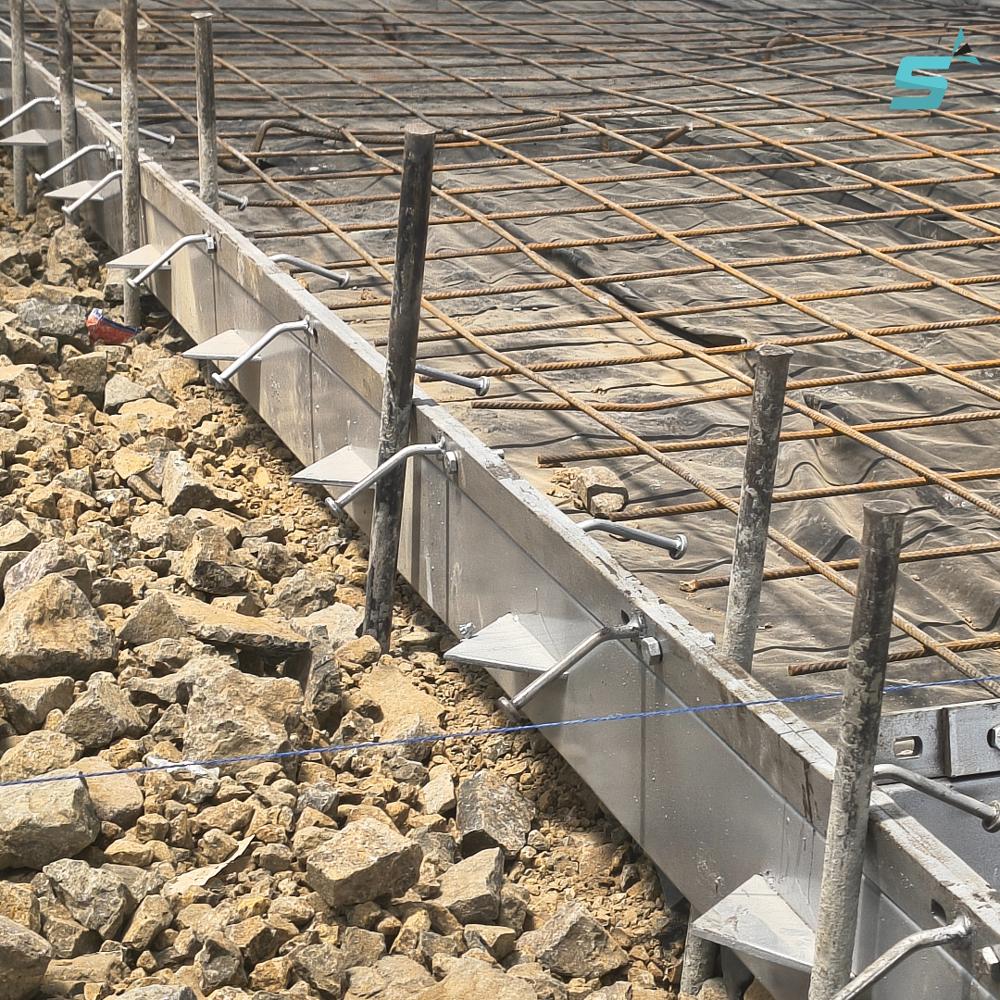

The Armour Joint is positioned along the planned concrete joint and secured in the correct position before the surrounding concrete is placed and finished.

Once the concrete has cured, the Armour Joint provides a reinforced edge along the joint. When a forklift or vehicle crosses the joint, the profile helps protect the concrete edge from direct impact.

This is particularly useful in industrial environments where the same joint may experience thousands of wheel crossings over its service life.

Construction Joint Armour Joint Installation

Correct installation is essential for getting the best performance from an Armour Joint.

A typical installation process includes:

Mark the required construction joint location.
Prepare the concrete base and installation area.
Position the Armour Joint at the required level.
Check the alignment and straightness of the profile.
Secure the Armour Joint firmly in place.

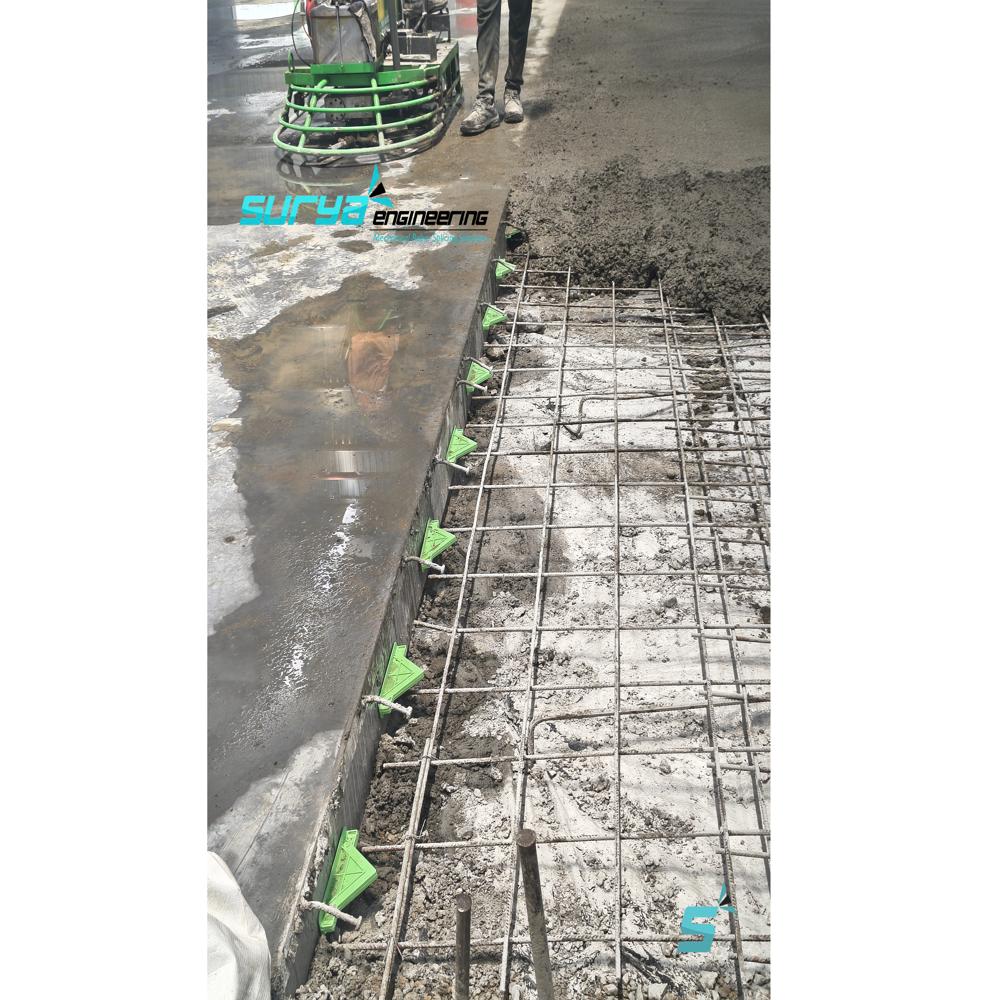

Place the concrete carefully around the joint.
Finish the concrete surface while maintaining the correct joint level.
Inspect the joint after finishing and curing.

The exact installation method depends on the Armour Joint design, concrete thickness, floor layout, and project requirements. Installation should always follow the manufacturer's recommendations.

How to Select the Right Armour Joint?

Not every concrete floor experiences the same type of traffic. A warehouse used mainly by pedestrians has very different requirements from a manufacturing facility where heavy forklifts and machinery operate continuously.

Before selecting a Construction Joint Armour Joint, consider:

Concrete slab thickness
Joint dimensions
Expected vehicle traffic
Forklift wheel loads
Machinery movement
Required joint movement
Indoor or outdoor application
Installation conditions
Material and finish requirements
Overall floor design

Selecting the product according to actual site conditions helps ensure better performance and durability.

Construction Joint Armour Joint Manufacturer in India

Choosing the right manufacturer is an important part of any concrete flooring project. A reliable Construction Joint Armour Joint manufacturer in India should understand the practical requirements of concrete floors and provide products suitable for the intended application.

Surya Engineering manufactures construction and concrete-related products for industrial, commercial, and infrastructure applications. Our focus is on supplying practical solutions for projects that require reliable joint protection and durable concrete flooring components.

Whether the requirement is for a warehouse, factory, industrial floor, loading area, or another heavy-duty concrete application, the Armour Joint should be selected according to the project's floor design and expected traffic.

Why Choose Surya Engineering?

Surya Engineering focuses on construction products designed around real site requirements. Our approach is not simply about supplying a component; it is about providing a suitable solution for the application.

When selecting an Armour Joint, we can consider factors such as the concrete floor type, joint requirements, expected traffic, and installation conditions to help identify a suitable product.

Frequently Asked Questions

What is a Construction Joint Armour Joint?
A Construction Joint Armour Joint is a protective profile installed at concrete joints to reinforce and protect concrete edges from impact, chipping, and heavy traffic.

What is an Armour Joint used for?
It is mainly used to protect concrete joint edges in areas exposed to forklifts, vehicles, machinery, and repeated mechanical impact.

Where are Armour Joints commonly used?
They are commonly used in warehouses, factories, industrial floors, loading bays, parking areas, workshops, logistics centers, and other high-traffic concrete applications.

Who manufactures Construction Joint Armour Joints in India?
Surya Engineering manufactures construction and concrete joint products for industrial, commercial, and infrastructure applications.

Is an Armour Joint suitable for warehouse flooring?
Yes. Armour Joints are particularly useful in warehouses where forklifts and pallet trucks repeatedly cross concrete joints.

How is an Armour Joint installed?
The joint profile is positioned and aligned at the required location, securely fixed, and then incorporated into the concrete floor according to the manufacturer's installation recommendations.

How do I choose an Armour Joint?
Selection should be based on factors such as concrete thickness, joint dimensions, expected traffic, wheel loads, machinery movement, and project-specific requirements.
