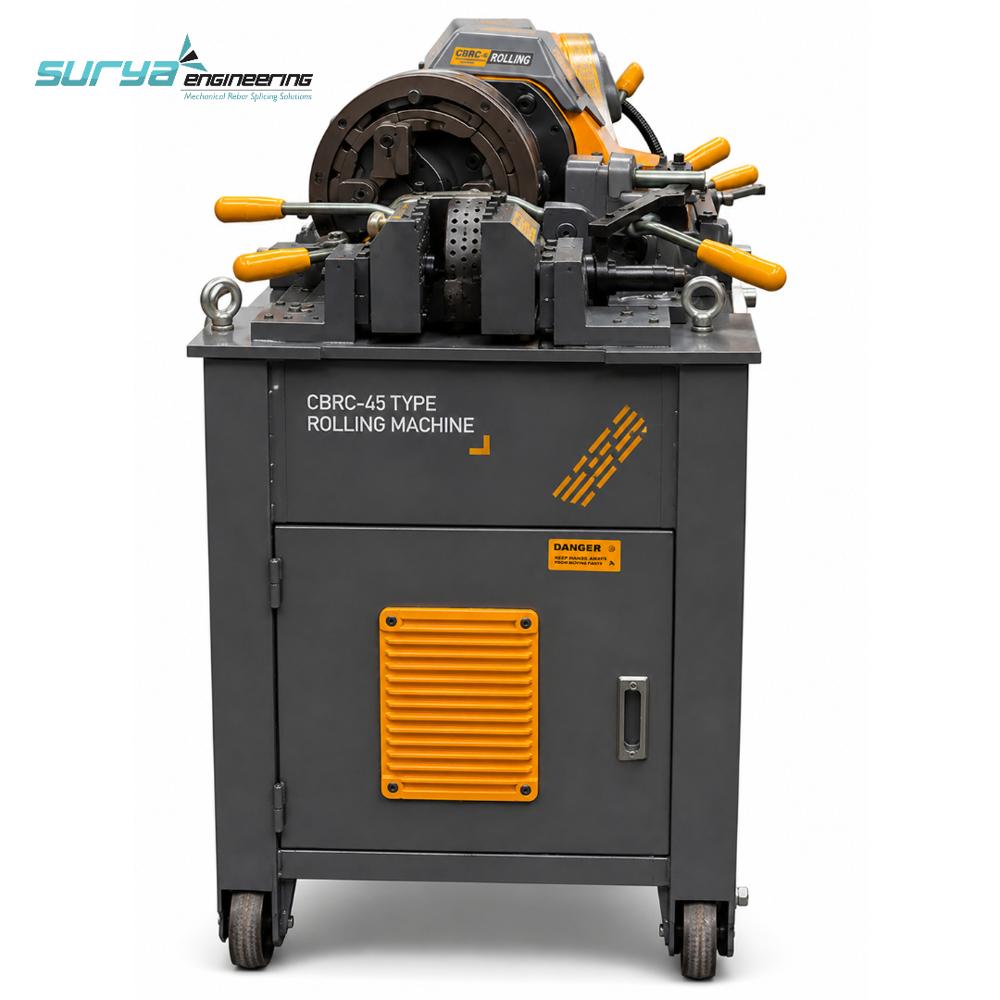

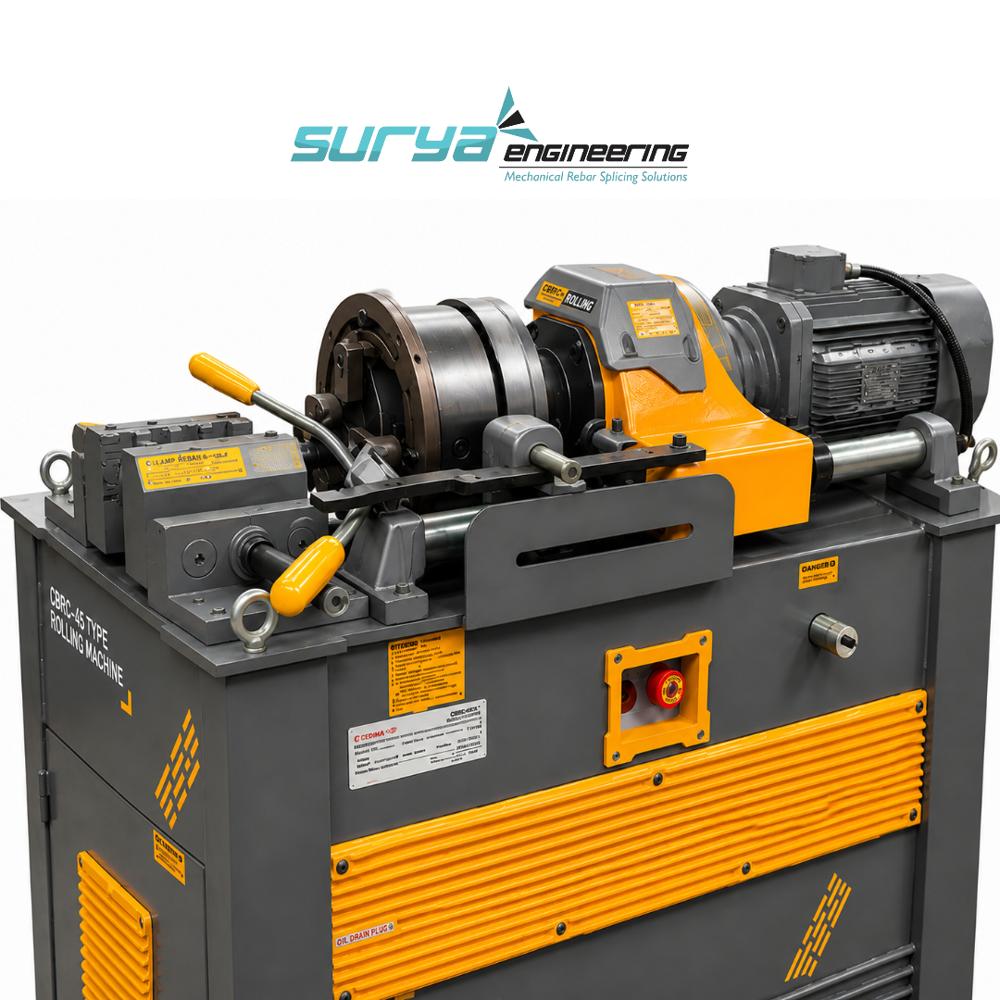

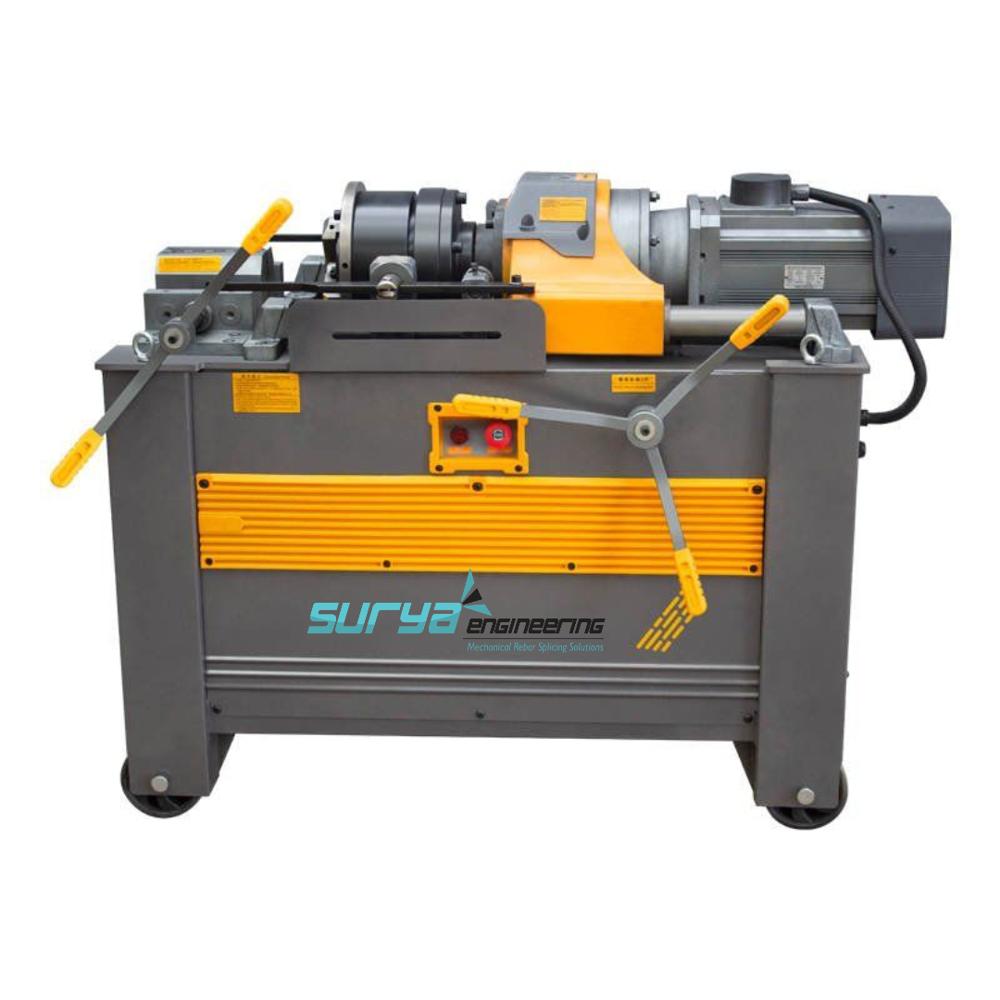

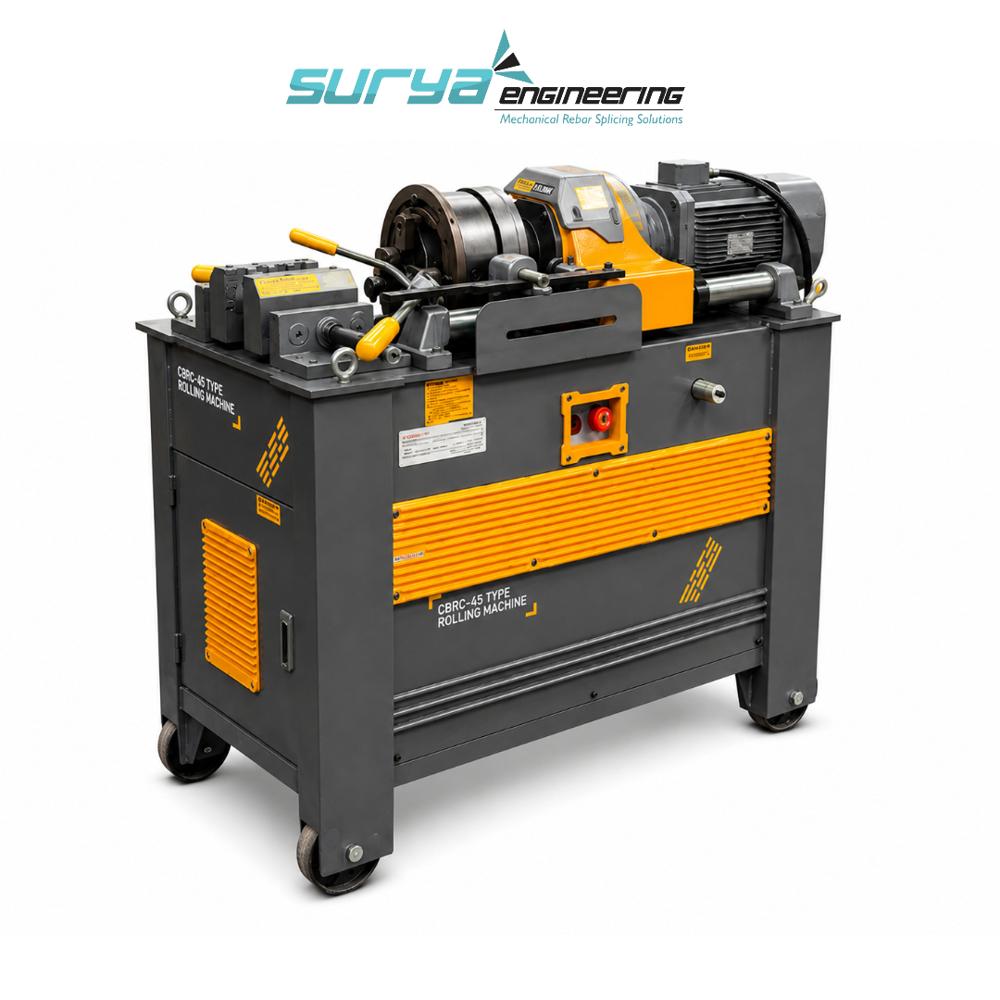

CDRG-45 Roll Thread Machine

CDRG-45 Roll Thread Machine Manufacturer & Supplier in India | Rebar Threading Machine

The CDRG-45 Roll Thread Machine is a semi-automatic rebar threading machine designed to prepare TMT bars for mechanical rebar coupler connections. It uses a rib-stripping and thread-rolling process to form a parallel thread on the prepared end of the reinforcement bar.

Unlike conventional cutting-based threading, the rebar end is prepared and then thread rolled to produce a controlled threaded section for connection with a compatible rebar coupler. This makes the machine suitable for reinforcement fabrication yards, construction projects, infrastructure work, and mechanical splicing applications.

Surya Engineering manufactures and supplies rebar threading and roll-threading equipment in Mumbai, Maharashtra, with solutions for construction contractors, reinforcement processors, fabrication companies, and industrial projects across India.

CDRG-45 Roll Thread Machine Quick Overview

*Specifications can vary by manufacturer, machine configuration and supplied model. Confirm the final technical specification before publishing it as a fixed product specification.

What is a CDRG-45 Roll Thread Machine?

A CDRG-45 Roll Thread Machine is a specialized machine used to create threaded ends on reinforcement bars for mechanical splicing with rebar couplers.

The basic process involves:

TMT Bar Rib Stripping End Preparation Thread Rolling Threaded Rebar Coupler Connection

The machine is therefore useful when a construction project requires mechanical rebar connections instead of relying only on conventional lap-splicing arrangements.

Current technical listings describe CDRG-45 machines as equipment for processing approximately 1640 mm reinforcement bars, with examples using around 62 rpm shaft speed, 5.5 kW motor power and up to 80 mm working length. Other CDRG-45 configurations publish different ranges, so machine-specific specifications should always be confirmed.

How Does the CDRG-45 Work?

The CDRG-45 prepares the end of a TMT bar so that it can accept a compatible mechanical coupler.

1. Bar Positioning

The reinforcement bar is positioned and aligned in the machine according to the required bar diameter.

2. Rib Stripping

The ribs at the required end section are removed to create a suitable cylindrical surface for thread formation.

3. Thread Rolling

The prepared section passes through the threading rollers. The rollers form the required parallel thread profile on the bar.

4. Thread Inspection

The finished thread can be checked using appropriate gauges or the specified coupler to verify compatibility.

5. Mechanical Coupling

The threaded rebar end is connected to a compatible mechanical rebar coupler according to the project's approved connection procedure.

Key Features of CDRG-45

Rebar Threading for Mechanical Splicing

The machine is specifically intended for preparing reinforcement bars for mechanical coupler connections, making it suitable for projects using mechanical splicing systems.

Rib Stripping and Thread Rolling

The combined preparation and rolling process creates the threaded section required for the compatible coupler system.

1640 mm Rebar Processing

Common CDRG-45 specifications list a processing range of approximately 1640 mm, covering several commonly used reinforcement-bar diameters.

Semi-Automatic Operation

The CDRG-45 is generally listed as a semi-automatic machine, providing a practical balance between operator control and production efficiency.

Heavy-Duty Construction

Published CDRG-45 specifications show machine weights in the region of several hundred kilograms, reflecting a machine intended for industrial and construction-site use rather than light workshop threading.

Electrical Operation

Common configurations use a 415 V three-phase electrical supply, making the machine suitable for industrial electrical installations.

Applications of CDRG-45 Roll Thread Machine

The CDRG-45 can be used for reinforcement preparation in:

• High-rise building construction

• Residential and commercial construction

• Bridges and flyovers

• Metro and railway projects

• Highway and infrastructure projects

• Industrial buildings

• Power and utility projects

• Precast construction

• Reinforcement fabrication yards

• Steel processing and rebar fabrication facilities

• Projects using mechanical rebar couplers

Mechanical rebar threading machines are particularly relevant where reinforcement bars need prepared threaded ends for coupler-based connections.

Advantages of CDRG-45 Rebar Threading

Reduced Dependence on Lap Length

Mechanical splicing can reduce the need for conventional overlapping arrangements in applications where an approved mechanical connection system is specified.

Better Reinforcement Planning

Threaded mechanical connections can provide greater flexibility when reinforcement congestion, bar continuity or connection locations need to be carefully managed.

Consistent Thread Formation

A dedicated roll-threading machine provides a controlled process for producing threaded ends when operated with the correct tooling, settings and inspection procedure.

Suitable for Repetitive Production

The semi-automatic configuration makes the machine appropriate for reinforcement fabrication operations where multiple bars require the same type of preparation.

Compatible With Rebar Coupler Systems

The machine is designed around the preparation of threaded reinforcement ends for compatible mechanical couplers. The exact thread profile, diameter and pitch must match the approved coupler system.

CDRG-45 vs Conventional Rebar Connection

The CDRG-45 is not simply a general-purpose metal threading machine. Its main construction application is preparing reinforcement bars for mechanical splicing.

The suitability of either connection method depends on the structural design, applicable project specification, approved coupler system and relevant engineering requirements.

CDRG-45 Machine Specification

For a product page, I recommend displaying the specifications in a compact technical section rather than filling the page with repeated keywords.

Model: CDRG-45
Machine Type: Rebar Roll Threading Machine
Operation: Semi-Automatic
Processing Range: 1640 mm*
Motor: Approximately 55.5 kW*
Main Shaft Speed: Approximately 62 rpm*
Working / Threading Length: Up to approximately 80 mm*
Power Supply: 415 V, 3 Phase*
Application: TMT Bar Threading / Mechanical Rebar Splicing

*Confirm against the exact machine configuration supplied by Surya Engineering before publishing.

Who Should Buy a CDRG-45 Roll Thread Machine?

The CDRG-45 can be suitable for:

• Civil construction contractors

• Rebar fabrication companies

• Reinforcement steel processors

• Infrastructure contractors

• Mechanical splicing contractors

• Precast manufacturers

• Steel fabrication units

• Construction equipment suppliers

• Large building-project contractors

Why Choose Surya Engineering?

Surya Engineering supplies construction and reinforcement-processing equipment for industrial and infrastructure applications.

For the CDRG-45, customers can discuss their bar diameter, required thread specification, coupler system, production requirement, electrical supply and application before selecting the machine configuration.

This is particularly important because CDRG-45 listings in the market are not completely standardized; published specifications vary between suppliers. For example, one current listing specifies 1640 mm capacity, 80 mm threading length and 5 HP motor power, while another lists 1640 mm, 80 mm working length and 5.5 kW power.

Frequently Asked Questions

What is a CDRG-45 Roll Thread Machine?

A CDRG-45 Roll Thread Machine is a semi-automatic rebar threading machine used to prepare TMT bar ends for mechanical rebar coupler connections. It commonly combines rib stripping with parallel thread rolling.

What size rebar can a CDRG-45 thread?

Many CDRG-45 specifications list a working range of 16 mm to 40 mm. Some market listings describe other configurations, so the exact processing range should be confirmed for the machine being purchased.

What is the use of a rebar roll thread machine?

A rebar roll thread machine prepares the end of reinforcement bars so they can be joined using compatible mechanical rebar couplers.

Is CDRG-45 suitable for TMT bars?

Yes. CDRG-45 machines are specifically marketed for threading reinforcement/TMT bars for mechanical splicing applications.

Is CDRG-45 automatic or semi-automatic?

The commonly published CDRG-45 configuration is semi-automatic.

What motor is used in CDRG-45?

Published specifications vary. Current listings show approximately 5 HP to 5.5 kW depending on the machine configuration. Always confirm the motor specification on the quotation or machine datasheet.

What is the threading length of CDRG-45?

A commonly published configuration specifies a maximum working/threading length of approximately 80 mm. Other configurations may differ.

Can CDRG-45 be used for rebar couplers?

Yes. Its primary application is preparing threaded reinforcement ends for compatible mechanical rebar coupler systems.

Where is CDRG-45 used?

It is used in construction and reinforcement-processing applications including high-rise buildings, bridges, infrastructure projects, industrial construction and rebar fabrication facilities.

What is CDRG-45 Roll Thread Machine?

The CDRG-45 Roll Thread Machine is a semi-automatic machine used to prepare TMT/reinforcement bar ends for mechanical rebar coupler connections. It typically strips the ribs from the required bar section and then rolls a parallel thread onto the prepared end. Common published configurations process approximately 1640 mm rebar and use a 415 V three-phase electrical supply.

What does CDRG-45 do?

It prepares threaded ends on reinforcement bars so the bars can be joined using compatible mechanical rebar couplers.

What is the CDRG-45 capacity?

A commonly published configuration has a 1640 mm rebar processing range, although specifications vary between CDRG-45 machine variants.

Is CDRG-45 used for TMT bars?

Yes. CDRG-45 machines are designed for threading reinforcement/TMT bars for mechanical splicing applications.

CDRG-45 Roll Thread Machine Manufacturer in Mumbai

Surya Engineering manufactures and supplies rebar processing and threading equipment from Mumbai, Maharashtra. The CDRG-45 Roll Thread Machine is suitable for contractors, reinforcement fabricators and infrastructure companies requiring threaded TMT bars for mechanical coupler connections.

We serve customers looking for:

CDRG-45 Roll Thread Machine in Mumbai
Rebar Threading Machine in Maharashtra
TMT Bar Threading Machine in India
Rebar Roll Thread Machine in Pune
Rebar Threading Machine in Gujarat
Rebar Coupler Threading Machine in India

For machine selection, customers should provide the required rebar diameter range, coupler/thread specification, expected production volume and electrical requirements.
