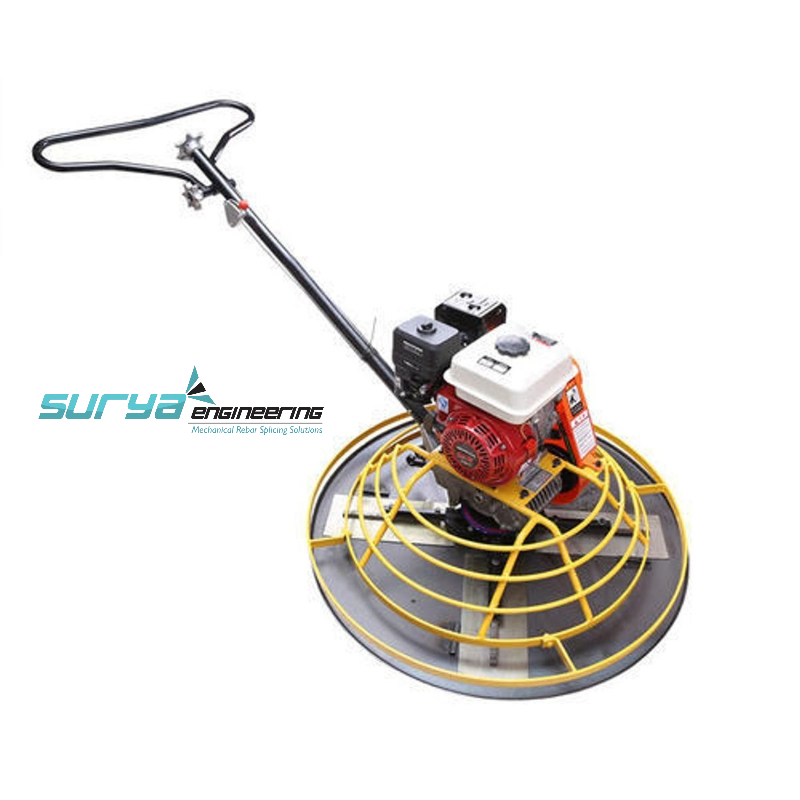

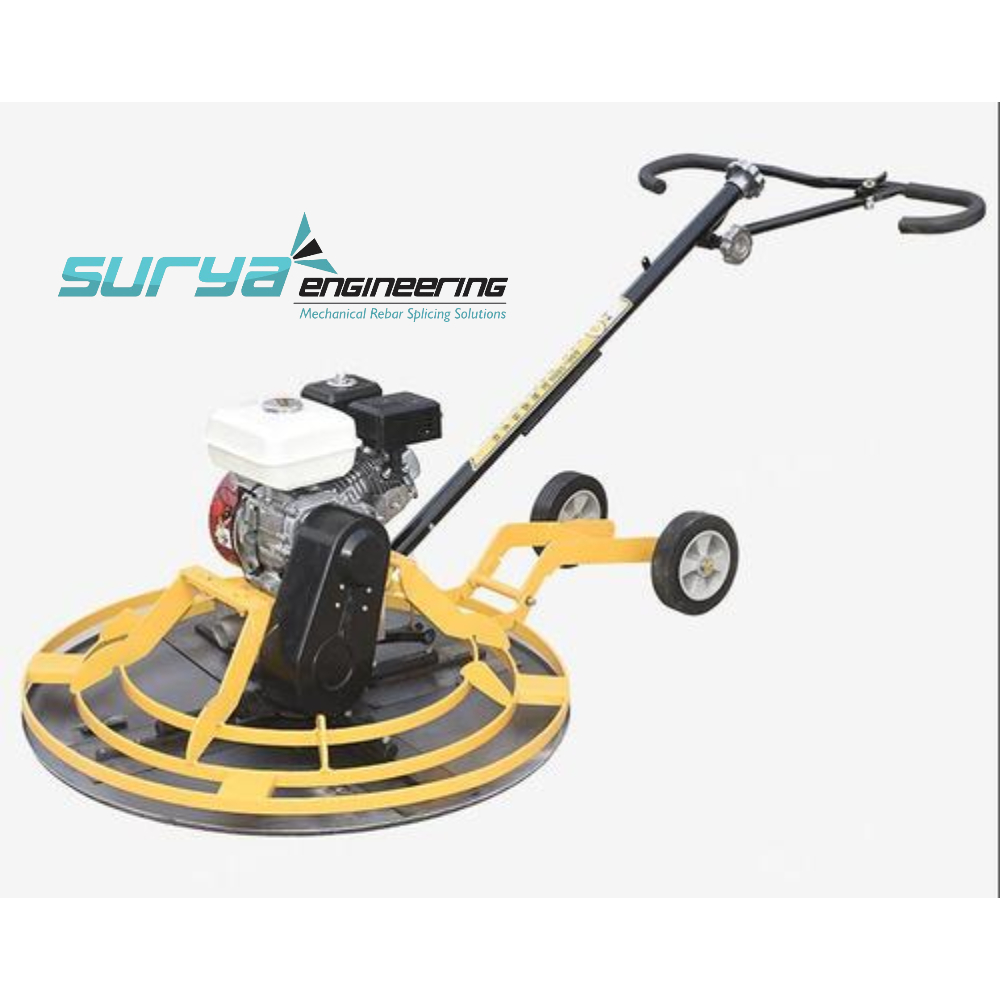

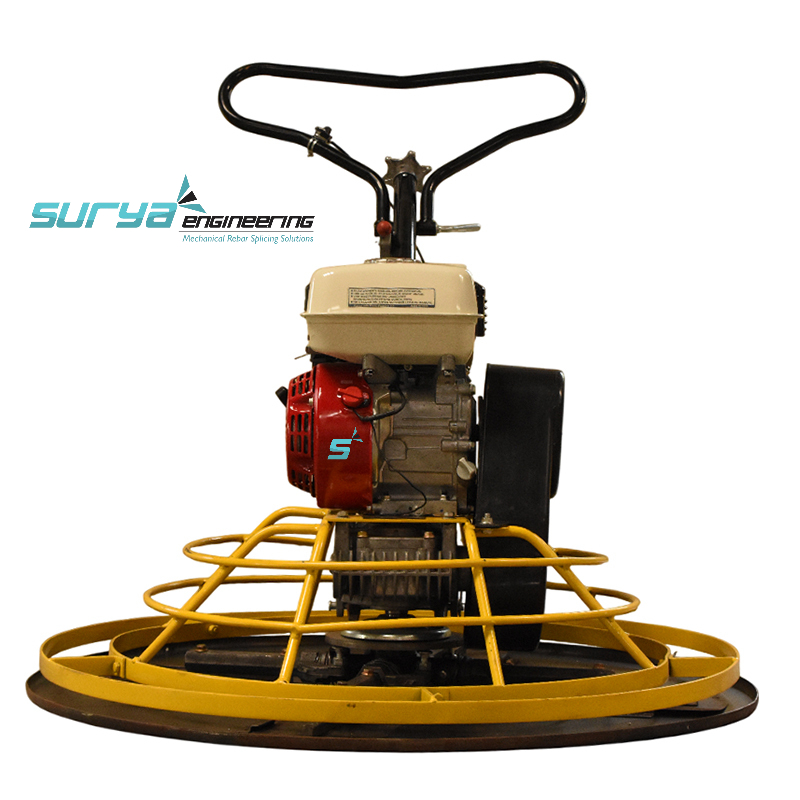

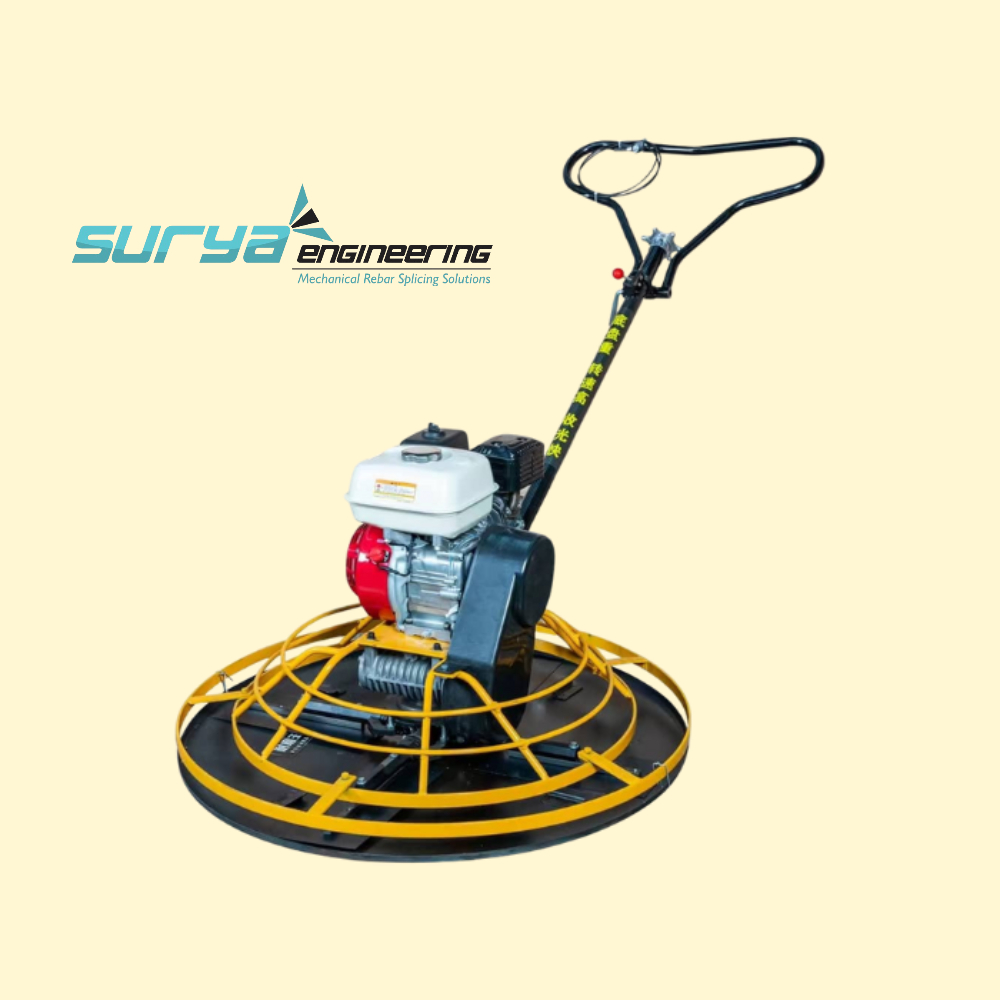

Walk Behind Power Trowel

Walk Behind Power Trowel Specification

Application
Industrial Flooring, Warehouse Flooring, Commercial Building, Road Construction

Motor Power
5.5 HP / 6.5 HP Horsepower (HP)

Rated Power
4.1 kW (5.5 HP) - Honda GX160 Petrol Engine

Surface
Powder Coated & Chrome Plated

Product Type
Power Trowel Cum Floater

General Use
Industrial / Concrete Finishing / Floor Polishing

Material
Steel

Type
Mini Loader

Capacity
Fuel Tank 3.6 Litre, Troweling Diameter 900mm (36 inch) Ltr

Weight (kg)
85 - 90 kg Kilograms (kg)

Computerized
No

Automatic
No

Control System
Manual

Cooling System
Other

Method
Hydraulic Pressure

Dimension (L*W*H)
2000 x 950 x 1000 mm Millimeter (mm)

Feature
Adjustable Blade Pitch, Foldable Handle, Safety Guard Ring, Dead-Man Switch, Powder Coated

Color
Orange

Warranty
1 years

Walk Behind Power Trowel Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
24 Hours

About Walk Behind Power Trowel

walk behind power trowel

A Power Trowel is a high-performance concrete finishing machine designed for smoothing, leveling, and polishing freshly laid concrete surfaces. It uses rotating blades to provide a uniform, dense, and smooth finish while significantly reducing manual finishing time and labor requirements.

Power trowels are widely used for industrial floors, warehouses, factories, parking areas, commercial buildings, construction projects, and large concrete slabs where a consistent surface finish is required.

What it does

Concrete is poured > screeded > bull floated > then power trowelled in 2 stages:
1. Floating: Embeds aggregate and levels the surface
2. Finishing: Closes the surface and brings up the shine

Without it, you get a dusty, uneven floor. With it, you get a dense, durable floor.

Types of Power Trowel

1. Walk-Behind Power Trowel
Most common in India. Operator walks behind and controls it by handle. Used for small to medium areas, edges, and where ride-on can't go.

Diameter: 600mm to 1000mm [24" to 46"]
Engine: 5 HP to 9 HP petrol, diesel or electric
Weight: 80 - 150 kg
Blades: 4 blades on one rotor

2. Ride-On Power Trowel
Operator sits on the machine between two rotors. For very large floors.

Two counter-rotating rotors, 4-5 blades on each rotor
Diameter: 2 x 900mm - 1200mm
Engine: 20 HP to 35 HP petrol/diesel
Weight: 300 - 500 kg
Steering by two levers: both forward to go forward, both back to go back

Main Parts

Engine: Usually Honda GX160 / GX270 petrol is standard
Gearbox: Reduces engine RPM to blade RPM (60-150 RPM)
Rotor and Spider: Holds the blades
Handle with controls: Throttle, dead-man switch, pitch control
Safety Ring: Cage around blades
Pitch Control: Changes blade angle for more or less pressure

How to Operate a Power Trowel

Operating a power trowel requires practice, as the machine can be difficult to control if you are inexperienced. Here are the general steps:

Preparation: Ensure the concrete has stiffened enough to walk on but is still workable. Place the trowel on the concrete and start the engine.
Starting and Speed: Slowly increase the engine RPM by pulling the throttle lever towards you
Steering (Walk-Behind): You steer by tilting the handle. Lifting up slightly on the handle steers the machine to the left, and pushing down steers it to the right.
Blade Pitch: The angle of the blades controls the finish. Start with the blades flat for "floating" (compressing the surface) and gradually increase the pitch for "troweling" (creating a smooth, hard finish).
Perimeter Work: Remember that a power trowel cannot finish flush against forms, get into corners, or finish around drains. These areas must be completed by hand.

Where it's used

Industrial floors, warehouses, factories
Commercial buildings, malls, parking
Roads, runways, canals
Godowns, workshop floors - exactly the type of clients Surya Engineering serves

How to operate - Correct sequence

Wait till concrete is walkable, foot impression is 3-4mm
First pass with FLOAT PAN, blades flat, low speed
Second pass with float blades, low pitch
Wait 30-60 mins between passes
Final 1-2 passes with FINISH blades, increase pitch gradually each pass
Overlap each pass by 50%
Don't stay in one spot, machine will dig

Safety and Maintenance Tips

Safety First:

Wear Protective Gear: Always wear safety glasses, hearing protection, a hard hat, long pants, and substantial, slip-resistant footwear. Tie back long hair and avoid loose clothing or jewelry.
Keep Clear: Never stand on the trowel during operation. Always keep clear of rotating or moving parts
Work Area: Ensure the area is clear of other people before operating the machine.
Fuel Safety: Add fuel only when the engine is stopped and has cooled down to avoid fire hazards

Advantages

Faster concrete finishing
Consistent surface quality
Reduced labor requirement
Improved floor appearance
Suitable for large-area projects
Helps achieve a smooth and dense concrete surface
Saves finishing time on construction sites

Why Choose Surya Engineering?

Surya Engineering provides construction equipment designed for practical site requirements, reliable operation, and efficient concrete finishing. Our Power Trowel range is suitable for contractors, builders, infrastructure companies, and construction professionals looking for efficient concrete surface-finishing equipment.

FAQ

1. What is a Power Trowel used for?
A Power Trowel is used for floating, smoothing, leveling, and finishing freshly laid concrete surfaces.

2. Where is a Power Trowel commonly used?
It is commonly used on industrial floors, warehouses, factories, parking areas, commercial buildings, and large concrete slabs.

3. Can a Power Trowel be used for large floor areas?
Yes. It is particularly useful for finishing large concrete surfaces more efficiently than manual methods.

4. Does a Power Trowel reduce manual labor?
Yes. It mechanizes the concrete finishing process and can significantly reduce manual finishing work.

5. Is the Power Trowel suitable for RCC floors?
Yes, provided the concrete has reached the appropriate stage for trowel finishing.
