Rebar Coupler

About Rebar Coupler

What is a Rebar Coupler?

A rebar coupler is a highly engineered mechanical device used to connect two reinforcing steel bars (TMT bars) end-to-end in a reinforced concrete structure.

Traditionally, construction joints were formed by overlapping two rebars over a specific length (lap splicing) and tying them with binding wire. A rebar coupler completely eliminates this overlap, functioning as a continuous structural sleeve that transfers axial tensile and compressive forces directly from one rebar to the next.

Why is it Used? (The Need for Mechanical Splices)

Traditional overlapping creates significant bottlenecks in modern civil engineering. Rebar couplers are used to solve major structural and economic limitations:

• Eliminating Rebar Congestion: Overlapping heavy-diameter bars (like 25mm, 32mm, or 40mm) doubles the steel volume at structural joints, leaving no room for concrete to flow. Couplers maintain a sleek profile, preventing voids and honeycombing in concrete.

• Structural Continuity: Couplers behave as a single continuous bar. Unlike lap joints, which rely entirely on the surrounding concrete's bond strength to transfer loads, a mechanical coupler transfers loads independently.

• Eco-Friendly Steel Savings: Lap lengths typically require an extra wastage of $40d$ to $50d$ (where $d$ is the bar diameter). Eliminating this overlap reduces steel wastage to virtually zero.

Classification & Types of Rebar Couplers

At Surya Engineering Industries, we manufacture different types of couplers optimized for diverse structural alignments:

1. Parallel Threaded Couplers

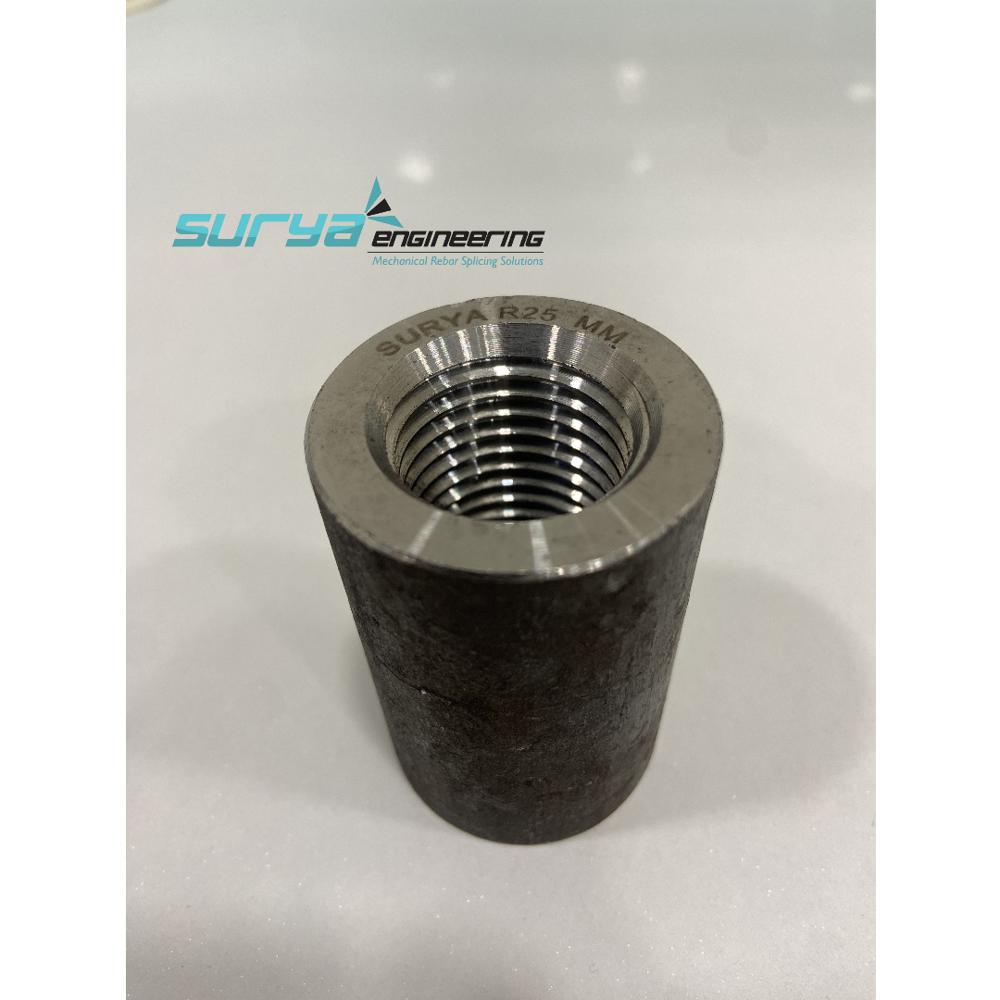

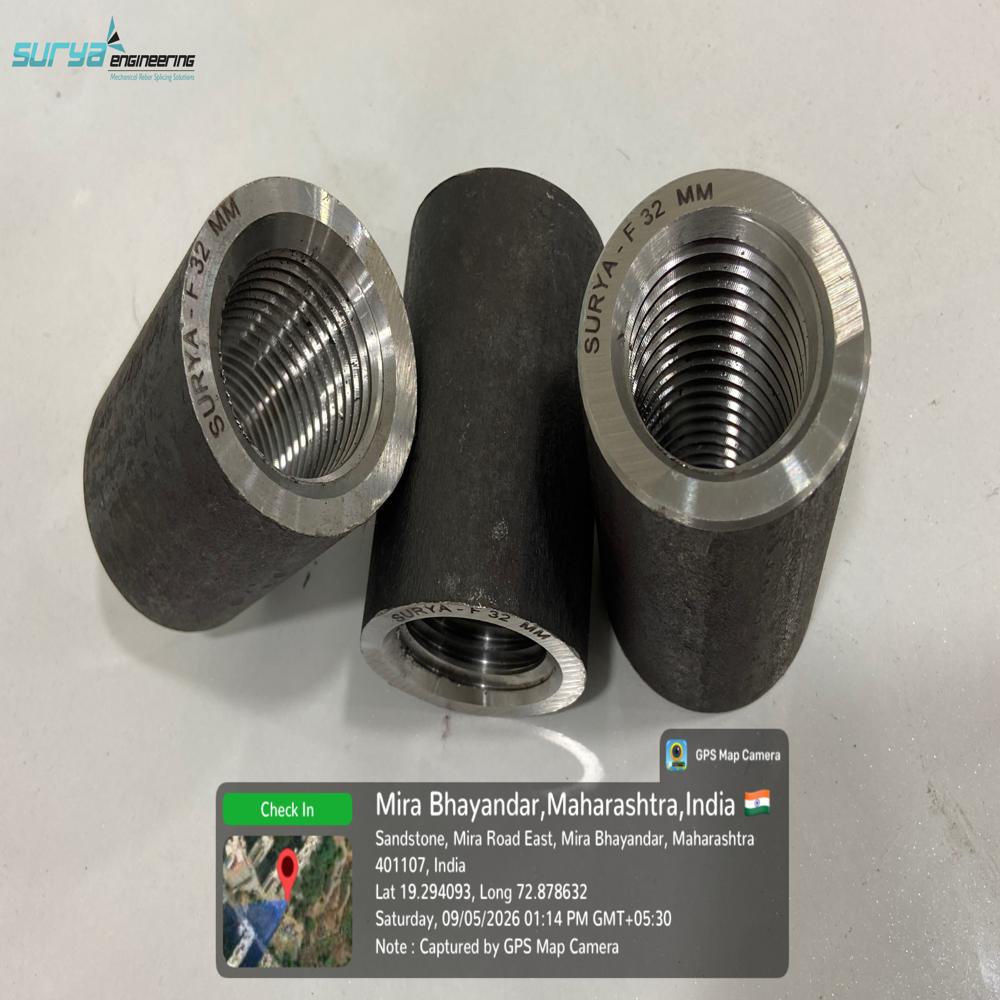

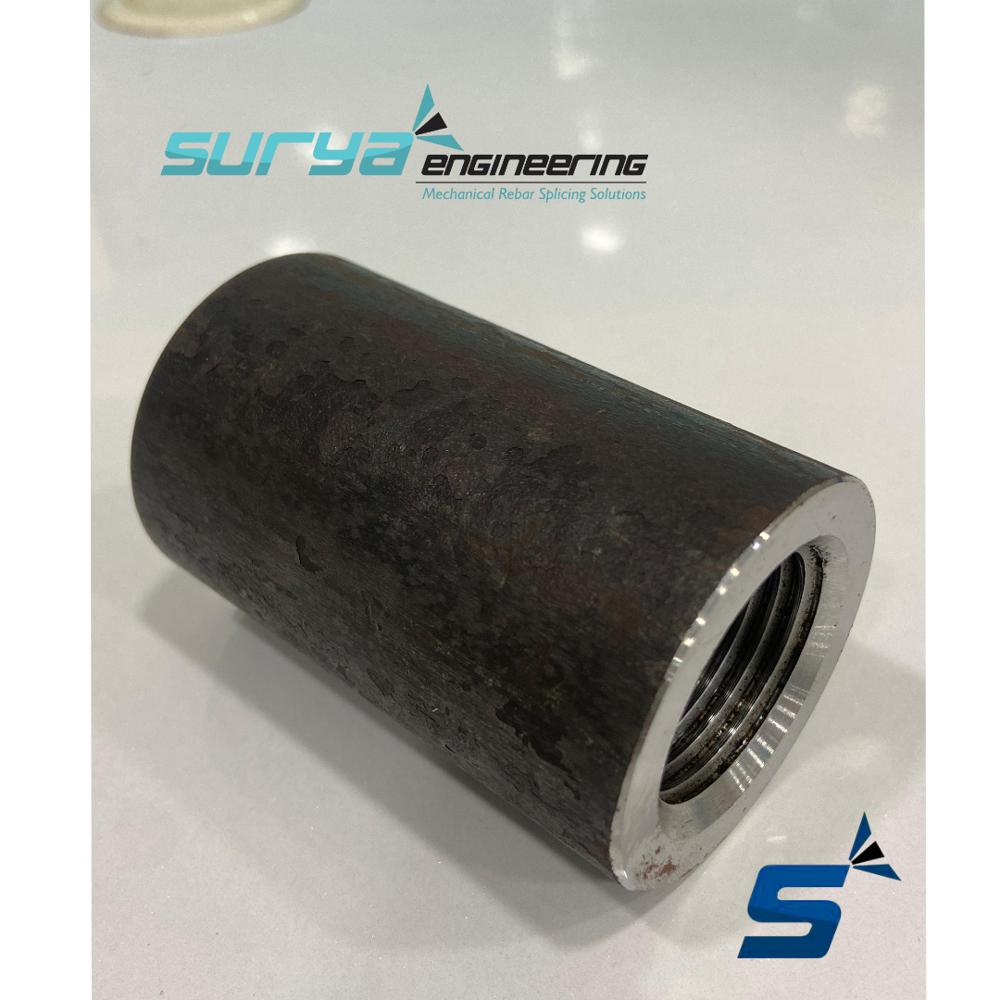

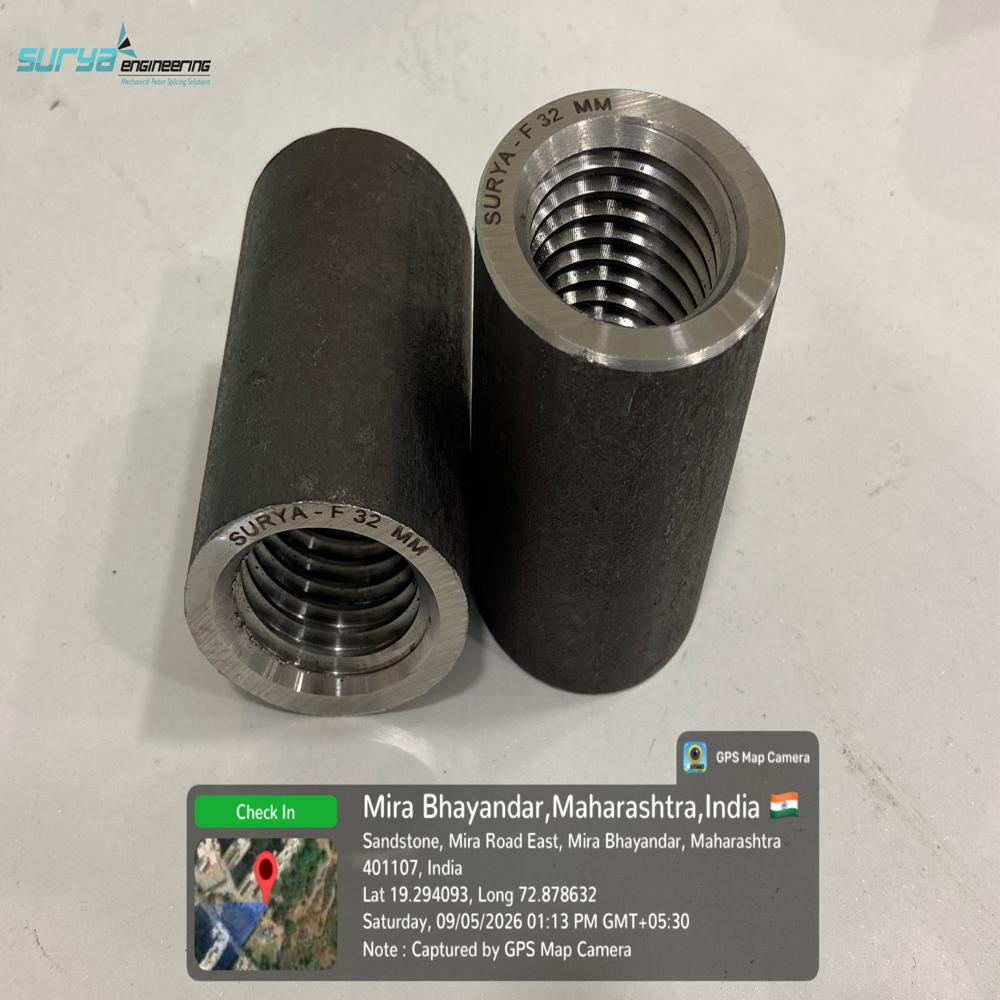

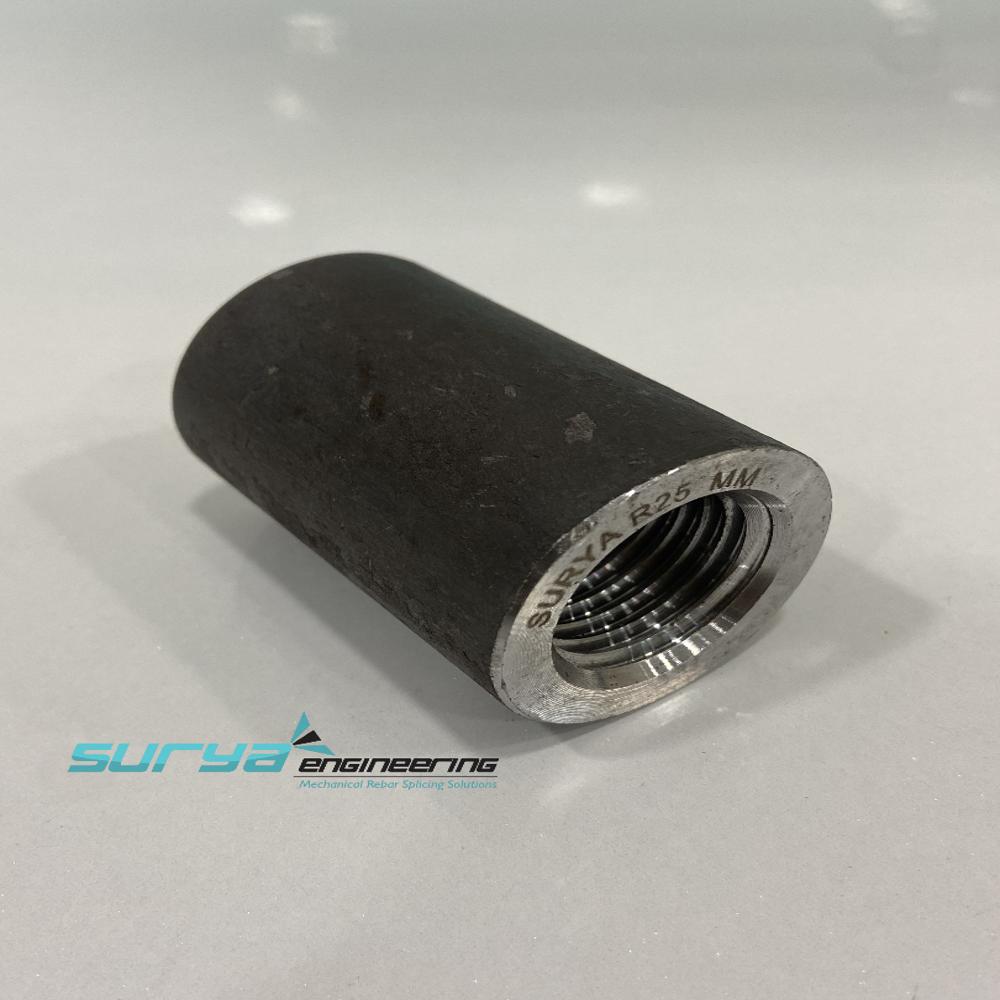

The most widely used system. The ends of the rebars are cut square and threaded with a uniform metric thread. One bar is simply screwed into the coupler sleeve until it meets the second bar.

2. Cold Forged Parallel Threaded Couplers

Engineered for high-stress zones. The rebar end is first hydraulically compressed (cold forged) to expand its diameter before the threads are cut. This ensures that the root diameter of the thread is equal to or greater than the original bar diameter, guaranteeing a Bar Break (failure occurs in the parent bar, not at the joint).

3. Taper Threaded Couplers

Features a gradual cone-shaped thread. This allows for incredibly fast installation at the construction site with fewer turns required to achieve full torque lock.

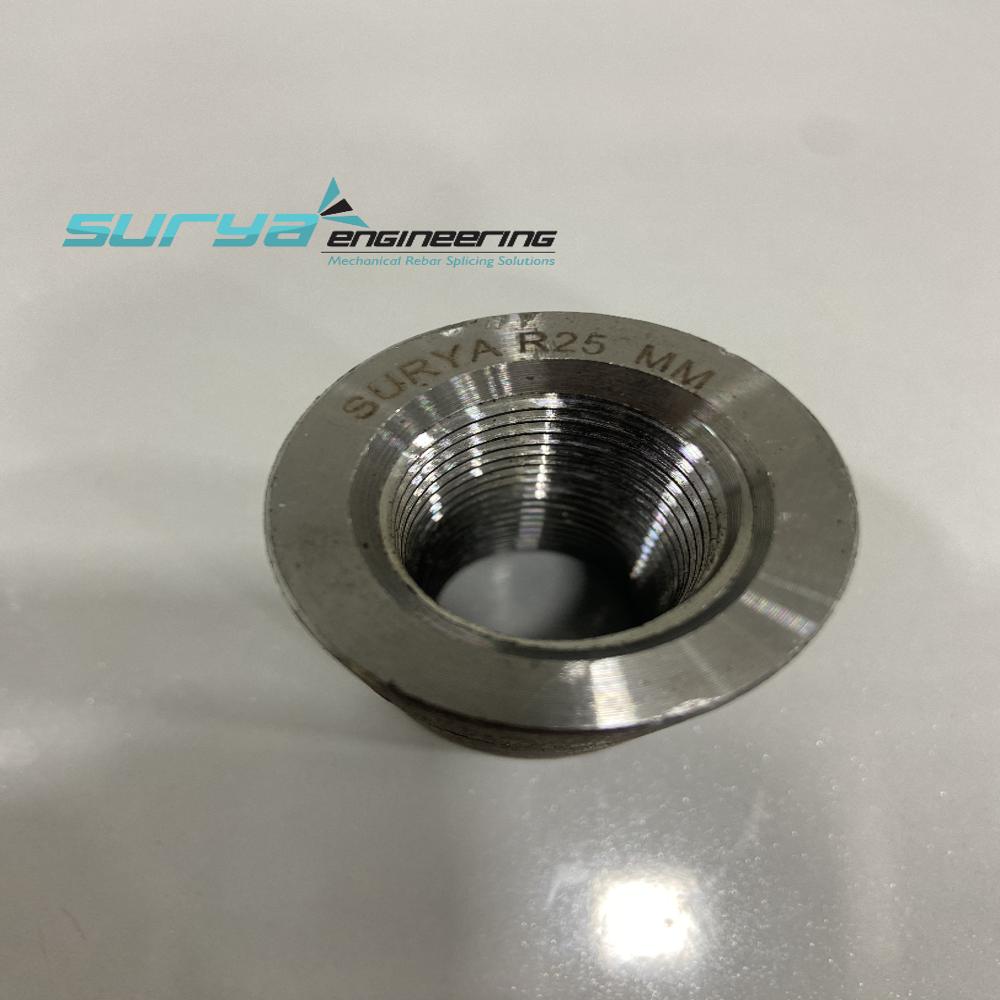

4. Transition/Reducer Couplers

Designed specifically to seamlessly join two reinforcing bars of different diameters (e.g., connecting a 32mm bar to a 25mm bar in lower-to-upper column transitions).

Key Applications Across India

Rebar couplers manufactured by Surya Engineering Industries are extensively used in high-load, high-impact civil applications:

• High-Rise Residential & Commercial Towers: Especially across land-scarce cities like Mumbai where vertical construction dominates.

• Metro Rail Projects & Flyovers: Used heavily in piers, pier caps, and underground diaphragm walls.

• Bridges, Viaducts, and Marine Structures: Ideal for long-span structures subjected to intense dynamic and seismic forces.

• Foundations & Rafts: Simplifies heavy mat foundations by removing unnecessary lap congestion.

Step-by-Step Installation Process

Achieving a high-integrity mechanical splice involves a precise, four-step preparation and installation technique:

[Step 1: Square Cutting]  [Step 2: Cold Forging (Optional)]  [Step 3: Precision Threading]  [Step 4: Torque Tightening]

1. Cutting: The rebar ends are cleanly cut using a heavy-duty band saw or specialized cutting machine to ensure a perfectly flat, square face.

2. Forging (For High-Strength Requirements): The rebar end is placed into a hydraulic cold-forging machine to increase its cross-sectional area.

3. Threading: An automated threading machine cuts high-precision metric threads onto the prepared rebar end. Thread protectors are applied immediately to prevent rust or damage.

4. Site Assembly: On-site, the rebar is screwed into the Surya Engineering Coupler sleeve and tightened using a calibrated pipe wrench or digital torque wrench to the recommended specification.

Bureau of Indian Standards (BIS) Testing Norms: IS 16172

Quality compliance is non-negotiable in mega-infrastructure. In India, reinforcement couplers must strictly conform to IS 16172:2023 (Reinforcement Couplers for Mechanical Splices of Bars in Concrete Specification).

As per Indian Standards, couplers are broadly classified into two performance varieties:

• Class L (Low Cycle Fatigue): Suitable for regular structural applications meeting standard dynamic requirements.

• Class H (High Cycle Fatigue): Mandatory for specialized structures subjected to severe seismic activity or heavy vibrational loads.

Core Tests Administered under IS 16172:

• Static Tensile Test: The mechanical splice assembly must be pulled until it breaks. The ultimate tensile strength must match or exceed the standard requirement of the bar grade (e.g., for Fe 550D, it must achieve a minimum tensile strength of 600 N/mm).

• Slip Test: Measures the structural displacement under load. The residual slip between the bars after a predetermined preload must not exceed $0.1\text{ mm}$.

• Cyclic Tensile Test: Evaluates how the joint behaves under fluctuating high-stress cycles.

Key Advantages of Surya Engineering Rebar Couplers

Choosing Surya Engineering Industries as your manufacturing partner brings undeniable engineering and commercial edges to your projects:

• Massive Cost Reductions: Saves up to 15-20% on total structural steel costs by eliminating expensive overlapping lap-lengths.

• Accelerated Project Timelines: Threaded installation is significantly faster than manually tying elaborate lap splices or on-site welding, slashing labor hours.

• Uncompromised Structural Safety: Our couplers are designed to provide full load continuity, ensuring unparalleled structural safety during earthquakes.

• Enhanced Concrete Flow: Maximizes space between rebars, optimizing concrete aggregate compaction and eliminating structural structural voids.
