What is PVC Footstep?

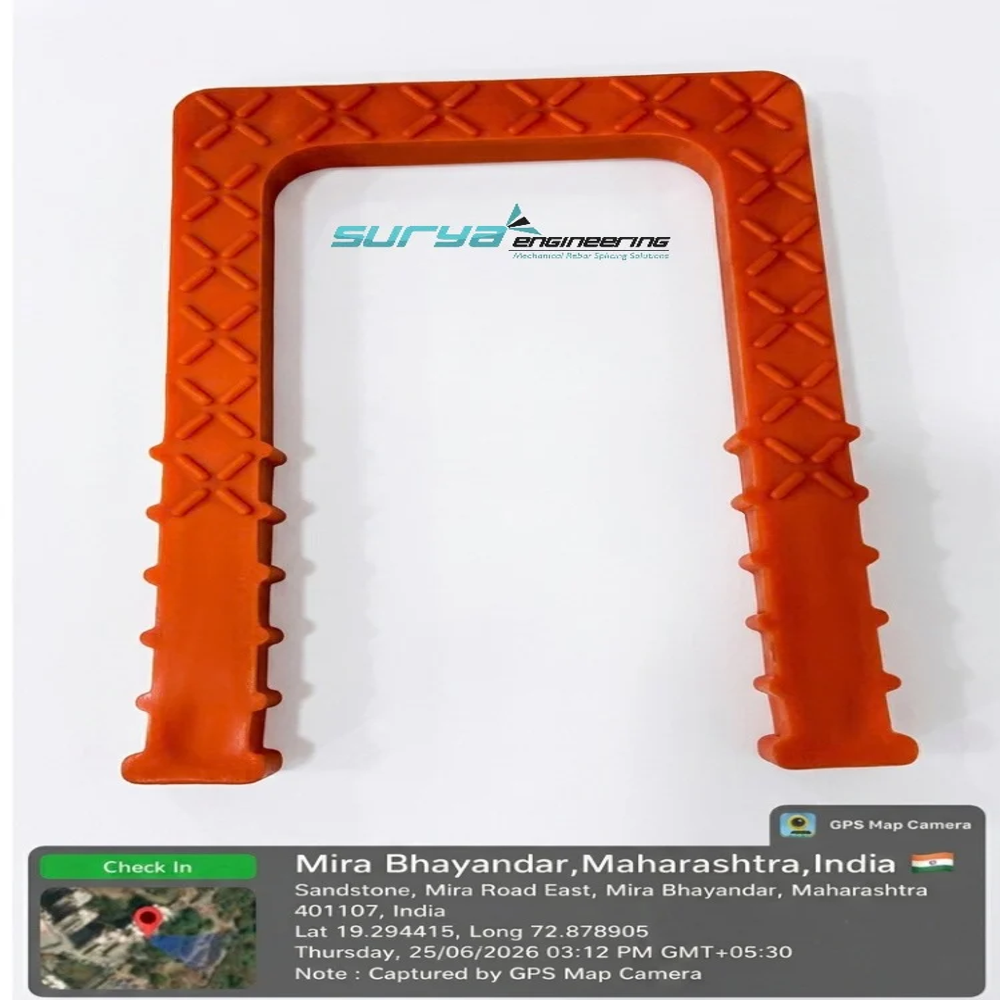

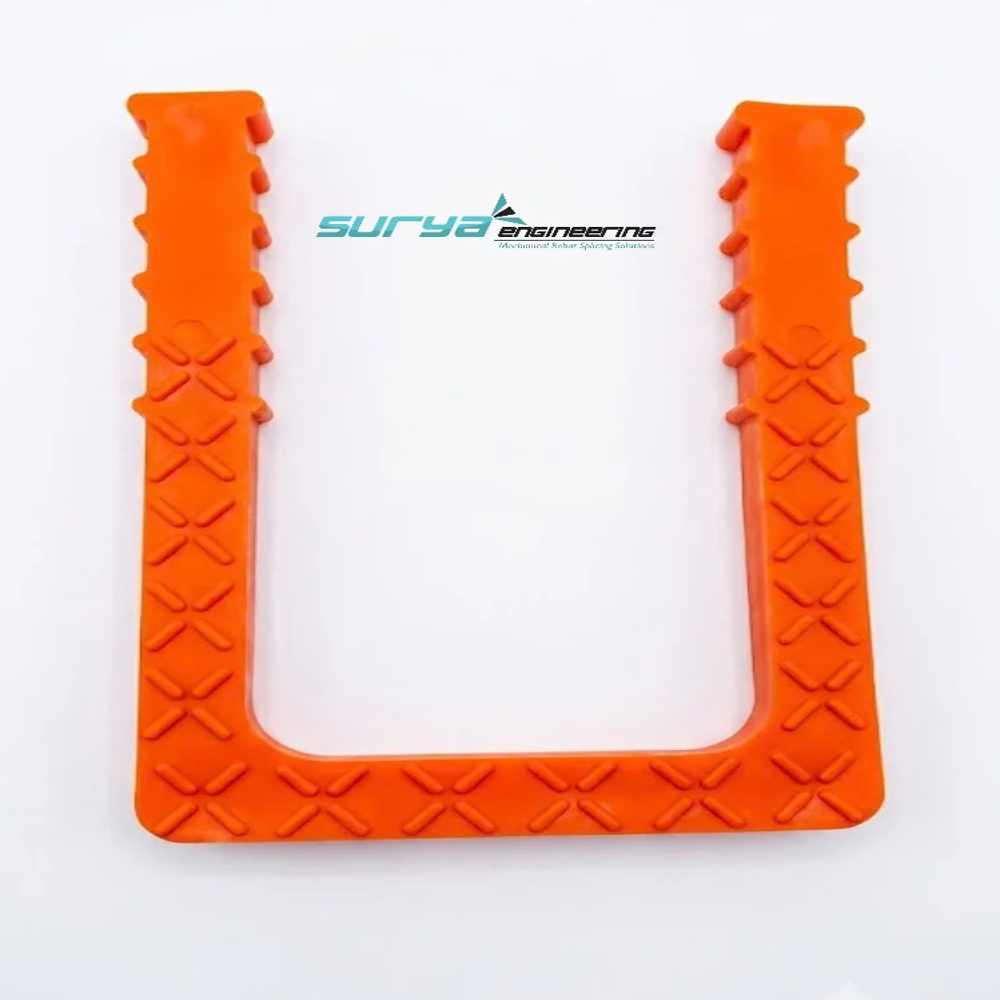

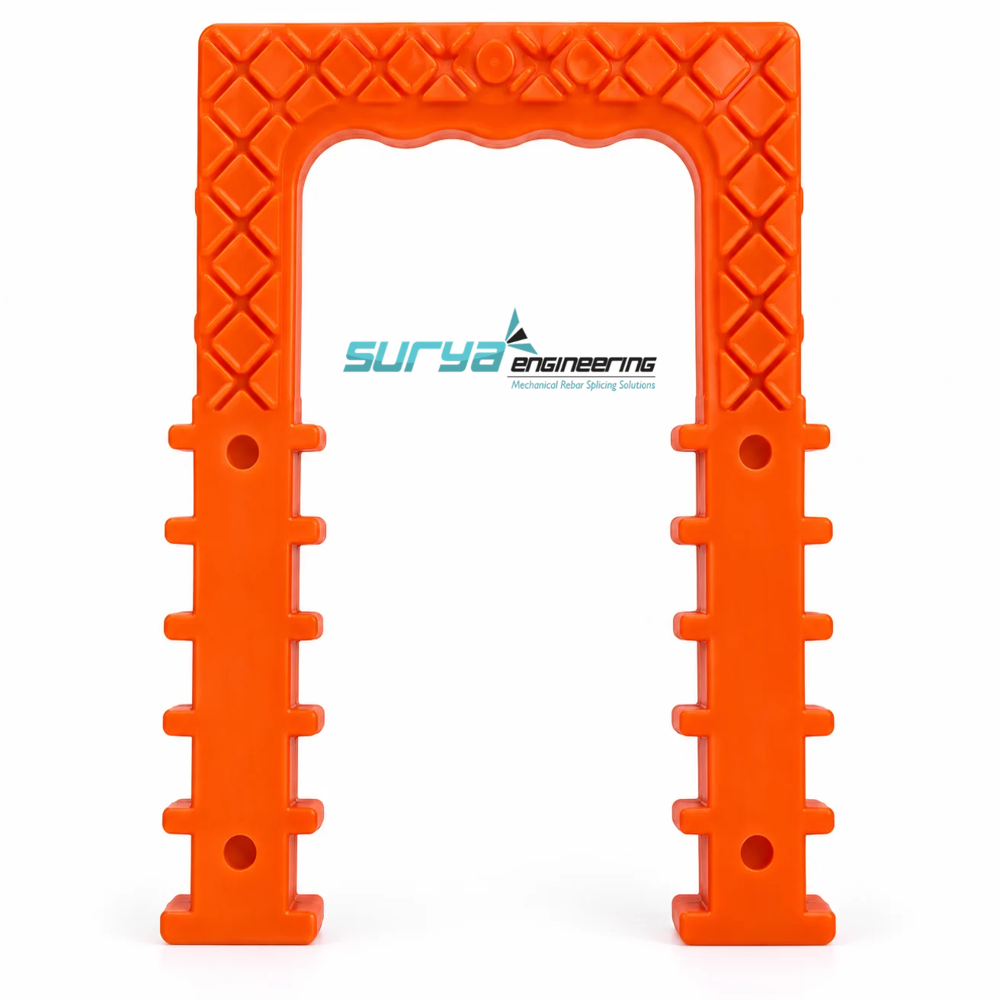

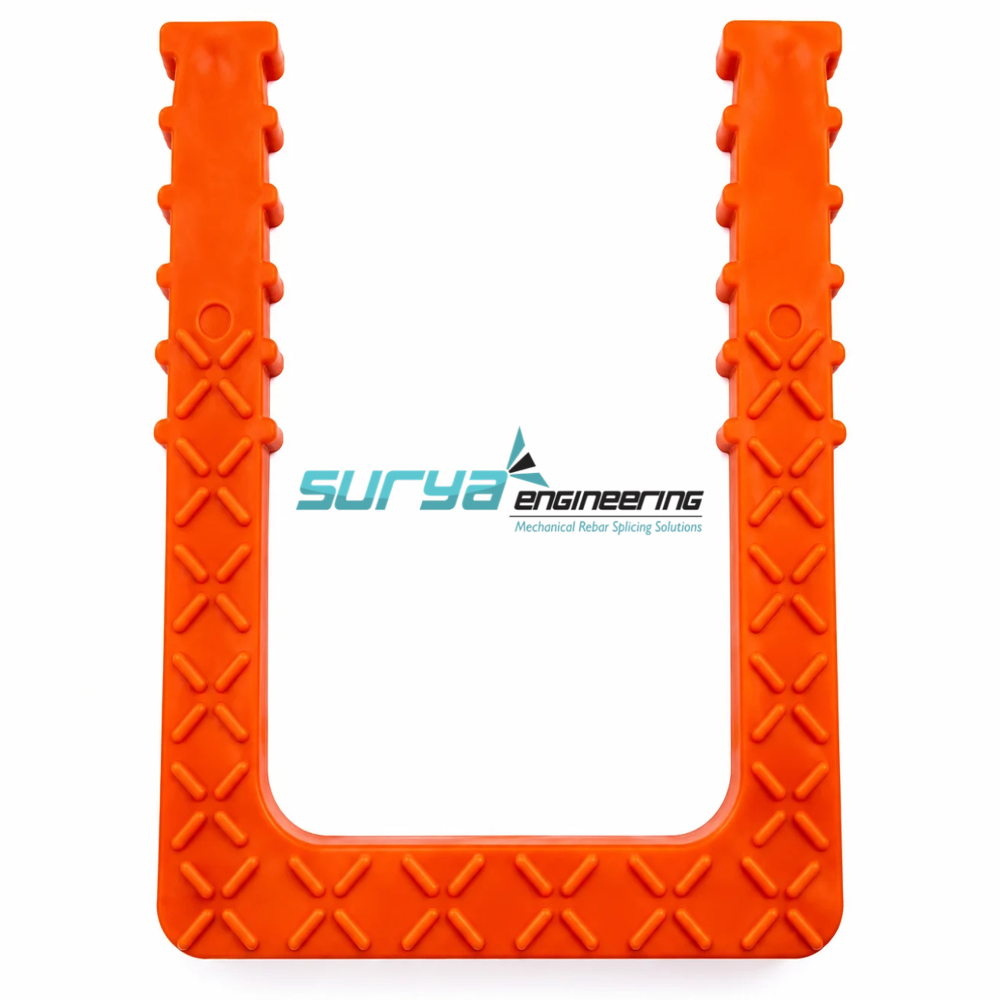

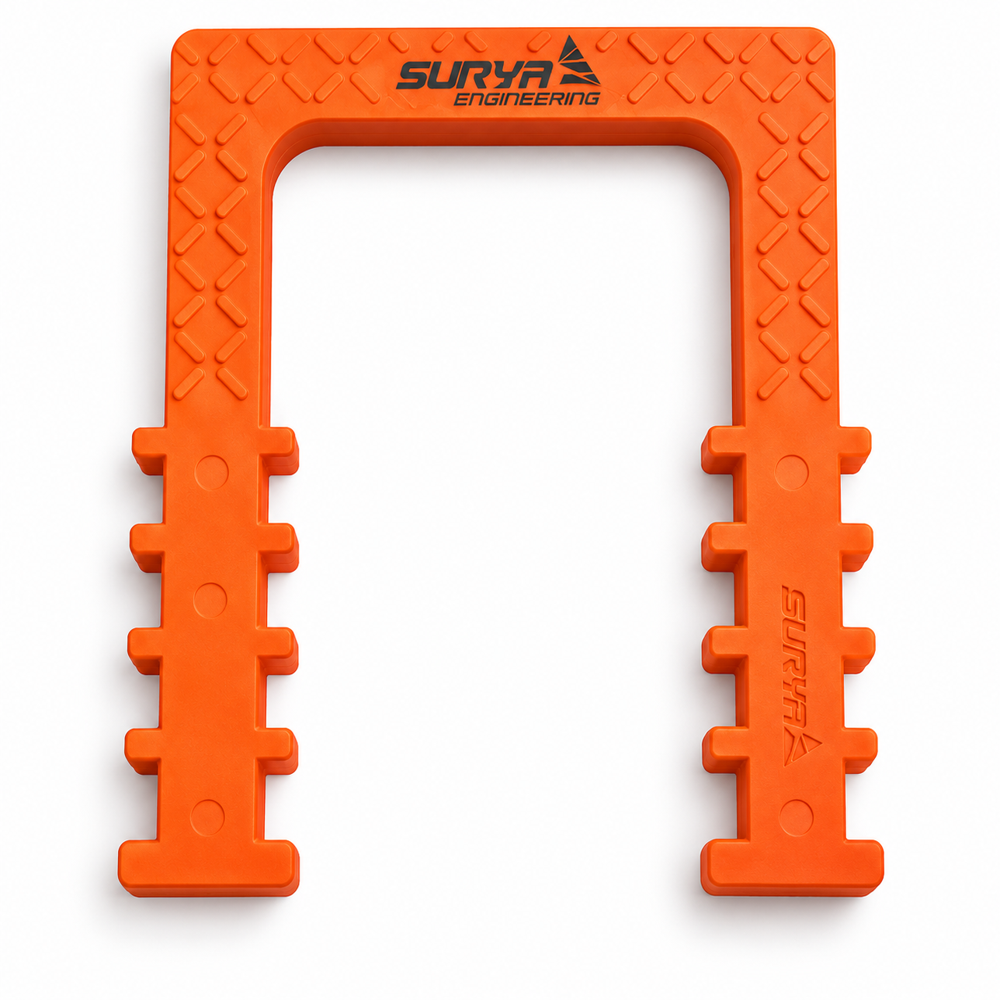

A PVC Footstep is a fixed, U-shaped access step grouted into the walls of manholes, inspection chambers, sewage tanks, sump tanks, underground water tanks, and utility pits. It is used where ladders cannot be used and safe vertical movement is required for maintenance staff.
In modern construction it has completely replaced conventional Cast Iron (CI) and Mild Steel (MS) steps because it is rust-free, chemical-resistant, and non-conductive.
Construction & Material Composition
There are 2 main constructions in the market, both covered under PVC Construction & Utility Products:
1. Encapsulated Type (Most Popular - Heavy Duty):
High-strength Mild Steel (MS) core encapsulated in heavy-duty, corrosion-resistant Industrial Grade PVC coating. The PVC protects the steel core from sewer gases and moisture.
2. Polypropylene / Virgin PVC Type:
Made from Virgin PVC or Poly Propylene for lightweight applications. We use only virgin PVC material, guaranteeing high strength and longevity.
Technical Specifications
Standard as per industry supply:
|
Parameter
|
Specification
|
|
|
PVC Foot Step / PVC Manhole Rung / PVC Rung
|
|
|
370 x 265 x 25 mm, Also available in 263 x 164 mm and 250-300 mm width
|
|
|
12mm (As per IS: 1786) / 20mm - 25mm for heavy-duty
|
|
|
25mm overall, with 6mm coating around bar
|
Overlapping / Grouting Length
|
150 mm inside wall / RCC
|
|
|
2mm Cross Grip Pattern for Anti-Slip
|
|
|
Safety Orange / Industrial Black - Orange is standard
|
|
|
519.90 kg working load, Ultimate Load 1021.38 kg
|
|
|
Non-Toxic, Food Graded: Yes, Shelf Life: Indefinite
|
|
|
IS: 1786 for steel, IS 10910 for manhole steps
|
Operational Resistance: Chemical, Electric, Atmospheric, Corrosion, Waterproof
Key Features & Benefits
- Corrosion Proof: PVC coating protects the core from sewer gases and moisture. No rusting or corrosion in wet or chemical environments.
- High-Strength & Safe: High-Strength PVC Construction for long-term durability with load-bearing & impact resistant design.
- Enhanced Safety: Deep tread pattern ensures a firm grip for workers even in wet and hazardous environments. Anti-Slip Surface Design for enhanced safety.
- Non-Conductive: Electrically insulated and safe for STP, ETP, and industrial tanks.
- Longevity: UV stabilized and chemical resistant for long service life. Doesn't react with water or chemically corrode.
- Easy Installation: Easy to grout into masonry or concrete walls.
- Low Maintenance: Lightweight yet strong, cost-effective alternative to CI or MS steps.
Primary Applications - Construction & Utility
This is a mandatory product for:
- Public & Private Manhole Systems, Stormwater Drainage Inlets.
- Sewage Treatment Plants (STP), Drainage Systems, Sewerage & drainage systems, pvc.
- Industrial Chemical & Water Tanks, Industrial effluent treatment plants as a ladder
- Underground Water Tanks, Overhead Water Tanks, Sump Tanks.
- Agricultural Wells & Pump Rooms, Underground Pits & Maintenance Shafts
- Municipal infrastructure projects, Residential and commercial inspection chambers
PVC Footstep vs Traditional Iron Step
|
Feature
|
PVC Footstep
|
CI / MS Footstep
|
|
Rusting
|
100% Rust Proof
|
Rusts within 6-12 months
|
|
Weight
|
Lightweight, easy to carry
|
Heavy
|
|
Grip
|
Anti-slip cross pattern
|
Smooth, slippery when wet
|
|
Conductivity
|
Non-conductive, safe
|
Conductive
|
|
Life
|
20+ years
|
3-5 years in sewer conditions
|
|
Cost
|
One-time installation
|
Frequent replacement cost
|
Installation Guidelines
- Keep spacing 300mm to 350mm vertically center-to-center.
- Grout 150mm on both sides into brick masonry or RCC wall while construction.
- Ensure grip pattern faces upward.
- For retrofit, drill 2 holes, fill with rich cement mortar (1:3) and insert step.
- Allow 24 hours curing before use.
Packaging & Supply for Surya Engineering
You can offer this to your clients in Bhayandar / Mumbai region as:
- Material: Virgin PVC + TMT Steel as per IS 1786
- Colors Available: Orange (standard for visibility), Black, Red
- MOQ: 50 pcs, Bulk bundles of 25 pcs with protective wrapping to prevent coating damage during transit.
- Branding: Custom embossing of "SURYA" available on request
Exceptional Safety and DurabilityDesigned to meet the highest standards, this PVC manhole footstep offers unmatched durability thanks to its heavy-duty construction and UV-stabilized coating. The anti-slip cross grip enhances worker safety, making it reliable for use in hazardous or slippery conditions.
Versatile Applications and Manual ControlPerfectly suited for a range of utilities, the PVC Footstep can be installed in manhole chambers, sewage and water tanks, stormwater drains, or STP units. Its manual control system allows for straightforward installation and easy use by maintenance teams.
FAQ's of PVC Footstep - PVC Construction & Utility Products:
Q: How is the PVC Footstep installed in utility applications?
A: Installation is straightforward and manual. The footstep is typically embedded into concrete or secured onto the sidewalls of manholes, sewage tanks, or other underground chambers, following standard utility installation procedures.
Q: What are the main benefits of using a PVC Footstep over traditional metal alternatives?
A: PVC footsteps offer significant benefits such as being non-conductive, corrosion-resistant, chemical and waterproof, and UV stabilized, ensuring safety and long service life in harsh environments. The anti-slip cross grip also provides enhanced safety for users.
Q: When should I choose the safety orange color option?
A: Safety orange is recommended for high-visibility requirements, such as in public or high-traffic utility installations where easy identification and compliance with safety norms are important.
Q: Where can this PVC Footstep be used?
A: This product is ideal for use in manhole chambers, sewage tanks, underground water tanks, sewage treatment plants (STP), and stormwater drains in both public and industrial infrastructure projects.
Q: What is the process for maintaining the PVC Footstep to maximize its lifespan?
A: Maintenance is minimal due to its chemical and waterproof nature. Regular visual inspections for physical damage or wear and periodic cleaning with non-abrasive agents are usually sufficient.
Q: How much weight can the PVC Footstep safely support?
A: The PVC Footstep is designed with a lifting capacity of up to 519.90 kilograms and has a maximum lifting load of 1012 kilograms, making it suitable for heavy-duty utility scenarios.
