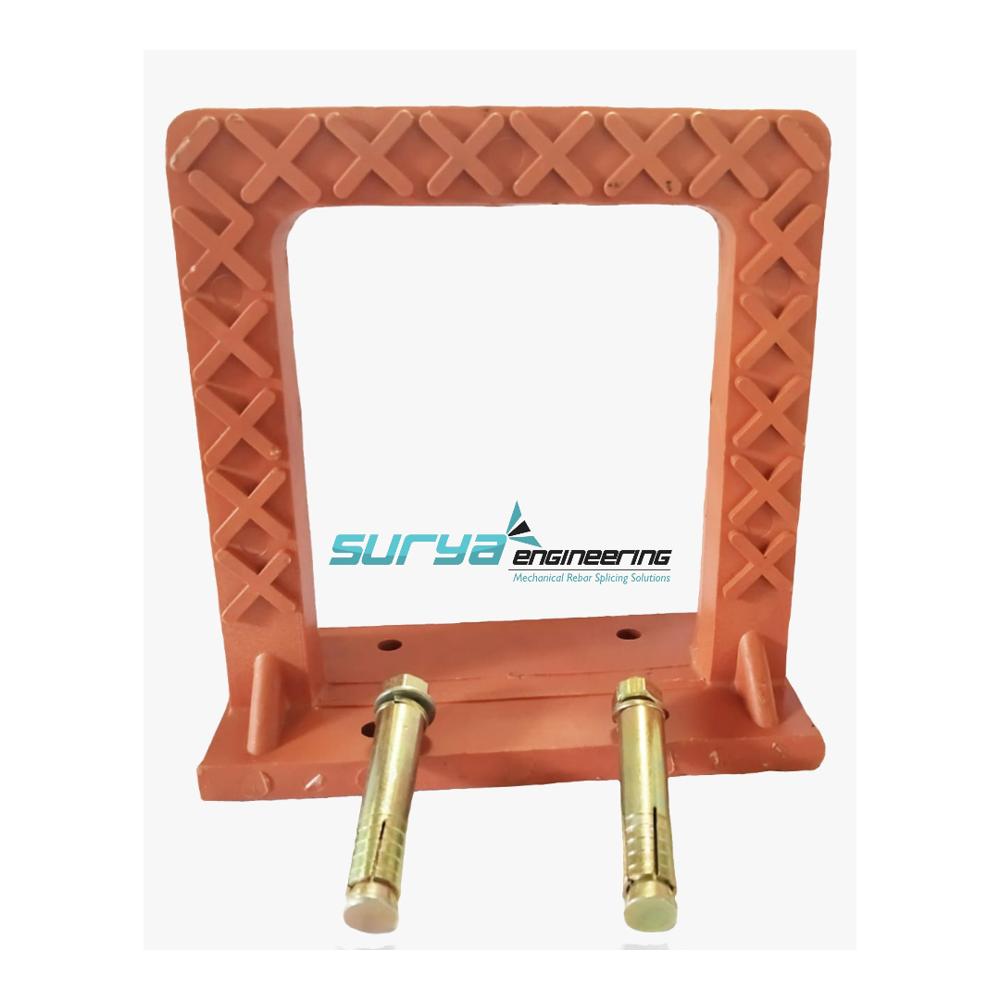

PVC Encapsulated Footsteps Rungs

PVC Encapsulated Footsteps Rungs Specification

Usage
Construction

Condition
New

Size
165*270*25 mm

Lifting Capacity
250 Kilograms (kg)

Height
165 Millimeter (mm)

Product Type
PVC coated Rungs

Weight
0.800 Grams (g)

Color
Yellow

Power Source
Manual

Length
260 Millimeter (mm)

Width
165 Millimeter (mm)

Feature
heavy duty

Warranty
10 years

Attributes
Strong, Durable, Easy To Operate

PVC Encapsulated Footsteps Rungs Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
24 Hours

Main Domestic Market
All India

About PVC Encapsulated Footsteps Rungs

What is a PVC Footstep?

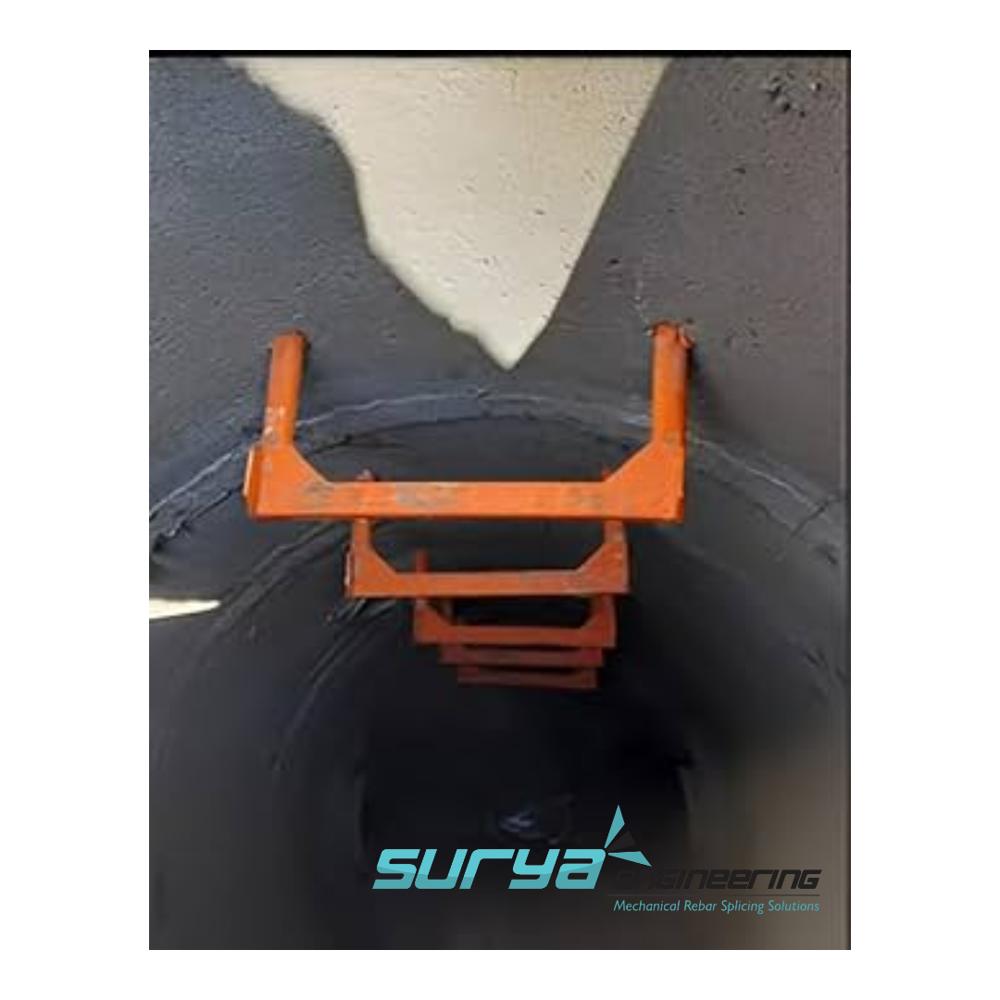

A PVC Footstep (also called PVC Manhole Step, PVC Rung, PVC Encapsulated Footstep, or Manhole Ladder Step) is a safety climbing component installed inside:

Manholes
Sewer chambers
Underground water tanks
Septic tanks
Drainage chambers
Building shafts
Overhead water tanks

It is manufactured using a steel reinforcement rod covered with PVC or polypropylene coating to provide corrosion resistance, anti-slip grip, and long service life. PVC footsteps are used as an alternative to traditional cast iron or mild steel steps.

Main Purpose of Dowel Plate

Maintains slab alignment
Prevents joint cracking
Improves load transfer
Reduces pavement damage
Enhances structural durability

Applications of Dowel Plate

Highway construction
Airport pavements
Industrial flooring
RCC slabs
Expansion joints

Why PVC Footsteps are Used?

PVC Footsteps are used because traditional steel or cast iron steps rust quickly in sewage and moisture environments.
Main Reasons for Use
1. Corrosion Resistance
PVC coating protects the internal steel rod from:

Sewage chemicals

Water exposure

Moisture

Acidic conditions

2. Worker Safety
The ribbed or anti-skid surface gives proper grip during climbing.
3. High Load Capacity
PVC footsteps can withstand heavy loads and are suitable for industrial use.
4. Long Service Life
They require very low maintenance compared to metal steps.
5. Waterproof Protection
PVC coating prevents rust formation on reinforcement steel.

Components of PVC Footstep

Component	Description
Steel Rod	Internal reinforcement for strength
PVC/PP Coating	Corrosion-resistant outer layer
Ribbed Surface	Anti-slip safety grip
U-Shape Design	Comfortable foot support
Embedded Ends	Fixed into concrete walls

Classification of PVC Footsteps

1. Based on Material

a) PVC Encapsulated Footstep

Fully PVC coated
Most common type
Excellent corrosion resistance

b) Polypropylene Footstep

Made with PP coating
Higher chemical resistance

c) FRP Footstep

Fiber Reinforced Plastic
Lightweight and non-corrosive

Applications of PVC Footsteps

1. Sewerage Manholes

Used for worker entry and inspection.

2. Underground Water Tanks

Provides safe climbing access.

3. Septic Tanks

Resists chemical and bacterial corrosion.

4. Drainage Chambers

Used in municipal drainage systems.

5. Building Shafts

Installed in vertical maintenance shafts.

6. Industrial Water Treatment Plants

Suitable for wet and corrosive environments.

7. Overhead Water Tanks

Used as ladder support systems.

Installation of PVC Footsteps

Step-by-Step Installation Process

Step 1: Marking

Mark equal spacing on the wall using a measuring tape and bubble level.

Step 2: Drilling

Drill holes using a concrete drill bit.

Step 3: Cleaning

Remove dust and loose particles from drilled holes.

Step 4: Insertion

Insert the footstep ends into the holes.

Step 5: Grouting

Fix using cement mortar or epoxy compound.

Step 6: Alignment Check

Ensure all footsteps are horizontally aligned.

Step 7: Curing

Allow proper curing before use.

Testing Requirements in IS 10910

PVC footsteps are tested for:

Load Test To check strength under weight
Bending Test Resistance against deformation
Pull-Out Resistance Test Fixing stability in concrete walls
Impact Resistance Test Durability against shock loads
PVC Coating Quality Test Adhesion and protection performance
Dimensional Accuracy Test Compliance with standard size

Technical Specifications

Property	Specification
Material	PVC / Polypropylene
Core Rod	MS / TMT Steel
Rod Diameter	8mm, 10mm, 12mm, 16mm
Shape	U-Type
Color	Orange / Black
Load Capacity	225 kg+
Surface	Ribbed Anti-slip
Corrosion Resistance	Excellent
