About PVC-encapsulated Foot Steps

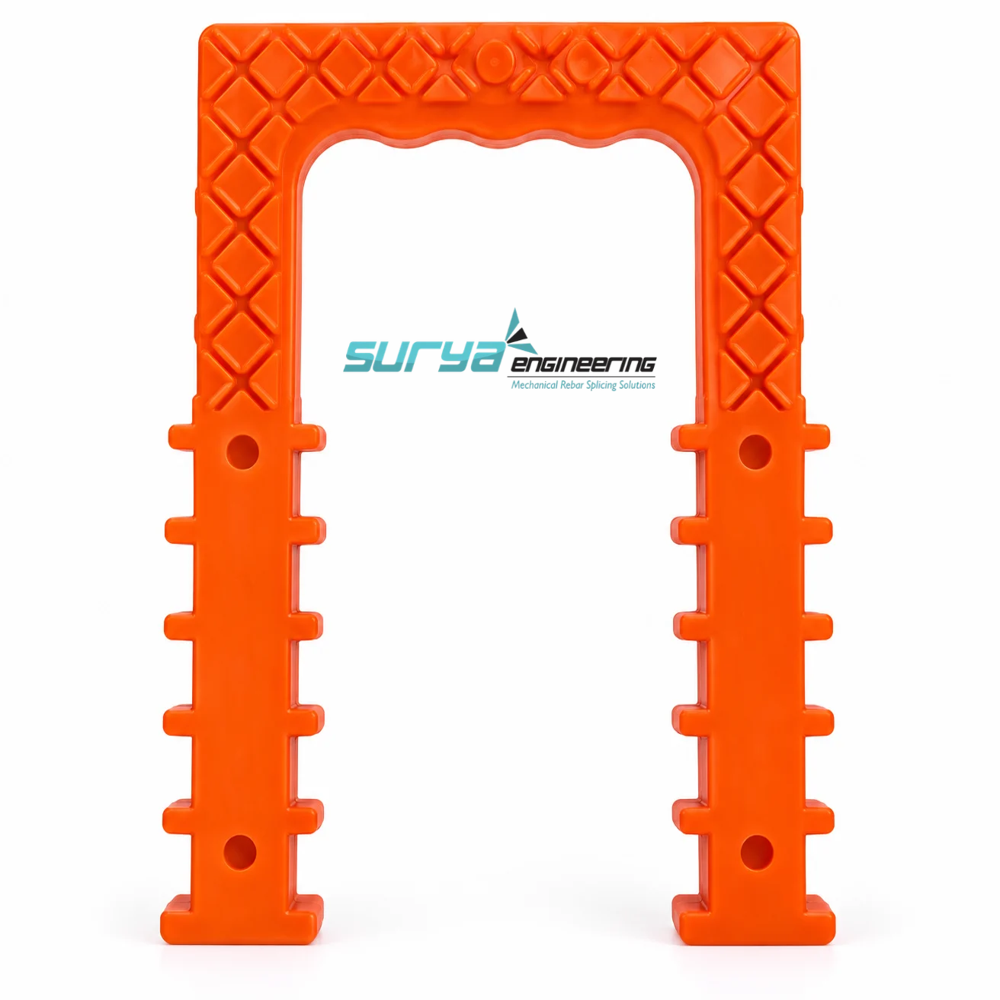

PVCencapsulated foot step
A PVCencapsulated foot step (also called a plasticencapsulated manhole step, plasticcoated step iron, or polymerencapsulated rung) is a climbing step built from a steel reinforcing bar core that is completely sealed inside a moulded plastic body.
The steel provides the loadcarrying strength; the plastic provides corrosion protection, electrical insulation, and a nonslip tread surface. They are cast or grouted into the wall of manholes, inspection chambers, wet wells, pump stations, septic tanks, and water/sewage structures to form a fixed climbing ladder.
Construction and materials
| Component |
Typical material |
Function |
| Core |
Mild steel / deformed reinforcing bar, 1016 mm (commonly 12 mm), grade Fe 415 / Fe 500 / BS 4449 B500B |
Carries bending and pullout loads |
| Encapsulation |
PP copolymer or rigid/plasticised PVC, min. 35 mm cover over steel |
Corrosion barrier, UV & chemical resistance, insulation |
| Tread surface |
Moulded ribs, serrations, or diamond/chequer pattern |
Antislip grip |
| End stops / side flanges |
Integral moulded lugs at each end of the tread |
Prevent foot from sliding sideways off the step |
| Legs / tails |
Steel legs with deformed ribs, Vnotch, or fishtail/forked ends |
Mechanical key into concrete |
Key Features & Benefits
- Superior Corrosion Resistance: Unlike bare steel steps that rust quickly in moist, sulfur-rich sewage environments, the PVC coating completely isolates the metal from water, gases, and corrosive chemicals.
- High Load-Bearing Capacity: Despite having a plastic exterior, the internal steel core allows these steps to easily support heavy loads (typically tested to withstand concentrated loads of 150 kg to 200 kg+, complying with international safety standards).
- Anti-Slip Design: The upper tread of the step usually features a textured pattern, raised grip dots, or horizontal ridges to prevent workers' boots from slipping, even in wet or muddy conditions.
- High Visibility: They are usually manufactured in bright, high-visibility colors (such as safety orange, safety yellow, or electric blue) so workers can easily see them in dark underground environments using a flashlight.
- Maintenance-Free: The smooth, non-porous PVC surface resists buildup, scaling, and biological growth, requiring virtually no maintenance over its decades-long lifespan.
Typical dimensions
| Parameter |
Typical range |
| Clear tread width (standing width) |
250 400 mm (300 mm common) |
| Step projection from wall |
110 150 mm |
| Tread depth (front to back) |
30 40 mm |
| Overall width including legs |
350 450 mm |
| Leg embedment into concrete |
90 130 mm |
| Steel core diameter |
10, 12, 14 or 16 mm |
| Plastic cover thickness |
3 mm |
| Weight per step |
0.5 1.2 kg |
| Vertical spacing when installed |
250 350 mm (300 mm typical), uniform throughout |
| Horizontal stagger (for staggered layout) |
250300 mm centres |
Common shapes: straight / singlerung type, Utype (double leg), staggered type (single foot, alternate sides), and wallmounted bolton type with expansion anchors.
Standards and performance requirements
Principal standard: BS EN 13101 Steps for underground manentry chambers: Requirements, marking, testing and evaluation of conformity.
Other references that may apply depending on region:
- EN 14396 Fixed ladders for chambers (where ladders replace steps)
- ASTM C478 / ASTM C497 Precast concrete manhole sections and their test methods (steps covered as components) common in North America
- IS 5455 / IS 458 Castiron steps and precast concrete manholes (India), used as the comparative baseline
- OSHA 1910.23 / 1926 Workplace fixedladder and confinedspace access rules (USA).
Advantages over castiron or bare steel steps
- Corrosionproof no rusting in sewage, HS, chlorides or wastewater; typical design life 50+ years vs. 1020 years for cast iron.
- Safety antislip ribbed tread and side stop lugs reduce slip/fall risk; bright colours (orange, yellow, blue, grey) improve visibility in dark chambers.
- Electrically nonconductive safer near buried cables and in wet conditions.
- Light weight roughly 1/4 to 1/3 the weight of cast iron; faster handling and installation, lower freight cost.
- No rust staining of concrete or water.
- Maintenancefree no painting, galvanising or recoating.
- Costeffective over the life cycle, even where initial price is similar.
Limitations to be aware of
- Plastic can become brittle after long UV exposure if stored outdoors unprotected store shaded/covered.
- Lowcost dipcoated steps may crack or peel, allowing water to reach the steel and corrode it invisibly from inside.
- Not suited to very high temperatures or strong solvents.
- Encapsulation can hide internal corrosion, so buy only certified, fully moulded products.
Packaging & Supply for Surya Engineering
You can offer this to your clients in Bhayandar / Mumbai region as:
- Material: Virgin PVC + TMT Steel as per IS 1786
- Colors Available: Orange (standard for visibility), Black, Red
- MOQ: 50 pcs, Bulk bundles of 25 pcs with protective wrapping to prevent coating damage during transit
- Branding: Custom embossing of "SURYA" available on request
Superior Safety and DurabilityPVC-encapsulated Foot Steps feature a robust anti-slip cross grip for enhanced safety, even in wet or chemically challenged environments. The non-conductive and flame-proof design ensures additional protection for maintenance personnel working in hazardous areas. UV stabilization also extends the lifespan, making these footsteps an excellent investment for demanding infrastructure projects.
Versatile Application and Easy InstallationThese foot steps are suitable for a range of confined spaces, including manholes, sewage tanks, STPs, and stormwater drains. Their strong and lightweight construction simplifies manual installation, while resistance to rust and chemicals reduces maintenance needs. Each piece is engineered to maintain performance and support in diverse environmental conditions.
FAQ's of PVC-encapsulated Foot Steps:
Q: How are PVC-encapsulated Foot Steps installed in manholes or tanks?
A: Installation is typically manual, involving secure embedding into the concrete structure of manholes, tanks, or drains. Their design allows for easy anchoring, and compliance with recommended spacing ensures safe and reliable access for workers.
Q: What features make these foot steps suitable for hazardous environments?
A: The foot steps are non-conductive, flame-proof, and UV stabilized, providing protection against electricity, fire, and harsh sunlight. Their chemical and waterproof properties ensure safe use in sewage, water treatment, and similar critical settings.
Q: Where can these PVC foot steps be used?
A: They are designed for confined and industrial spaces such as manhole chambers, sewage tanks, underground water tanks, stormwater drains, and sewage treatment plants (STPs), accommodating both new construction and maintenance needs.
Q: What lifting capacity do these foot steps offer and why is it important?
A: Each step can support up to 519.90 kg with a maximum lifting load capacity of 1021.90 kg. This high load tolerance is essential for ensuring the safety of personnel who may carry heavy equipment during maintenance or inspections.
Q: What benefits do PVC-encapsulated Foot Steps provide over traditional metal steps?
A: Unlike metal counterparts, these steps are rust-proof, corrosion-resistant, and do not conduct electricity. The anti-slip cross grip and heavy-duty construction offer lasting durability with minimal maintenance, especially beneficial in wet or corrosive environments.
Q: How does the anti-slip cross grip improve user safety?
A: The specialized anti-slip design enhances footing and reduces the risk of slips, even in wet or slippery conditions prevalent in industrial and municipal infrastructure.
Q: What is the process for maintaining or cleaning these foot steps?
A: Routine cleaning with water and mild detergent is sufficient due to their chemical and waterproof qualities. Occasional inspection verifies anchoring security, but they typically require little maintenance owing to their durable, rust-proof composition.
