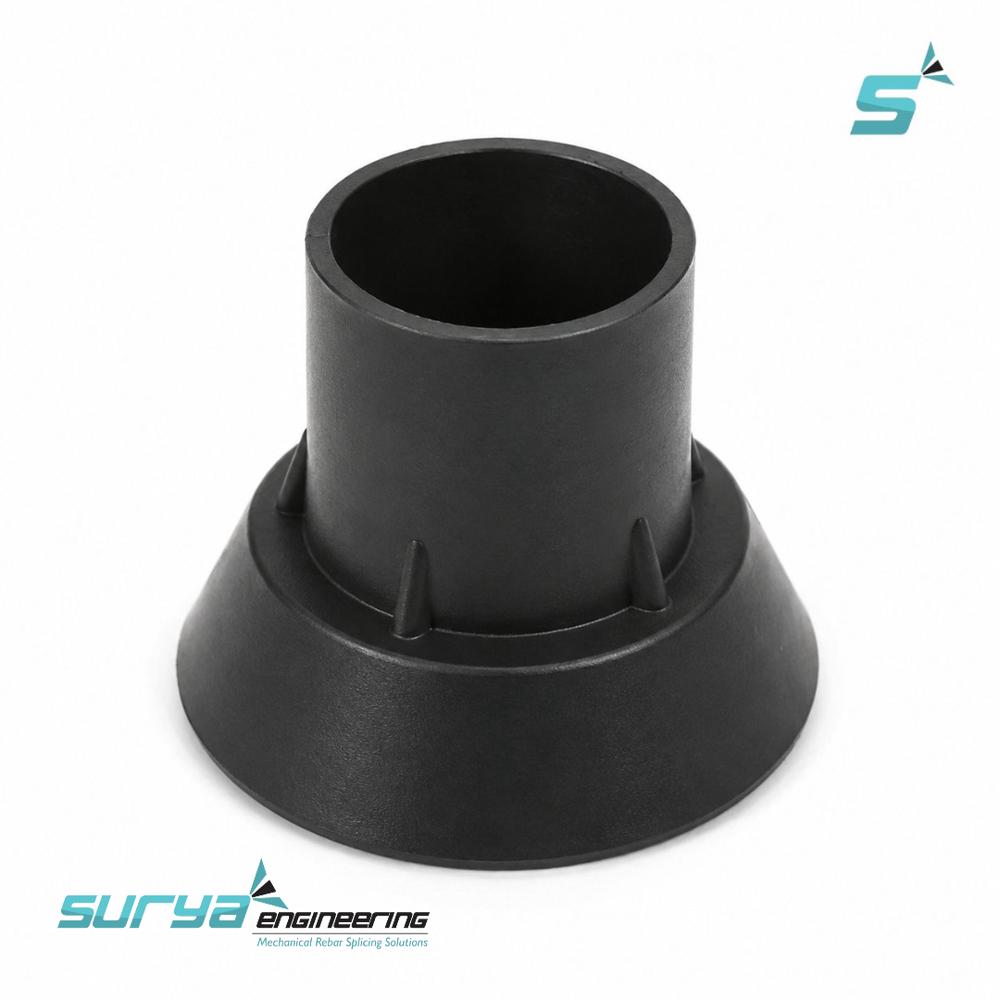

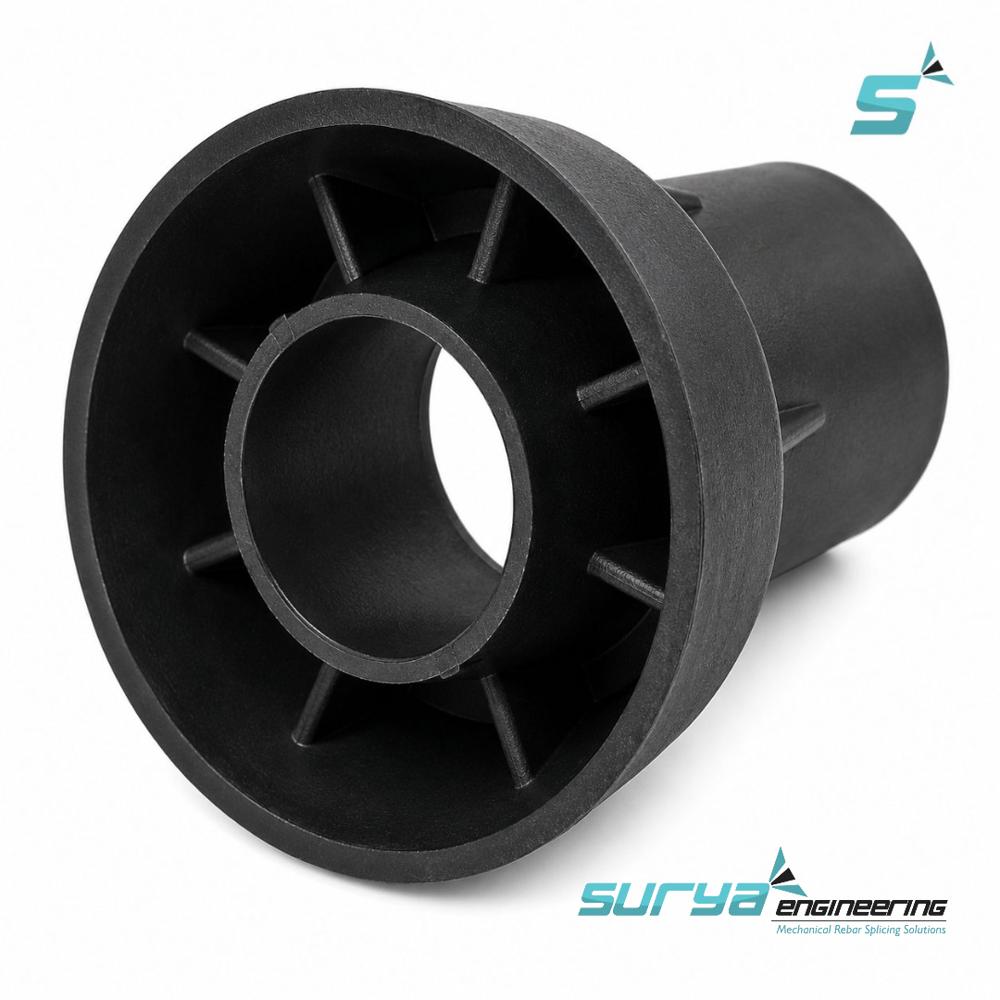

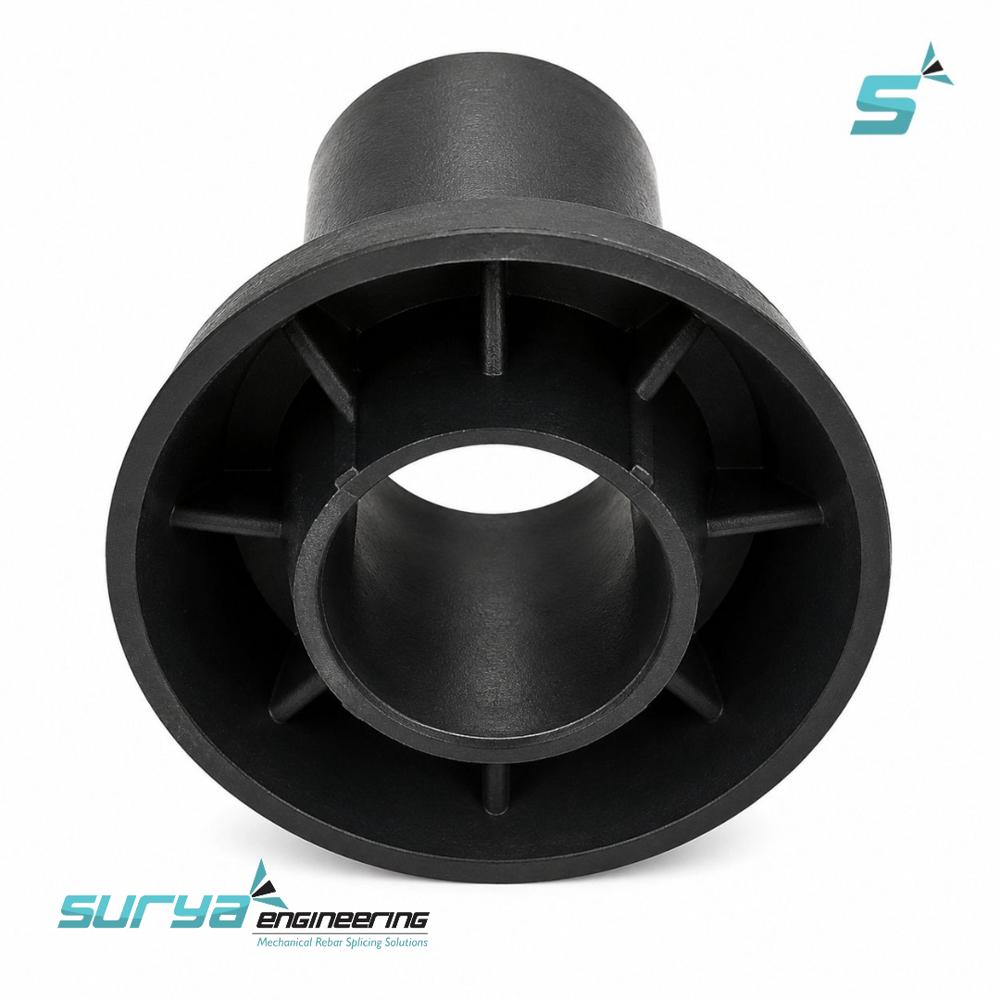

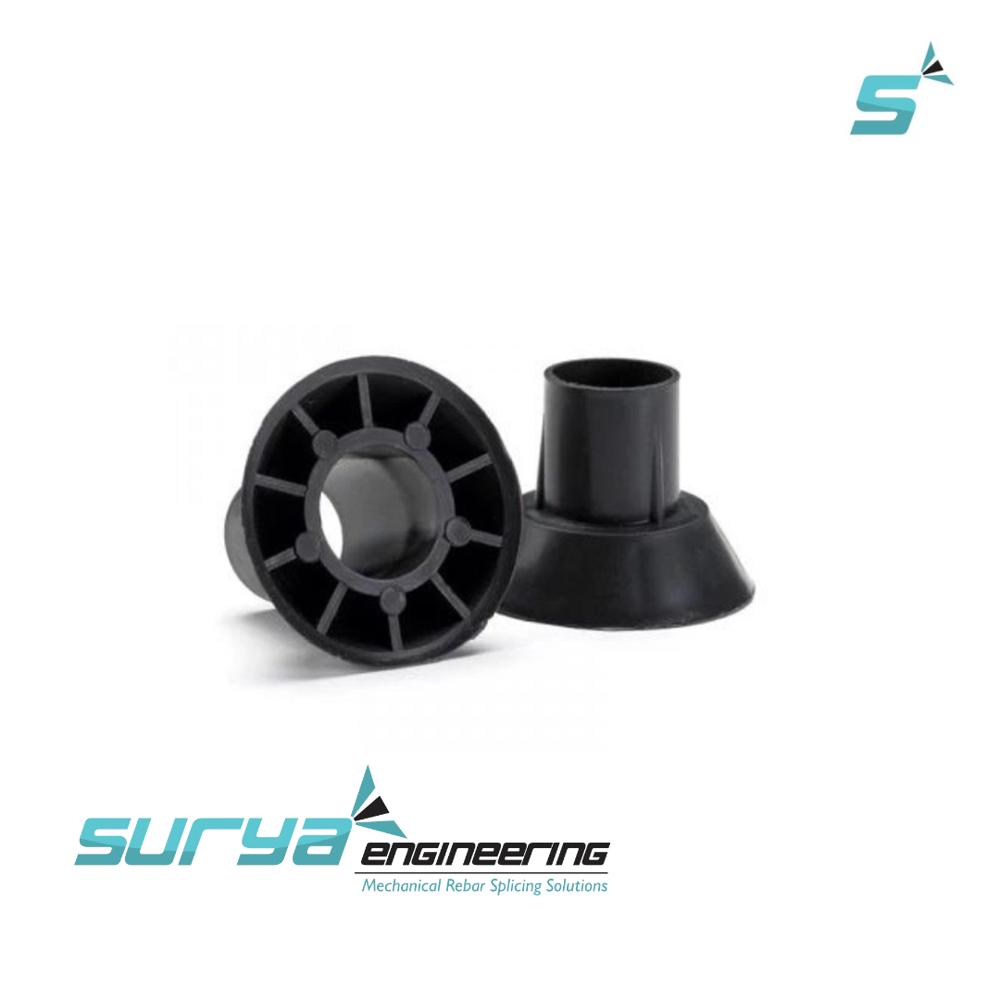

Pvc Cone for Tie rod

Pvc Cone for Tie rod Specification

Type
ie Rod Cone / Bullet Cone / Formwork Accessory

Material
Plastic

Size
22mm ID / 20mm ID / 25mm ID (22mm times 50mm)

Color
Black / Grey / Natural White

Surface Finish
Smooth Finish / Well Finished

Plastic Type
Polyvinyl Chloride(PVC)

Diameter
22 Millimeter (mm)

Warranty
1 years

Pvc Cone for Tie rod Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
24 Hours

About Pvc Cone for Tie rod

High-Density PVC Cone for Formwork Tie Rods Commercial Product Specification

Engineered for precision RCC shuttering and aluminium formwork (Mivan) systems, our PVC Tie Rod Cones (also referred to as Anchor Cones or Bullet Cones) provide a slurry-tight seal at panel intersections. Positioned over the ends of PVC sleeve pipes or wall tie plates, these cones absorb hydrostatic concrete pressure, prevent cement grout leakage, and create a neat, recessed pocket that allows easy extraction of tie rods for multi-cycle reuse.

Manufactured from high-density, impact-resistant virgin PVC, our cones withstand heavy mechanical vibration and tough job site environments without cracking, collapsing, or deforming.

Technical Specifications

Parameter	Specification Details
Material Composition	$100\%$ High-Density Virgin PVC / Polypropylene (PP)

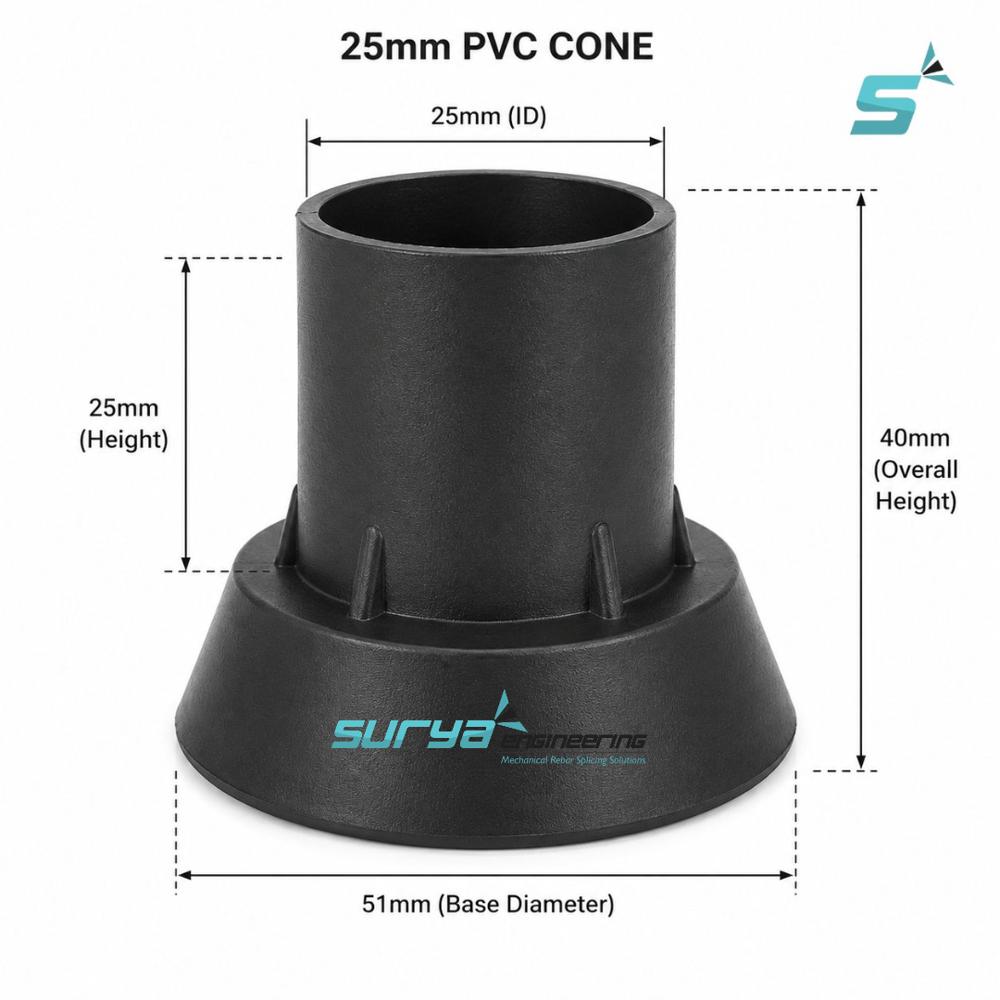

Inner Diameters (ID)	$20\text{ mm}$ , $22\text{ mm}$ , $25\text{ mm}$ , $32\text{ mm}$ (Fits standard PVC sleeve pipes)
Cone Heights	$30\text{ mm}$ , $45\text{ mm}$ , $50\text{ mm}$ , $70\text{ mm}$ , $90\text{ mm}$
Hardness & Finish	Rigid Construction with Smooth, Friction-Free Outer Surface
Color Variants	Industrial Black, Grey, Natural White, Orange
Formwork Systems	Mivan Aluminium Formwork, Timber / Plywood Shuttering, Steel Wall Forms
Temperature Tolerance	Resistant to UV rays, weather extremes, and chemical concrete additives

Key Performance Advantages

Slurry-Tight Sealing: Fits flush against shuttering panels to prevent grout loss, eliminating concrete honeycombing and post-pour grinding costs.
Effortless Stripping & Extraction: Smooth conical taper permits fast removal using standard cone extraction tools after concrete curing.
High Impact & Compression Resistance: Engineered to maintain structural integrity under high-rate concrete placement and intense internal immersion vibration.
Superior Reusability: Precision polymer blend resists wear from repeat installations, reducing per-square-meter formwork accessory replacement overheads.
Simplified Post-Pour Finishing: Leaves a uniform, circular indentation in the cured concrete face, creating an ideal bonding recess for non-shrink epoxy grouting or waterproof plastering.

Quality Control & Testing Standards

Every production run of PVC tie rod cones undergoes strict dimensional and load testing:

Dimensional Accuracy: $100\%$ go/no-go gauge inspection on inner sleeve diameters to prevent loose fitting or pipe slippage.
Pressure & Compression Testing: Sampled for crushing resistance under extreme hydrostatic loads simulated in vertical shear wall casting.
Chemical Inertness: Material formulated to prevent reacting with release agents, retarders, or alkaline concrete matrices.

Packaging, Minimum Order & Logistics

Standard Packaging: 1,000 / 2,500 pieces packed in high-density HDPE woven bags or corrugated master boxes.
Minimum Order Quantity (MOQ): 2,000 Pieces.
Supply Capabilities: PAN-India dispatch with short lead times for high-volume infrastructure and residential projects.
