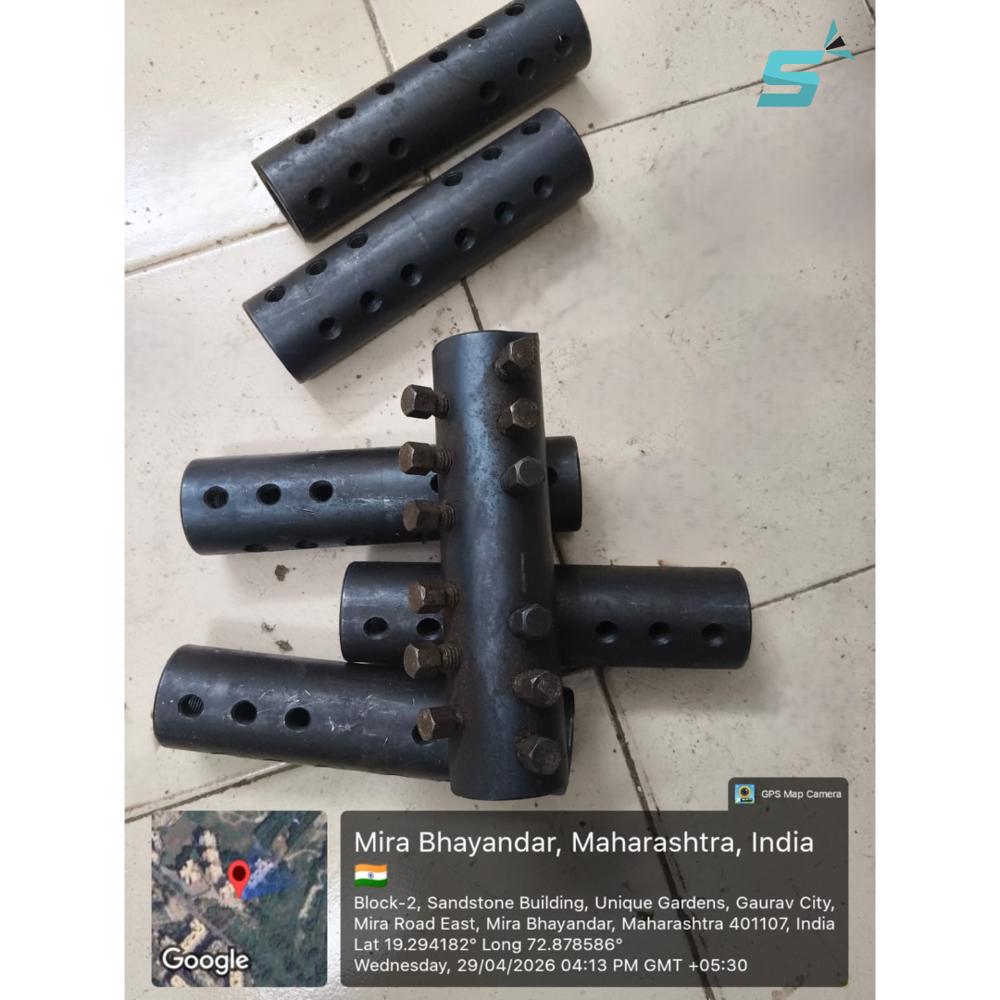

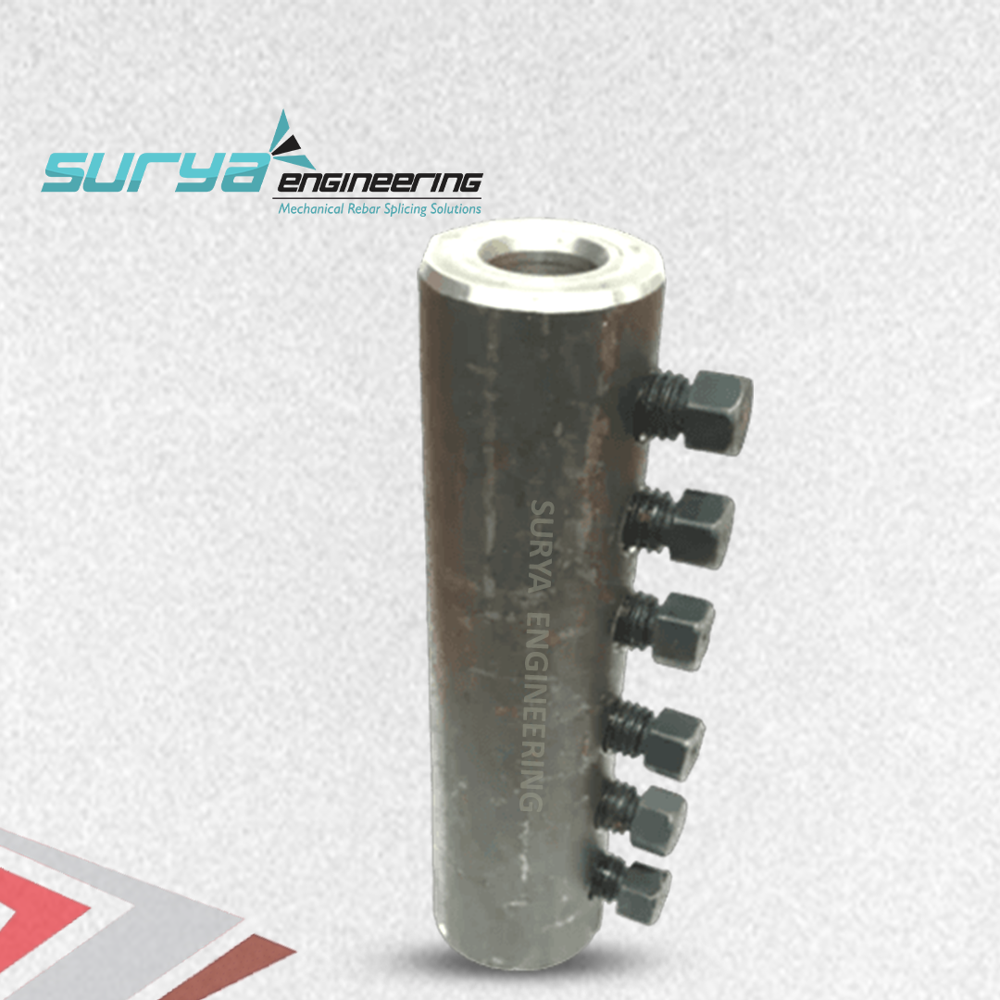

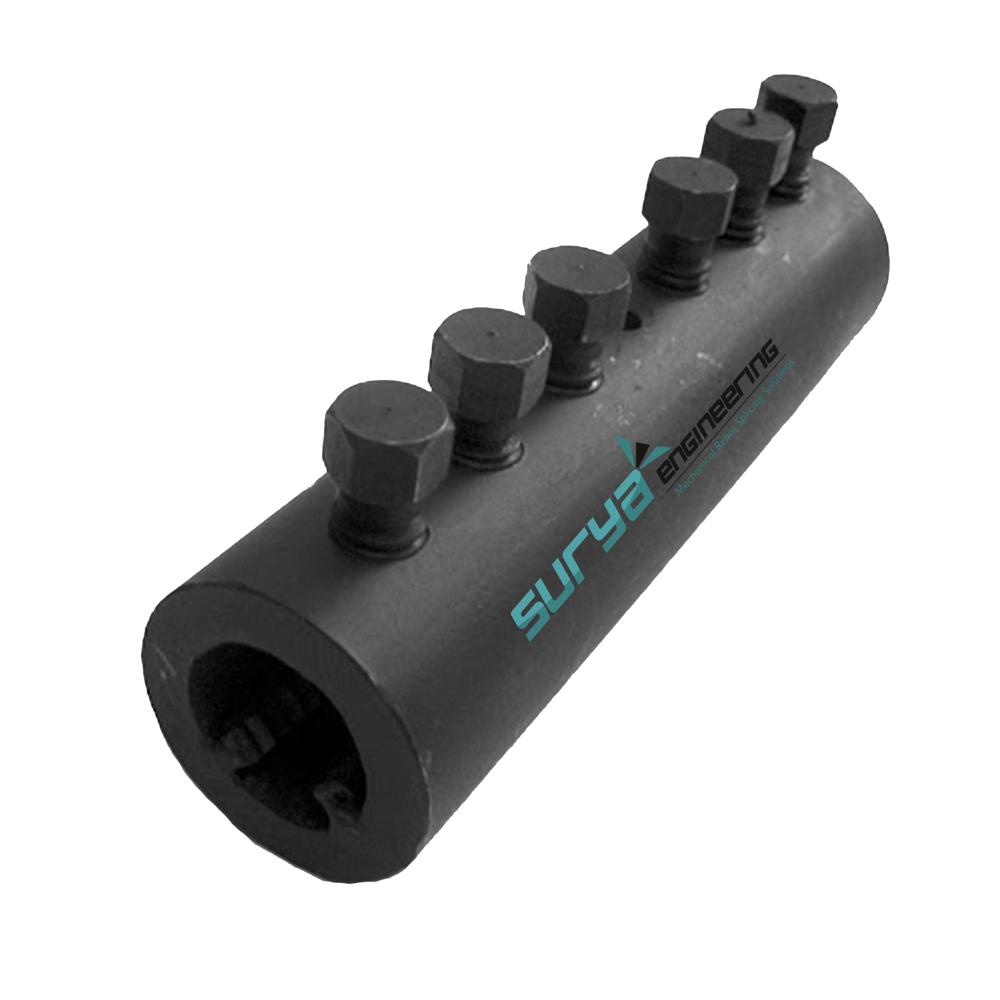

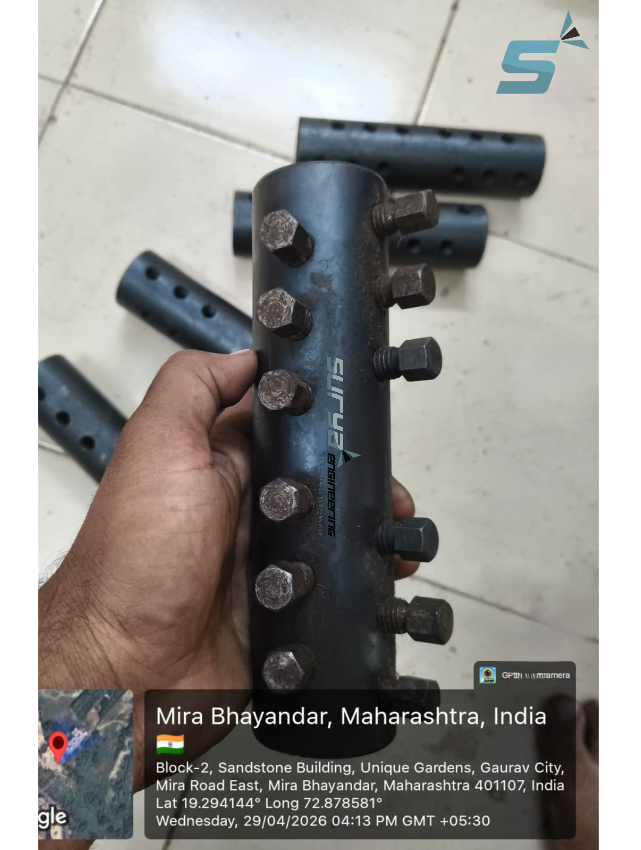

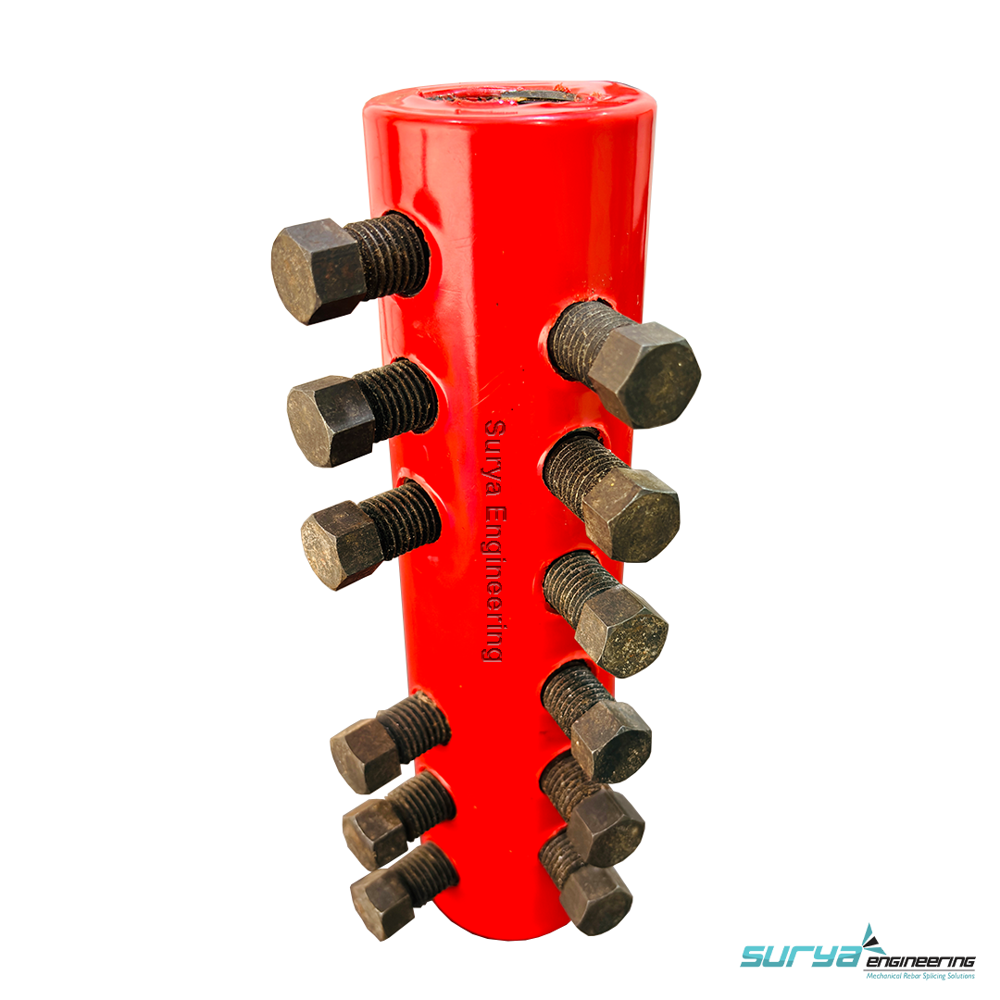

MBT Bolt Coupler

MBT Bolt Coupler Specification

Operating System
manual

Material
EN8D

Load Capacity
1000 Kilograms (kg)

Color
Black

Surface Treatment
Heat Treatment

Height
150 Millimeter (mm)

Usage
Constraction

Weight
579 GSM (gm/2)

Application
Constraction

Length
120 Millimeter (mm)

MBT Bolt Coupler Trade Information

Minimum Order Quantity
100 Number

Delivery Time
24 Hours

About MBT Bolt Coupler

What is an MBT Coupler?

An MBT Coupler (Mechanical Bolted Type Coupler) is a mechanical reinforcement bar joining system used to connect two reinforcing steel bars (rebars) without welding or threading. MBT stands for Mechanical Bolted Termination/Type Coupler, where bolts are tightened to grip the reinforcement bars securely.

These couplers are widely used in construction projects, bridges, tunnels, buildings, metro systems, highways, dams, and industrial structures where traditional lap splicing is difficult or inefficient.

MBT Couplers provide a strong, reliable, and fast mechanical connection while reducing steel wastage and labor costs.

Why is MBT Coupler Used?

MBT couplers are used to create safe and high-strength reinforcement bar connections without changing the structure of steel bars.

Repair & Retrofitting: Perfect for replacing damaged rebar in old structures where you cannot thread the existing bar.
Fixing Fixed Bars: Used when one or both bars are already embedded in concrete and cannot be rotated.
Time Sensitivity: Eliminates the need for expensive threading machines or specialized skilled labor for welding.
Structural Integrity: Provides a direct, tension-resistant connection that maintains the continuity of the reinforcement.

Technical Specifications of MBT Coupler

Typical technical specifications of MBT couplers include:

Parameter	Specification
Material	High-strength alloy steel
Rebar Diameter	12 mm to 40 mm (varies)
Connection Type	Mechanical bolted
Surface Finish	Zinc coated / anti-corrosion coated
Bolt Type	High tensile bolts
Tensile Strength	Equal or higher than rebar strength
Usage	Rebar joining without threading
Installation	Torque tightening method

Classification of MBT Couplers

Standard MBT Sockets: For joining two bars of the same diameter end-to-end.

Transition/Reducing MBT Couplers: Designed to connect bars of two different diameters (e.g., a 25mm bar to a 20mm bar).

MBT End Anchors: Used for anchoring rebar into concrete at the end of a run, replacing standard 90 hooks or "L" bends to reduce congestion.

Applications of MBT Coupler

MBT couplers are used in various construction sectors:

Residential Buildings

For strong reinforcement joints in RCC structures.

Commercial Buildings

Used in high-rise towers and malls.

Bridge Construction

Provides high tensile performance.

Metro & Railway Projects

Used in tunnels and underground infrastructure.

Dams and Marine Structures

Suitable for corrosion-resistant applications.

Industrial Plants

Used in heavy-load concrete structures.

MBT Coupler Installation Process

Step 1: Rebar Preparation

Clean the reinforcement bars and ensure proper alignment.

Step 2: Insert Bars into Coupler

Insert both rebars from opposite ends.

Step 3: Align Properly

Ensure center positioning inside the coupler.

Step 4: Tighten Bolts

Use a torque wrench to tighten bolts gradually.

Step 5: Inspection

Check alignment and bolt tightness.

Step 6: Final Testing

Perform quality inspection before concreting.

Testing Standards

IS 16172:2014: The Indian standard for mechanical splices for reinforcement.

ACI 318-19: American Concrete Institute standard (Type 1 and Type 2 requirements).

Tensile Strength Test: The coupler must be able to withstand at least 125% of the yield strength of the rebar.

Slip Test: Ensures the rebar does not slide more than a fraction of a millimeter within the coupler under load.

Related Testing Standards you can find out more on Surya Engineering

website:- https://suryaengineering.net/

Key Advantages

No Bar Rotation: Essential for fixed bars.

Visual Confirmation: The sheared-off bolt heads provide immediate proof of correct installation to inspectors.

No Machine Required: No need for threading or forging machines on site.

Versatility: Works with almost any type of rebar, including corroded or slightly deformed bars.
