About Lanco Die Head Chaser Threading Machines

What is a Lanco Die Head Chaser Threading Machine?

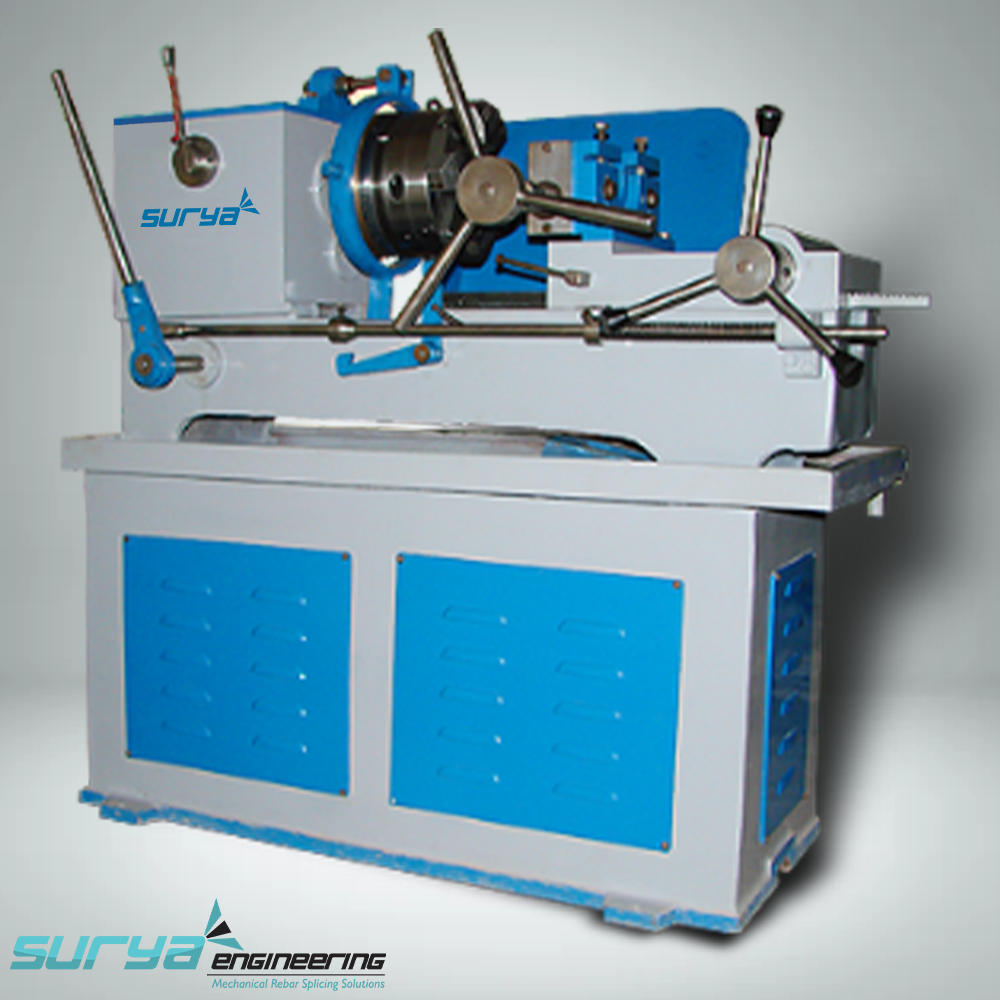

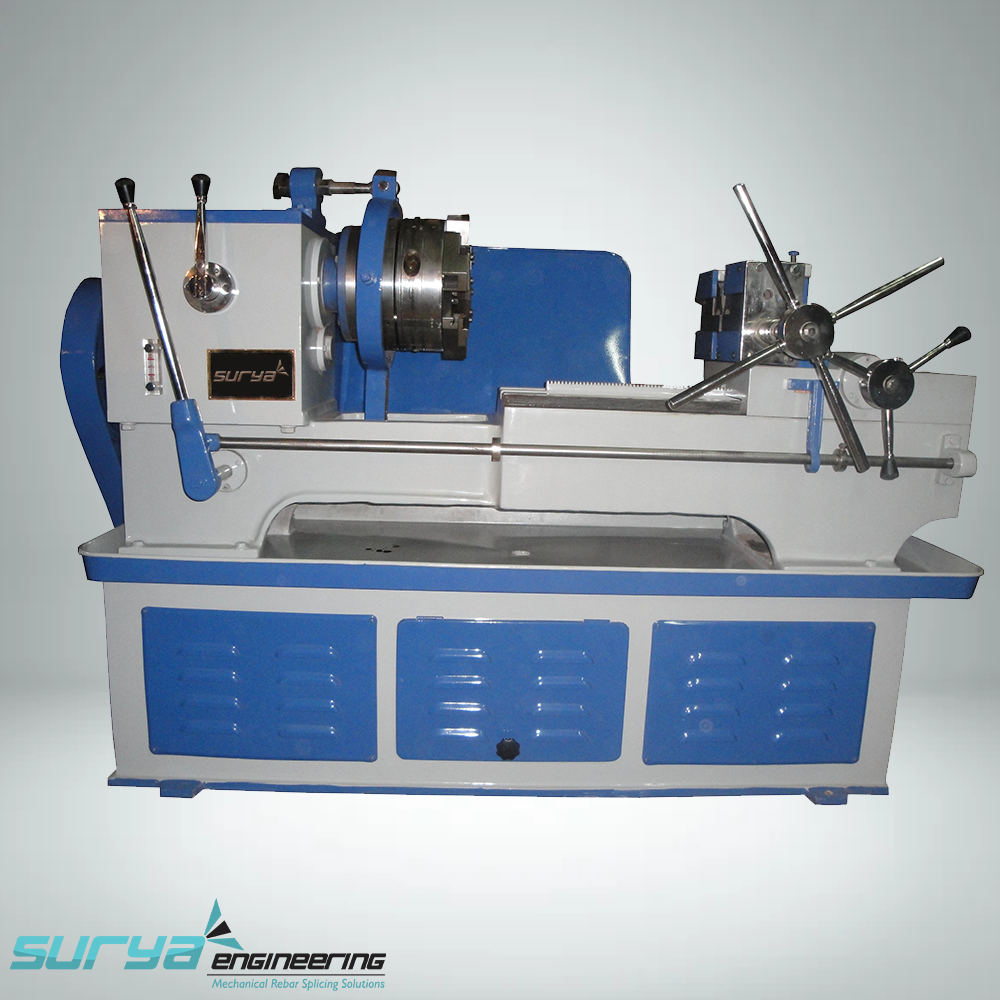

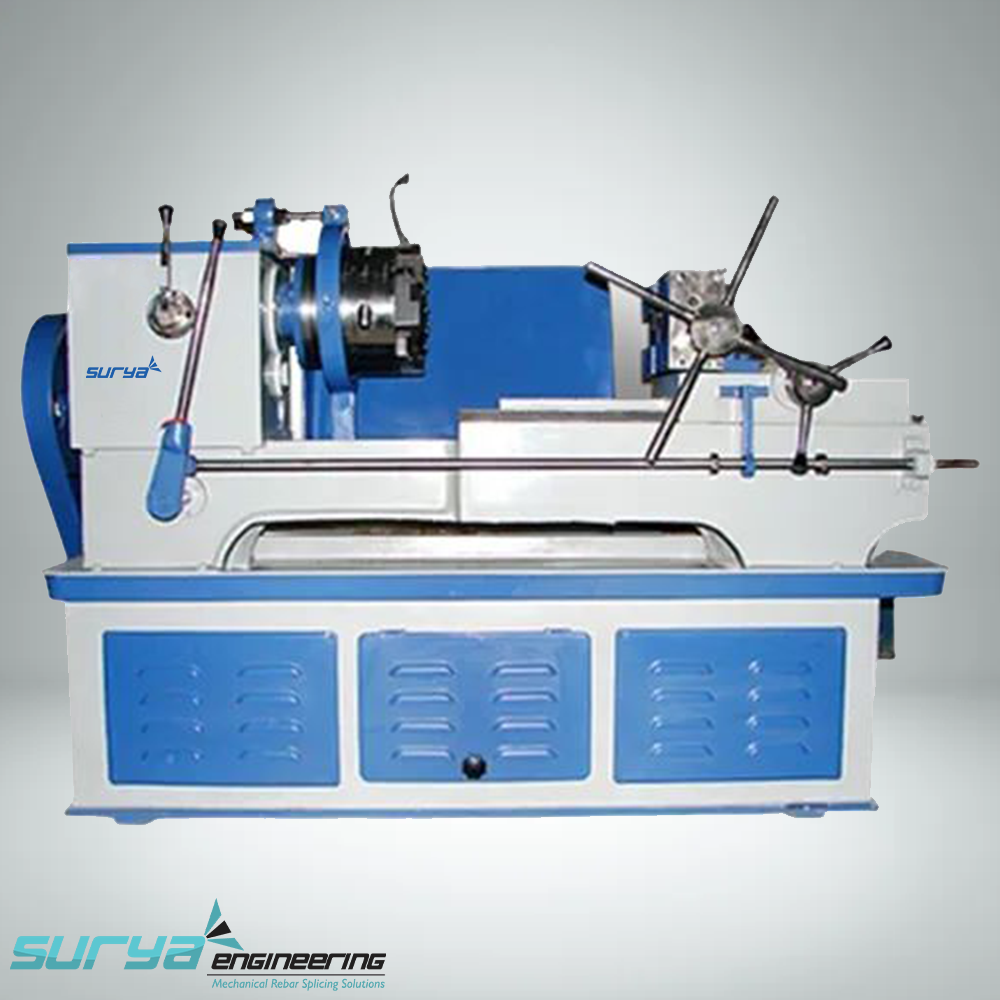

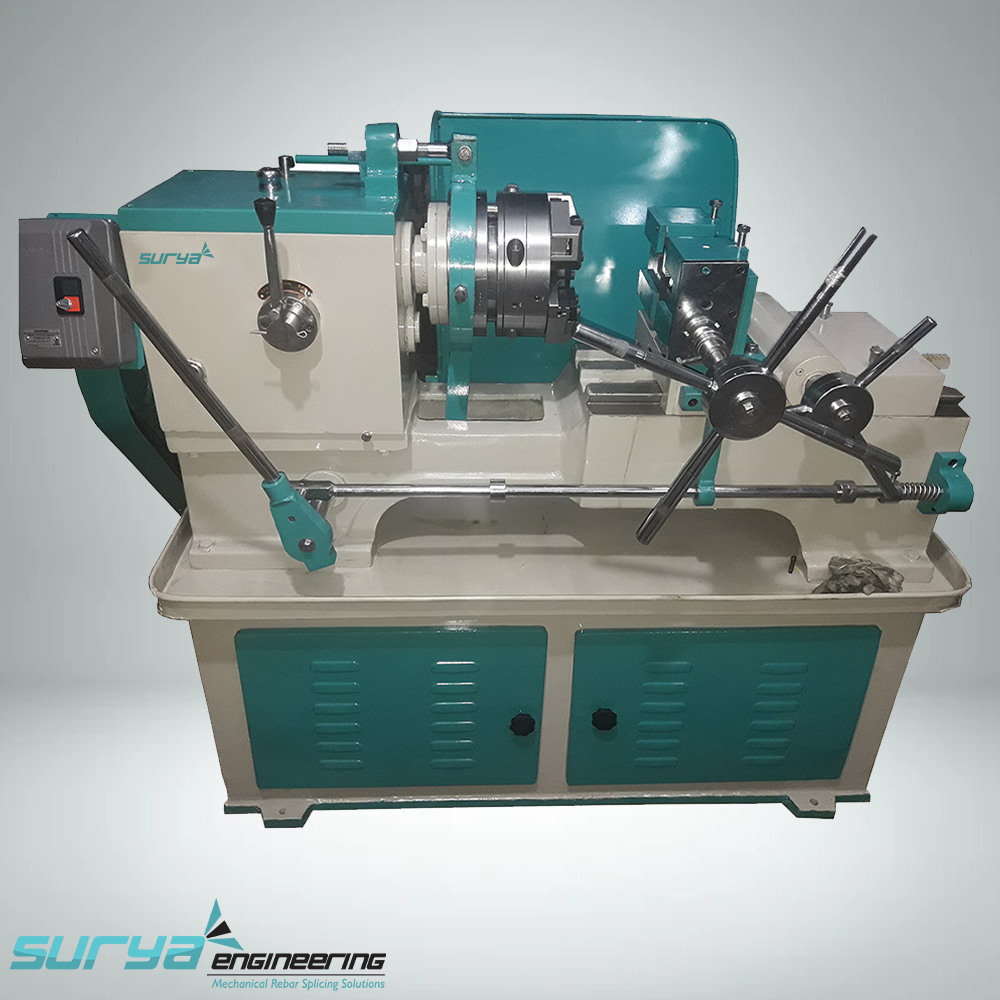

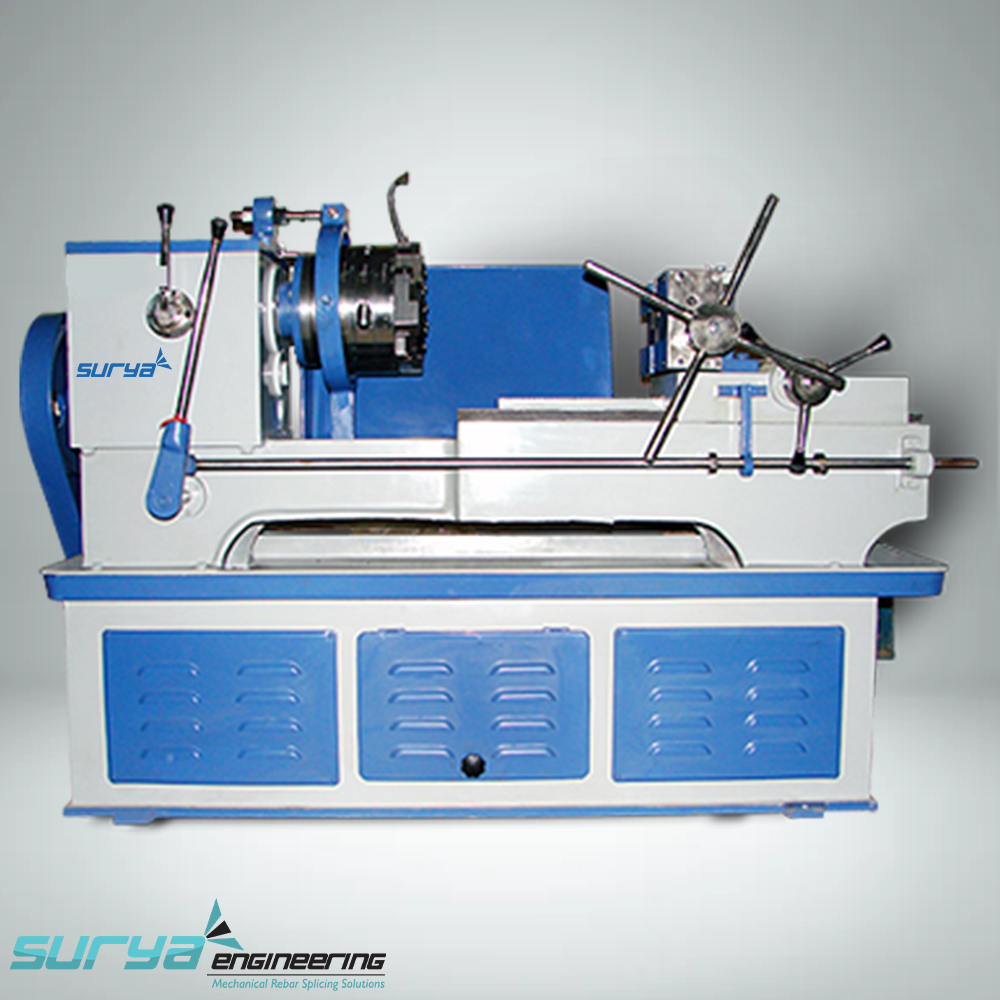

A Lanco Die Head Chaser Threading Machine is a high-precision, heavy-duty industrial machine designed to cut external threads onto metal objects like round bars, pipes, TMT bars, and bolts.

The core mechanism relies on a revolving Lanco-type die head that holds tangential chasers (four or more specialized High-Speed Steel cutting blades). Unlike traditional setups where the workpiece rotates, this machine holds the bar or pipe completely stationary in a heavy-duty box vice while the die head rotates around it to cut the threads cleanly.

Why is it Used?

Traditional thread rolling or manual die cutting has strict structural and material limitations. The Lanco Chaser system is chosen because it:

• Prevents Material Deformation: Perfect for high-tensile TMT rebar splicing where rolling might structurally compromise the core or where the bar's ribbing prevents a clean start.

• Handles Multiple Thread Forms: It effortlessly switches between Metric, BSW, BSPT, NPT, and UNC threads simply by changing the chaser set.

• Delivers Exceptional Lead Control: The geometry of tangential chasers minimizes rubbing behind the cutting edge, eliminating thread pitch errors.

Machine Classification & Key Applications

Surya Engineering classifies these machinery variants based on mechanical operation and application scale to suit various infrastructure needs across India:

1. Classification by Automation & Design

• Semi-Automatic Gear Drive: Ideal for regular construction projects. It balances operator control with high-torque gear adjustments (typically dual speeds like 60 & 90 RPM).

• Fully Automatic High-Production: Designed for large factory setups requiring fast turnaround times with minimal manual handling.

• Portable/Compact Rebar Threaders: Lightweight versions built explicitly for on-site rebar processing at remote construction locations.

2. Primary Industrial Applications

• Construction & Rebar Splicing: Cutting parallel or tapered threads on TMT reinforcement bars for mechanical coupler installation.

• Fastener Manufacturing: Fabricating heavy-duty foundation bolts, anchor bolts, eye bolts, and tie rods.

• Oil, Gas & Plumbing: Precision threading of structural pipes and conduits using BSPT or NPT standards to ensure leak-proof seals.

Technical Specifications (Surya Engineering Model: SURYALDHCM1)

Designed for heavy-duty output, our flagship model provides long service lives under standard Indian workshop conditions.

Installation Blueprint & IS Testing Standards

To extract maximum performance and keep your warranty completely intact, proper alignment and compliance are non-negotiable.

The Installation Process

1. Foundation Leveling: Mount the 800 kg machine on a flat, vibration-dampened concrete bed. Fix it using foundation bolts to prevent shifts during heavy torque loads.

2. Electrical Connection: Ensure a stable 3-Phase 415V supply. Verify that the motor pulley rotates in the designated direction to keep the lubrication pump working.

3. Saddle Alignment: Check that the hard chrome-plated pillar beds are fully aligned with the spindle axis center.

4. Chaser Setting: Use a setting gauge to align all four tangential chasers uniformly inside the die head block. Incorrect heights will strip threads or break the chaser teeth.

Indian Testing Standards (IS Compliance)

Surya Engineering units undergo rigid testing protocols aligned with Bureau of Indian Standards (BIS) parameters:

• IS 4211 / IS 11195: Directives governing thread cutting tools, dimensions, and structural tolerances for chasers.

• IS 16172: Crucial standard evaluating reinforcement couplers and threaded rebars to ensure they can withstand structural tensile loads without slipping.

• Mechanical Alignment Runs: Every machine undergoes geometric alignment run-outs to ensure zero axial deviation under peak load.

Advantages of Choosing Surya Engineering Threading Machines

• Zero-Maintenance Gearbox: Hardened case-steel gears with an extra-wide face width eliminate the frequent breakdowns common in belt-driven local alternatives.

• High Structural Longevity: Built with premium-grade castings and a pillar-type frame with hard-chrome-plating for smooth, rust-free saddle movement.

• Low Operating Costs: High-speed steel chasers can be continuously reground up to 270 degrees of their usable life, minimizing replacement tool expenses.

PAN-India Supply Chain & Location Network

Surya Engineering ensures that distance is never a bottleneck for your infrastructure projects. Headquartered in the industrial hubs of Mumbai/Thane, we provide lightning-fast supply lines and reliable on-site technical support across the country.

• Manufacturing Hubs: Sakinaka (Andheri, Mumbai), Khairani Road, and our core industrial plant near Kanakia Road, Mira Road / Vasai region (Thane district, Mumbai MMR).

• Direct Sales & Service Presence:

• West & Central: Mumbai, Pune, Nagpur, Nashik, Kolhapur, Solapur, Ahmedabad, Surat, Vadodara, Rajkot, Indore, Bhopal.

• South: Bangalore, Hyderabad, Chennai, Mysore, Hubli, Mangalore, Vijayawada, Vizag.

• North & East: Delhi NCR, Punjab, Kota, Udaipur, Jaipur, Kolkata, Raipur, Rourkela, Patna, Guwahati (Assam).
