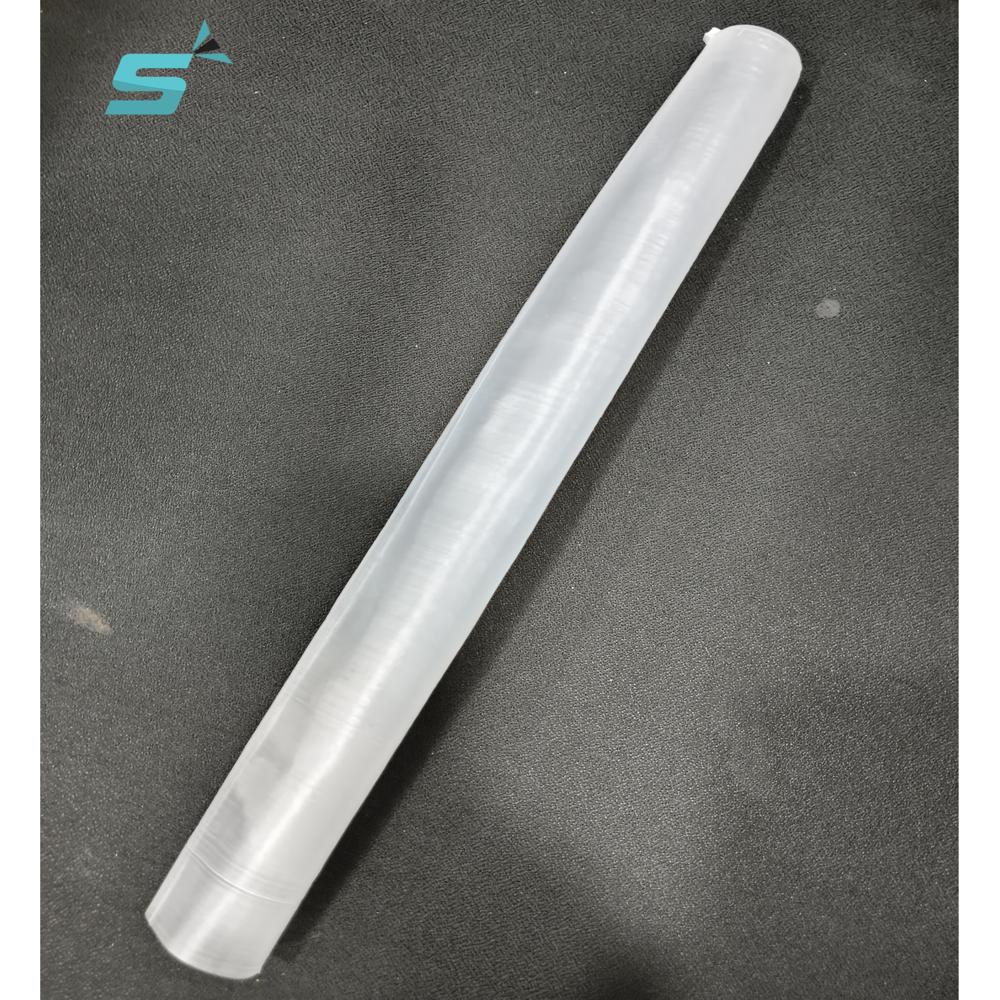

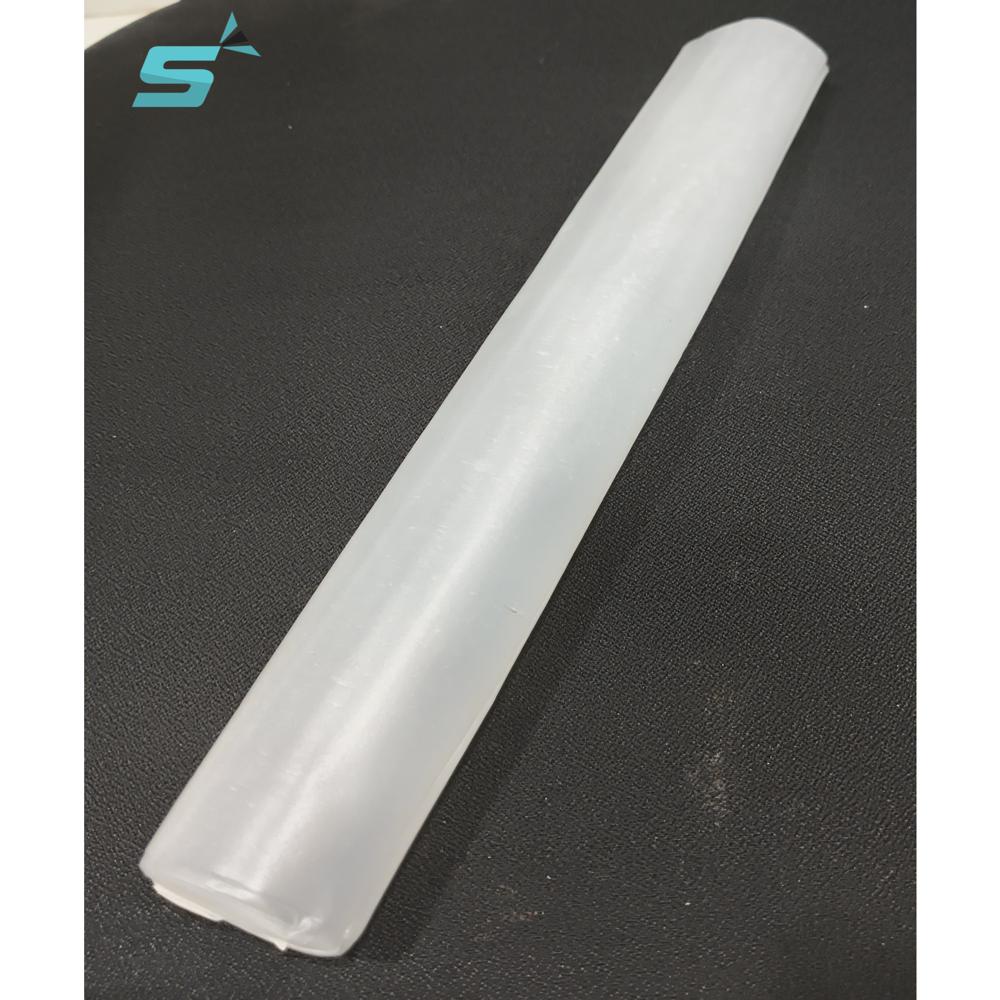

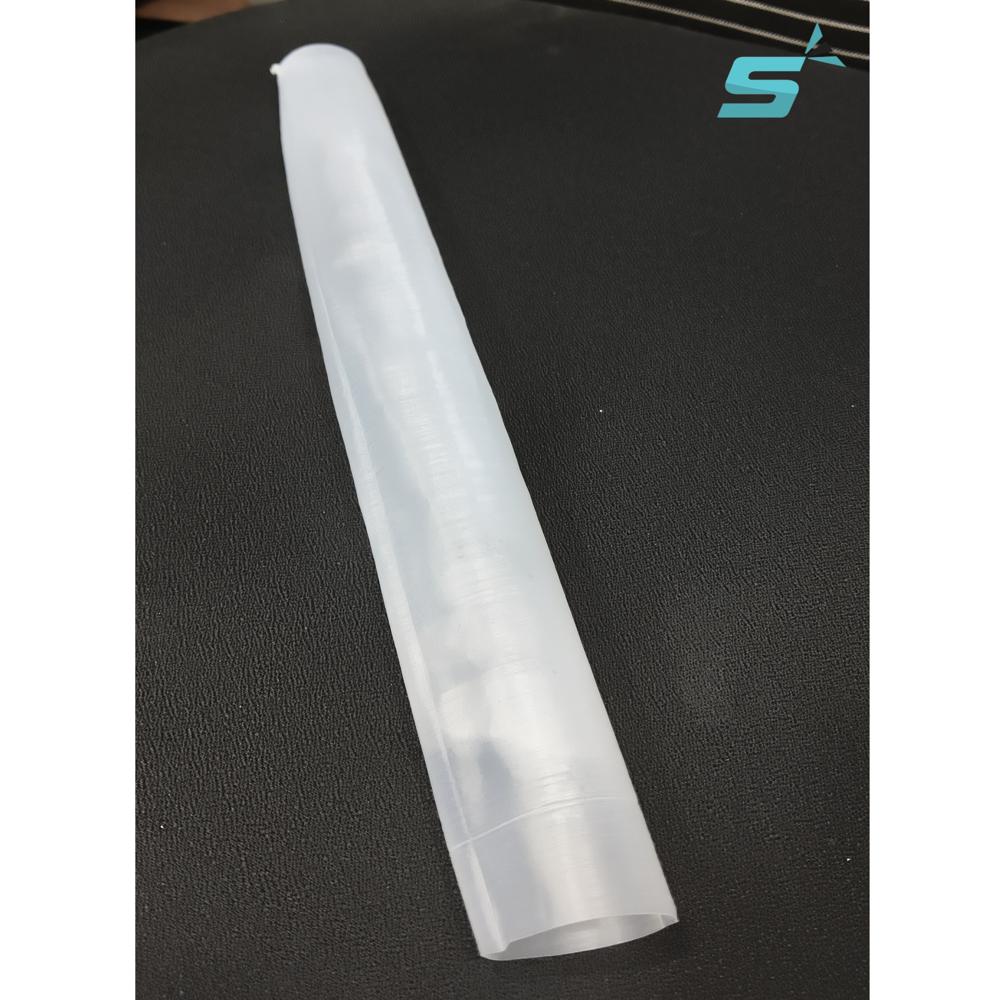

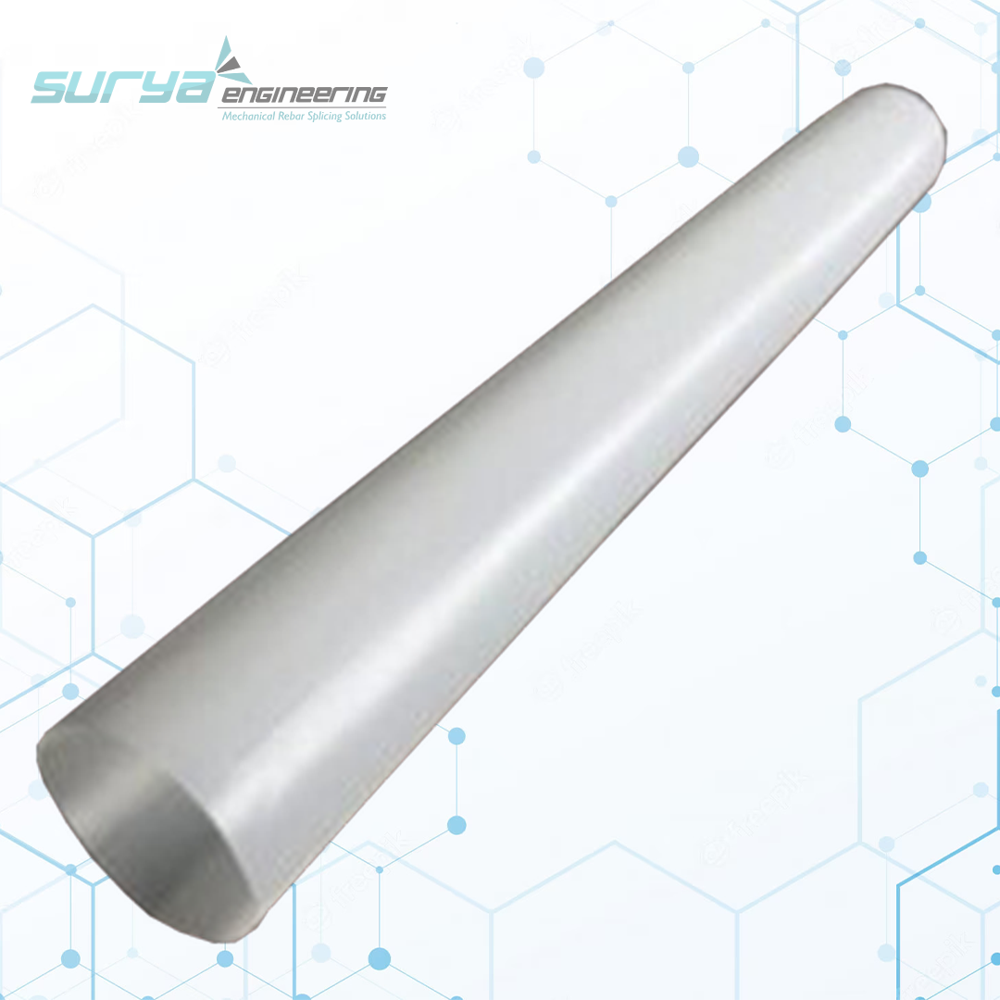

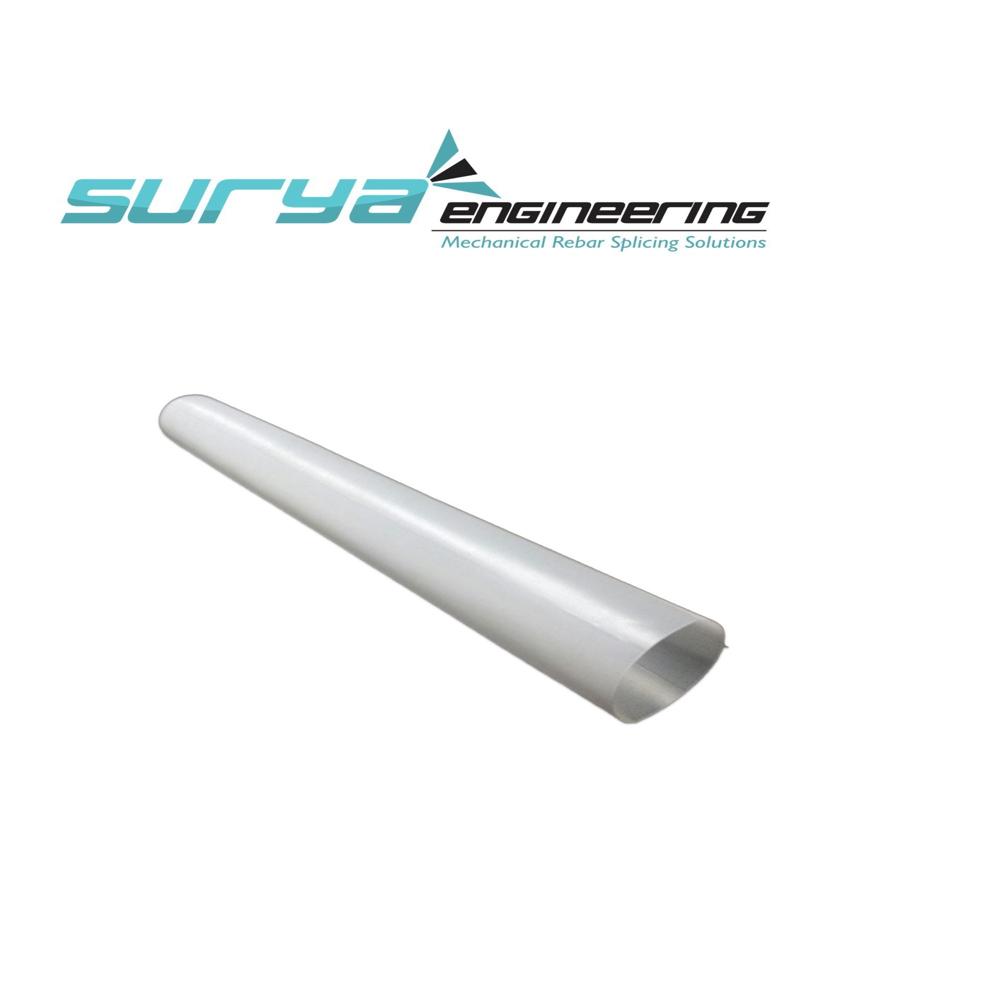

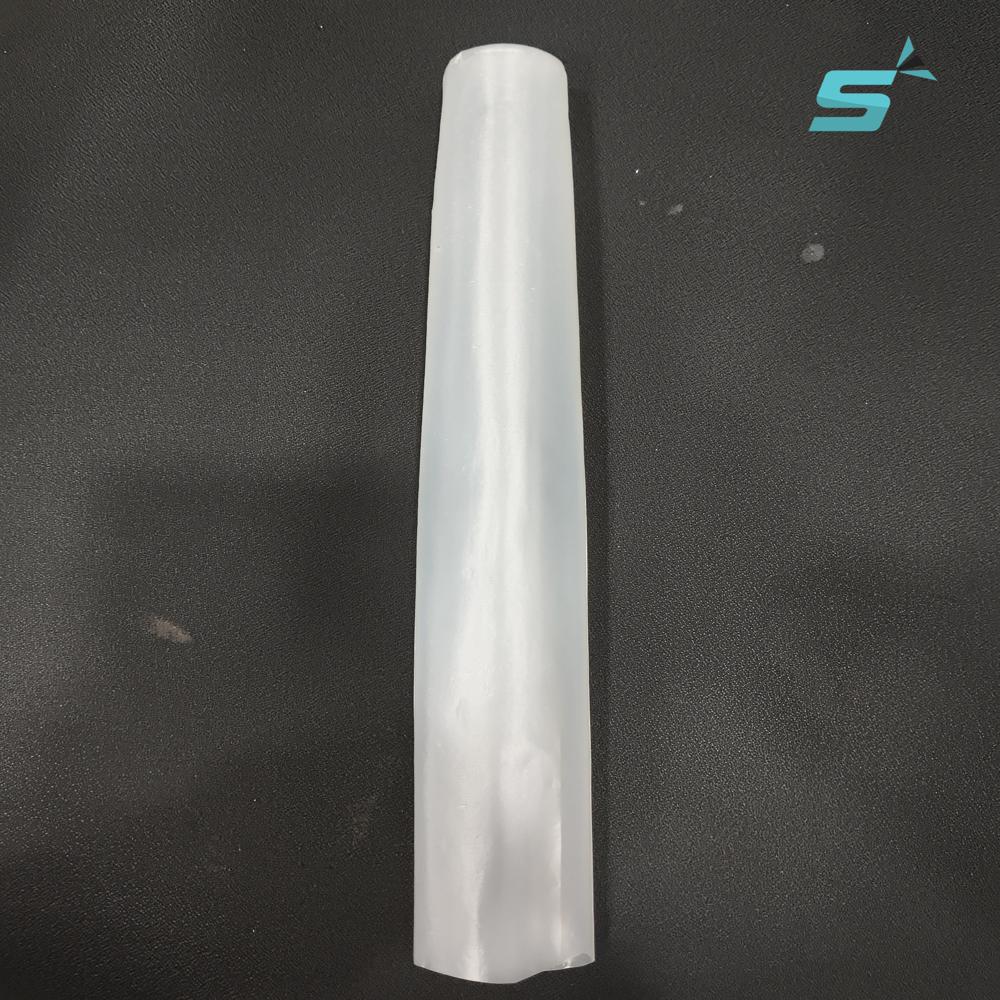

Dowel Bar Cap

Dowel Bar Cap Specification

Material
PVC / Polypropylene (PP) - Virgin Plastic

Diameter
20mm, 25mm, 32mm, 36mm, 38mm Millimeter (mm)

Usage
Provides expansion gap in concrete joints for dowel bars

Feature
Corrosion Resistant, Lightweight, Waterproof, Easy to Install, Reusable, Provides 20-25mm expansion movement

Weight
15gm - 35gm GSM (gm/2)

Height
32mm / 38mm Millimeter (mm)

Application
Concrete Pavement Expansion Joints, Highway & Road Construction, Industrial Flooring, Airport Runway, Bridge Construction

Length
100mm, 125mm, 150mm Millimeter (mm)

Surface Treatment
Smooth Finish, UV Stabilized

Color
Red, Black, Orange

Dowel Bar Cap Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
24 Hours

About Dowel Bar Cap

Dowel Bar Cap Manufacturer Surya Engineering

Surya Engineering manufactures construction accessories for concrete pavement and infrastructure applications, including Dowel Bar Caps designed to accommodate the specified movement of dowel bars at concrete joints.

A critical factor in dowel bar cap selection is not just the cap's fit, but the available internal movement space. The cap must provide sufficient clearance for the intended longitudinal movement of the dowel bar, according to the pavement joint design. An incorrectly sized cap may restrict movement or create installation problems.

Manufacturer-Level Details That Matter

1. Internal Expansion Clearance

The available space between the dowel bar tip and the closed end of the cap determines the movement allowance provided by the cap. This clearance should match the project specification rather than being selected by cap length alone.

2. Internal Diameter and Bar Compatibility

A suitable internal diameter helps the cap fit correctly over the dowel bar. Compatibility should be checked against the actual bar diameter, surface condition, and specified installation method.

3. Cap Length Versus Usable Movement Space

Overall cap length and usable internal clearance are not the same measurement. Buyers should verify the internal depth available beyond the inserted bar tip to ensure the required movement allowance is maintained.

4. Material Selection: PVC or HDPE

The appropriate material depends on the specified product design, installation conditions, and project requirements. Buyers should confirm the material grade and relevant performance characteristics instead of comparing products by material name alone.

5. Closed-End Design and Installation Fit

The closed end provides a physical stop for the dowel bar tip. Correct seating and secure fit help maintain the intended clearance during installation and concrete placement.

6. Dimensional Consistency Across Batches

Consistent internal diameter, overall length, wall thickness, and closed-end dimensions help contractors install caps more predictably across large pavement projects. These are useful parameters for manufacturers and buyers to verify during quality inspection.

Dowel Bar Caps can be manufactured using virgin plastic or non-virgin (recycled) plastic

Virgin vs. Non-Virgin Dowel Bar Caps

1. Virgin Plastic Dowel Bar Cap

Manufactured using newly produced plastic resin that has not previously been processed into a finished product.

Consistent raw material properties when sourced to a controlled specification.
Suitable for applications requiring defined material characteristics.
Performance depends on resin grade, manufacturing process, and cap design.

2. Non-Virgin Plastic Dowel Bar Cap

Manufactured using recycled or reprocessed plastic, depending on the material source and production process.

Can reduce raw material costs.
Quality varies with recycled material composition and processing controls.
Suitability depends on dimensional consistency and required performance.

Why Choose Surya Engineering?

Surya Engineering understands that a Dowel Bar Cap is a functional component of a concrete pavement joint, not simply a plastic cover. Product selection should account for dowel bar diameter, required movement allowance, cap dimensions, material, and project specifications.

We help construction and infrastructure buyers identify suitable Dowel Bar Cap options for their applications, with product variants and custom requirements discussed according to availability.

Looking for a Dowel Bar Cap Manufacturer in India? Contact Surya Engineering with your required bar diameter, cap length, material preference, and internal expansion clearance to discuss a suitable specification for your project.
