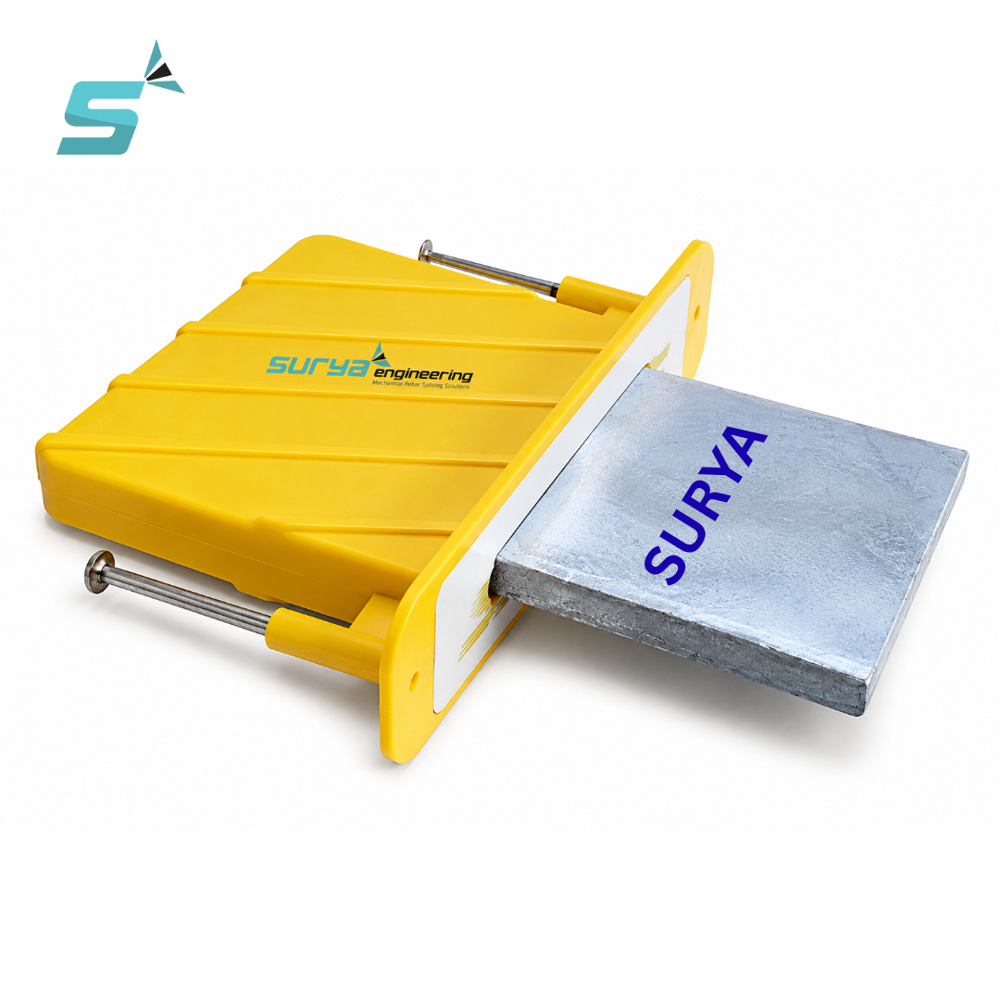

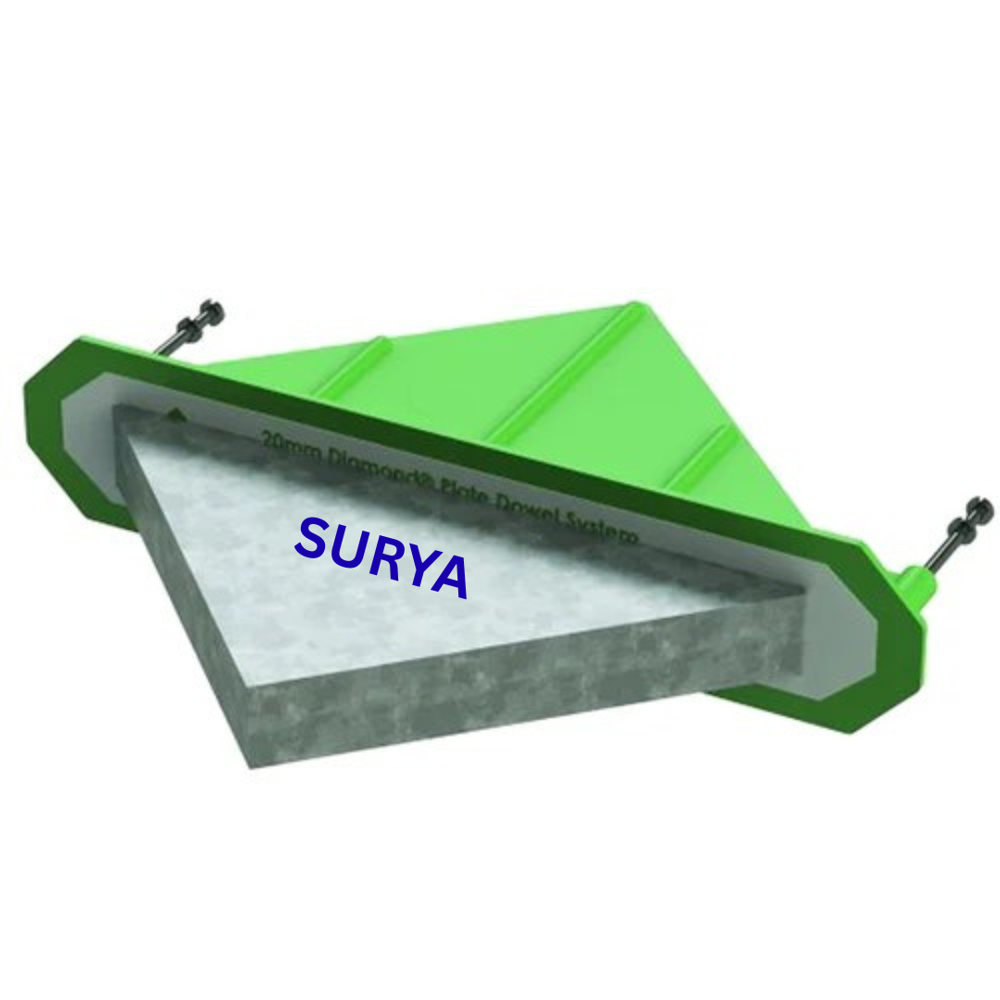

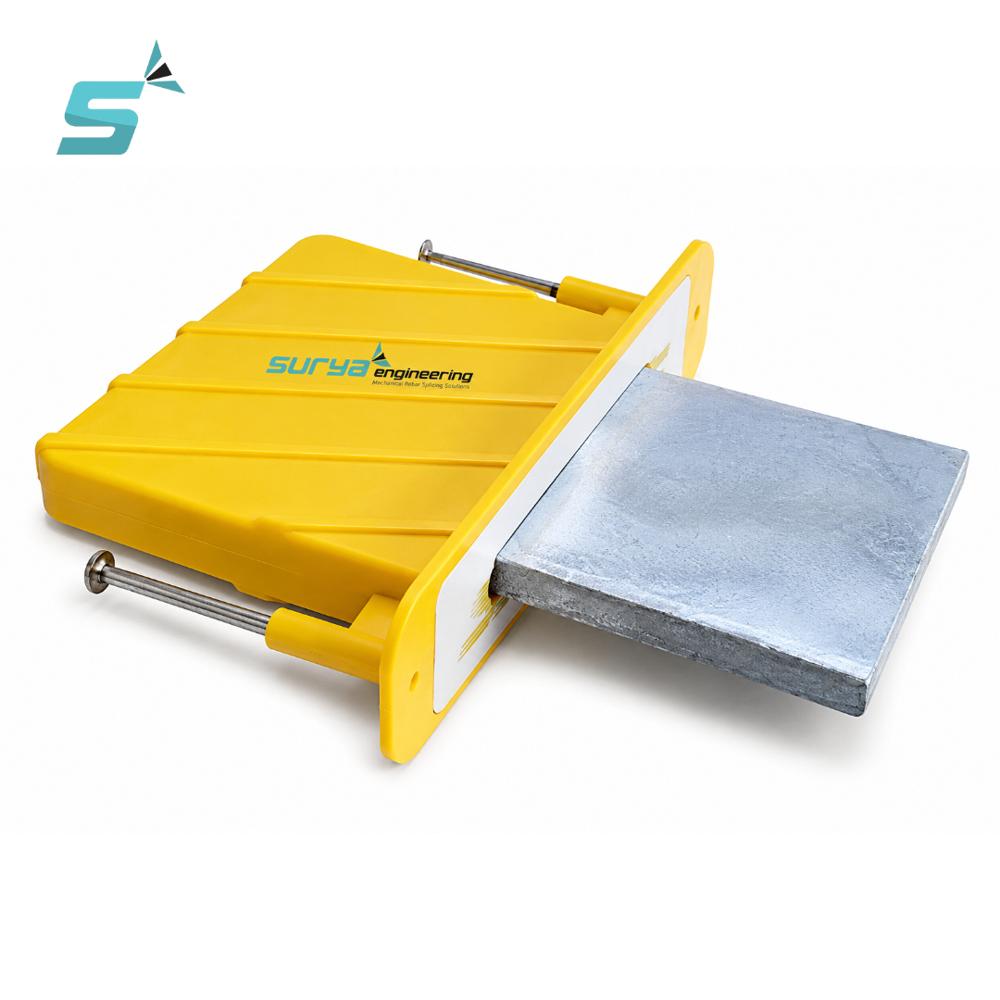

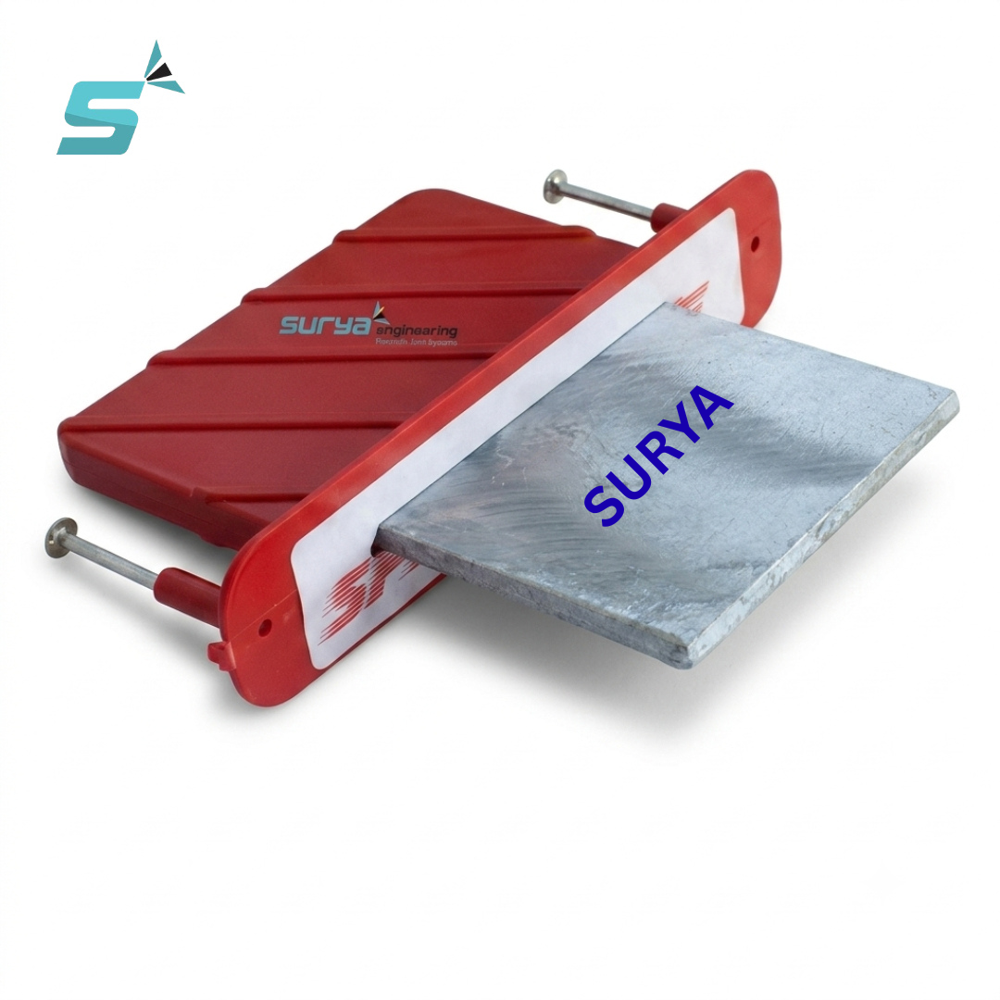

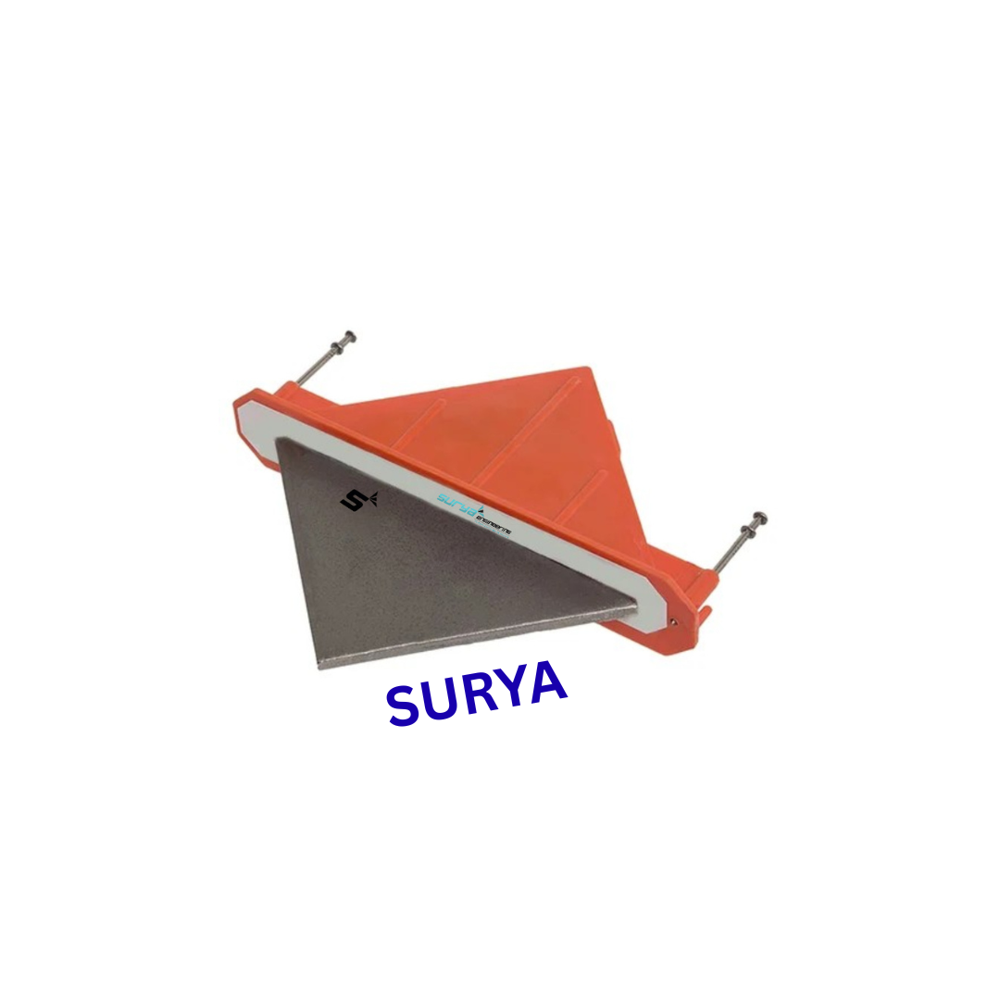

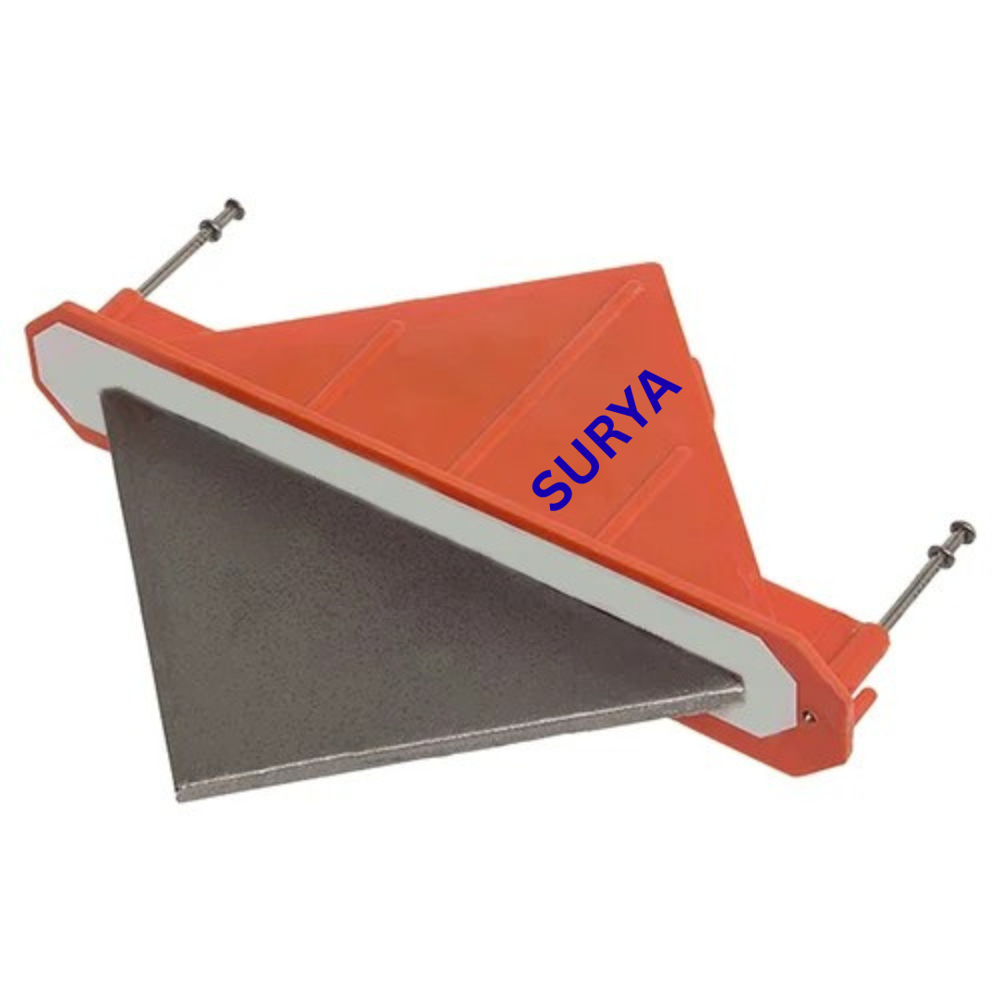

Diamond Dowel Plate

Diamond Dowel Plate Specification

Load Capacity
Rated up to 20-40 kN per dowel (varies by size and material)

Finish
Smooth, de-burred edges

Head Type
No head (plate dowel)

Grade
S275 / S355 (or as specified)

Diameter
10 mm to 20 mm (as per design requirements)

Shape
Diamond/Rhombus Plate

Thickness
6 mm to 12 mm (as per slab design)

Surface Treatment
Other

Corrosion Resistant
Yes (when coated or with stainless steel)

Capacity
Designed for uniform load transfer in concrete joints

Tensile Strength
410 MPa (minimum, for mild steel)

Feature
Minimizes joint faulting, allows horizontal slab movement, easy installation with sleeve housing

Standard
ASTM A36, BS EN 13670, or as per project specification

Hardness
Typically 130-180 HB (Brinell)

Fasteners Type
None (embedded dowel plate)

Material
Other

Tolerance
2 mm

Application
Industrial floors, warehouse slabs, concrete pavements, joint stabilization

Dowel Plate Length
300 mm to 450 mm (standard sizes)

Installation Method
Cast-in-place with preformed sleeves

Working Temperature Range
-20C to 80C

Sleeve Color
Orange/Red

Packaging
Bundled in sets or as per client requirement

Maintenance
No maintenance after installation

Edge Protection
White polymer reinforced for impact resistance

Dowel Plate Width
100 mm to 150 mm

Sleeve Material
High-impact polymer/plastic

Suitability
Heavy-duty floors, expansion & contraction joints

About Diamond Dowel Plate

Explore unmatched durability with our preeminent Diamond Dowel Plate, engineered for industrial heavy-duty floors and concrete pavements. Crafted from immaculate high-impact polymer sleeves and premium steel plates, these dowels minimize joint faulting while allowing enviable slab movement. Featuring orange/red color sleeves for easy identification, edge protection with reinforced white polymer, and corrosion-resistant coatings, each piece is tailored for strict project requirements. Grab yours at a remarkable price cut-our bundled packaging or tailored sets ensure simple cast-in-place installation, maintenance-free performance, and lasting load transfer capacity. Elevate your project's resilience with this industry-leading solution.

Comprehensive Application & User Guidance

Designed for fast, cast-in-place installation, the Diamond Dowel Plate suits applications ranging from heavy expansion and contraction joints in warehouse slabs to general concrete pavements. It features immaculate edge protection and an enviable load capacity, ensuring stability even in high-traffic environments. The smooth, de-burred surface and preformed sleeve housing enhance slab alignment, reducing the risk of joint faulting. Suitable for both general and specific demanding uses, it boasts temperature tolerance and corrosion resistance as extra standout features.

Sample Provision & Transaction Process

Sample availability is ensured for project evaluation-our clear sample policy allows clients to examine quality before placing bulk orders. Order completion is streamlined: upon confirmation, we expedite handover and organize prompt dispatching as per client schedules. Payment terms are designed for flexibility, fostering ease and transparency. With every step, from inquiry to delivery, we optimize support to ensure seamless, reliable supply of Diamond Dowel Plates to local and global projects.

FAQ's of diamond dowel plate:

Q: How is the Diamond Dowel Plate installed in concrete joints?

A: The Diamond Dowel Plate is installed during the casting process via preformed high-impact polymer sleeves, ensuring simple alignment and effortless integration within the concrete slab.

Q: What are the primary uses for this dowel plate?

A: This dowel plate is ideally suited for industrial floors, warehouse slabs, and concrete pavements, providing uniform load transfer and stabilizing expansion or contraction joints.

Q: Where can these dowel plates be applied for best performance?

A: Optimal performance is achieved in heavy-duty environments requiring reliable load transfer, such as commercial warehouses, factories, and high-traffic concrete surfaces.

Q: What benefits does the reinforced edge protection provide?

A: The reinforced white polymer edge protection delivers exceptional impact resistance, reducing maintenance and prolonging the service life of both dowel and floor joint.

Q: When are samples available, and what is the sample policy?

A: Samples are available upon request; our sample policy allows clients to review and test quality before proceeding with larger orders or project deployments.

Q: What are the corrosion-resistant features of the dowel plate?

A: Featuring powder-coated, galvanized, or stainless-steel material options, these dowel plates maintain their integrity against corrosion, ensuring durability and longevity even in rigorous conditions.
