Diamond Dowel Plate

What is Diamond Dowel plate ?

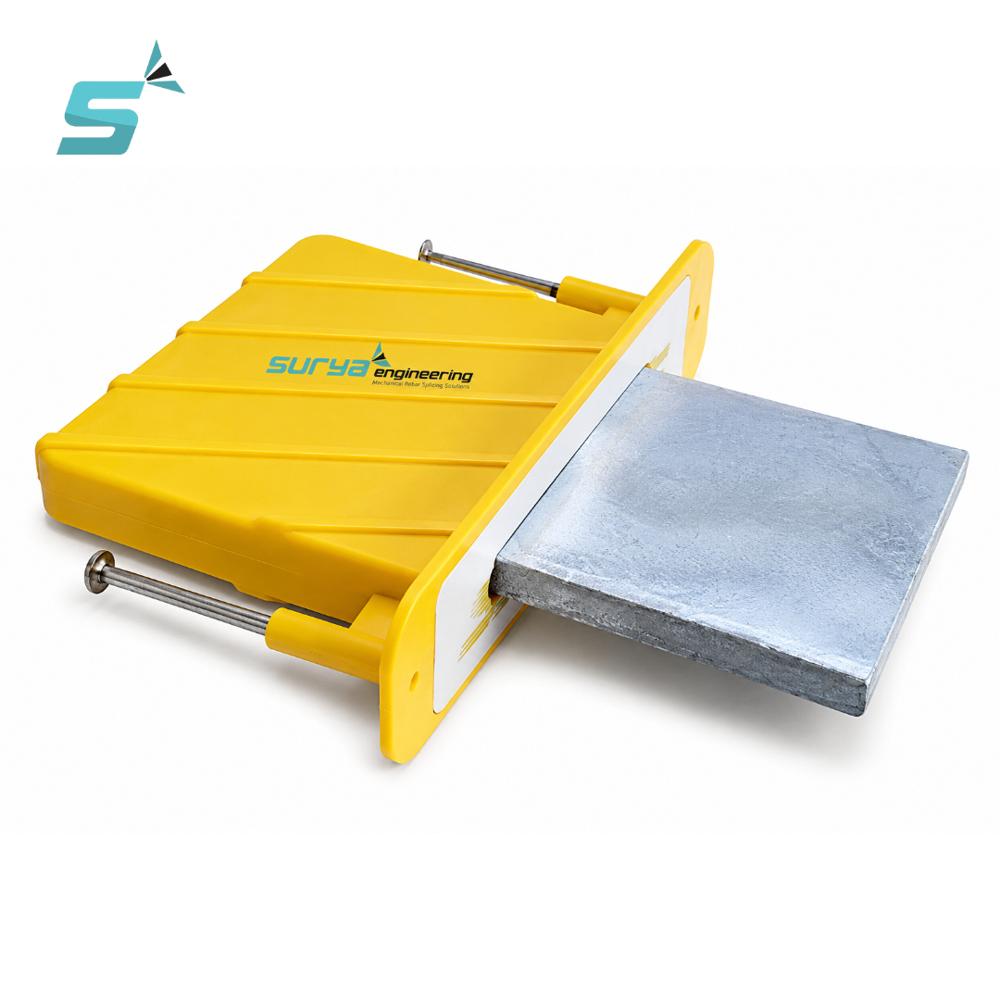

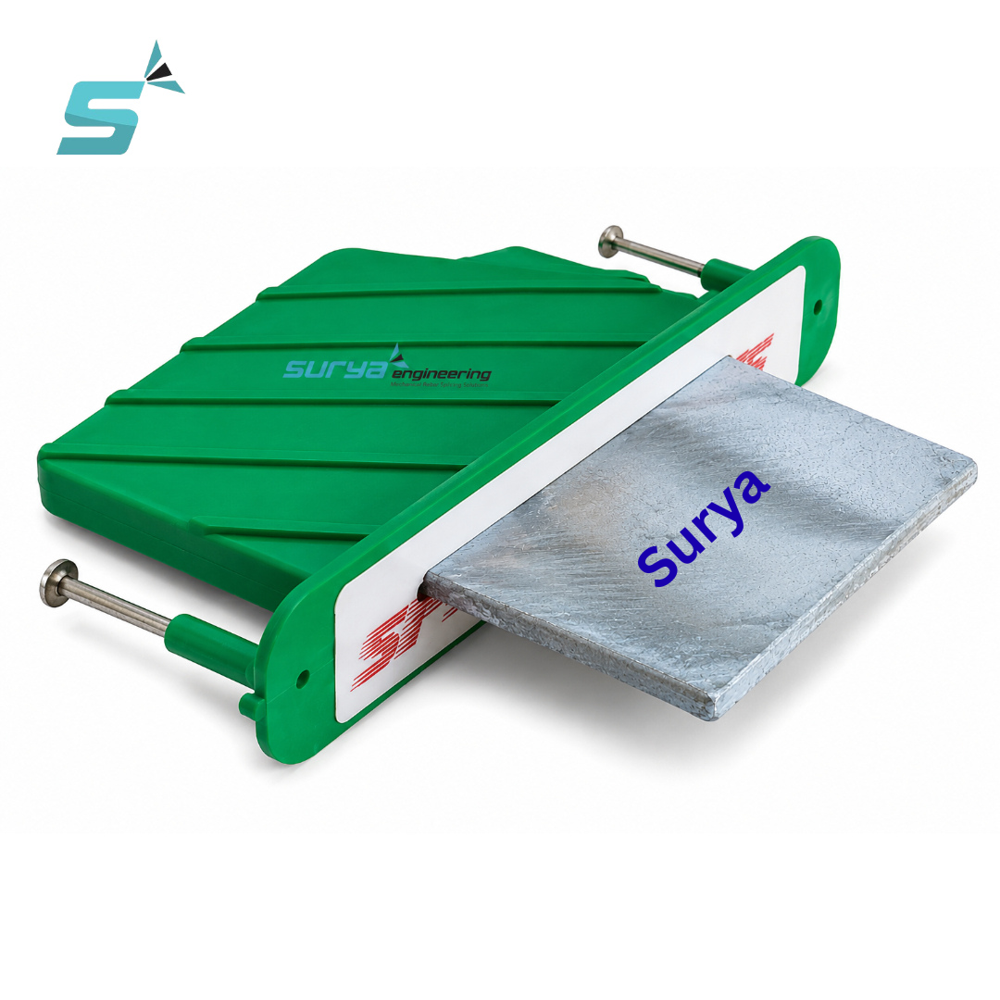

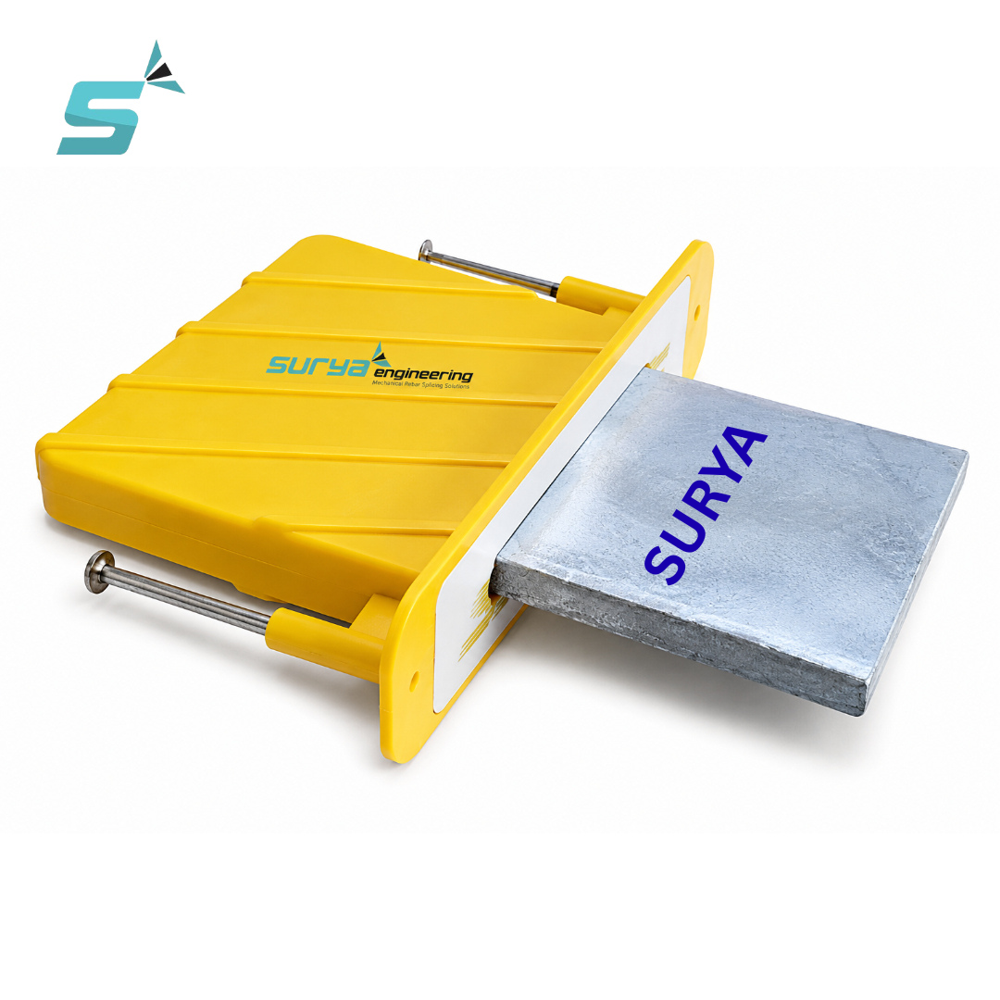

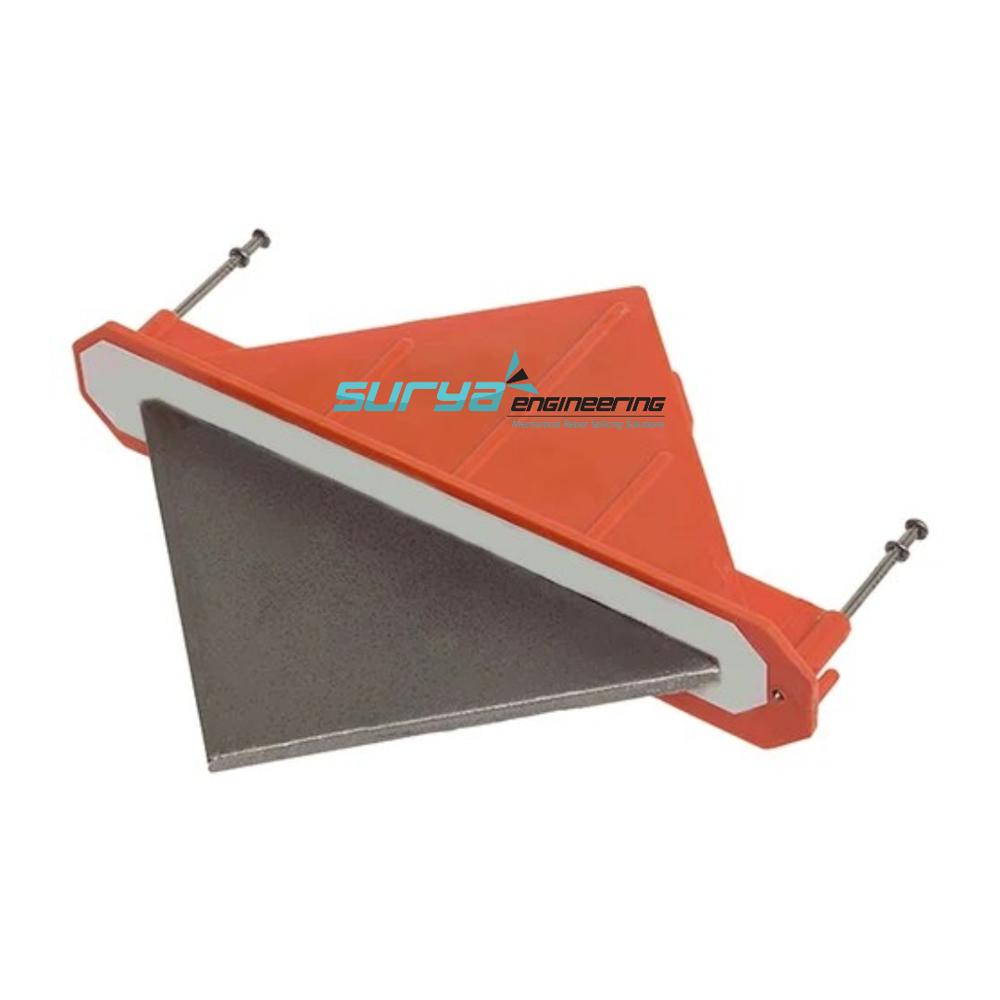

A Diamond Dowel Plate is a specially designed steel plate with a diamond-shaped slot used to hold dowel bars at concrete expansion and construction joints. The unique diamond design allows controlled horizontal movement of concrete slabs due to temperature changes while maintaining proper vertical load transfer. This helps prevent slab cracking, joint damage, and uneven settlement.

Surya Engineering is a leading Diamond Dowel Plate manufacturer in Mumbai, India, offering high-quality and precision-engineered products for infrastructure and construction projects across Maharashtra, Gujarat, Delhi, Karnataka, Tamil Nadu, Telangana, Rajasthan, Uttar Pradesh, Madhya Pradesh, Punjab, Haryana, Kerala, West Bengal, Odisha, Bihar, Assam, and all over India.

What is the Purpose of a Diamond Dowel Plate?

Diamond Dowel Plates are used to accurately position dowel bars while allowing one end of the bar to move freely inside the diamond slot. This movement absorbs concrete expansion and contraction caused by temperature variations, reducing internal stress and extending the life of concrete pavements and industrial floors.

Classification of Diamond Dowel Plates

• Standard Diamond Dowel Plate
• Heavy Duty Diamond Dowel Plate
• Galvanized Diamond Dowel Plate
• Powder-Coated Diamond Dowel Plate
• Stainless Steel Diamond Dowel Plate
• Custom Size Diamond Dowel Plate

Applications

• Concrete Roads
• Highways and Expressways
• Airport Runways
• Industrial Flooring
• Warehouse Floors
• Bridge Decks
• Metro Rail Projects
• Parking Areas
• Commercial Buildings
• Large Concrete Slab Construction

Installation Process

1. Mark the concrete expansion or construction joint.
2. Position the Diamond Dowel Plate accurately.
3. Secure the plate firmly before concrete pouring.
4. Insert the dowel bar into the diamond slot.
5. Verify spacing, alignment, and level.
6. Pour and compact concrete carefully.
7. Cure the concrete before opening the area for use.

IS Testing Standards

Diamond Dowel Plates are manufactured following applicable Indian Standards used for reinforced concrete and structural steel:

• IS 456:2000 Code of Practice for Plain and Reinforced Concrete.
• IS 2062 Structural Steel Specification.
• IS 1367 Mechanical Testing of Fasteners (where applicable).

Quality inspections include:

• Dimensional accuracy
• Load transfer performance
• Weld strength
• Surface finish
• Corrosion resistance
• Material quality verification

Advantages of Diamond Dowel Plate

• Allows controlled slab movement
• Ensures efficient load transfer
• Prevents concrete cracking
• Improves joint durability
• Reduces maintenance costs
• Fast and accurate installation
• Suitable for heavy traffic loads
• High corrosion resistance
• Long service life
• Ideal for large infrastructure projects

Why Choose Surya Engineering?

Surya Engineering manufactures premium-quality Diamond Dowel Plates using high-grade steel and advanced manufacturing technology. Every product is tested for strength, precision, and durability to meet demanding construction requirements. We provide customized sizes, bulk orders, competitive pricing, and timely delivery across India.

Whether your project is in Mumbai, Pune, Nashik, Nagpur, Ahmedabad, Surat, Jaipur, Delhi, Noida, Lucknow, Indore, Bhopal, Hyderabad, Chennai, Bengaluru, Kochi, Kolkata, Bhubaneswar, Patna, Guwahati, or any other city in India, Surya Engineering supplies reliable Diamond Dowel Plates designed for long-lasting concrete performance.
