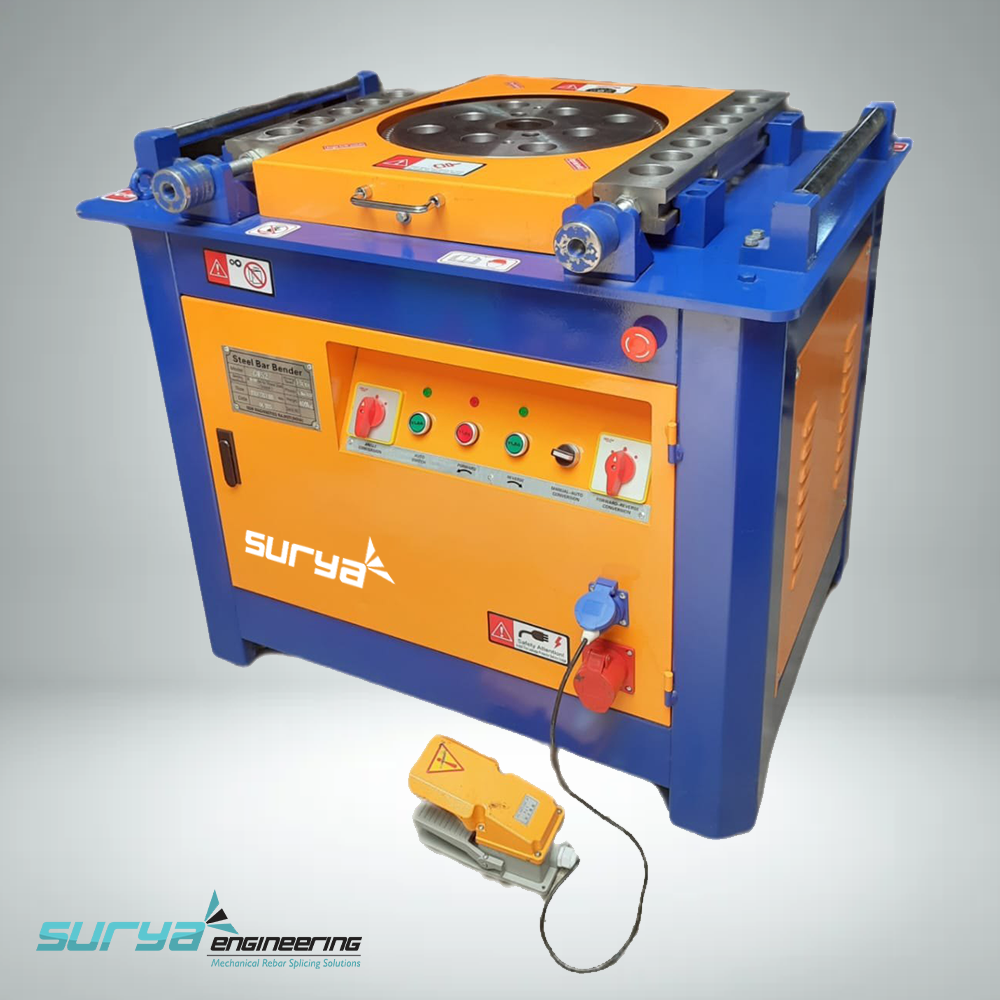

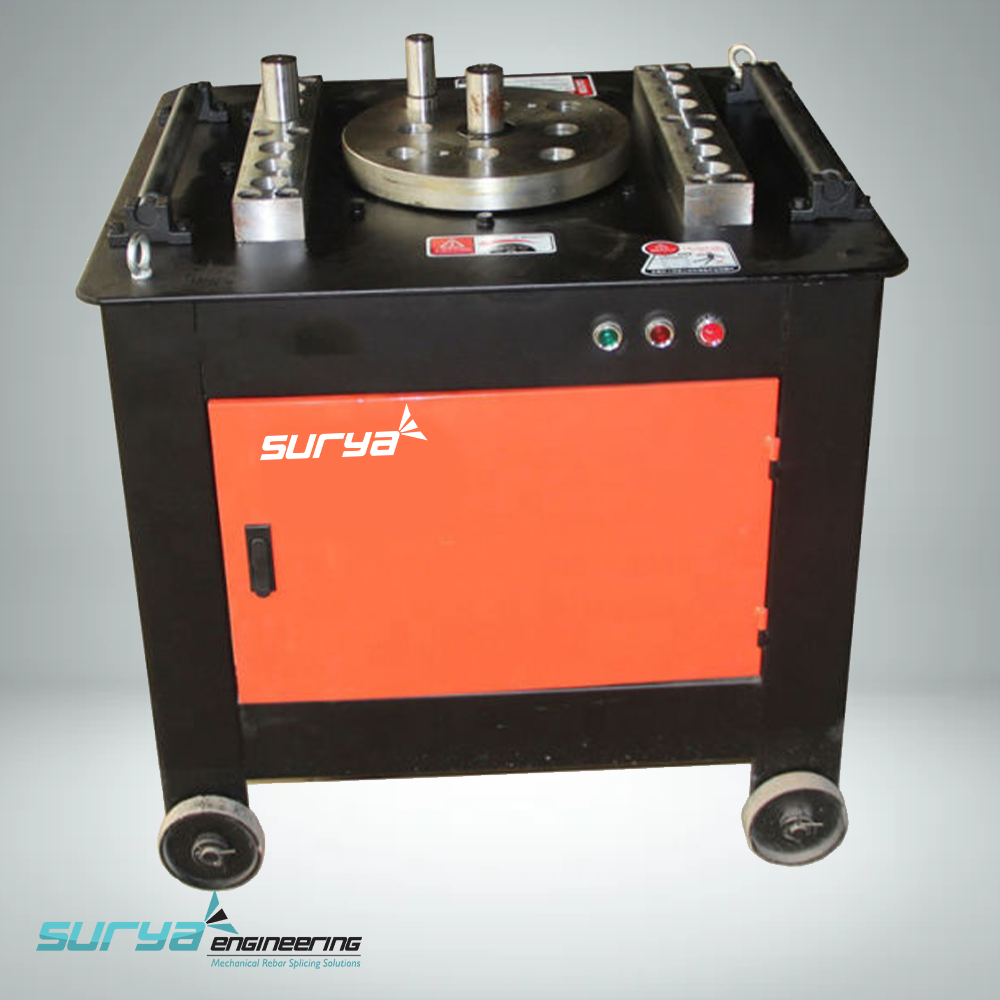

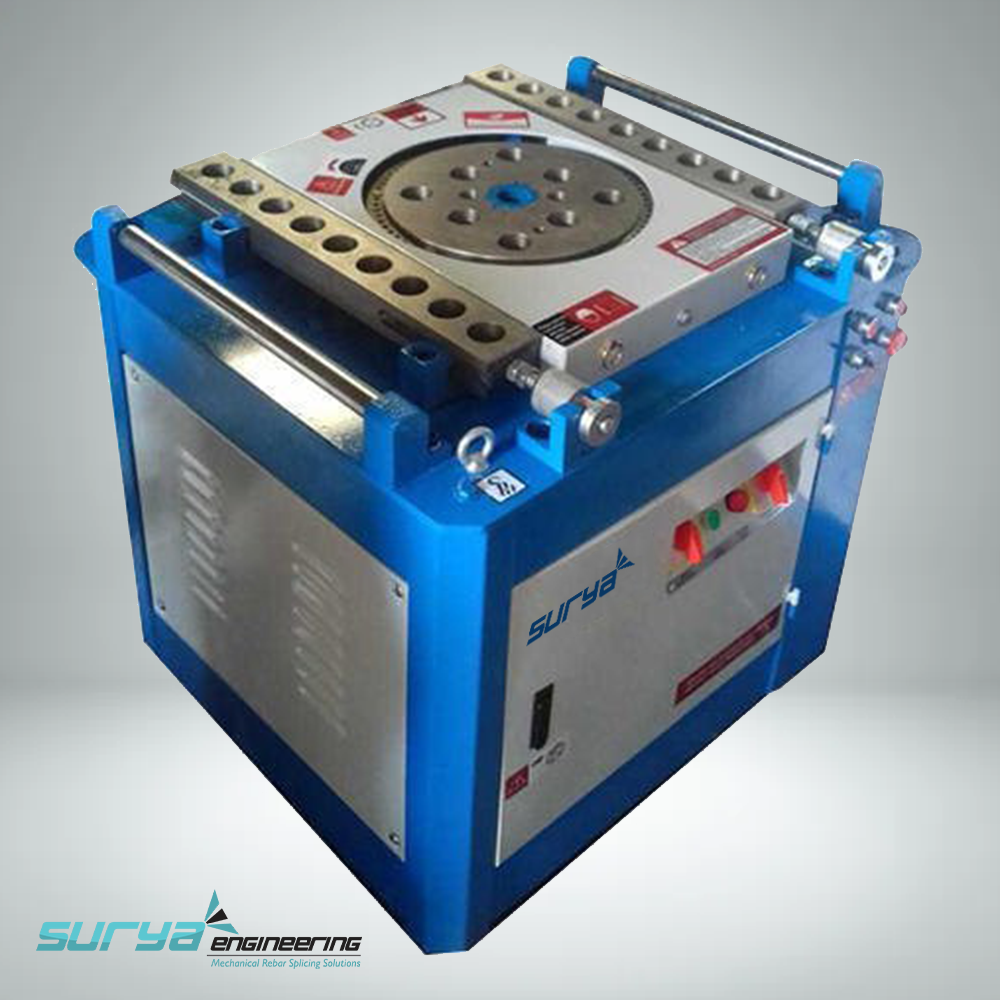

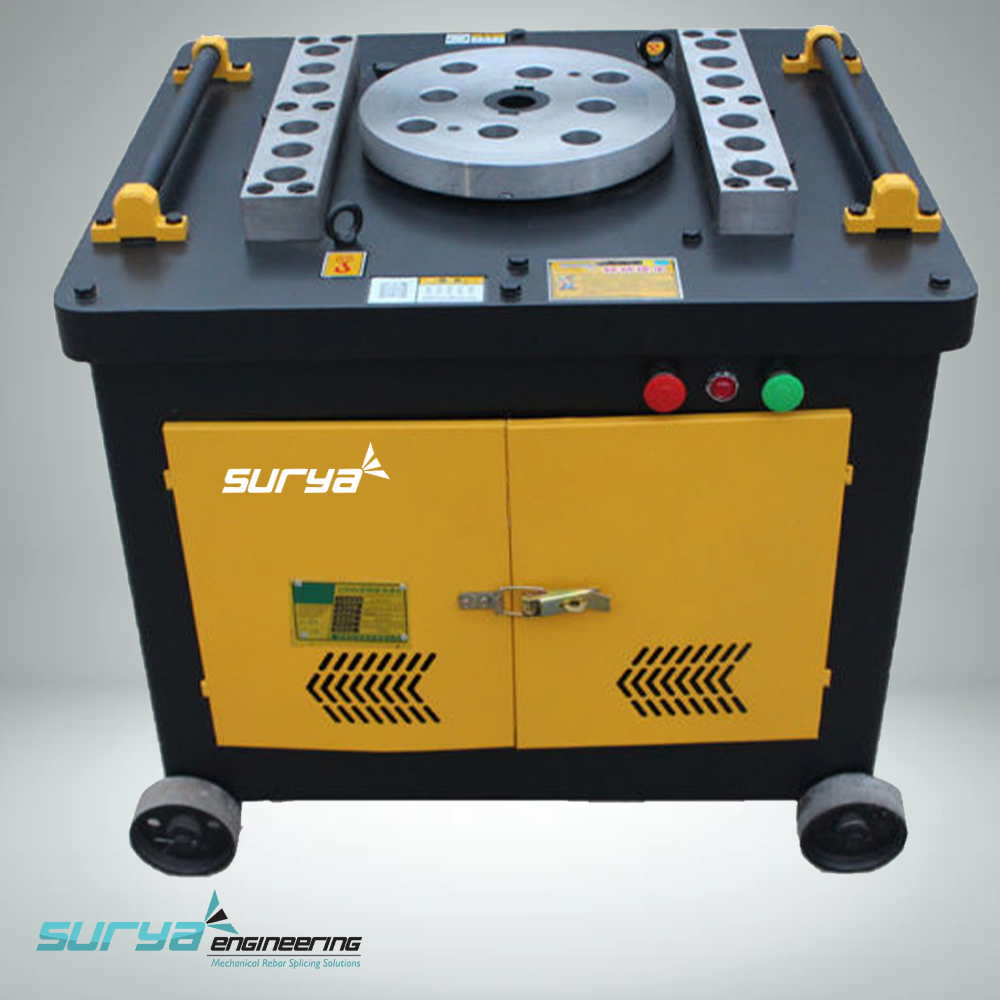

Bar Bending Machine

Bar Bending Machine Specification

Color
Blue / Yellow / Orange

Product Type
Rebar Bending Machine / Bar Bending Machine

Raw Material
TMT Bars / Carbon Steel / Alloy Steel

Capacity
6 mm to 32 mm / 6 mm to 42 mm Milliliter (ML)

Production Capacity
3 - 5 Tons/Day / 500 Bends/Hour Ton

Output
High Efficiency Steel Bending

Place of Origin
India / Mumbai, Maharashtra

Machine Type
Automatic Rebar Bending Machine / GW42 Bar Bender

Bend Radius
4D - 6D Custom Bushing Pins Yard

Weight
350 kg - 500 kg Kilograms (kg)

Automation
Automatic / Semi-Automatic

Usage
Construction Site Rebar Bending & Fabrication

Bending Speed
0 - 20 Rpm / 3 - 5 Sec per Bend

Dimension (L*W*H)
850*750*850 Millimeter (mm)

Bending Angle
0 - 180

Power
3 kW / 4 kW / 5.5 HP kilovolt (kV)

Motor Speed
1440 RPM RPM

Voltage
415 V / 380 V Volt (v)

Bending Strength
High Tensile Strength (Fe 500 / Fe 550 D)

Phase
3

Bar Bending Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
24 Hours

Bar Bending Machine About

Bar Bending Machine: Complete Guide for Construction and Reinforcement Work

In RCC construction, steel bars rarely go into a structure as straight bars. Depending on the structural drawing, they may need to be bent into L-shapes, U-shapes, hooks, stirrups and other required forms.

For a small amount of work, reinforcement bars can be bent manually. But when a construction project requires hundreds or thousands of bars, manual bending becomes slow, tiring and difficult to keep consistent. This is where a Bar Bending Machine becomes useful.

A bar bending machine is designed to bend TMT and reinforcement bars to the required angle and shape. It is commonly used at construction sites, reinforcement fabrication yards and infrastructure projects.

Surya Engineering, Mumbai, manufactures and supplies Bar Bending Machines, Rebar Bending Machines and TMT Bar Bending Machines for construction and reinforcement applications across India. Its published range includes machines for rebar sizes up to 32 mm and 40 mm, depending on the model.

What is a Bar Bending Machine?

A Bar Bending Machine is a mechanical or electric machine used to bend reinforcement bars into the shapes required for reinforced concrete construction.

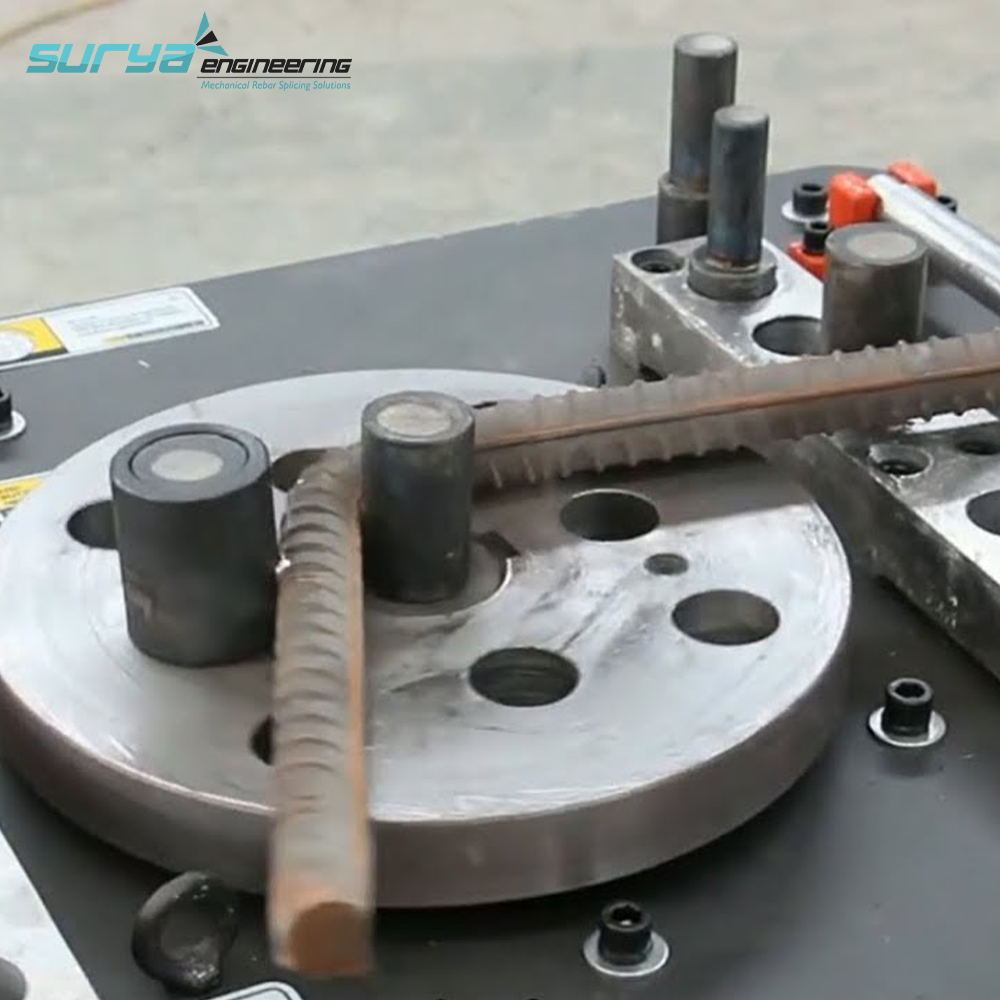

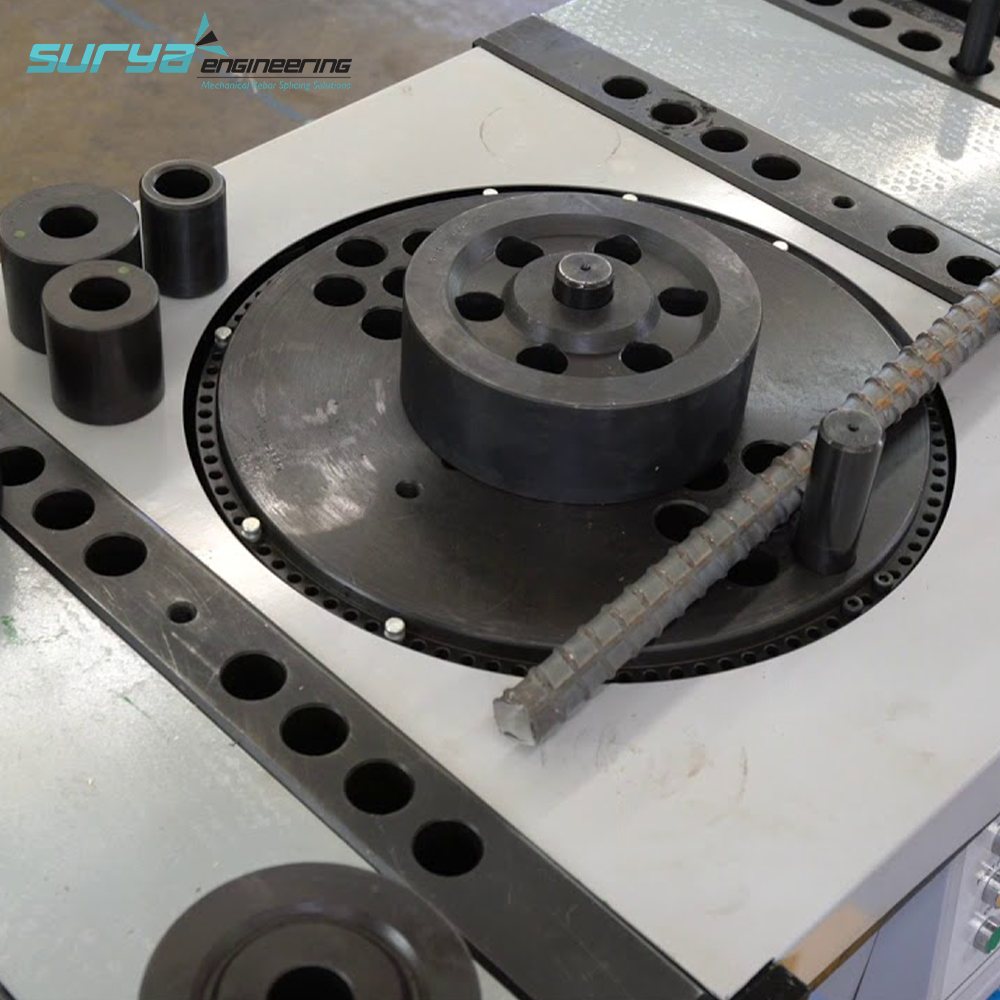

The machine generally uses a rotating bending plate along with a central pin and bending pins or rollers. The reinforcement bar is placed on the plate and positioned according to the required bend. When the plate rotates, controlled force is applied to the bar and it bends around the selected pin.

In simple words, a bar bending machine does the heavy bending work that would otherwise require considerable manual effort.

The final shape and dimensions should be based on the approved structural drawing or Bar Bending Schedule (BBS).

Why is a Bar Bending Machine Used?

The main reason is productivity.

Construction projects can require a large quantity of reinforcement bars with repeated bends. Manually bending every bar takes more time and can make it difficult to maintain the same dimensions throughout a batch.

A bar bending machine helps make the process more controlled.

It is commonly used for:

Bending TMT bars
Making reinforcement hooks
Preparing beam reinforcement
Preparing column reinforcement
Making stirrups and links
Bending foundation bars
Preparing slab reinforcement
Producing L and U bends
Fabricating bars according to BBS
Repetitive reinforcement bending

The machine is especially useful when the same bend has to be produced many times.

How Does a Bar Bending Machine Work?

The working principle is quite simple.

The reinforcement bar is placed on the machine's bending table. A central pin holds the bar while another pin or roller applies force as the bending plate rotates.

The bar bends around the selected pin.

The operator sets the required position according to the required bend. After reaching the desired angle, the machine is stopped and the bar is removed.

The basic process is:

TMT Bar Positioning Pin Setup Bending Dimension Check Finished Bar

Classification of Bar Bending Machines

Bar bending machines can be classified in several ways depending on their operation and capacity.

1. Manual Bar Bending Machine

Manual machines require more operator involvement and can be suitable for smaller jobs or applications where bending volume is limited.

2. Electric Bar Bending Machine

Electric machines use an electric motor and mechanical drive to rotate the bending plate. They are widely used for construction and reinforcement work.

3. Semi-Automatic Bar Bending Machine

These machines combine operator control with powered bending and can be useful for regular reinforcement fabrication.

4. Automatic Bar Bending Machine

Automatic machines provide more controlled operation and are useful when many repeated bends are required.

5. Heavy-Duty Bar Bending Machine

These machines are designed for applications involving larger reinforcement diameters and demanding construction work.

Surya Engineering's published product range includes manual, automatic and semi-automatic configurations, depending on the model.

What Shapes Can a Bar Bending Machine Make?

The actual shapes depend on the machine configuration and structural requirements.

Common reinforcement shapes include:

90-degree bends
135-degree bends
L-shaped bars
U-shaped bars
Hooks
Stirrups
Beam bars
Column ties
Foundation bars
Hairpin bars
Special bent reinforcement

The operator should follow the dimensions specified in the BBS instead of relying only on the machine's angle setting.

Applications of Bar Bending Machine

Bar bending machines are used wherever reinforced concrete construction requires shaped reinforcement.

Building Construction
Infrastructure Projects
Industrial Construction
Precast Concrete
Reinforcement Fabrication Yards

Bar Bending Machine for TMT Bars

TMT bars are commonly used for reinforced concrete construction, so the bending machine must be selected according to the bar sizes used on the project.

Surya Engineering currently lists machines covering 632 mm and 640 mm rebar ranges, depending on the model. Its published 32 mm machine specification includes a 360 mm plate diameter, 3.7 kW motor and 415 V supply, while the listed 40 mm machine uses a 4 kW motor and 415 V supply.

These specifications are useful when comparing machines, but the customer should always select the model based on the actual working bar diameter rather than only looking at the maximum capacity.

How to Choose the Right Bar Bending Machine?

Choosing the right machine is not only about buying the machine with the largest capacity.

Before purchasing, consider:

Bar Diameter

Check the smallest and largest reinforcement sizes that will be regularly bent.

Production Quantity

A machine for occasional site work may have different requirements from one used continuously in a reinforcement fabrication yard.

Required Shapes

Check the types of bends and reinforcement shapes required by your BBS.

Motor and Electrical Supply

Confirm the motor power and available electrical supply at the installation location.

Bending Speed

A suitable bending speed can make a difference when large quantities of bars need to be processed.

Machine Weight and Space

Make sure the foundation and working area can accommodate the machine and the length of the bars being handled.

Spare Parts and Service

Pins, rollers and other components should be available when required. Good after-sales support can be important for a machine that is used regularly.

IS Standards Related to Bar Bending

There is an important distinction between the bar bending machine and the reinforcement bar/bending practice.

There is not one general IS standard that should be described as an "IS certification standard for the bar bending machine."

IS 2502 Bending and Fixing of Reinforcement Bars

Advantages of a Bar Bending Machine

Faster Bending
Consistent Results
Less Physical Effort
Better Productivity
Useful for BBS-Based Work
Different Capacity Options
Suitable for Site and Fabrication Work

Safety While Using a Bar Bending Machine

Bar bending involves considerable mechanical force, so safe operation is important.

Operators should:

Use appropriate PPE.
Keep hands away from the rotating plate.
Keep clear of the bar's movement path.
Check pins and rollers before operation.
Never exceed the machine's rated capacity.
Stop the machine before changing pins or tooling.
Keep loose clothing away from moving components.
Maintain a clear working area.
Ensure electrical connections and earthing are safe.
Allow only trained operators to operate the machine.

Long reinforcement bars can move during bending, so adequate space around the machine is particularly important.

Frequently Asked Questions

What is a Bar Bending Machine?
A Bar Bending Machine is used to bend TMT and reinforcement bars into the shapes and dimensions required for RCC construction.

Why is a bar bending machine used?
It makes reinforcement bending faster, reduces manual effort and helps produce repeated bends more consistently.

What is the difference between a Bar Bending Machine and a Rebar Bending Machine?
In construction terminology, both terms generally refer to machines used for bending reinforcement bars. "Rebar bending machine" and "TMT bar bending machine" are commonly used for the same type of equipment.

What sizes of rebar can Surya Engineering machines bend?
Surya Engineering publishes models covering 632 mm and 640 mm, depending on the model.

What is IS 2502?
IS 2502:1963 is the Indian Standard Code of Practice for Bending and Fixing of Bars for Concrete Reinforcement. It covers bending and fixing procedures and bend dimensions.

What is IS 1786?
IS 1786:2008 specifies requirements for high-strength deformed steel bars and wires used for concrete reinforcement.

Is IS 2502 a certification standard for a bar bending machine?
No. IS 2502 covers reinforcement bar bending and fixing practice. It should not be presented as a machine certification standard.

What should I check before buying a bar bending machine?
Check the required bar diameter, bending shapes, production volume, motor power, electrical supply, bending speed, machine dimensions and availability of spare parts and service.

Where is a bar bending machine used?
It is used at construction sites, reinforcement fabrication yards, precast plants, infrastructure projects, bridges, metro projects, industrial buildings and other RCC construction sites.

Who manufactures Bar Bending Machines in Mumbai?
Surya Engineering is a Mumbai-based manufacturer and supplier of Bar Bending Machines, Rebar Bending Machines and TMT Bar Bending Machines.
