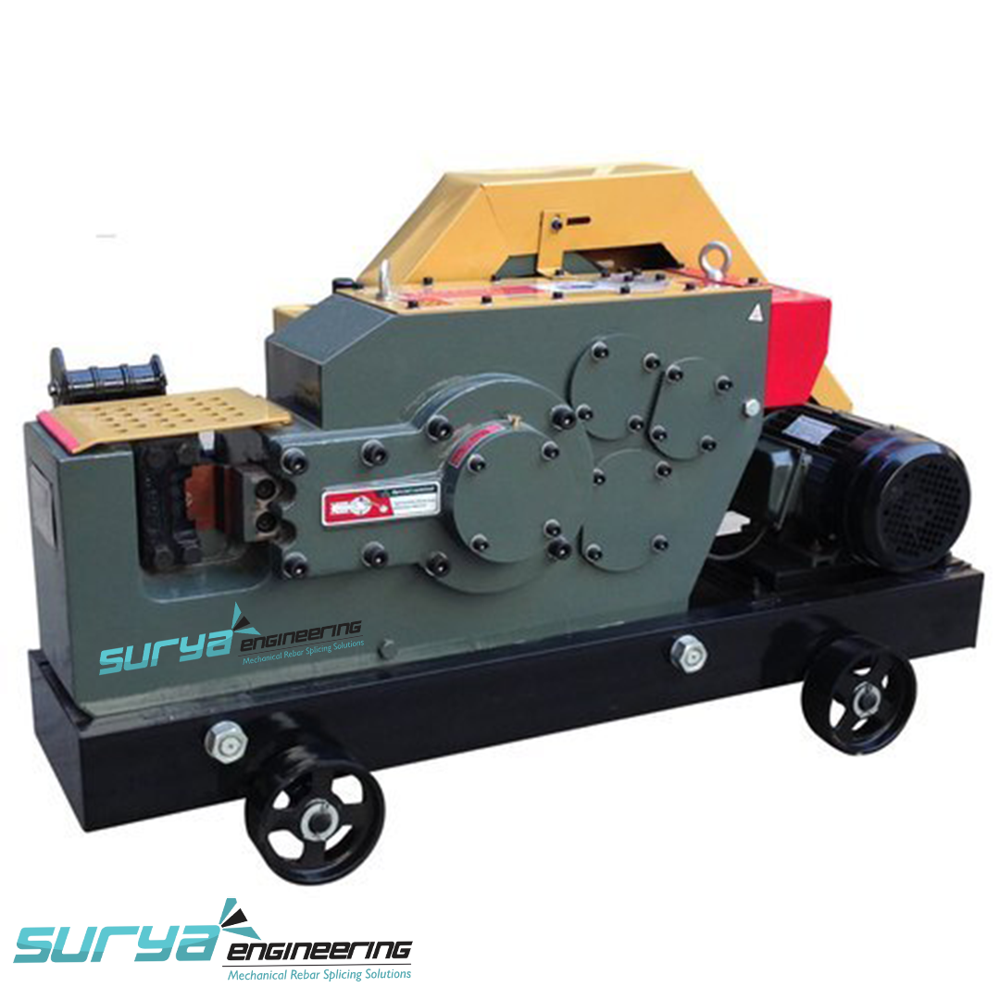

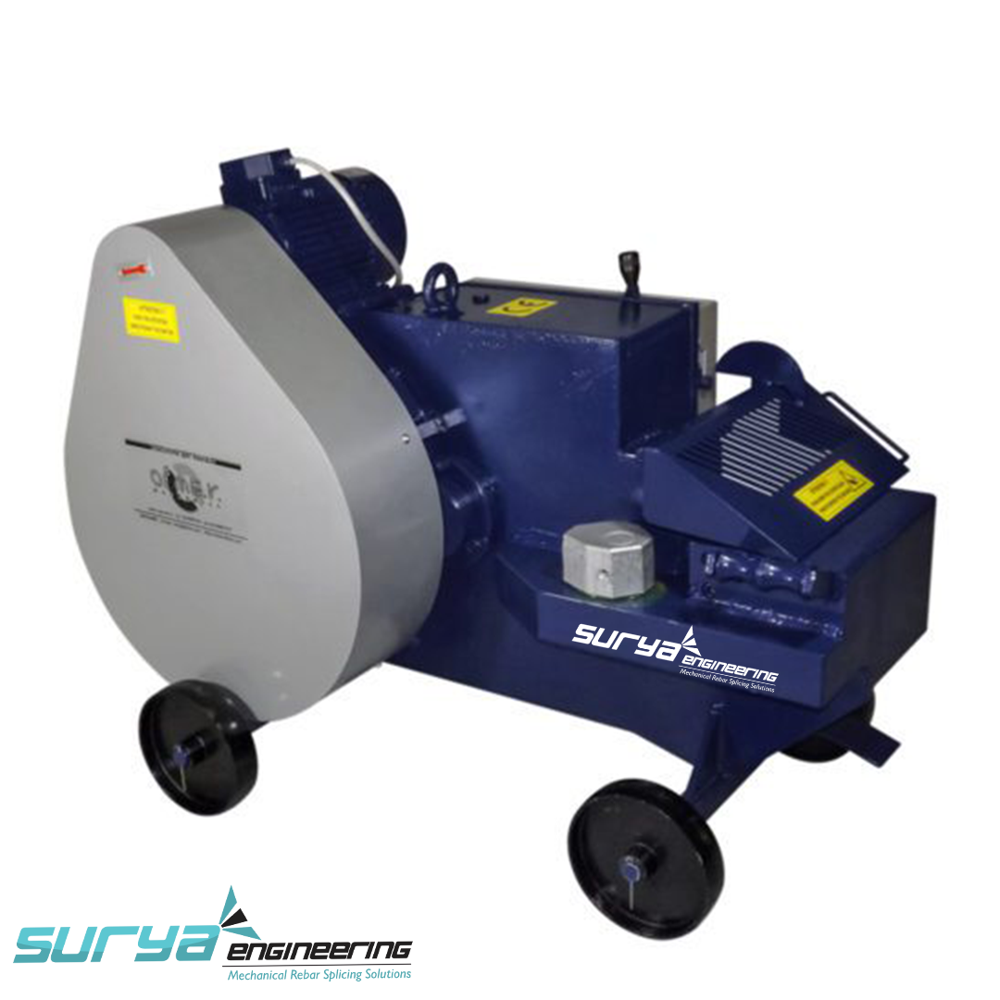

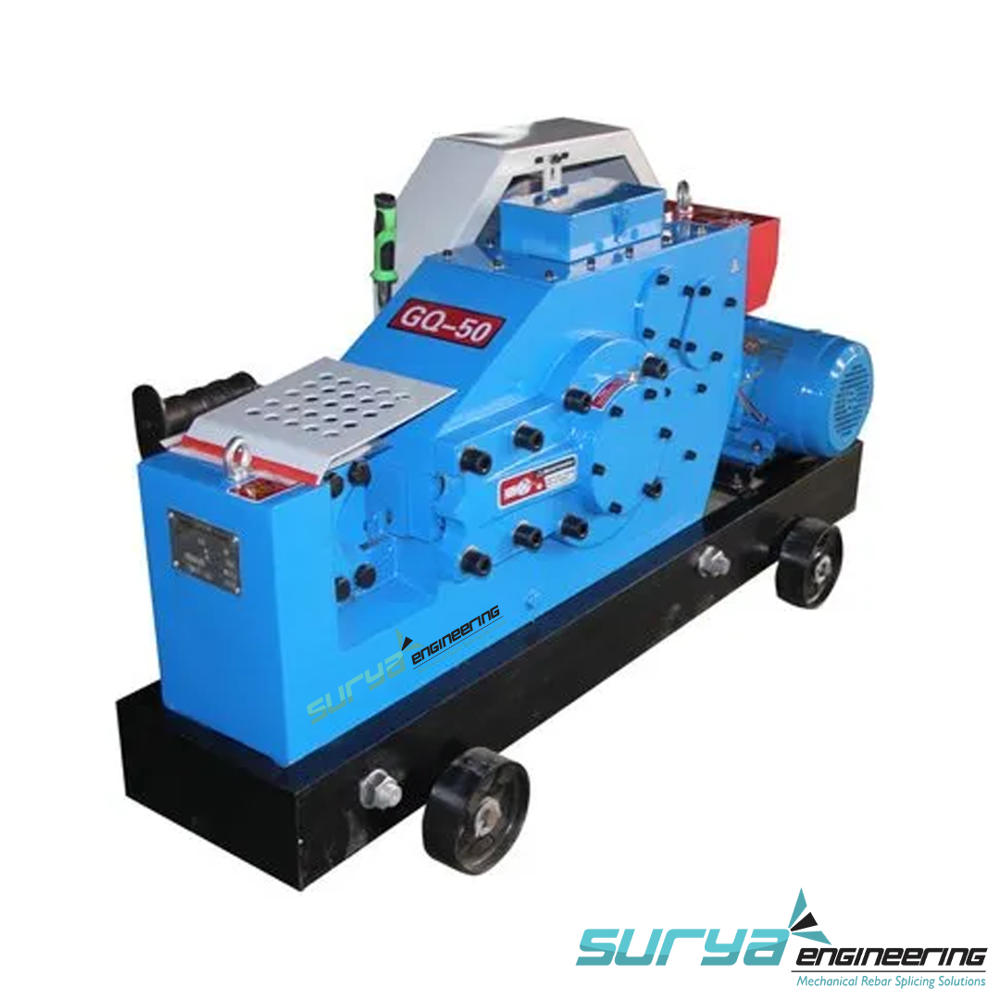

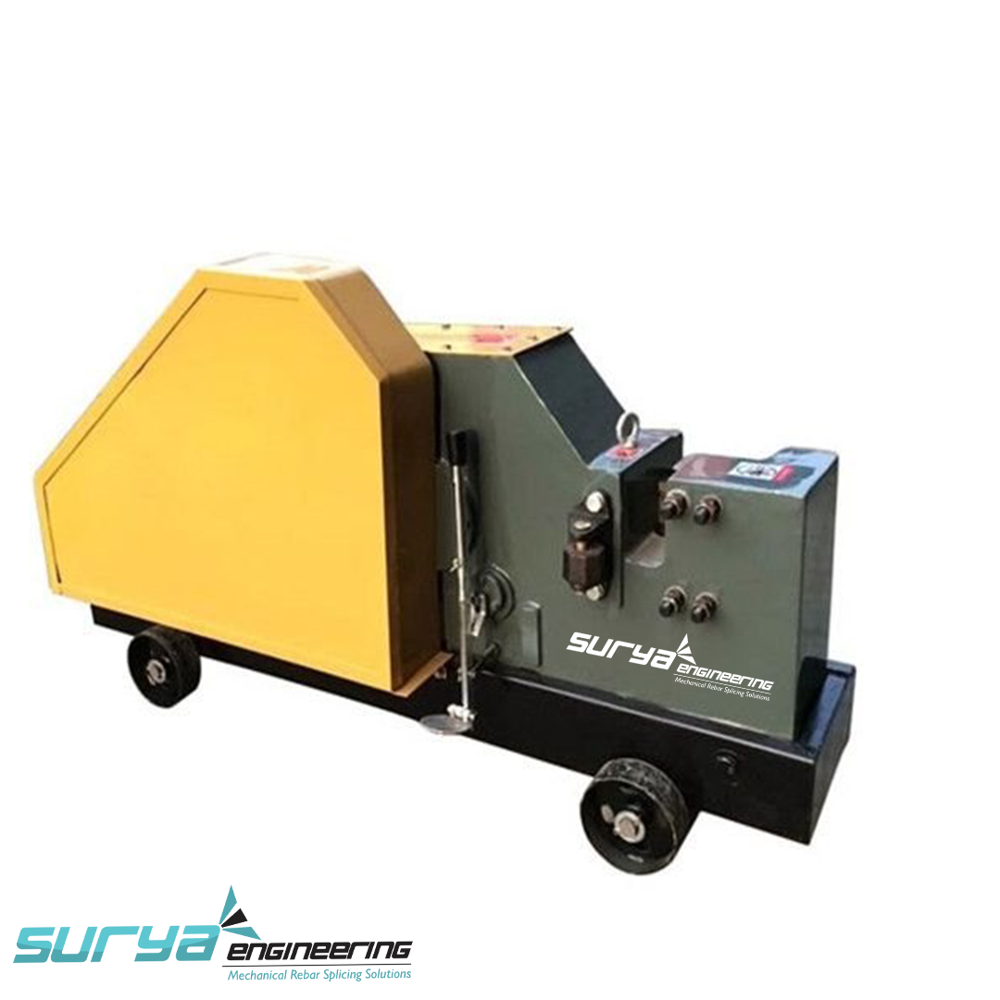

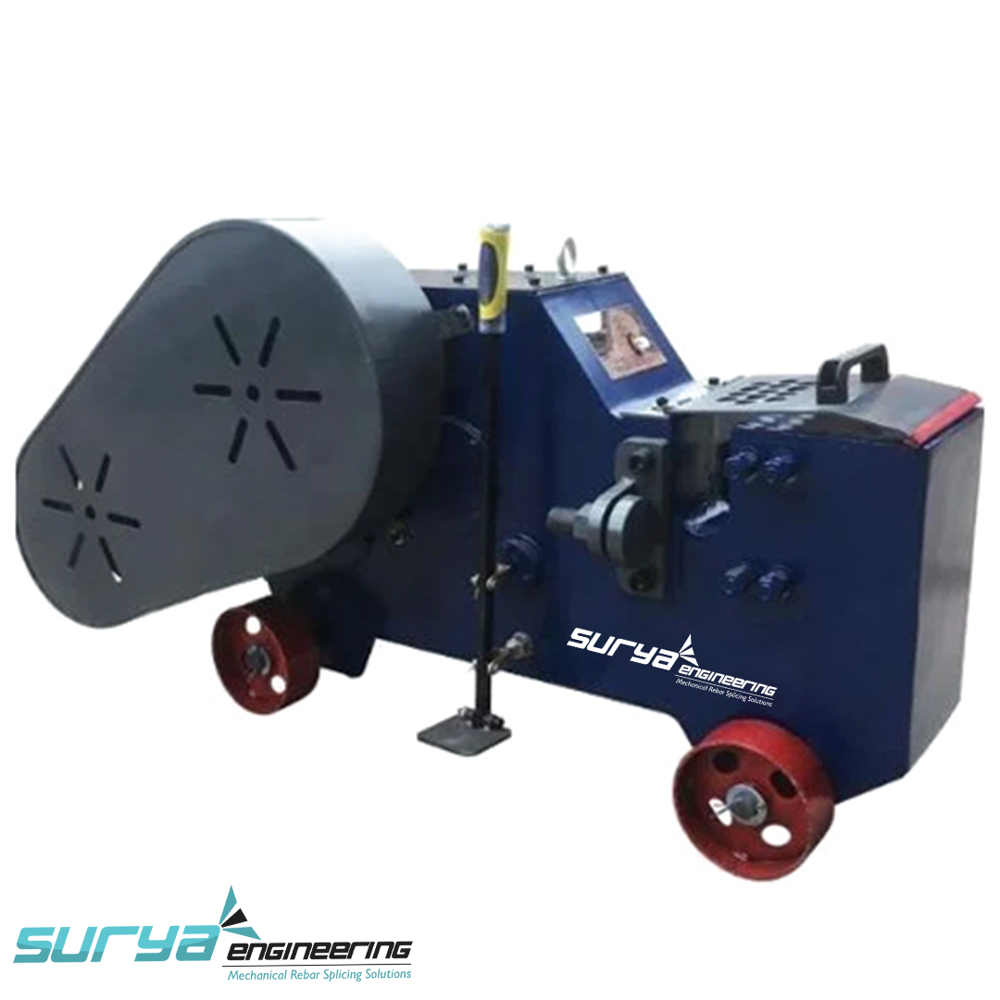

TMT Bar Cutting Machine

TMT Bar Cutting Machine Specification

Product Type
constraction

General Use
constraction

Material
Steel

Type
Hydraulic Cutting Machine, Gas Cutting Machine, Metal Cutting Machine, Automatic Cutting Machine

Capacity
12 Kg

Weight (kg)
200 Kilograms (kg)

Computerized
No

Automatic
No

Cutting Speed
2 Km/hr

Cutting Thickness
2.0 Millimeter (mm)

Cutting Function
Semi Automatic

BladeSize
4.5

Cooling System
Water Chiller

Drive Type
Electric

Voltage
45 Watt (w)

Dimension (L*W*H)
600*500*1080 Millimeter (mm)

Feature
Low Noise, Environmental Friendly, Good Quality, Automatic Feeding, High Torque, High Efficiency

Color
Orange

Warranty
12

Motor
brass less

Software Detail
surya engineering

Cutting Method
blade

Control System
surya

Cutting Material
steel

Cutting Area
4.5 Square Inch (in2)

TMT Bar Cutting Machine Trade Information

Minimum Order Quantity
5 Number

Delivery Time
24 Hours

About TMT Bar Cutting Machine

What is a Rebar Bar Cutting Machine?

A Rebar Bar Cutting Machine is a construction machine used to cut TMT bars, steel rods, and reinforcement bars into accurate lengths for RCC and infrastructure projects.

These machines are commonly used in:

Building construction
Bridge projects
Highway work
Metro rail projects
Industrial plants

The machine uses a rotating blade or hydraulic mechanism to cut reinforcement bars quickly and accurately.

Why Rebar Cutting Machines are Used?

1. Accurate Cutting

Provides precise cutting length for reinforcement work.

2. Faster Construction

Cuts bars quickly and improves productivity.

3. Labor Reduction

Reduces manual work and manpower.

4. Better Safety

Minimizes accidents compared to manual cutting.

5. Smooth Finishing

Provides clean bar edges for threading and coupler applications.

Classification

1. Manual Bar Cutting Machine

Hand-operated
Small-scale projects

2. Electric Bar Cutting Machine

Motor-driven
Most common in construction sites

3. Hydraulic Bar Cutting Machine

Heavy-duty applications
High cutting force

4. Portable Rebar Cutter

Compact and movable

5. CNC Automatic Bar Cutting Machine

Computer-controlled
High production efficiency

Applications of Rebar Bar Cutting Machines

Construction IndustryUsed for cutting reinforcement bars in RCC structures

Bridges and FlyoversAccurate bar preparation for heavy structures.

Metro Rail ProjectsUsed in high-speed infrastructure work.

Industrial PlantsRebar fabrication for factories.

Precast Concrete IndustryMass production of reinforcement cages.

Installation Process

Step 1: Surface Preparation

Install machine on a stable platform.

Step 2: Electrical Connection

Connect power supply safely.

Step 3: Blade Alignment

Check cutting blade position.

Step 4: Trial Operation

Run machine without load.

Step 5: Safety Inspection

Check guards and emergency switches.

IS 16172:2023 Standard

About IS 16172

IS 16172:2023 is the Indian Standard related to:

Reinforcement Couplers for Mechanical Splices of Steel Bars in Concrete.

The standard defines:

Mechanical splice requirements
Tensile performance
Slip resistance
Fatigue performance
Testing methods
Dimensional requirements

Testing as per IS 16172

1. Tensile Strength Test

Checks whether coupler joints achieve required tensile load.

2. Slip Test

Measures displacement between connected bars.

3. Fatigue Test

Checks repeated loading resistance.

4. Cyclic Load Test

Important for seismic applications.

5. Hardness Test

Checks threading die material hardness.

6. Dimensional Accuracy Test

Verifies thread dimensions and tolerances.

7. Torque Test

Ensures proper tightening performance.

8. Bend and Re-Bend Test

Evaluates bar flexibility after threading.

Technical Specifications

Component	Specification
Machine Type	Electric / Hydraulic
Bar Diameter	6mm40mm
Motor Power	3HP10HP
Thread Type	Parallel / Taper
Die Material	HSS / Carbide
Standard	IS 16172:2023
Application	Mechanical Coupler System
