PVC Rungs Step

What Are PVC Rungs Step? A Brief Overview

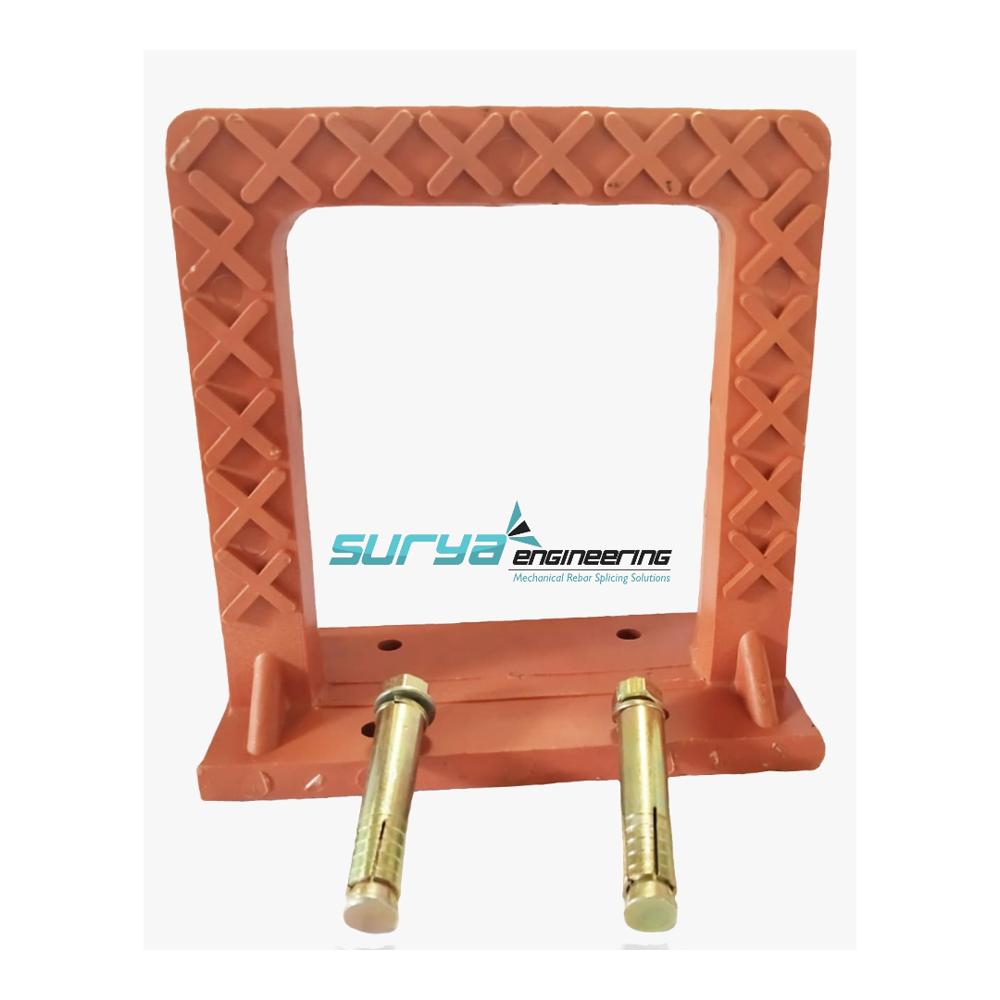

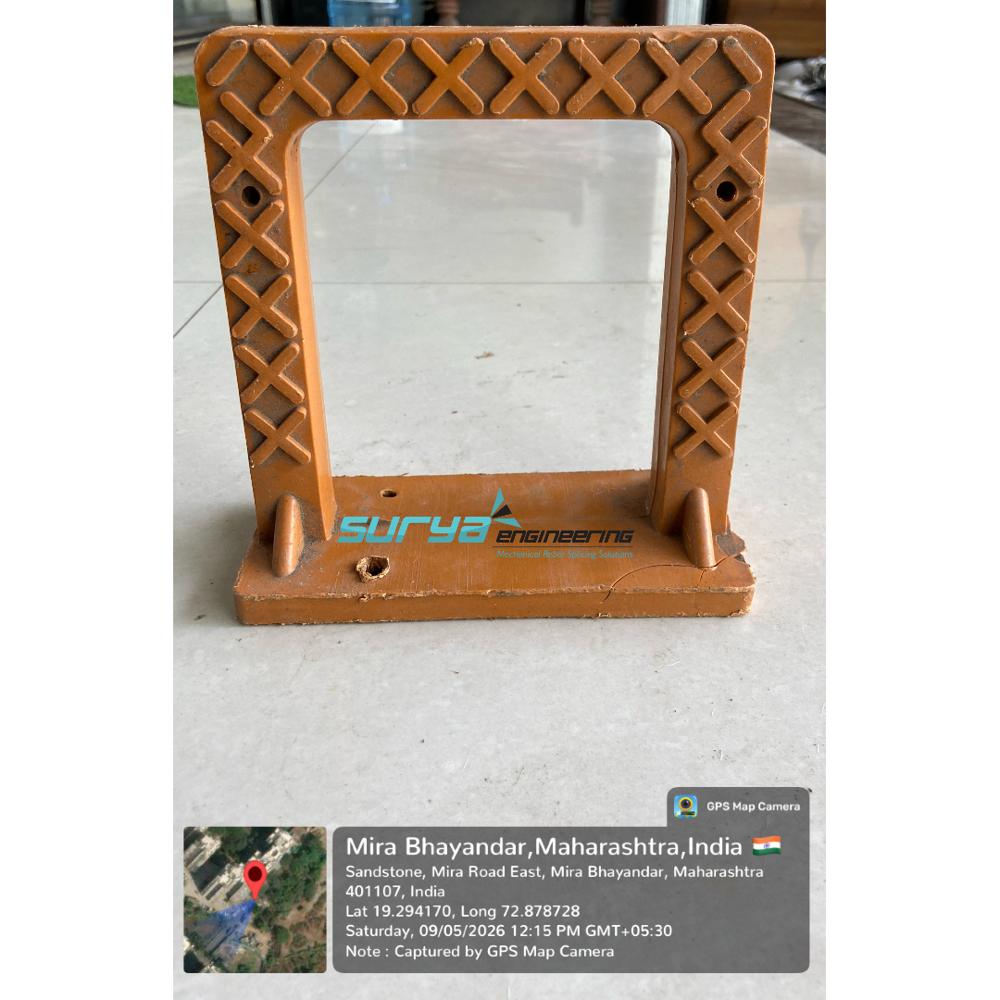

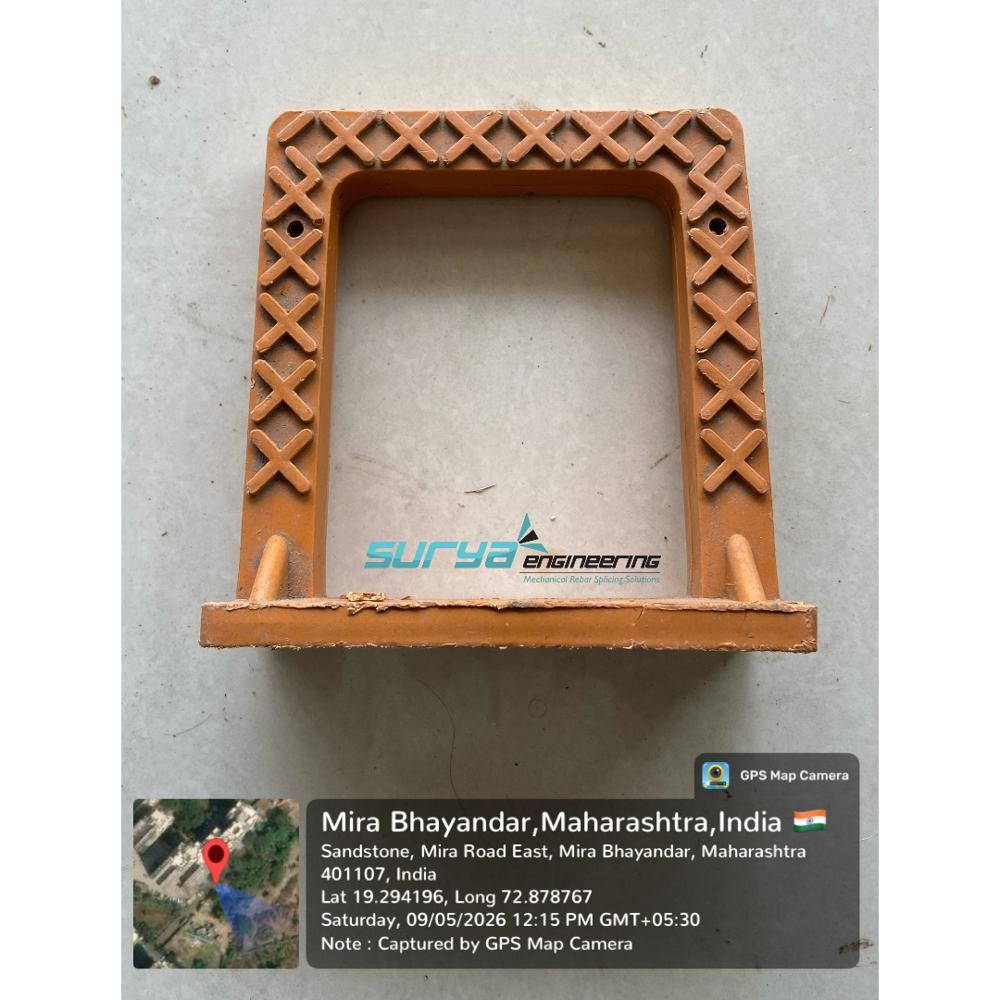

A PVC Rungs Step (also known as a PVC footstep or encapsulated rung) is a high-strength, safety ladder step. Its core is a steel rod (often a 8mm, 10mm, or 12mm TMT bar) that is fully encapsulated with a thick layer of durable PVC (polyvinyl chloride) or polypropylene. This combination creates a step that boasts both incredible strength and superior resistance to the harsh conditions found in utility settings.

Why Are PVC Rungs Used? The Critical Need for a Modern Solution

Traditionally, mild steel (MS) or cast iron steps were the standard. However, they have a major weakness: rust and corrosion. In the perpetually damp, chemical-rich environment of sewers, manholes, and water tanks, metal steps can degrade quickly, becoming weak, unsightly, and dangerously slippery.

PVC rungs step in as the ideal replacement because they are:

• Highly Corrosion-Resistant: The PVC coating acts as an impenetrable shield, ensuring the step remains strong and intact for decades, even in the most corrosive environments like sanitary sewers.

• Inherently Safe: The surface is designed with a textured, anti-slip pattern to provide a secure grip, significantly reducing the risk of slips and falls.

• Long-Lasting and Low-Maintenance: Unlike iron steps that require frequent painting or replacement, PVC rungs are virtually maintenance-free.

Classification: Understanding the Different Types of PVC Rungs

PVC rungs are not one-size-fits-all. They are classified based on several key parameters:

• By Core Material: The internal reinforcement is primarily a Mild Steel (MS) or TMT bar. The diameter of this bar (e.g., 8mm, 10mm, or 12mm) is a primary factor in determining the step's load-bearing capacity. The steel used typically conforms to IS 1786, ensuring its quality and strength.

• By Coating Material:

  • PVC (Polyvinyl Chloride): Offers excellent overall durability and resistance.

  • Polypropylene (PP): A copolymer plastic, often considered a superior alternative, known for its high-density, toughness, and very low water absorption. It is often specified for its enhanced properties.

• By Size (Classification by Dimensions): Sizes are determined by the footprint (length x breadth) and the thickness of the rung. Common sizes include:

  • 263mm x 164mm (25x23mm thick) : A widely used, standard size for many applications.

  • 375mm x 165mm (25x25mm thick) : A larger, heavy-duty size often used where a wider stepping area is desired.

  • 270mm x 170mm (25mm thick) : Another common standard, often used in general construction.

  • 370mm x 170mm x 25mm: A popular size designed for a comfortable and secure foothold, especially in concrete walls.

• By Design (Shape):

  • Straight Rungs: Feature a simple, straight bar.

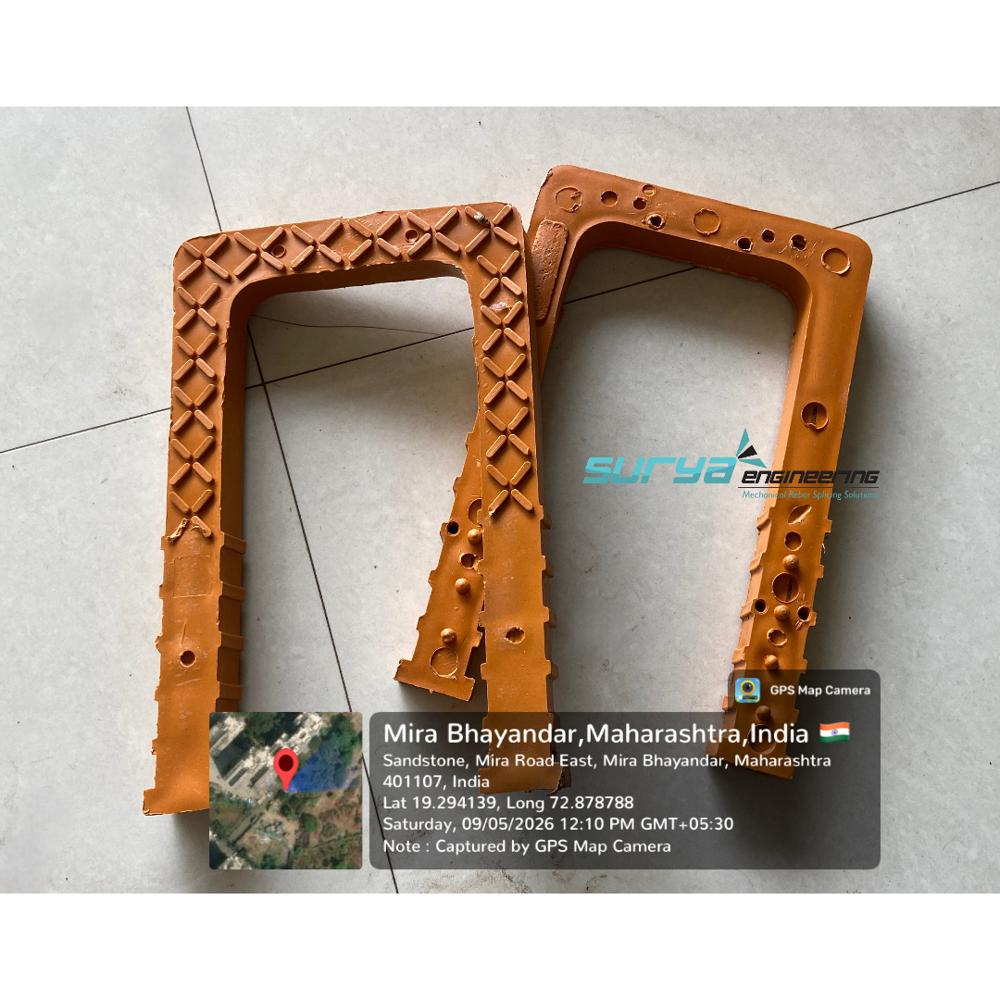

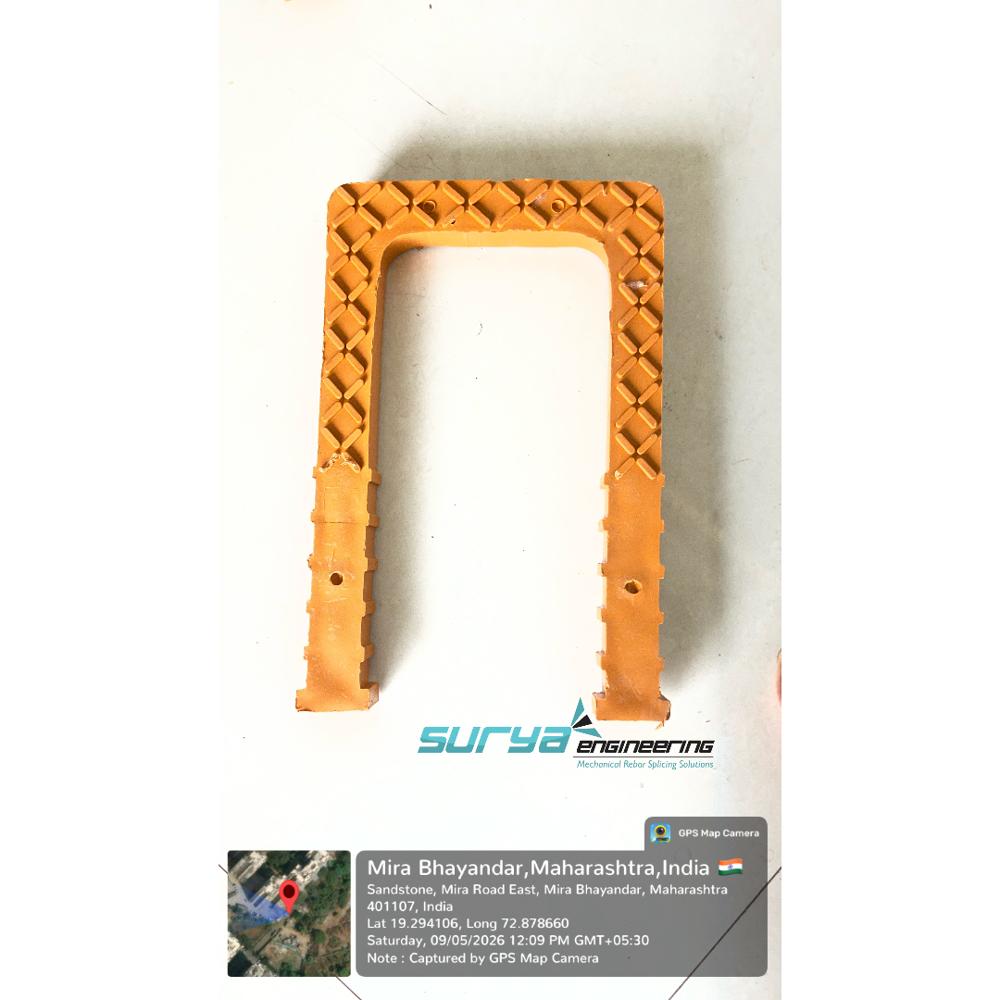

  • U-Shaped Steps: Offer an ergonomic grip and are designed to be fully embedded into the concrete wall.

Key Applications Across Infrastructure

The versatility and durability of PVC rungs make them indispensable in a wide range of sectors. Civil contractors and municipal corporations rely on them for:

• Municipal Infrastructure: Providing safe access for sanitation workers in sewerage manholes, inspection chambers, and stormwater drains.

• Water Management: Ensuring secure entry and exit points for cleaning and maintenance in overhead water tanks, underground sumps, reservoirs, and water treatment plants.

• Industrial Settings: Used in chemical plants, power stations, and factories where floors and platforms are exposed to corrosive substances or heavy washdowns.

• Special Environments: Its non-conductive properties make it an ideal choice for areas with electrical hazards. Its chemical and corrosion resistance also makes it suitable for food factories and pharmaceutical industries, where it is often manufactured from virgin polypropylene material.

• Public & Commercial Properties: In public swimming pools, parks, and playground equipment, offering a durable and safer alternative to metal components.

Seamless Installation: A Simple Yet Reliable Process

Installing PVC rungs is a straightforward process, typically carried out during the concrete pouring phase. For retrofit or post-cast installations, the following method using mechanical anchoring is common:

1. Marking: Use a bubble level and marker to precisely mark the positions for each step, ensuring perfect horizontal alignment.

2. Drilling: Drill holes of a specified depth (e.g., 850mm) using a 25mm diameter concrete drill bit.

3. Setting: Clean the holes. If they are oversized, fill them with mortar or a chemical plug to ensure a tight fit.

4. Fixing: Insert the ends of the rung into the holes and strike them firmly with a nylon hammer until they are fully seated. The conical ends of the anchor act like harpoons, locking the step securely into place.

5. Final Check: Once installed correctly, the rungs can withstand tensile forces greater than 800 kg, providing immense reliability.

IS Testing Standards: The Mark of Quality and Trust

In India, quality and safety are governed by stringent standards. PVC Rungs are manufactured as per key Indian Standards (IS) to ensure they meet the highest levels of performance and safety.

• IS 1786: This is the standard for the high-strength deformed steel bars (TMT bars) used as the core reinforcement.

• IS 10910: This standard covers the requirements for polypropylene (PP) material used in the encapsulation of manhole steps.

• Testing: Quality rungs are designed to withstand rigorous tests including bend tests (to ensure the steel's ductility) and chemical resistance tests to guarantee the PVC/PP coating's durability in aggressive environments.

Advantages of Choosing PVC Rungs

Choosing PVC encapsulated rungs offers a host of benefits that directly impact project safety, longevity, and cost:

• Unmatched Corrosion Resistance: Eliminates the risk of rust and degradation, even in the harshest chemical and sewer environments.

• Superior Safety: The anti-slip surface provides a firm, reliable grip in wet and slippery conditions, preventing accidents.

• Electrical Insulation: PVC is a natural electrical insulator, making these steps far safer than metal in areas where electrical conductivity is a hazard.

• Low Maintenance & Cost-Effective: Once installed, they require no painting or rust removal, saving significant time and money over the structure's lifespan.

• High Strength: The encapsulated steel core provides immense structural integrity, supporting heavy loads with ease.

• UV Stabilized: Formulated to resist degradation from prolonged sunlight exposure, making them suitable for outdoor and open-top applications.

Why Surya Engineering is Your Trusted Partner for PVC Rungs in India

Surya Engineering offers PVC rungs in various sizes and specifications to meet diverse project needs, including the standard 263x164mm and the heavy-duty 375x165mm models. The steel reinforcement is typically a 12mm TMT bar, and the steps are available in highly visible Orange and Black colors, which not only enhances safety by improving visibility in low-light conditions but also helps with quick identification in the field.

Pan-India Reach: Ensuring Access Across India
Surya Engineering's strong pan-India distribution network is one of our greatest assets, ensuring timely delivery for projects across the subcontinent. We have a robust network of dealers and partners in all major cities and industrial hubs, including but not limited to:

• West: Mumbai, Pune, Kolhapur, Solapur, Surat, Vadodara, Ahmedabad, Rajkot.

• South: Bangalore, Hyderabad, Chennai, Vizag, Vijayawada, Mysore, Hubli, Mangalore.

• North: Delhi, Jaipur, Kota, Udaipur, Chandigarh.

• East & Central: Kolkata, Patna, Bhubaneswar, Rourkela, Raipur, Indore. And many more cities across India.

FAQs of PVC Rungs Step:
