About Pvc Cable Hanger

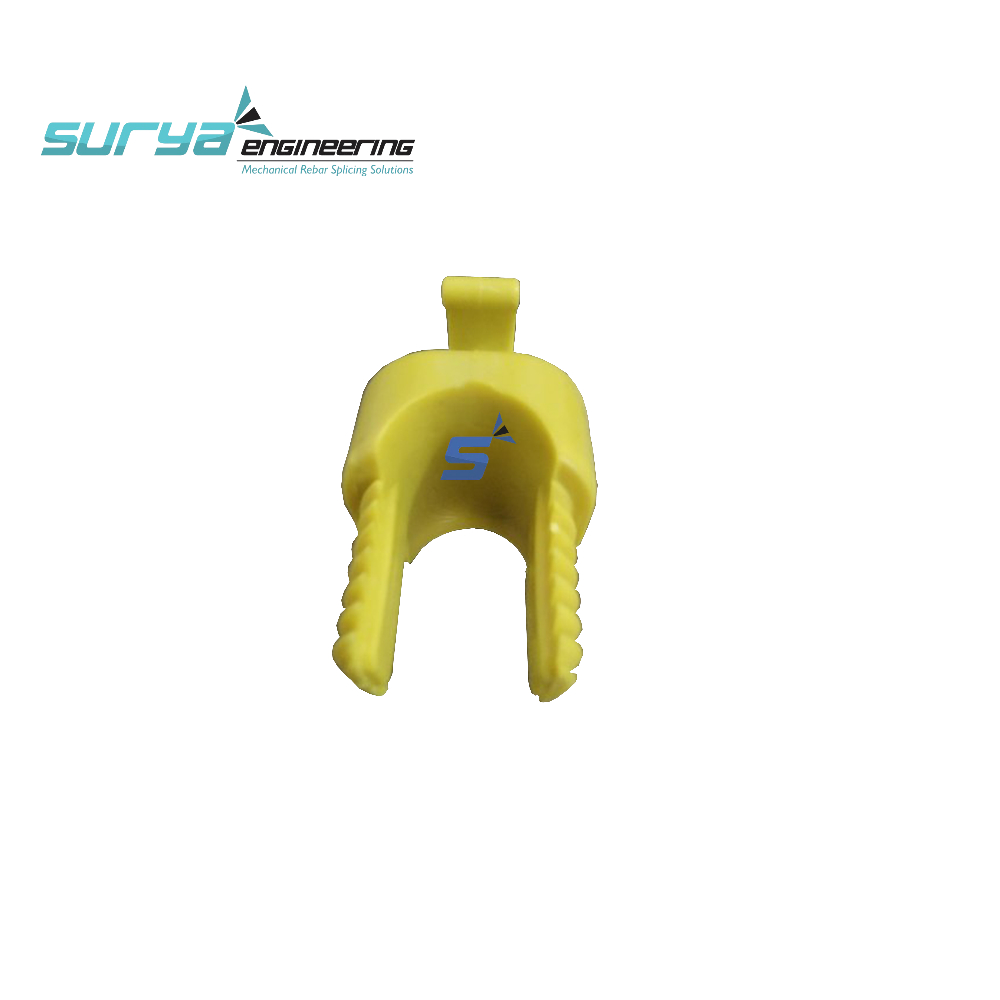

PVC Cable Hanger
This

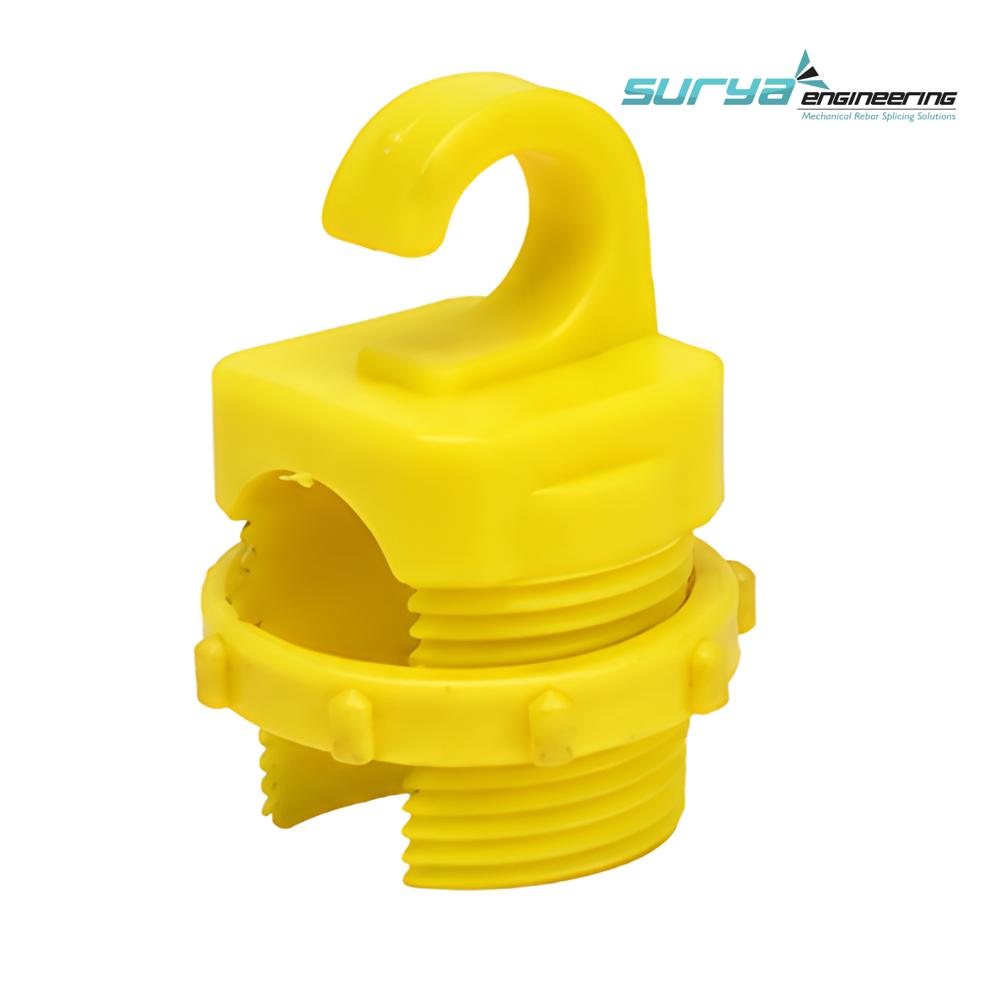

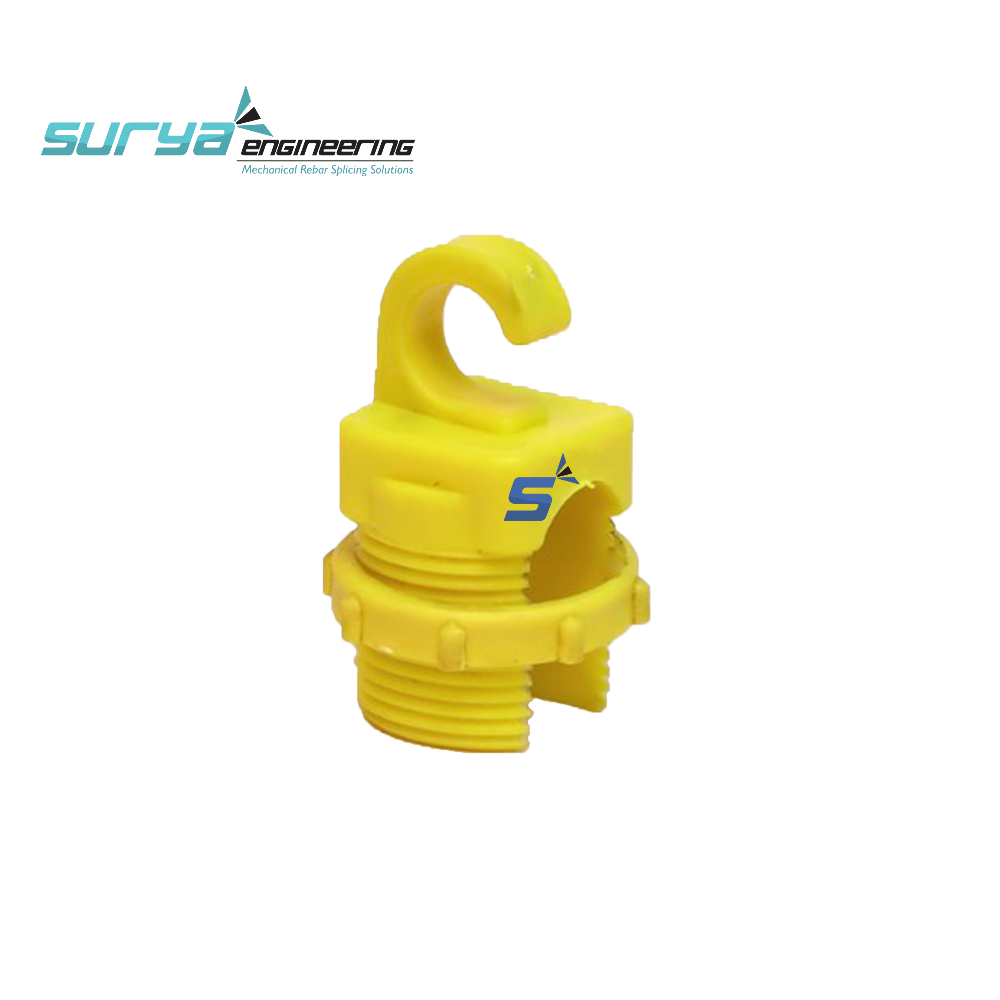

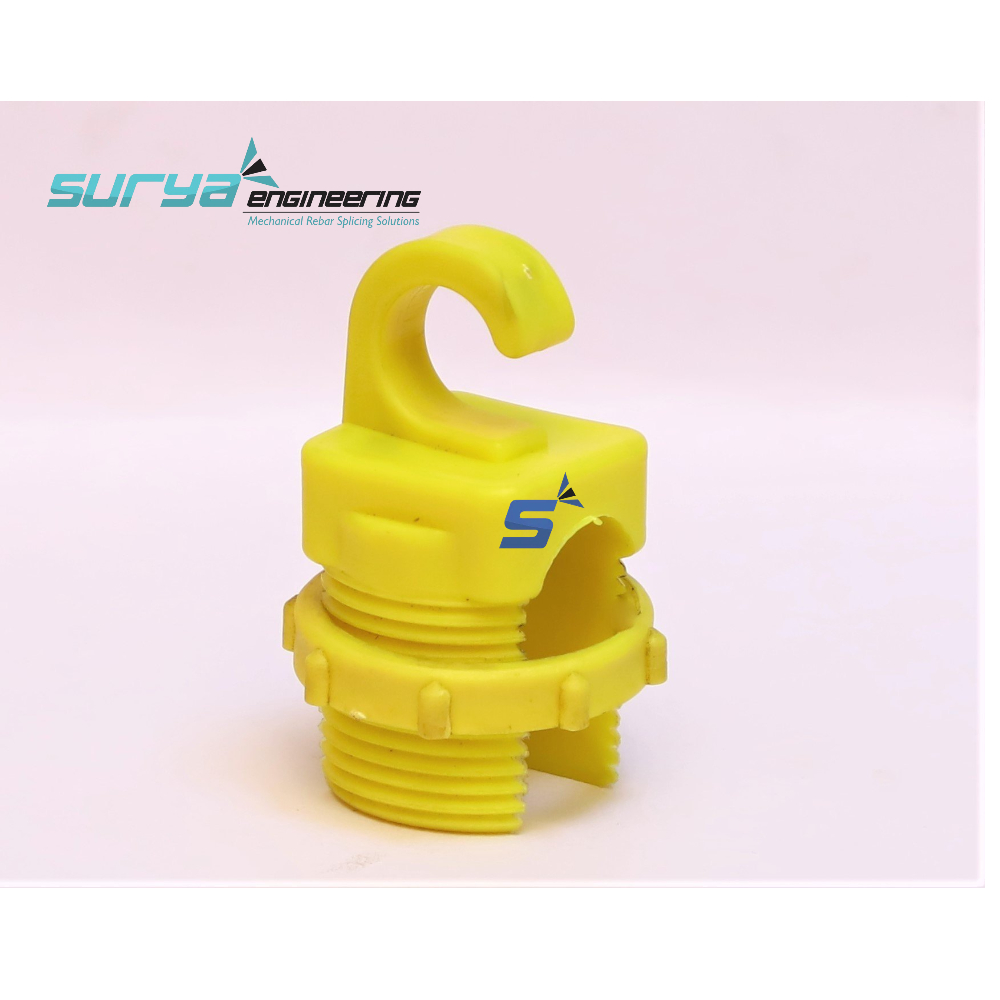

PVC Cable Hanger with Threaded Locknut is a specialized, non-conductive electrical hardware fitting engineered for suspending, securing, and managing flexible electrical cables, wires, and conduit lines. Manufactured from high-impact polymer plastic, it combines an overhead hook with a threaded side-entry clamping body and locknut ring to provide safety, strain relief, and organized cable routing.
Design & Architectural Breakdown
-

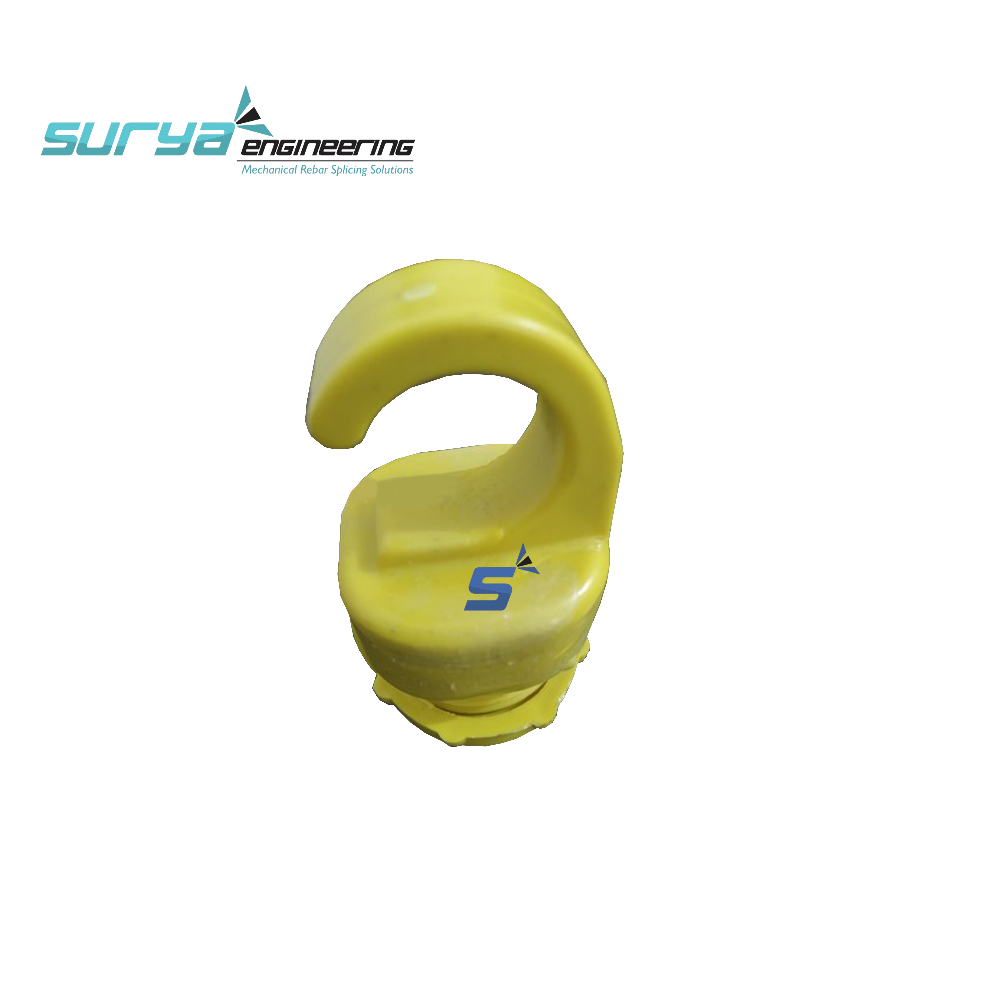

Top J/C Open Hook
-
Function: Designed to quickly hang onto catenary/messenger wires, scaffolding, cable tray rims, overhead pipes, or structural steel rods.
-
Benefit: Allows fast installation and removal without requiring permanent structural fasteners or tools.
-
Slotted / Split Threaded Core Body
-
Function: Features an outer male thread divided by a deep central vertical side-entry slot.
-
Benefit: Enables side-loading of cables, meaning long power cables or wired lines can be slipped directly into the center without disconnecting the power source or feeding the cable end through from far away.
-

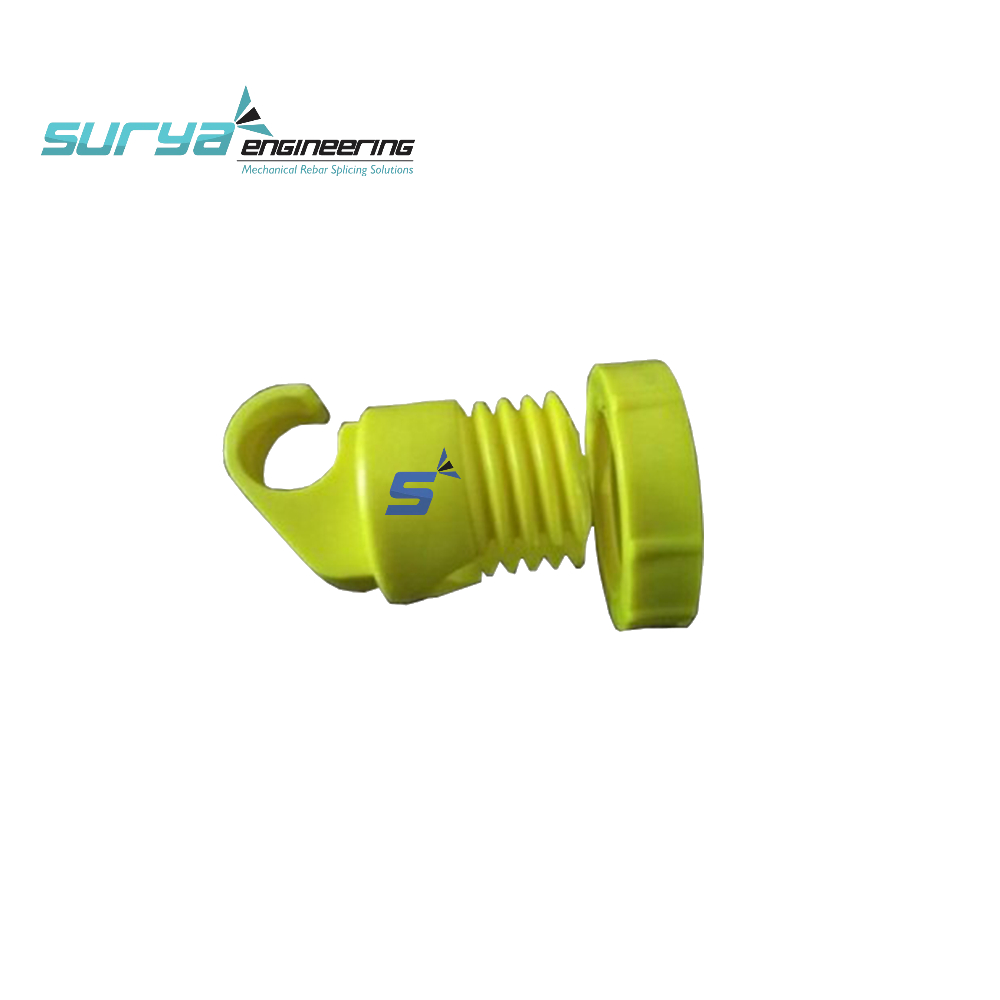

Knurled Threaded Locknut (Collar Ring)
-
Function: A heavy-duty internally threaded ring equipped with outer gripping ribs.
-
Benefit: Screws onto the threaded core body to tightly clamp around the inserted cable, securing it in place, providing strain relief, or anchoring the entire fitting through a panel hole/junction box knockout.
Technical Specifications & Useful Data
| Feature / Specification |
Standard Technical Detail |
| Primary Material |
High-Impact Polyvinyl Chloride (PVC) / ABS Plastic |
| Electrical Safety |
100% Non-Conductive (Prevents shock, ground faults, and short circuits) |
| Color |
High-Visibility Safety Yellow (for visual contrast on job sites) |
| Cable Capacity Range |
Supports wire diameters from 8 mm up to 25 mm (varying by size grade like B12, B16, B20, B25) |
| Mounting / Fixation |
Threaded panel/knockout mount with locknut or overhead wire suspension |
| Load Rating |
Approx. 6 kg to 15 kg static suspension load per hook |
| Weather & Chemical Resistance |
Corrosion-proof, rust-proof, resistant to oils, moisture, and UV exposure |
| Operating Temperature |
-10C to +60C |
Applications
PVC Cable Hanger can be used for:
- Construction site cable management
- RCC and reinforcement work
- Temporary electrical cable suspension
- Building electrical installations
- Industrial maintenance areas
- Infrastructure and civil projects
- Power and utility work areas
- Cable and hose routing
- Workshops and fabrication areas
- Temporary site electrification
Size Selection Chart
Formula: Hanger Size = Cable Outer Dia + 10%
- 20mm (Your Best Seller): For 2.5 to 4 sq mm cable / 20mm flexible pipe
- 16mm: For 1.0-1.5 sq mm wire
- 25mm: For 6-10 sq mm wire
- 32mm: For 16 sq mm bundle
- 40mm: For 25 sq mm 3-core
Why PVC is Better?
Metal Clamp: Rusts, cuts cable, conducts current - dangerous
Nylon Tie Base: Weak in heat, not reusable
PVC Hanger: Rust proof + Insulated + Reusable 50+ times + Clean white look
Installation & Useful Tips
- Drill 6mm hole, put 6mm wall plug
- Put cable inside C-shape
- Tighten with 3.5x25mm screw - Don't over-tighten
Spacing: 300-500mm on straight run, 150mm near bends
Why Choose PVC Cable Hanger?
The main advantage is that it is not just a hanging hook; it is a compact cable-management and positioning accessory intended for demanding construction environments. Its combination of PVC insulation, visible colour, hook-style cable support, and threaded locking design provides installers with a convenient method of keeping temporary cables and utility lines properly routed.
For professional construction projects, this can contribute to better cable organization, improved housekeeping, easier maintenance access, and more controlled cable routing.
FAQ
1. Why PVC and not full metal clamp?
Metal rusts in 6 months, cuts cable insulation and conducts current. PVC Hanger is 100% rust-proof, insulated up to 1100V, soft edges don't damage cable, life 15+ years.
2. What is the material?
Virgin rigid PVC, Shore 75D, Density 1.38 g/cm + inner GI strip 0.8mm with 120 GSM zinc coating. UL94 V-0 flame retardant.
