Mivan Stub Pin

Mivan Stub Pin Specification

Features
Durable, Rust Resistant, Reusable

Color
black

Constitute
Standard

Pin
Other

Technique
Forged

Prop Head
Standard Head

Weight
90-200 Grams (g)

Material
Steel

Components
Other

Diameter
16 Millimeter (mm)

Width
standard Millimeter (mm)

Length
50 Millimeter (mm)

Thickness
2 - 5 Millimeter (mm)

Surface Treatment
Pre-Galvanized

Application
Other

Size
16*50

Mivan Stub Pin Trade Information

Minimum Order Quantity
100 Number

Delivery Time
24 Hours

About Mivan Stub Pin

What is a Mivan Stub Pin?

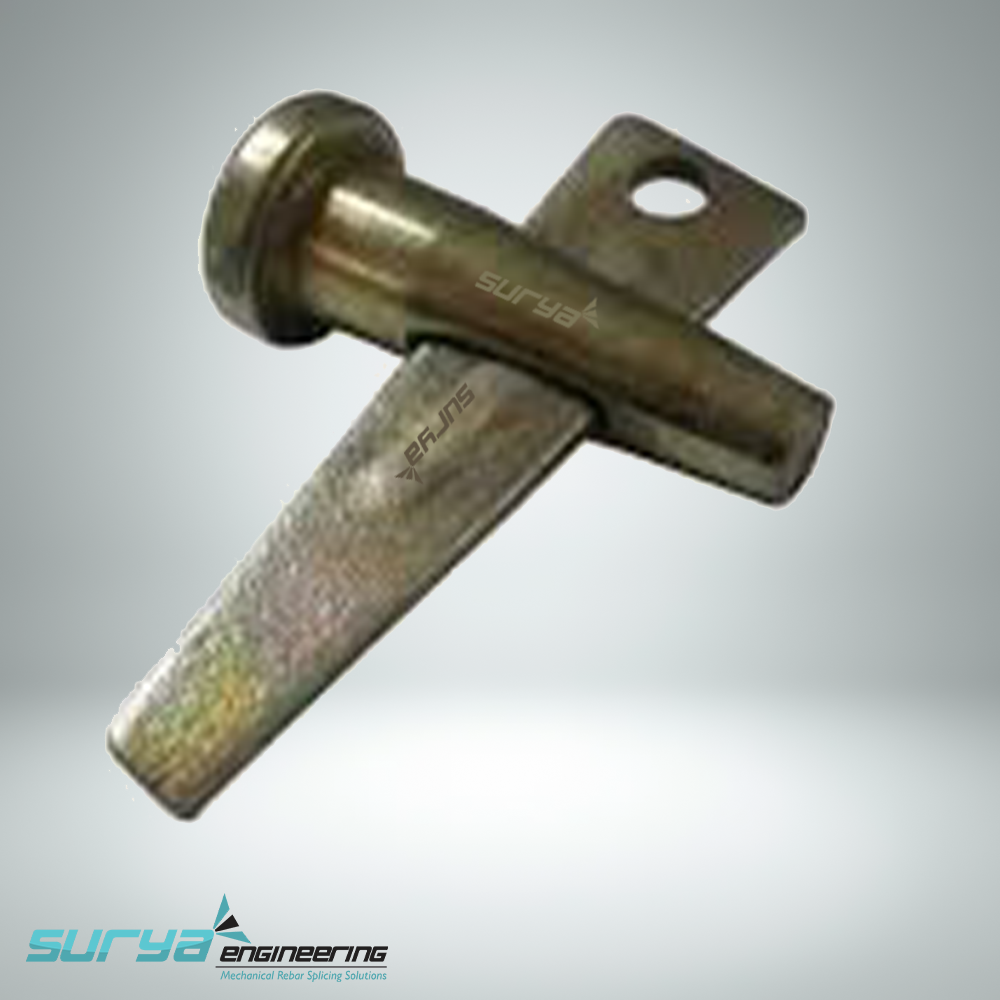

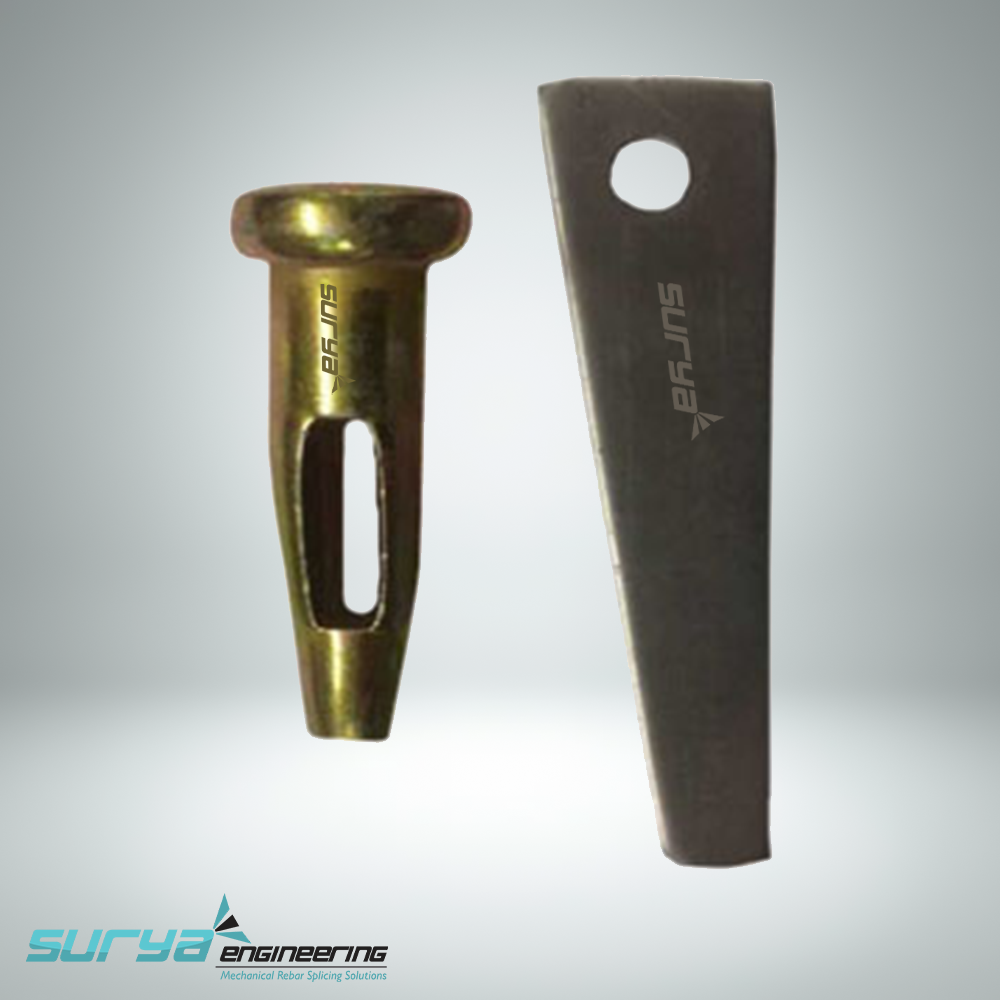

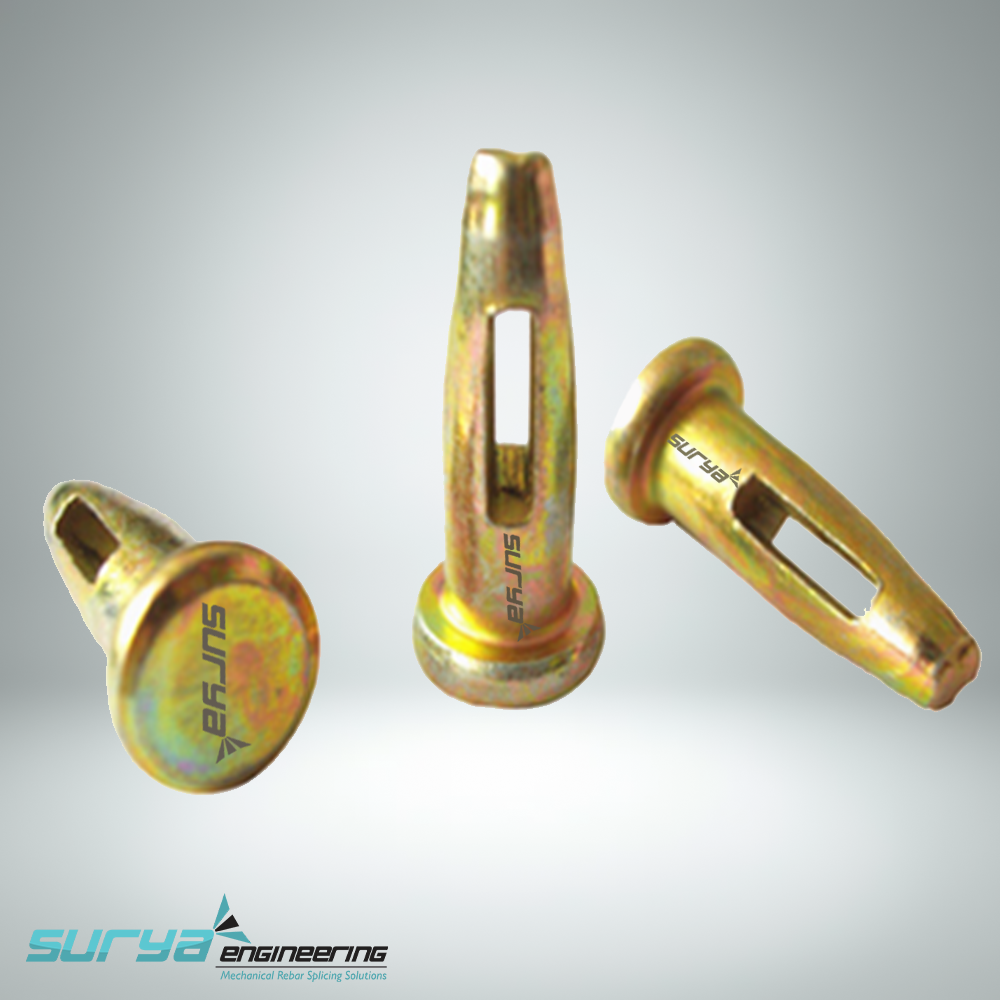

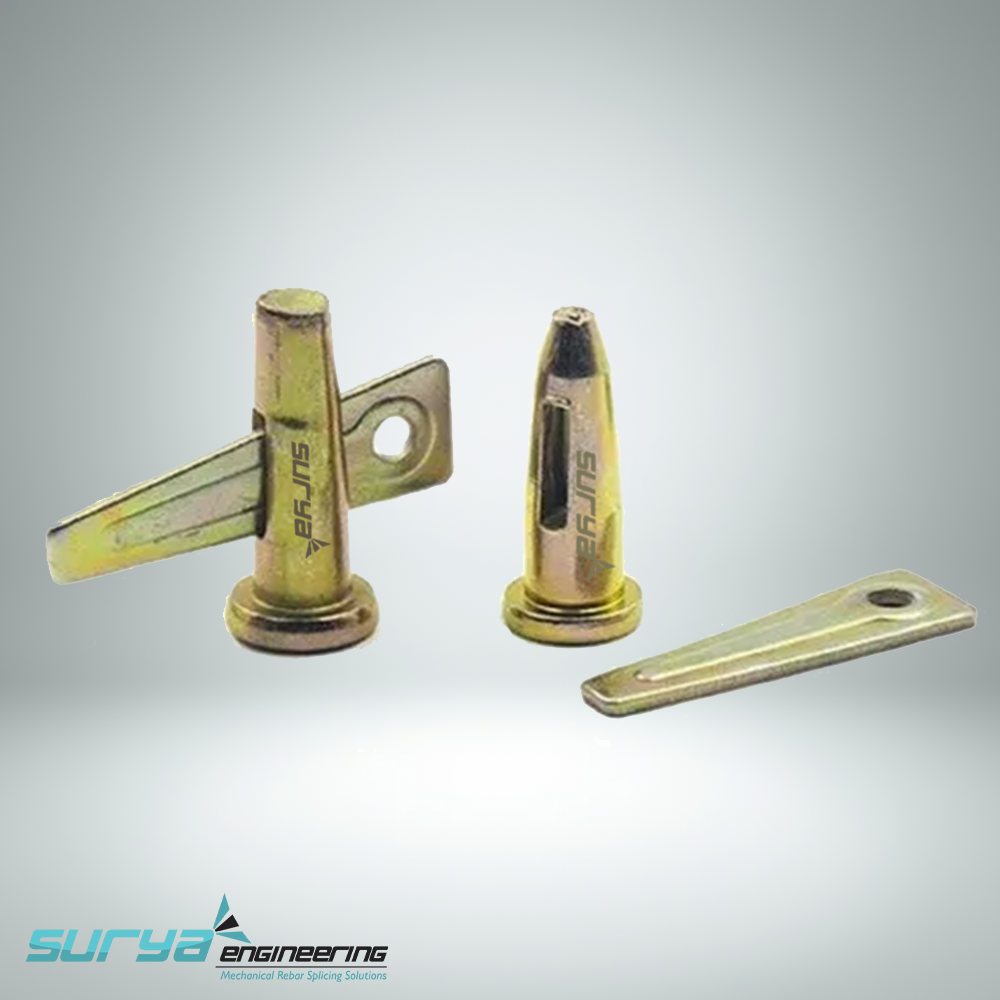

A Mivan Stub Pin (also known as a locking pin or wedge pin) is a high-strength cylindrical metal fastener featuring a precision-cut slot or groove. It is an indispensable accessory in the Mivan (Aluminium) Formwork System, working in tandem with a tapered wedge to tightly interlock adjacent formwork panels.

Mivan Stub Pin ek chhota sa steel ka pin hai jo Mivan Aluminium Formwork system mein use hota hai.

Jaise aap dukaan mein kapde ko pin se jodte ho, waise hi yeh pin aluminium ke bade-bade panels ko ek dusre se jodta aur lock karta hai.

Size: Sabse common 16mm x 50mm (16mm mota aur 50mm lamba)
Saath mein ek Wedge (ek chhoti si patli plate) bhi use hoti hai

Why Mivan Stub Pin is Used?

Aluminium panels ko jodne ke liye
Jab concrete (gara) dalte hain to panels hilna nahi chahiye
Bahut jaldi-jaldi formwork lagane aur hatane ke liye

Purane wooden formwork se yeh bahut fast aur strong hai.

Kaise Kaam Karta Hai? (Simple Working)

Do aluminium panels ke holes ko ek line mein laao.
Stub Pin ko hole mein andar daalo.
Wedge ko pin ke upar wale slot mein hammer se thok do.
Wedge tight ho jayega to pin panels ko firmly pakad lega.

Concrete dalne ke baad wedge nikaal lo, pin nikaal lo aur agle floor mein phir use kar sakte ho.

Technical Specification of Surya Engineering Mivan Stub Pin

Specification	Details
Product Name	Mivan Stub Pin
Material	Mild Steel (MS)
Size	16 50 mm
Length	50 mm
Finish	Polished / Galvanized
Color	Yellow / Silver
Weight	Approx. 90200 gm
Usage	Mivan Formwork System
Application	Wall & Column Panel Locking
Installation Type	Wedge Locking
Reusability	Yes
Packaging	Bag / Box
Country of Origin	India

Surya Engineering lists 1650 mm mild steel Mivan pins suitable for Mivan formwork accessories and scaffolding systems.

Step-by-Step Installation Process

1. Alignment: Align the pre-drilled holes of two adjacent or overlapping aluminum formwork panels.

2. Insertion: Push the Mivan Stub Pin manually through the aligned holes.

3. Wedge Engagement: Insert the tapered Mivan Wedge (or Patti) into the slot/groove of the protruding stub pin.

4. Tightening: Strike the wedge gently with a hammer or lever. The wedge action draws the panels together, creating a rigid, gap-free connection.

5. Stripping (Removal): Once the concrete cures, tap the wedge out in the reverse direction. Pull out the stub pin, clean it, and store it for the next casting cycle.

Applications of Mivan Stub Pin

Mivan Stub Pins are widely used in:

Industry	Application
Residential Construction	Wall panel locking
High-Rise Buildings	Mivan shuttering
Infrastructure Projects	Concrete formwork
Metro Projects	RCC wall casting
Industrial Buildings	Column formwork
Commercial Towers	Slab & beam alignment

Fayde (Advantages)

Construction bahut fast ho jati hai
Kam mazdooron ki zarurat padti hai
Concrete ki surface bahut smooth aati hai (plaster kam lagta hai)
Pin bahut baar reuse kar sakte ho (300-800+ times)
Sasta aur strong
Safety bhi achhi rehti hai

Surya Engineering Kya Karta Hai?

Hum Surya Engineering (Mumbai, Maharashtra) mein high-quality Mivan Stub Pins banate hain. Humare pins strong, rust-proof aur construction sites ke liye perfect hote hain.

Top Mivan Accessories Manufacturers in India

Surya Engineering
Known for Mivan Stub Pin, Wedge Pin, Wall Tie, PVC Tube, Rebar Safety Products, Couplers, and Construction Accessories. Surya Engineering positions itself as a manufacturer and exporter of aluminum formwork accessories in India.
Winntus Formwork Pvt Ltd
A major name in aluminium formwork and Mivan systems, especially for large real-estate and high-rise projects in India. The company describes itself among top aluminium formwork manufacturers.
Mivan India
Specialized supplier of Mivan Pins, Wedges, Wallties, PVC Sleeves, Pullers, and other Mivan items for construction projects.
Finomax Formwork
Manufacturer of aluminium formwork accessories, including wall ties, pin & wedge systems, clamps, and related shuttering products.
ALFOAC
Known for complete aluminum formwork systems and accessories for large infrastructure and housing projects.
