Mivan Cone Wall Tie: Essential Formwork Accessory for Modern Construction

In today's fast-track construction industry, Mivan Aluminium Formwork Systems have revolutionized the way residential and commercial buildings are constructed. One of the most important components of this system is the Mivan Cone Wall Tie, which ensures dimensional accuracy, stability, and safety during concrete casting operations. As a leading Mivan Cone Wall Tie Manufacturer in India, Surya Engineering, Mumbai supplies high-quality wall tie systems designed for high-rise buildings, affordable housing projects, and infrastructure developments across India.

What is a Mivan Cone Wall Tie?

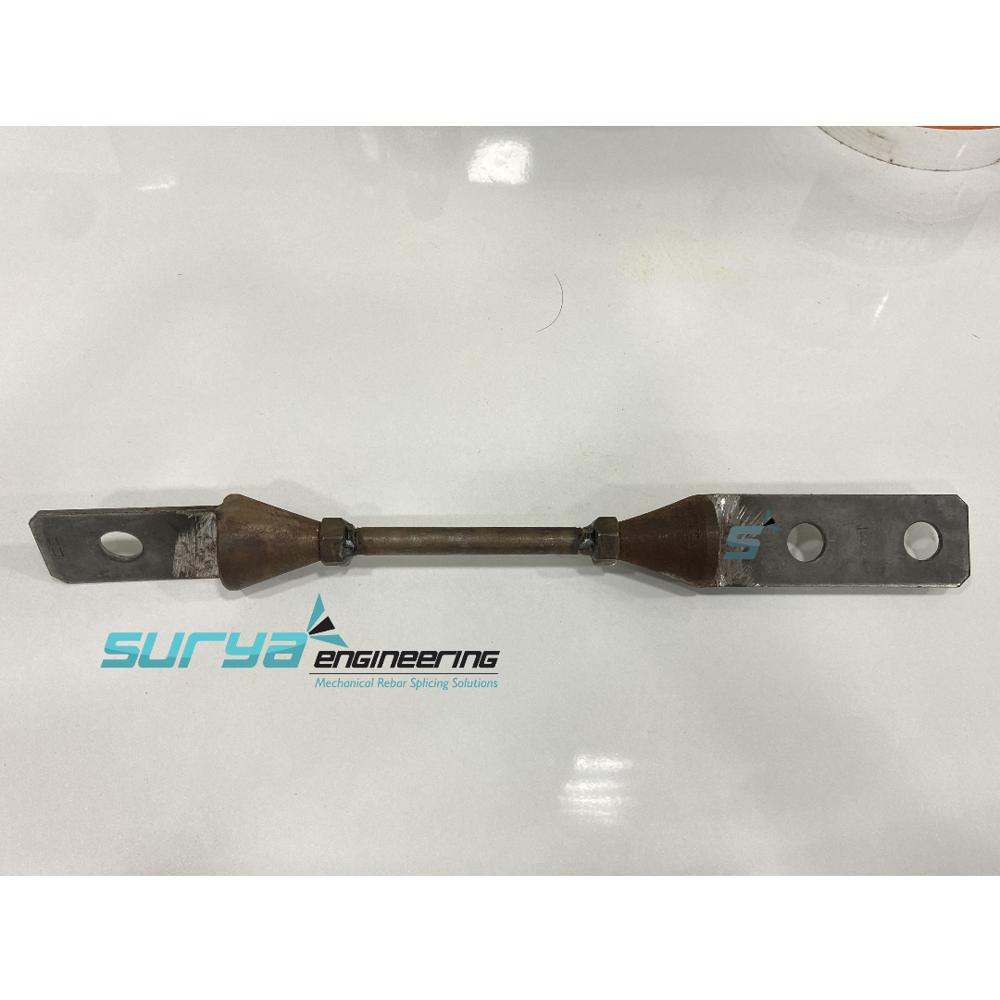

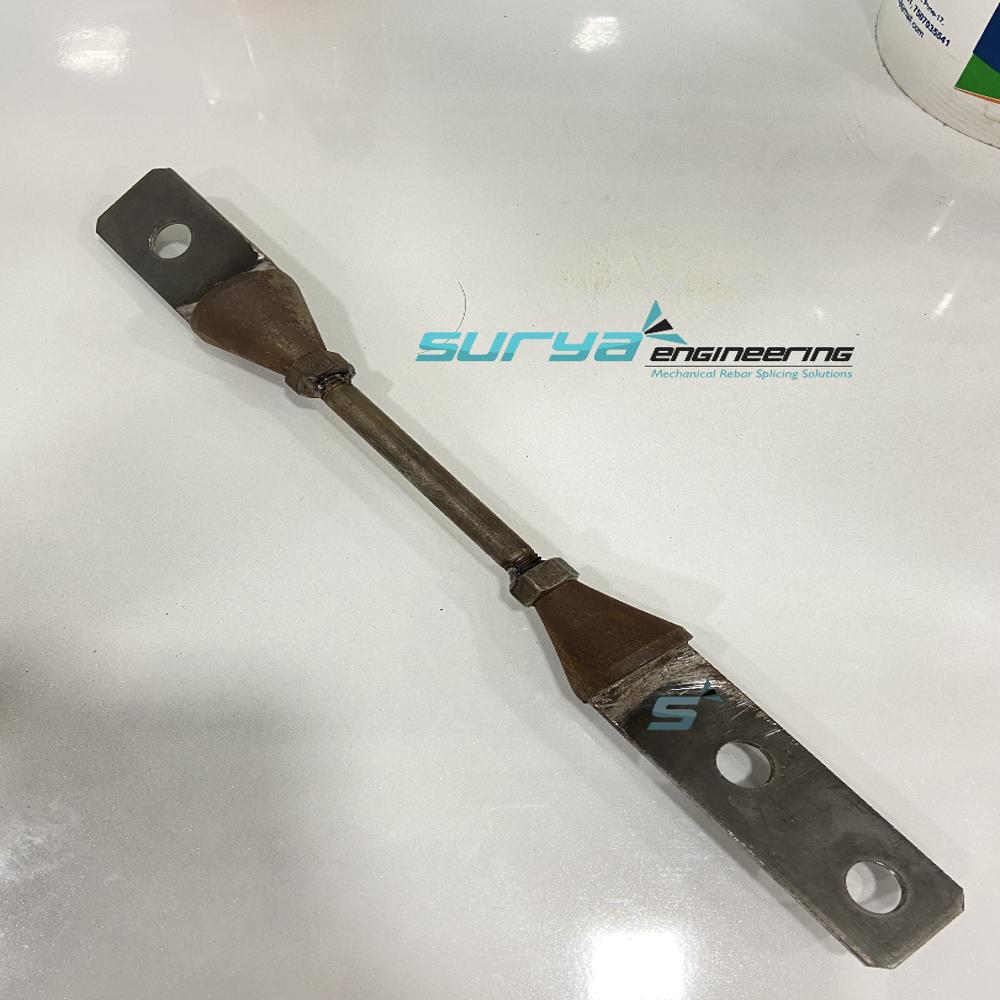

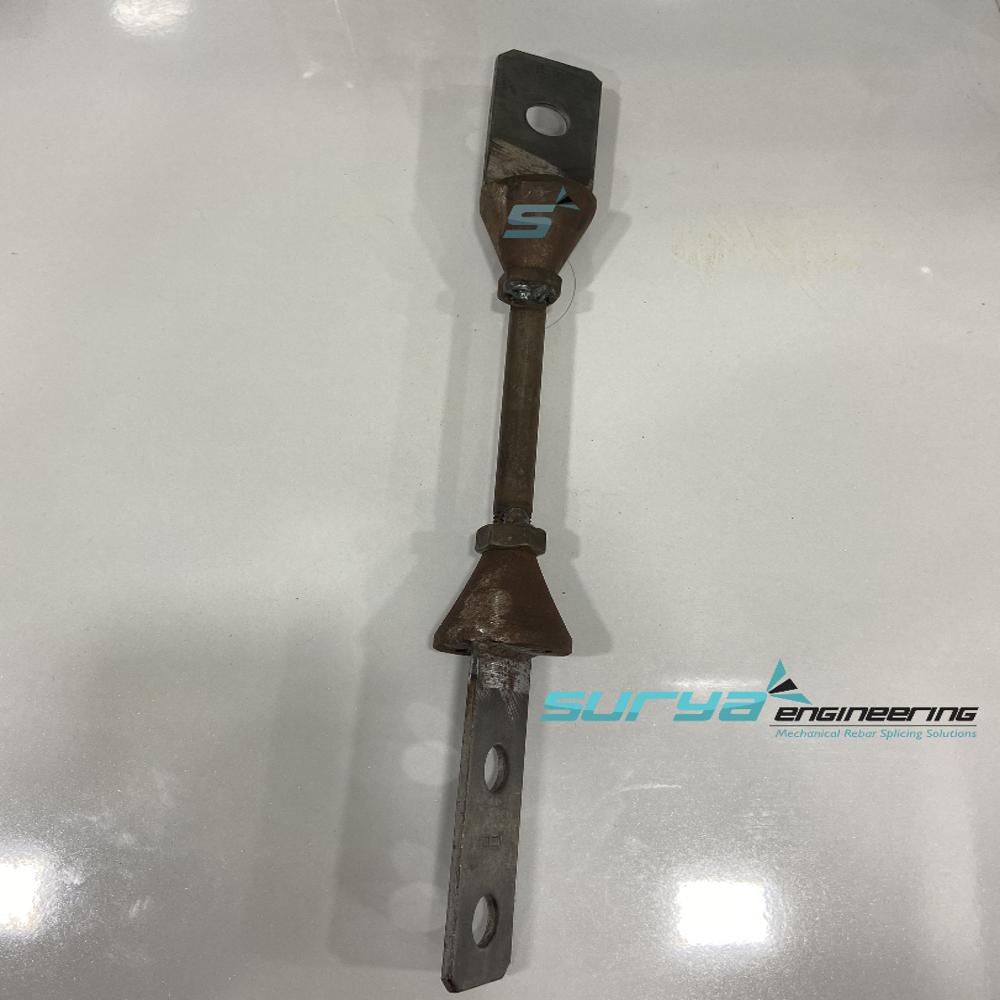

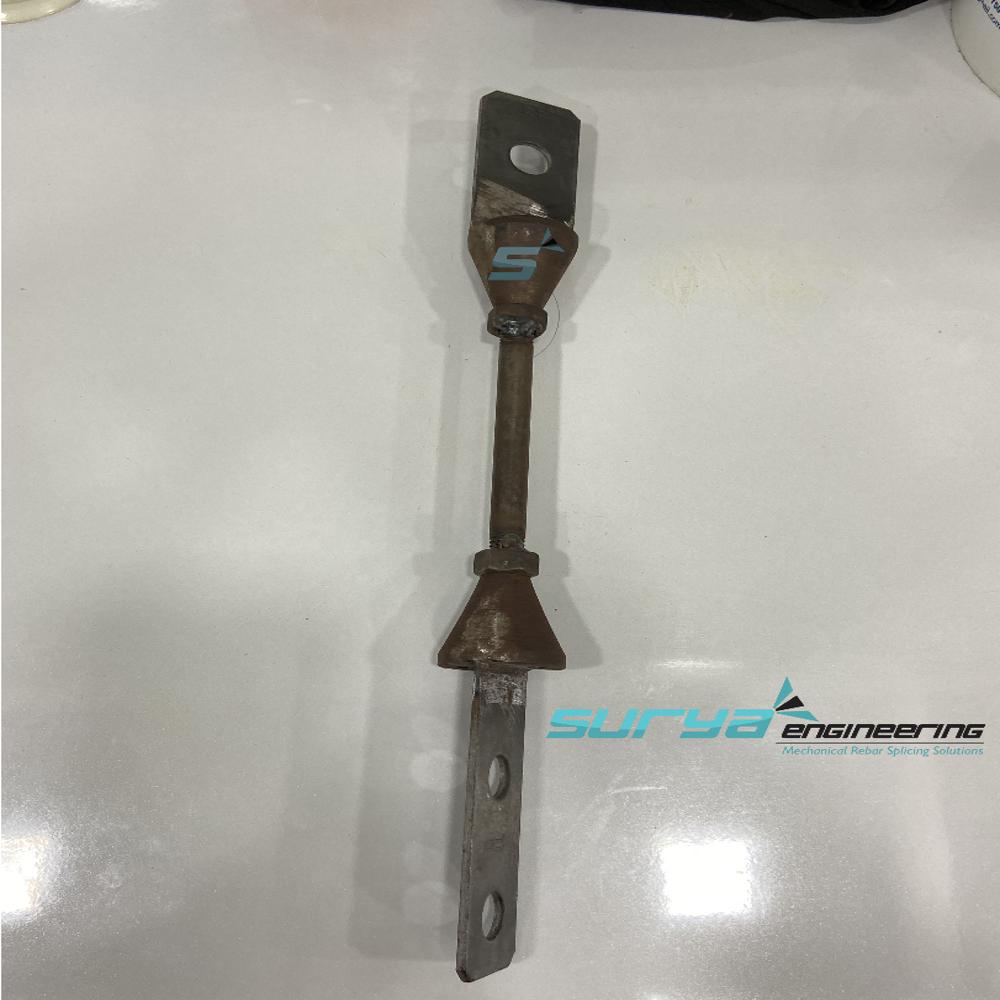

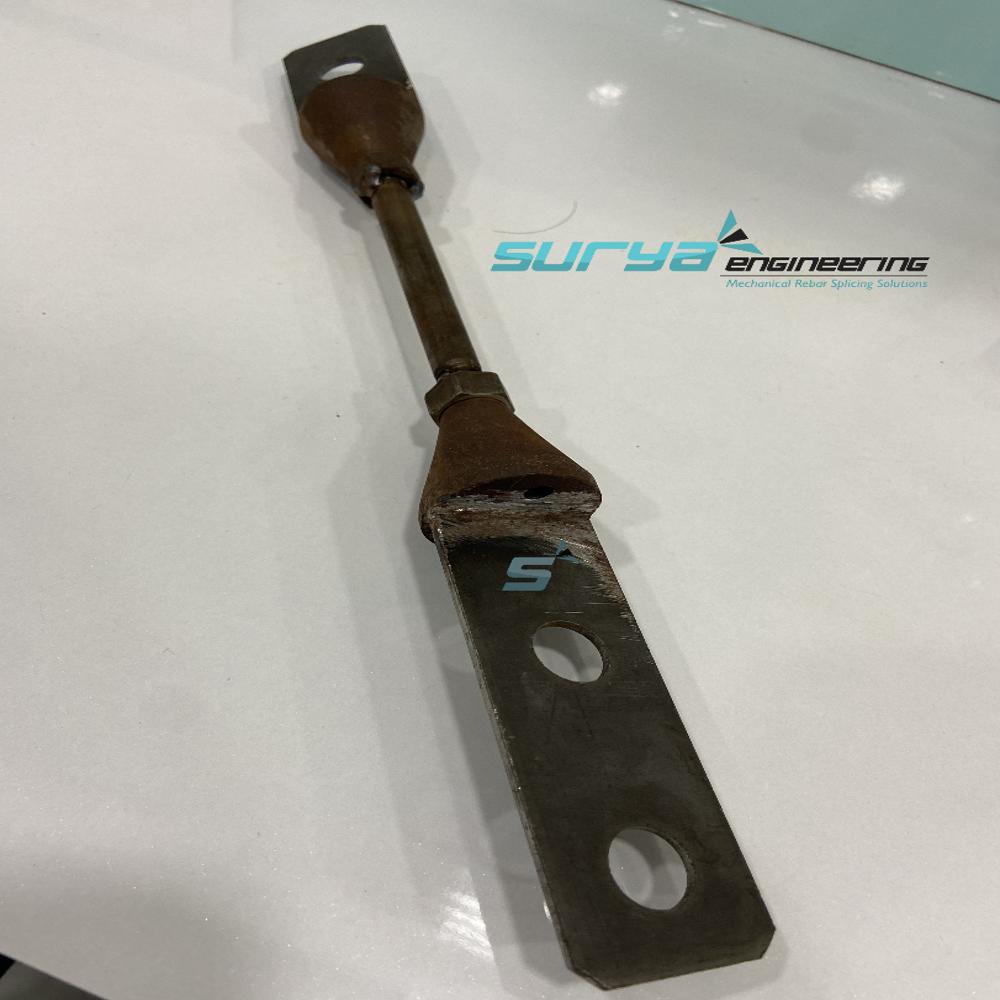

A Mivan Cone Wall Tie is a high-strength steel tie rod used in aluminium formwork systems to maintain the exact distance between two wall panels during concrete pouring. The wall tie works together with PVC cones and sleeves to resist the lateral pressure generated by fresh concrete.

The system helps maintain uniform wall thickness and prevents formwork bulging, ensuring smooth concrete surfaces and accurate structural dimensions. Mivan wall ties are widely used in modern construction projects where speed, quality, and repetitive formwork cycles are critical.

Mivan Cone Wall Tie Manufacturer in India, Mivan Wall Tie Supplier Mumbai, Aluminium Formwork Accessories, Mivan Shuttering Accessories, PVC Cone Wall Tie, Mivan Formwork Components

Why is Mivan Cone Wall Tie Used?

Concrete exerts tremendous pressure on formwork panels during casting. Without proper support, panels may move, causing dimensional inaccuracies and poor concrete finishes.

Major Reasons for Using Mivan Cone Wall Tie:

• Maintains accurate wall thickness.
• Prevents formwork displacement.
• Resists concrete pressure during pouring.
• Ensures smooth and uniform concrete finish.
• Improves construction quality.
• Supports rapid construction cycles.
• Reduces repair and maintenance costs.
• Increases formwork safety and stability.

For large-scale housing projects, Mivan wall ties are indispensable for achieving consistent quality and faster project completion.

Classification of Mivan Cone Wall Tie

1. Based on Wall Thickness

• 100 mm Mivan Wall Tie
• 125 mm Mivan Wall Tie
• 150 mm Mivan Wall Tie
• 200 mm Mivan Wall Tie
• 250 mm Mivan Wall Tie
• 300 mm Mivan Wall Tie

2. Based on Material

• Mild Steel Mivan Wall Tie
• High Tensile Steel Wall Tie
• Galvanized Wall Tie System

3. Based on Application

• Residential Building Wall Ties
• Commercial Building Wall Ties
• Infrastructure Project Wall Ties
• Industrial Construction Wall Ties

4. Based on Formwork Type

• Aluminium Formwork Wall Tie
• Mivan Cone Wall Tie System
• Flat Wall Tie Assembly
• PVC Sleeve Wall Tie System

Components of Mivan Cone Wall Tie System

A complete Mivan Wall Tie Assembly includes:

• High Strength Steel Wall Tie
• PVC Cone
• PVC Sleeve
• Pin and Wedge
• Aluminium Formwork Panels
• Locking Mechanism

These components work together to provide accurate alignment and easy dismantling after concrete curing.

Applications of Mivan Cone Wall Tie

Residential Construction

• High-rise apartment projects
• Affordable housing schemes
• Residential townships
• Smart city developments

Commercial Construction

• Corporate office buildings
• Shopping malls
• Business parks
• Mixed-use developments

Infrastructure Projects

• Metro stations
• Airports
• Railway terminals
• Government buildings

Industrial Construction

• Warehouses
• Manufacturing plants
• Logistics centers

Because of their reliability and reusability, Mivan Cone Wall Ties are extensively used wherever aluminium formwork systems are deployed.

Installation Process of Mivan Cone Wall Tie

Step 1: Position Formwork Panels

Install aluminium wall panels according to approved structural drawings.

Step 2: Insert PVC Sleeve

Place the PVC sleeve through the pre-drilled formwork holes.

Step 3: Fix PVC Cones

Attach PVC cones at both ends of the sleeve to establish wall thickness.

Step 4: Insert Wall Tie

Pass the steel wall tie through the sleeve assembly.

Step 5: Lock the Assembly

Secure the tie using pins and wedges.

Step 6: Pour Concrete

Carry out concrete pouring while monitoring alignment.

Step 7: Remove Formwork

After concrete achieves required strength, remove formwork panels.

Step 8: Extract Wall Tie

Pull out the wall tie for reuse.

Step 9: Seal Cone Holes

Fill cone recesses using approved non-shrink grout or mortar.

This process enables rapid formwork turnover and cost-effective construction.

IS Testing Standards and Quality Requirements

Although no dedicated IS code exists specifically for Mivan Cone Wall Ties, the following Indian Standards are generally followed:

Relevant Standards

• IS 2062 Structural Steel Specification
• IS 800 General Construction in Steel
• IS 456 Plain and Reinforced Concrete Code of Practice
• IS 1786 High Strength Reinforcement Steel
• Project-Specific Formwork Design Standards

Quality Tests

• Tensile Strength Test
• Load Bearing Capacity Test
• Dimensional Accuracy Inspection
• Weld Quality Inspection
• Corrosion Resistance Testing
• Reusability Assessment

Surya Engineering manufactures wall ties under stringent quality control procedures to ensure superior performance on construction sites.

Advantages of Mivan Cone Wall Tie

Accurate Wall Thickness

Maintains precise spacing between formwork panels.

Faster Construction Speed

Supports rapid construction cycles and quick floor completion.

Reusable Product

Can be reused multiple times, reducing project costs.

Superior Concrete Finish

Produces smooth, high-quality wall surfaces.

High Load Capacity

Withstands significant concrete pressure.

Reduced Material Wastage

Minimizes leakage of cement slurry.

Improved Safety

Enhances formwork stability and structural reliability.

Cost Effective Solution

Lowers labor and maintenance expenses.

Easy Installation

Simple assembly and dismantling process.

Long Service Life

Manufactured using premium-grade steel for durability.

Why Choose Surya Engineering for Mivan Cone Wall Tie?

Surya Engineering Mumbai is a trusted Mivan Cone Wall Tie Manufacturer, Supplier, and Exporter in India offering precision-engineered formwork accessories for modern construction projects.

Our Key Strengths:

Premium Grade Steel Manufacturing
Accurate Dimensions and High Strength
Customized Sizes Available
Bulk Supply Across India
Competitive Pricing
Strict Quality Control
Fast Delivery Support
Trusted by Builders and Contractors

Whether you require Mivan Cone Wall Ties, PVC Cones, Formwork Accessories, Aluminium Formwork Components, or Wall Tie Systems, Surya Engineering delivers reliable solutions for residential, commercial, and infrastructure projects.
