SURYA ENGINEERING
GST : 27AQFPP9378P1ZO

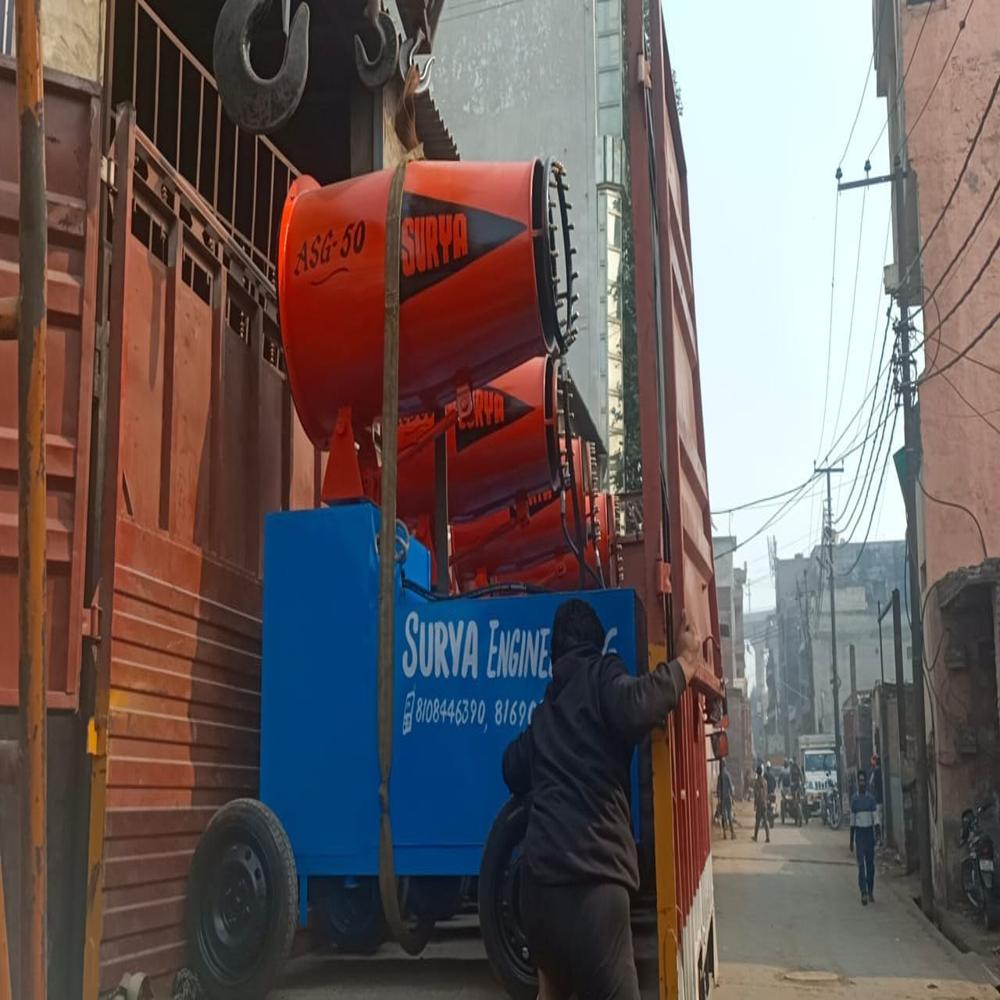

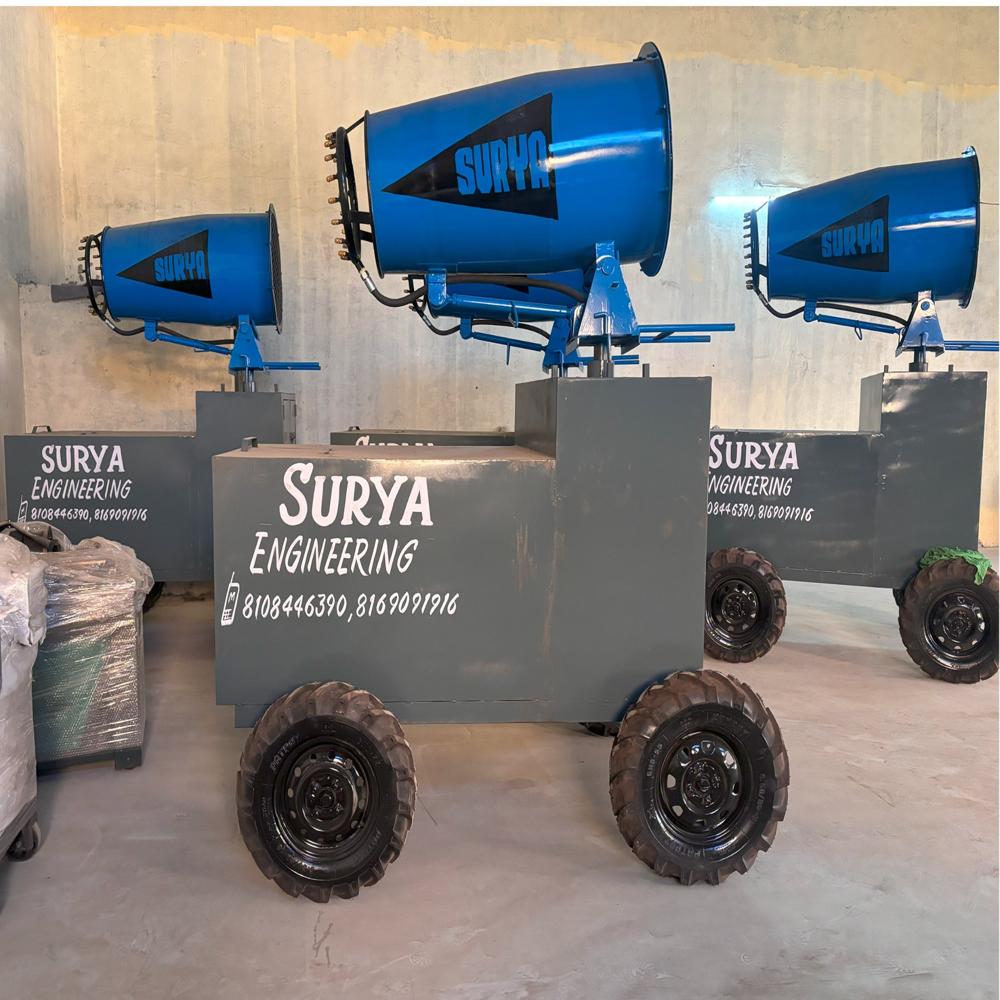

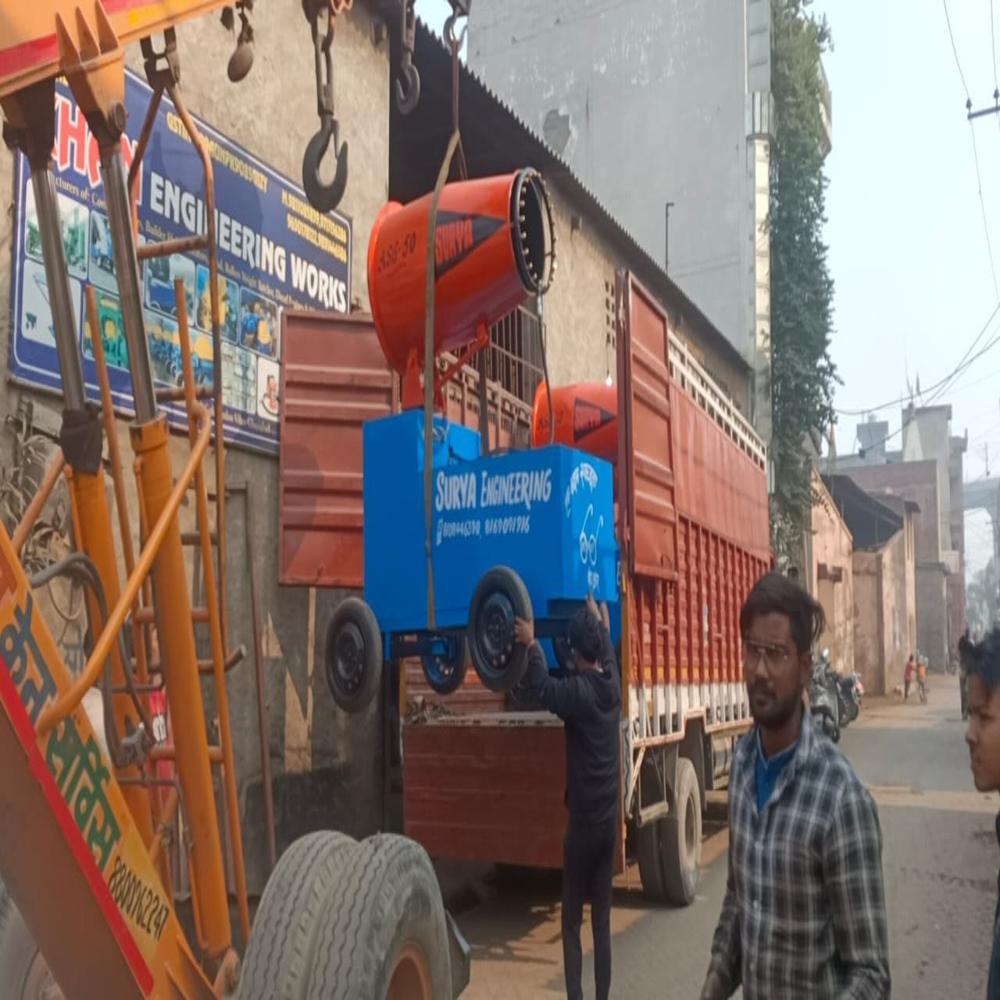

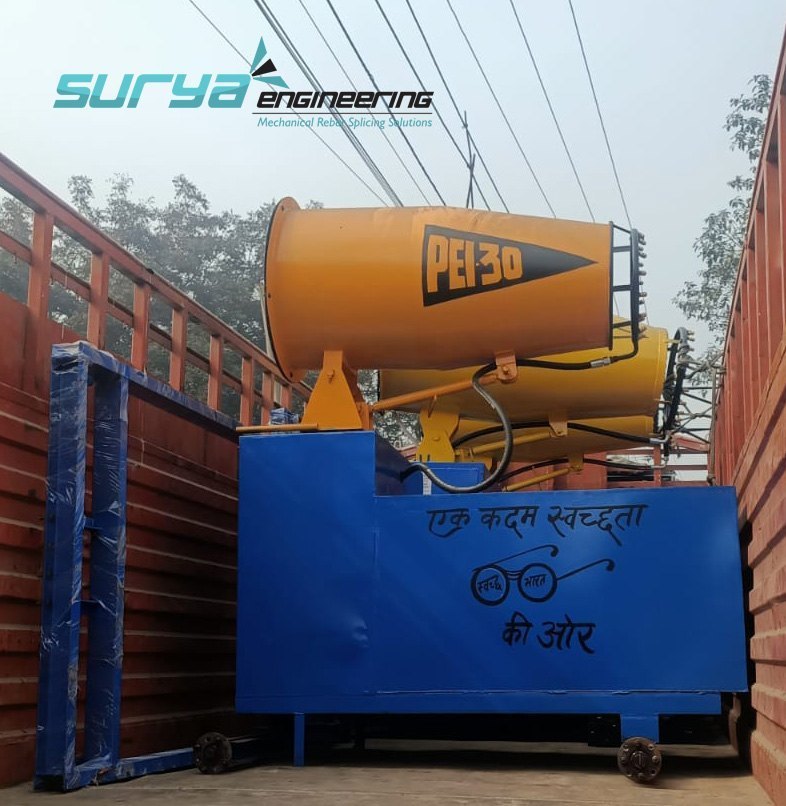

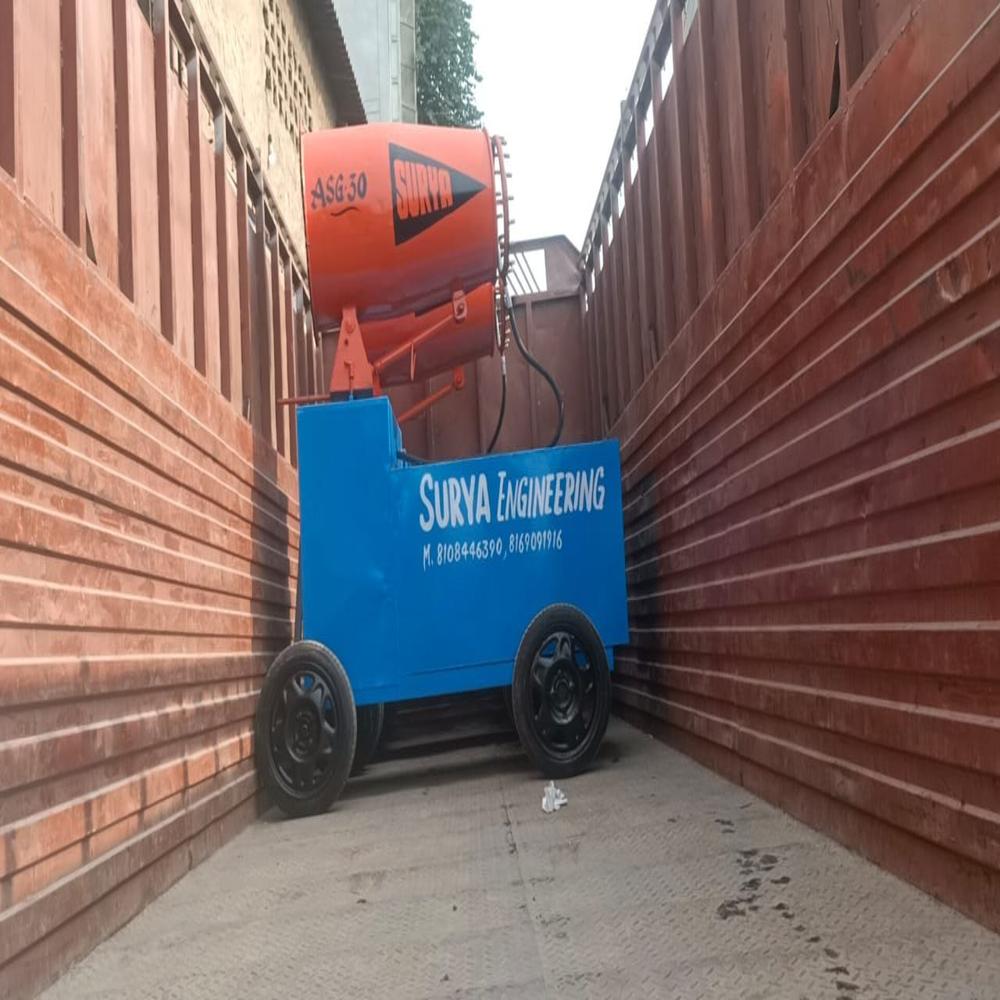

Mild Steel Anti Smog Gun

Mild Steel Anti Smog Gun Specification

Usage & Applications
Industrial

Material
Mild Steel

Cooling System
Water Cooling

Capacity
500 Ltr

Voltage
220v Volt (v)

Warranty
1 Year

Mild Steel Anti Smog Gun Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
24 Hours

Main Domestic Market
All India

About Mild Steel Anti Smog Gun

What is an Anti Dust Machine?

An anti-dust machine is a dust suppression or dust collection system that minimizes suspended dust in the atmosphere during industrial activities.

These machines may work by:

Spraying fine water mist
Vacuum suction collection
Air filtration
Cyclone separation
Electrostatic dust trapping
HEPA filtration systems

The main objective is to:

Reduce airborne pollution
Improve worker safety
Maintain machine efficiency
Protect nearby environments

Why Anti Dust Machines Are Used

Anti-dust machines are essential because excessive dust can create:

Respiratory diseases
Poor visibility at worksites
Machine damage
Fire and explosion risks
Environmental pollution
Reduced worker productivity

Construction and industrial projects increasingly use dust control systems to maintain safe working conditions and regulatory compliance.

Classification and Taxonomy of Dust Suppression Technology

The diverse needs of the mining, construction, and infrastructure sectors have led to a clear classification of anti-dust machines based on their mobility, technology, and coverage capabilities.

Classification by Coverage and Range

The "throw range" is the defining performance metric for an anti-dust machine. Standardized testing identifies the range in "still air" conditions.

Model Designation	Effective Throw Range	Typical Power Requirement	Primary Application
Micro/Nano Range	10m 25m	0.75 kW 5 kW	Indoor demolition, warehouse dust control.
Standard Range	30m 50m	7.5 kW 15 kW	Stone crushers, road construction, small demolition.
High Performance	60m 100m	30 kW 50 kW	Stockyards, large construction, port facilities.
Ultra-Heavy Range	120m 250m	60 kW 150 kW	Open-pit mining, large-scale coal handling.

Feature	High-Pressure Mist Cannon	Ultrasonic / Dry Fog System
Atomization Method	Hydraulic pressure (30120 bar).	Compressed air (5 bar) + ultrasonic wave.
Droplet Size	10 100 microns.	1 10 microns.
Surface Wetting	Moderate; ideal for stockpiles.	Negligible; "dry" to the touch.
Water Usage	High (5200 L/min).	Very Low (ml/min per nozzle).
Best Application	Open yards, roads, demolition.	Coal transfer points, cement packing.

Applications:

Mining and Quarrying Operations
Construction and Demolition (C&D)
Coal and Mineral Handling
Port and Logistics Facilities

Installation of Anti Dust Machine

Proper installation ensures maximum efficiency and long machine life.

Step-by-Step Installation Process

Site Assessment

Identify dust generation points
Measure airflow requirements
Determine dust particle type

Machine Positioning

Install near dust source
Ensure stable foundation
Maintain proper ventilation clearance

Pipeline & Duct Setup

Connect suction ducts
Ensure leak-proof joints
Maintain correct duct diameter

Electrical Connection

Use industrial-grade power supply
Install overload protection
Ensure proper grounding

Water Connection (for mist systems)

Connect clean water supply
Check nozzle pressure
Test spray angle coverage

Trial Run

Start machine
Check suction or mist flow
Verify dust reduction performance

Testing

Based on the Brihanmumbai Municipal Corporation (BMC) Guidelines for Air Pollution Mitigation (2023-2025), construction projects in Mumbai must implement strict dust suppression and control measures.

Key Dust Suppression & Mitigation Requirements:

Perimeter Barricading: Erection of continuous dust or wind-breaking tin/metal sheets of more than 20 feet height around the entire construction site boundar
Dust Suppression (Fogging/Misting): Installation of anti-smog guns/misting systems to suppress dust, particularly for large sites. Water misting units are mandated to spray water to settle suspended dust particles.
Water Sprinkling: Regular water sprinkling is required on exposed soil, stockpiles, and debris to prevent dust from becoming airborne.
Covering Requirements: All loose materials (soil, sand, debris) must be covered with tarpaulin or green netting.
Wheel Washing: Vehicle tyre washing facilities must be provided at all exit points to prevent dust from being carried onto public roads.
Demolition Control: Enclosed chutes or targeted water spray must be used during the demolition of structures to minimize dust dispersal.

Mandatory Compliance & Monitoring:

Air Quality Monitors: Mandatory installation of sensor-based air quality monitors (PM2.5/PM10) that are connected to the BMC server.
CCTV Surveillance: CCTV cameras must be installed to monitor dust control compliance.
Penalty: Non-compliant sites are subject to stop-work orders and penalties.
For detailed technical specifications of the required equipment (mist cannons, vacuum sweepers), you can refer to the BMC Tender Specifications.

Advantages of Anti Dust Machines

1. Improves Worker Safety

Reduces inhalation of harmful dust particles.

2. Better Air Quality

Maintains cleaner industrial environments.

3. Reduces Machine Wear

Prevents dust accumulation inside machinery.

4. Environmental Protection

Controls pollution and site contamination.

5. Compliance with Safety Standards

Helps industries follow pollution and workplace regulations.

6. Increased Productivity

Cleaner environments improve operational efficiency.

7. Lower Maintenance Costs

Reduces cleaning and machine breakdown frequency.

8. Fire & Explosion Prevention

Minimizes combustible dust hazards.

About Surya Engineering

Surya Engineering is a trusted engineering solutions provider specializing in industrial machinery, construction equipment, dust control systems, and fabrication machinery. The company focuses on delivering high-performance and durable industrial equipment designed for modern construction and manufacturing industries.

Surya Engineering offers advanced Anti Dust Machines engineered for effective dust suppression in construction sites, steel fabrication units, mining operations, cement plants, and industrial workshops. Their machines are designed with modern dust control technology to improve air quality, worker safety, and operational efficiency.
