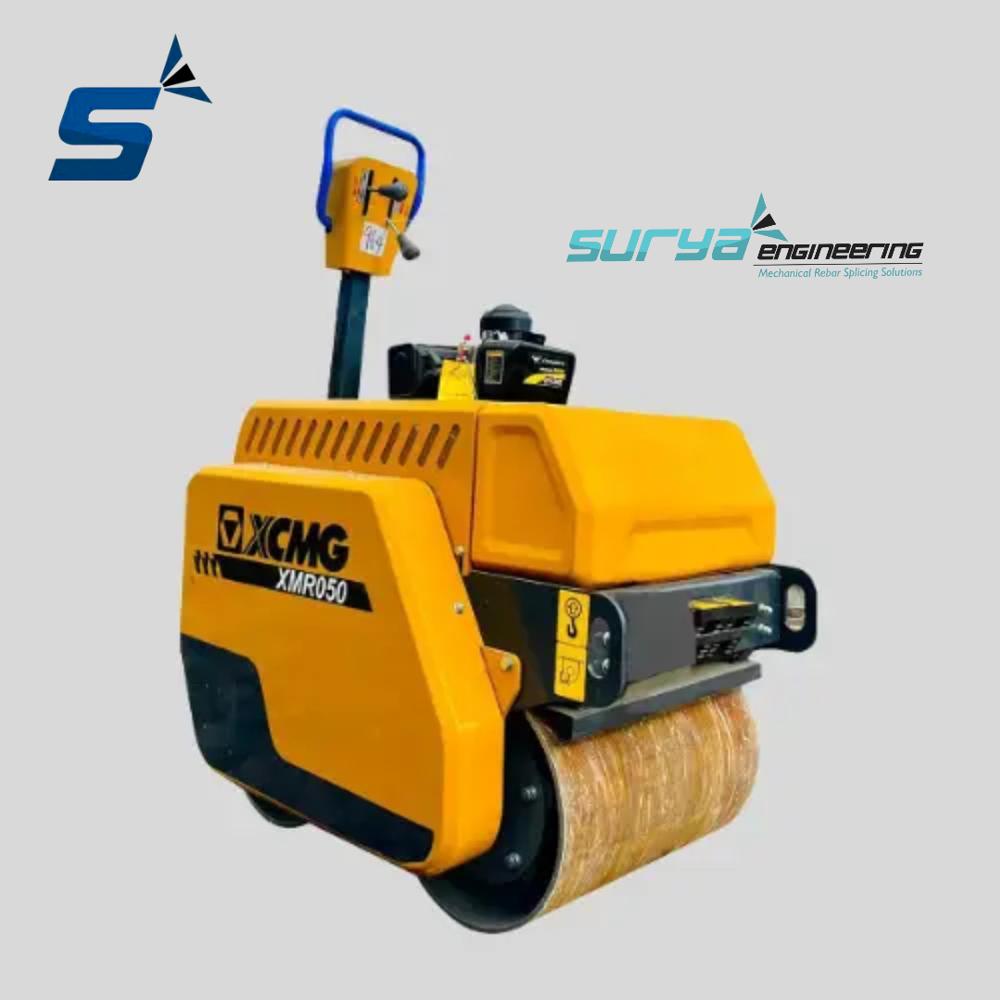

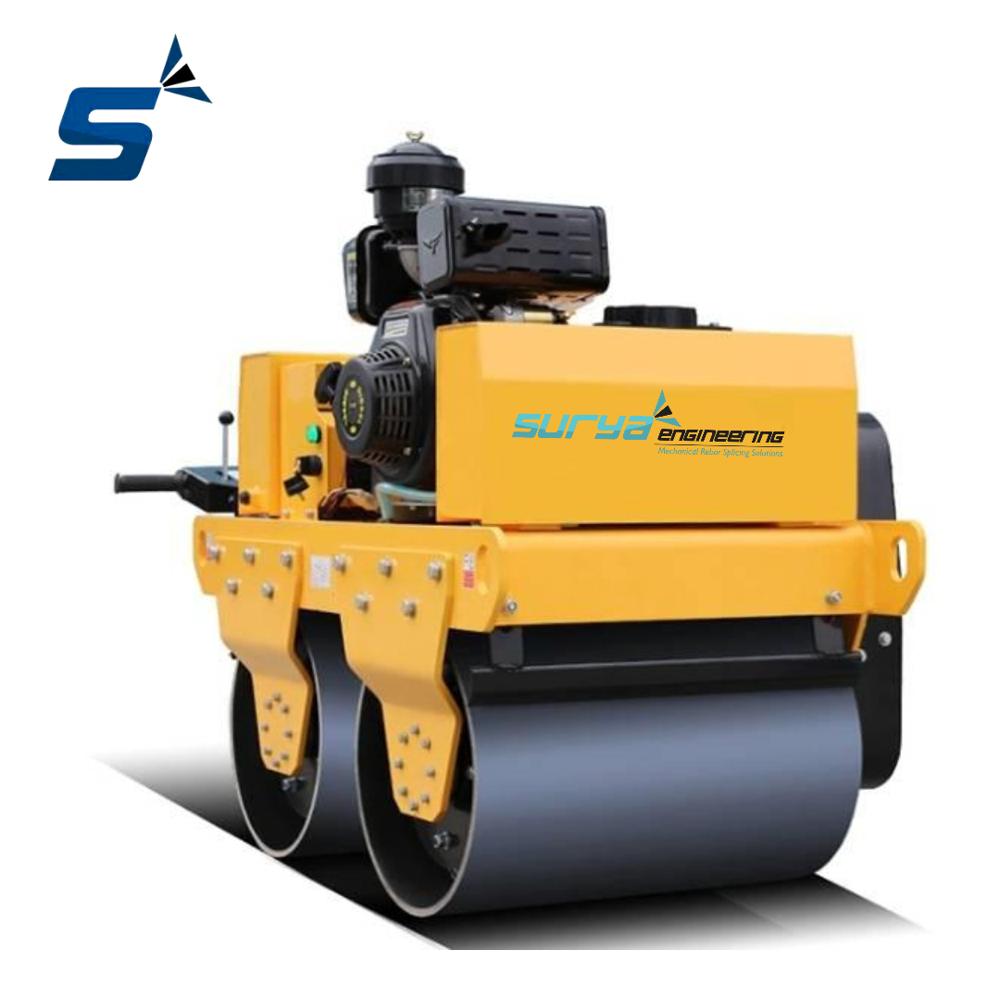

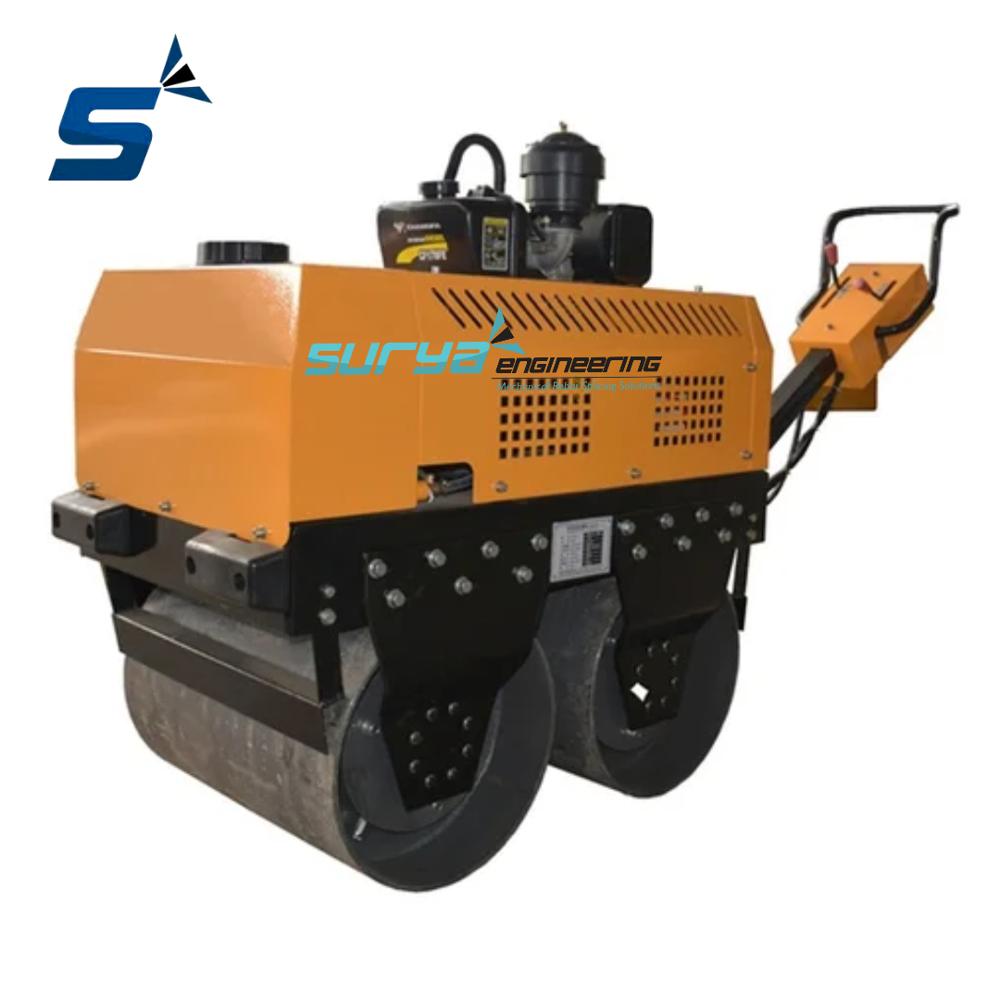

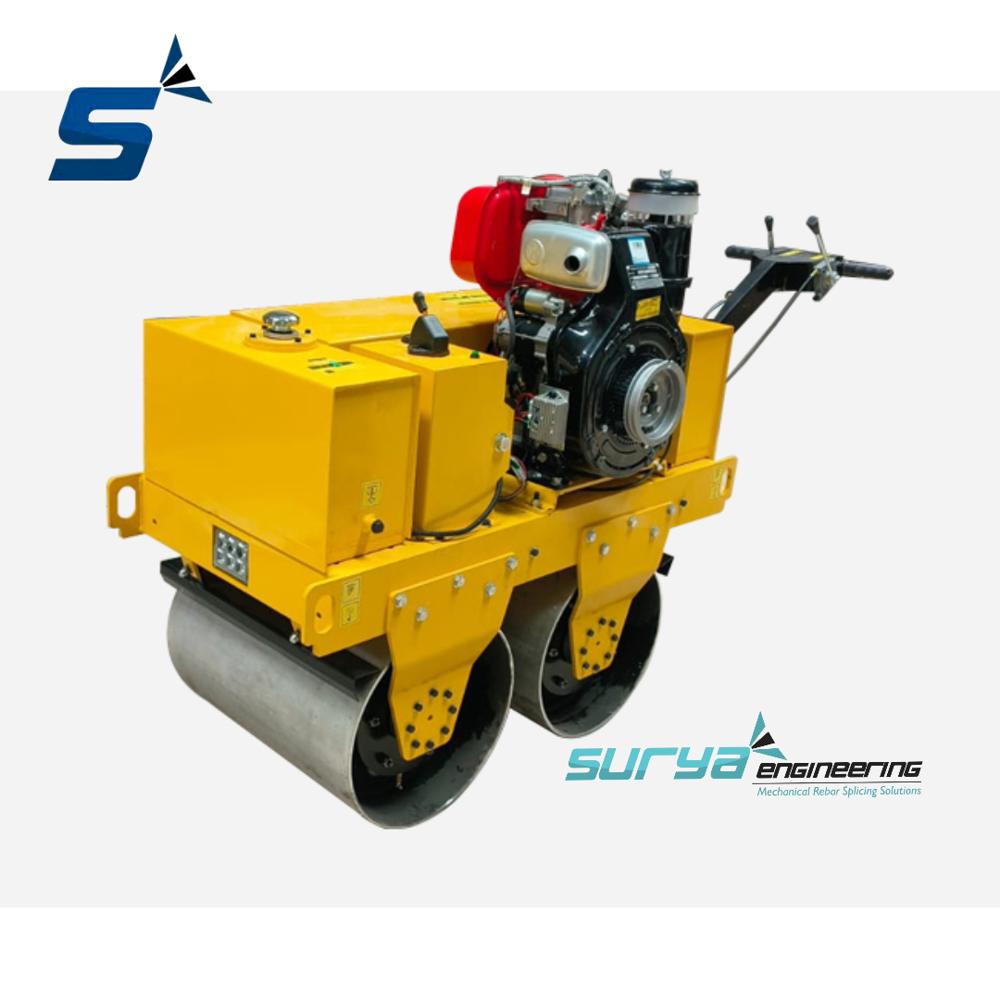

walk behind Double Drum Roller

About walk behind Double Drum Roller

What is a Double Drum Roller?

A Double Drum Roller (often called a tandem roller) is a heavy-duty compaction machine equipped with two large, smooth steel drumsone at the front and one at the rear. Unlike single-drum rollers that rely on pneumatic tires at the back for traction, a double drum roller utilizes both steel cylinders to simultaneously roll, compact, and smooth out construction surfaces. Modern double drum rollers are engineered with advanced internal eccentric weights to provide high-frequency vibration, allowing them to achieve high density in asphalt and soil layers.

Why It Is Used & Key Advantages

Double drum rollers are the industry standard for road paving and asphalt finishing because of their dual-surface contact and balanced design.

Core Advantages:

• Flawless, Smooth Finishing: Because there are no rubber tires to leave track marks or indentations behind, these machines deliver a perfectly level, polished finish on asphalt roads.

• Double Compaction Efficiency: With two active steel drums working in tandem, a single pass effectively delivers double the flattening force, drastically speeding up project timelines.

• Dual Vibratory Control: Operators can activate high-frequency vibrations on both drums or just one, adapting the dynamic force to match the exact thickness of the materials being laid.

• High Operational Balance: The weight distribution between the front and rear steel drums is perfectly calculated, ensuring uniform density across the entire width of the paved track.

Classification of Double Drum Rollers

Tandem rollers are categorized primarily by their weight class, steering mechanisms, and compaction modes:

1. By Operating Weight:

• Walk-Behind / Mini Double Drum Rollers (0.5 to 1.5 Tons): Compact, hand-guided units ideal for narrow sidewalks, patch repair jobs, trenches, and residential driveways.

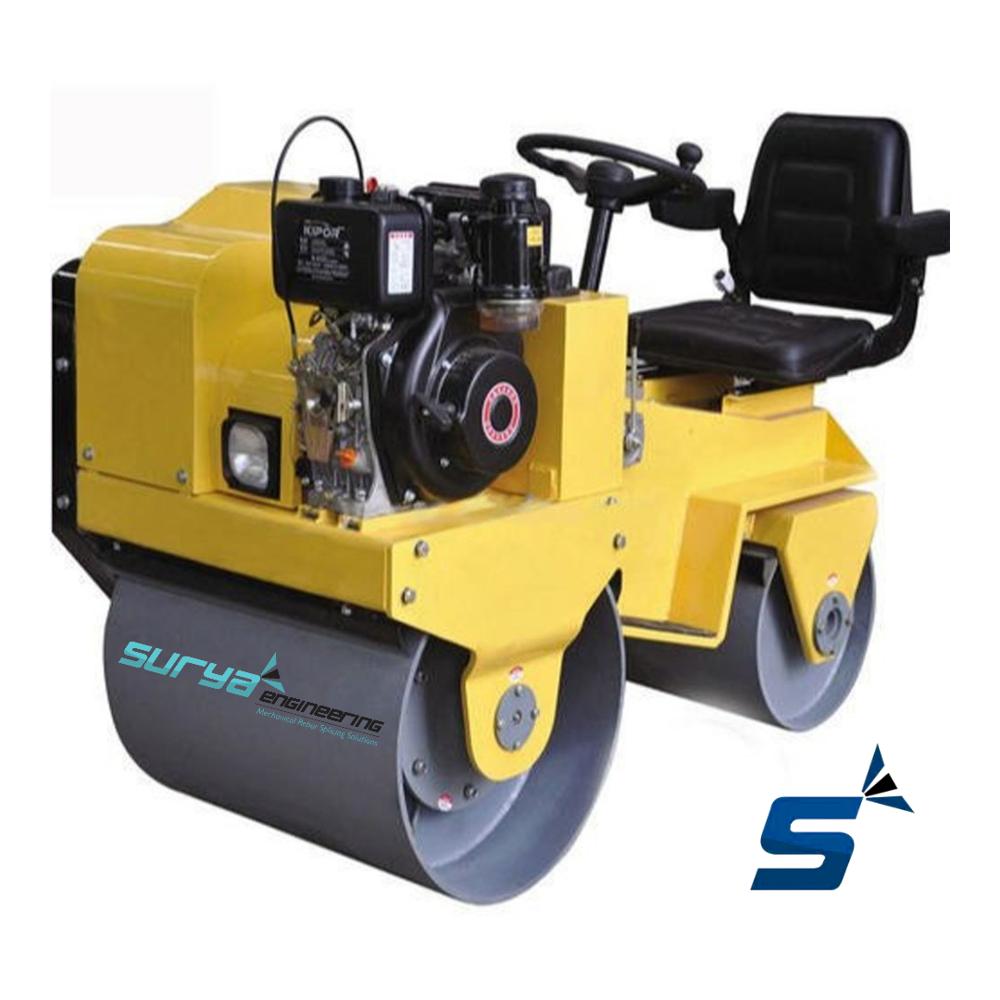

• Utility Tandem Rollers (2 to 5 Tons): Medium-sized ride-on rollers designed for commercial parking lots, sports courts, and inner-city street maintenance.

• Heavy-Duty Highway Rollers (7 to 15+ Tons): Large-scale production rollers used for massive industrial projects, airport runways, and national highway construction.

2. By Steering & Chassis Design:

• Articulated Chassis: The front and rear halves of the machine are connected by a central oscillating pivot point, offering exceptional maneuverability and a tight turning radius in confined spaces.

• Rigid Frame with Drum Steering: Built on a solid, unbending frame where the drums pivot independently to steer the machine.

3. By Compaction Technology:

• Pure Static Rollers: Rely solely on the deadweight of the heavy steel drums to compress materials.

• Vibratory & Oscillatory Rollers: Use rapid internal rotational forces to shake or slice through aggregate particles, minimizing air voids with fewer passes.

Technical Applications

Double drum rollers are highly specialized for structural layers that require uniform smoothness and density:

• Asphalt Road Paving: Compacting the binder and wearing courses on city streets, high-traffic expressways, and national highways.

• Airport Runway Construction: Achieving the dense, ultra-smooth surface tolerances mandated for high-speed aircraft landings.

• Industrial Flooring & Parking Lots: Flattening sub-base aggregates, crushed stone, and asphalt tops for massive warehousing zones.

• Recreational Infrastructure: Laying down uniform surfaces for running tracks, pedestrian walkways, and school sports complexes.

Installation, Setup, and Operational Methodology

While heavy machinery isn't "installed" like static equipment, preparing a double drum roller for a job site requires a strict commissioning routine:

1. Pre-Operational Inspection: Check fluid levels (engine oil, hydraulic fluid, coolant) and ensure the drum scrapers are adjusted tightly against the steel shells to prevent asphalt buildup.

2. Water Sprinkler System Calibration: Fill the onboard water tank. Test the pressurized sprinkler bars and nozzles to ensure a steady mist coats both drums; this prevents hot, sticky asphalt from adhering to the cold steel.

3. Pass Pattern Mapping: For proper compaction, the roller should follow a predetermined sequencestarting from the low edge of the road layout and advancing toward the high edge to maintain uniform density.

4. Speed and Frequency Management: Keep a slow, consistent rolling speed (typically 3 to 5 km/h). Engaging the vibratory system while the machine is at a complete standstill must be avoided, as it creates permanent dents in the fresh asphalt.

Indian Standards (BIS) Testing Framework

In India, the manufacturing, safety, and performance parameters of road rollers are governed by specific testing codes to ensure they meet public sector infrastructure project standards:

• IS 5521 (Specification for Vibrant Earth Rollers / Road Rollers): Outlines standard guidelines regarding construction layout, steering stability, drum width ratios, and material grades for steel drums.

• IS 9257 (Code for Evaluation of Compaction Equipment Performance): Dictates how a machines dynamic compaction capabilities, weight distribution, and vibration frequencies are tested and rated on standardized test tracks.

• ISO 2867 / Indian Safety Regulations: Ensures operator safety cabins (ROPS/FOPSRoll-Over and Falling Object Protective Structures), emergency braking lines, and acoustic sound insulation meet compliance standards.

What Makes the Double Drum Roller the Ultimate Road Finisher?

Unlike single-drum rollers that feature heavy rubber tires at the back, a double drum roller (or tandem roller) features two massive, smooth steel drumsone in the front and one in the rear.

At Surya Engineering, we design our machinery lines to address the real-world challenges faced by Indian contractors on the field:

1. Zero Track Marks for Flawless Surfaces

Because the machine rides entirely on twin steel drums, it leaves behind a perfectly flat, uniform surface. This makes it the go-to choice for laying down hot-mix asphalt on expressways and urban city roads where even minor bumps can cause safety hazards.

2. Dual Compaction Action

With two drums working on the surface simultaneously, a double drum roller finishes the job in fewer passes. The front drum locks down the initial compaction, while the rear drum instantly irons out any remaining imperfectionssaving your project valuable time and fuel.

3. High-Performance Water Sprinkler Systems

Sticky, hot asphalt adhering to steel drums can quickly ruin a fresh road layer. Our machines feature heavy-duty, pressurized water sprinkler setups that keep a consistent film of water over the drums. This prevents sticking, ensures continuous operation, and delivers a flawless surface texture.

Key Applications Across India

From bustling municipal street expansions in Mumbai to sprawling logistics hubs across various states, Surya Engineering serves diverse project demands Pan India:

• National Highways & Expressways: Achieving the high density and smooth ride quality demanded by strict government authorities.

• Airport Runway Projects: Meeting precise engineering tolerances for high-impact aircraft runways.

• Commercial Parking Lots & Industrial Floors: Creating durable, heavy-load-bearing bases for warehouses and manufacturing complexes.

Strict Compliance with Indian Testing Standards

At Surya Engineering, quality is our signature. Our machinery alignments follow rigorous Indian engineering frameworks, ensuring our equipment easily clears municipal approvals:

• IS 5521 & IS 9257 Compliance: Every roller configuration is evaluated for ideal weight-to-width ratios, balanced front-to-back load distribution, and reliable structural durability.

• Operator Safety First: Built with robust cabins, reliable emergency braking networks, and highly responsive steering systems to protect operators on challenging job sites.

Partner with Surya Engineering Your Trusted Pan-India Manufacturing Ally

Backed by 12 years of core manufacturing experience in Mumbai, Surya Engineering blends robust engineering with affordable, easy-to-operate designs tailored perfectly for Indian construction environments. Whether you are a local civil contractor upgrading city pathways or a major infrastructure firm building national transit systems, we provide dependable equipment and seamless logistical support across the country.

Double Drum Roller Manufacturer India, Double Drum Roller Supplier Mumbai, Vibratory Road Roller India, Asphalt Compaction Machine Manufacturer, Road Construction Equipment India, Ride On Double Drum Roller, Walk Behind Double Drum Roller, Road Roller Machine Price India, Construction Equipment Manufacturer Mumbai, Vibratory Roller Supplier India, Highway Construction Machinery, Compaction Equipment India, Asphalt Roller Machine Manufacturer, Road Building Equipment Supplier, Surya Engineering Mumbai, Double Drum Roller for Road Projects India.

Robust Build for demanding tasks

Constructed from high-quality steel, this Double Drum Roller is engineered to withstand tough construction environments. Its 890 kg frame and hydraulically operated components provide stability and longevity, ensuring dependable operation across diverse job sites such as roads and concrete surfaces.


Advanced Hydraulic System

Featuring a hydraulic oil cooling system and hydraulic pressure method, this roller maintains optimal performance during prolonged use. The integration of PLC controls ensures precision in compaction tasks and enhances operational safety, making it suitable for continuous workflows.


Versatile Applications and Easy Operation

Designed for walk-behind operation, this roller is effective in various construction tasks including concrete laying and roadwork. The user-friendly PLC control system allows for easy adjustment, benefiting both novice and experienced operators looking to achieve smooth, even surfaces quickly.
