Rebar coupler 25mm

About Rebar coupler 25mm

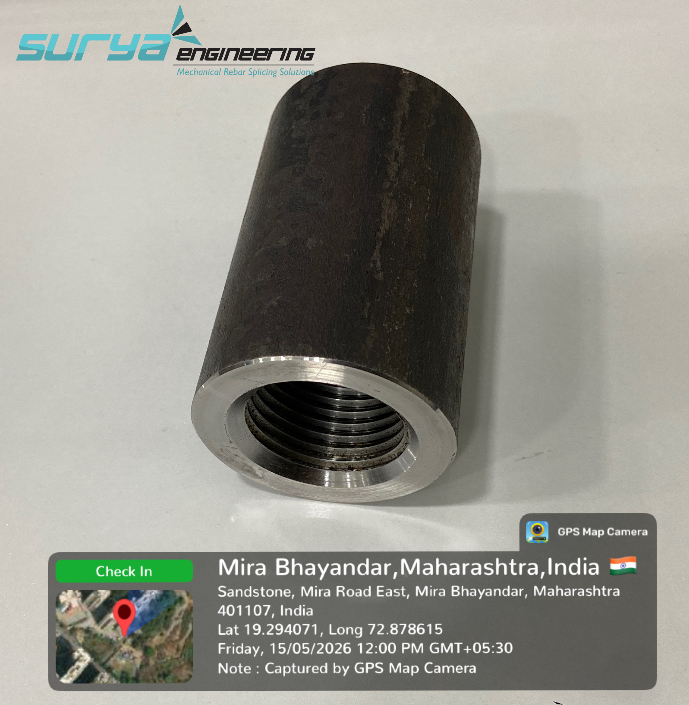

What is a 25mm Rebar Coupler?

A 25mm Rebar Coupler is a high-strength, hollow steel sleeve engineered to mechanically join two 25mm diameter TMT (Thermo-Mechanically Treated) steel bars end-to-end.

Instead of relying on concrete bond stress to transfer loads over a long overlap (lap length), the coupler creates a continuous, direct mechanical joint capable of handling massive axial tension and compression forces across structural elements.

Why is a 25mm Rebar Coupler Used?

For 25mm diameter bars and larger, lap splicing poses major engineering and economical drawbacks:

1. Extreme Steel Savings: A standard 25mm TMT bar lap requires an overlap of $50d$ to $60d$ (around 1.25 to 1.5 meters of wasted steel per joint). Mechanical couplers eliminate this overlap completely.

2. Relieves Congestion: Congested rebar cages create empty pockets and "honeycombing" during concrete pouring. Couplers keep joints slender, allowing aggregate and cement paste to flow freely.

3. Load Continuity: Under heavy seismic or dynamic stress, mechanical splices maintain structural integrity better than lap splices, which depend on surrounding concrete to transfer loads.

Classification of 25mm Rebar Couplers

Rebar couplers are categorized based on their manufacturing mechanism, thread style, and performance grade:

1. By Threading & Connection Type

• Cold-Forged Parallel Thread Couplers: The ends of the 25mm bar are cold-upset (enlarged) using a hydraulic press before cutting parallel threads. This guarantees zero reduction in the bar's cross-sectional area, ensuring joint strength exceeds that of the parent bar.

• Direct Roll Parallel Thread Couplers: Parallel threads are rolled directly onto peeled bar ends. Suitable for standard load conditions.

• Taper Thread Couplers: Threaded with a gradual cone taper, enabling fast alignment and quick engagement with minimal turns.

• MBTs / Bolt-Type Couplers: Friction-based couplers secured with high-tensile shear bolts, requiring no bar end preparation or threading. Ideal for repair or retrofit work.

2. By Performance Grade (IS 16172 Classification)

• Class L (Low Cycle Fatigue): Suitable for standard structural members subjected to standard static and low cyclic loads.

• Class H (High Cycle Fatigue): Designed for heavy dynamic loading environments (bridges, rail transit, crane girders) meeting both low and high cycle fatigue criteria.

Key Applications of 25mm Rebar Couplers

25mm TMT bars are a primary load-bearing choice across major construction applications:

• High-Rise Core Walls & Columns: Vertical splicing of heavily loaded columns.

• Bridge Piers & Flyovers: Heavily reinforced substructures subjected to traffic vibration and dynamic loads.

• Metro Rail & Tunnel Lining: Structural joints where spatial clearance is extremely limited.

• Diaphragm Walls & Pile Caps: Connecting heavy foundation cages to raft slabs.

Step-by-Step Installation Process

To achieve maximum joint performance, follow this standard installation sequence on site:

1. Bar Preparation & Square Cutting: Cut the ends of the 25mm TMT bar at a precise $90\circ$ angle using a cold band saw or abrasive cutter to ensure flat seating face-to-face.

2. Cold Forging / Upsetting (Optional for Forged Type): Hydraulically enlarge the end 25 mm section of the bar using a specialized cold-forging machine.

3. Precision Threading: Roll or cut parallel/tapered threads onto the bar ends using a rebar threading machine.

4. Protective Cap Placement: Fit plastic thread protectors onto pre-threaded bar ends to shield threads from dirt, concrete slurry, and corrosion during transit and site handling.

5. Site Assembly & Torque Tightening: Remove protective caps, screw the coupler onto the fixed bar, align the continuation bar, and tighten using a calibrated torque wrench or heavy-duty pipe wrench to the manufacturer's specified torque rating.

Indian Standards Testing Compliance: IS 16172

Quality compliance is non-negotiable for structural safety. In India, mechanical splices must comply strictly with IS 16172 (Reinforcement Couplers for Mechanical Splices of Steel Bars in Concrete - Specification).

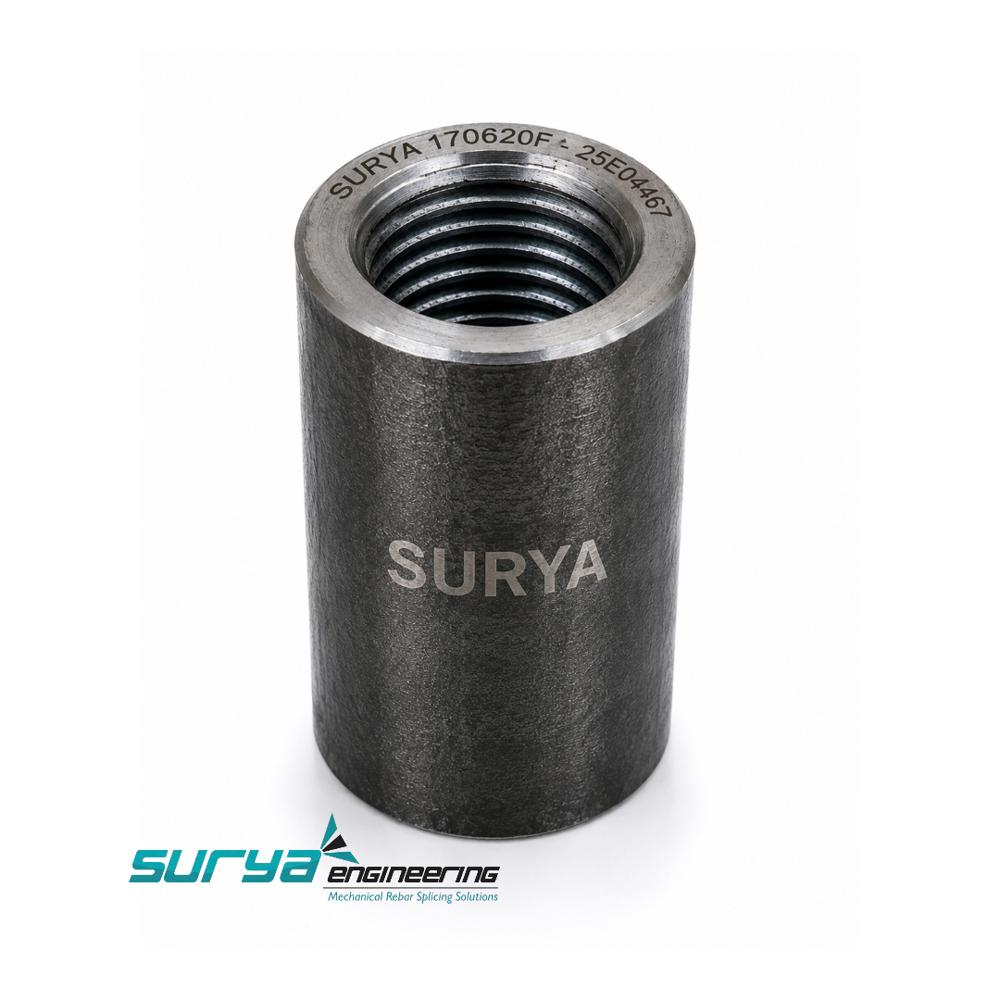

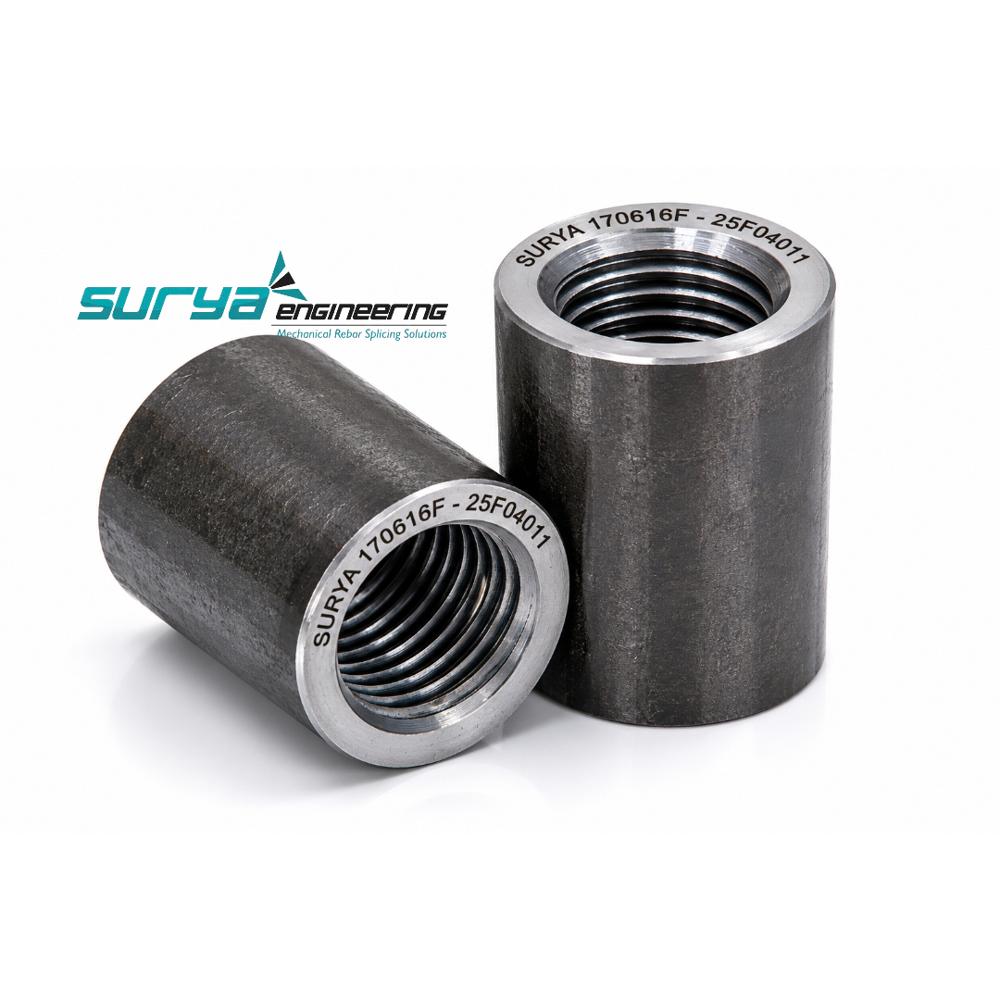

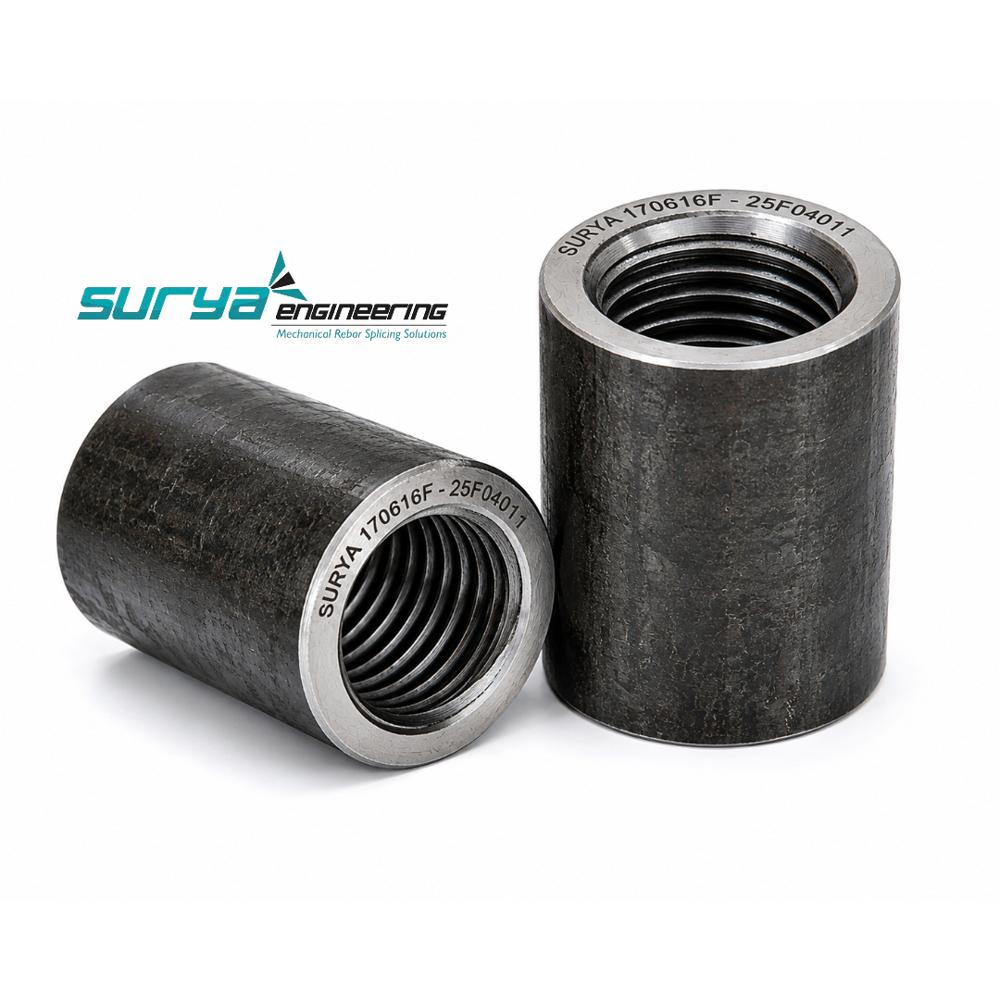

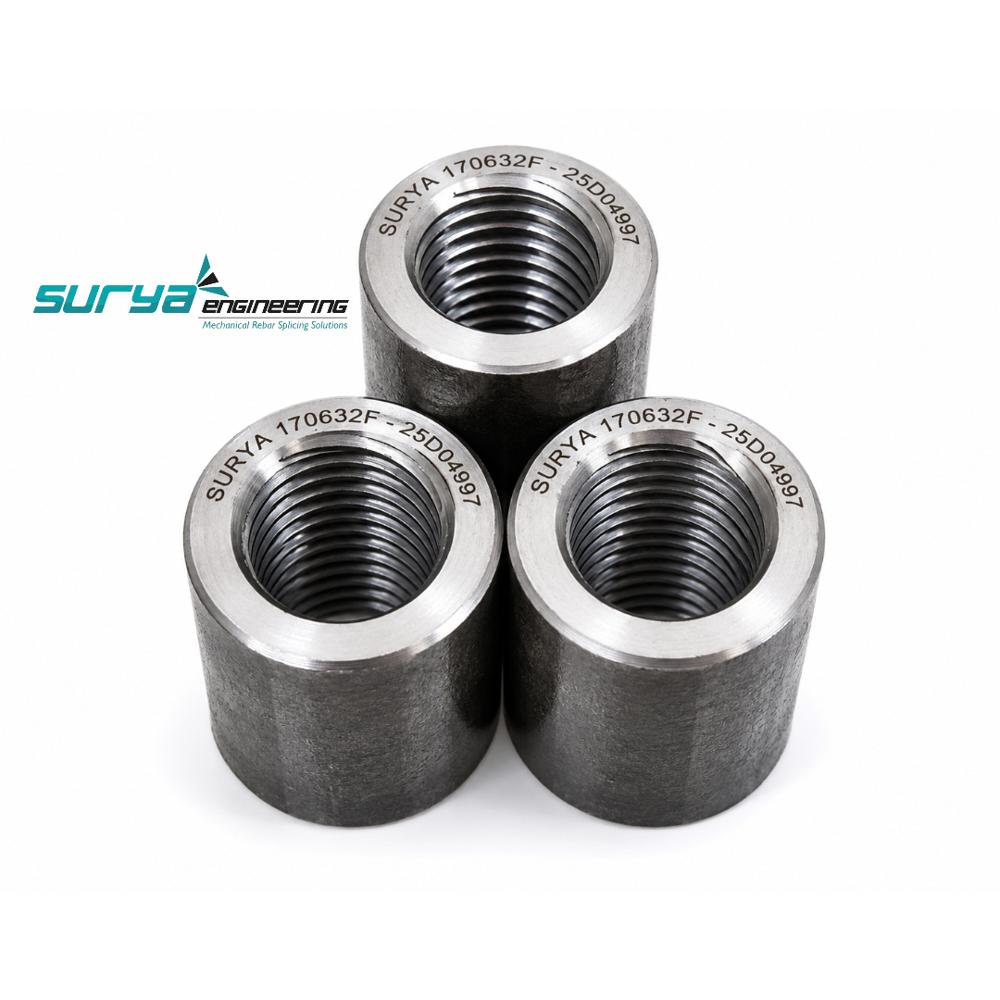

Traceability Mandate: As per IS 16172 guidelines, every batch of couplers produced by Surya Engineering is clearly stamped with our brand mark, nominal size (25 mm ), and batch number for full quality audit compliance.

Strategic Advantages of Choosing Surya Engineering 25mm Couplers

• Up to 70% Steel Scrap Reduction: Eliminates 1.25m+ overlapping lap lengths per joint across thousands of column splices.

• Accelerated Project Timelines: Threaded installation takes seconds compared to manual wire binding of heavy 25mm laps.

• Superior Concrete Quality: Eliminates rebar congestion, enabling thorough vibration and preventing honeycombing pockets.

• Full Ductility & Seismic Resilience: Transfers loads cleanly, preserving the full ductile elongation capacity of Fe 500D / Fe 550D TMT bars during seismic events.

• Pan-India Supply & Technical Support: Surya Engineering provides end-to-end supportfrom certified couplers to site machine setup and torque inspection audits
