Anti Smog Gun Suppliers

Anti Smog Gun Suppliers Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About Anti Smog Gun Suppliers

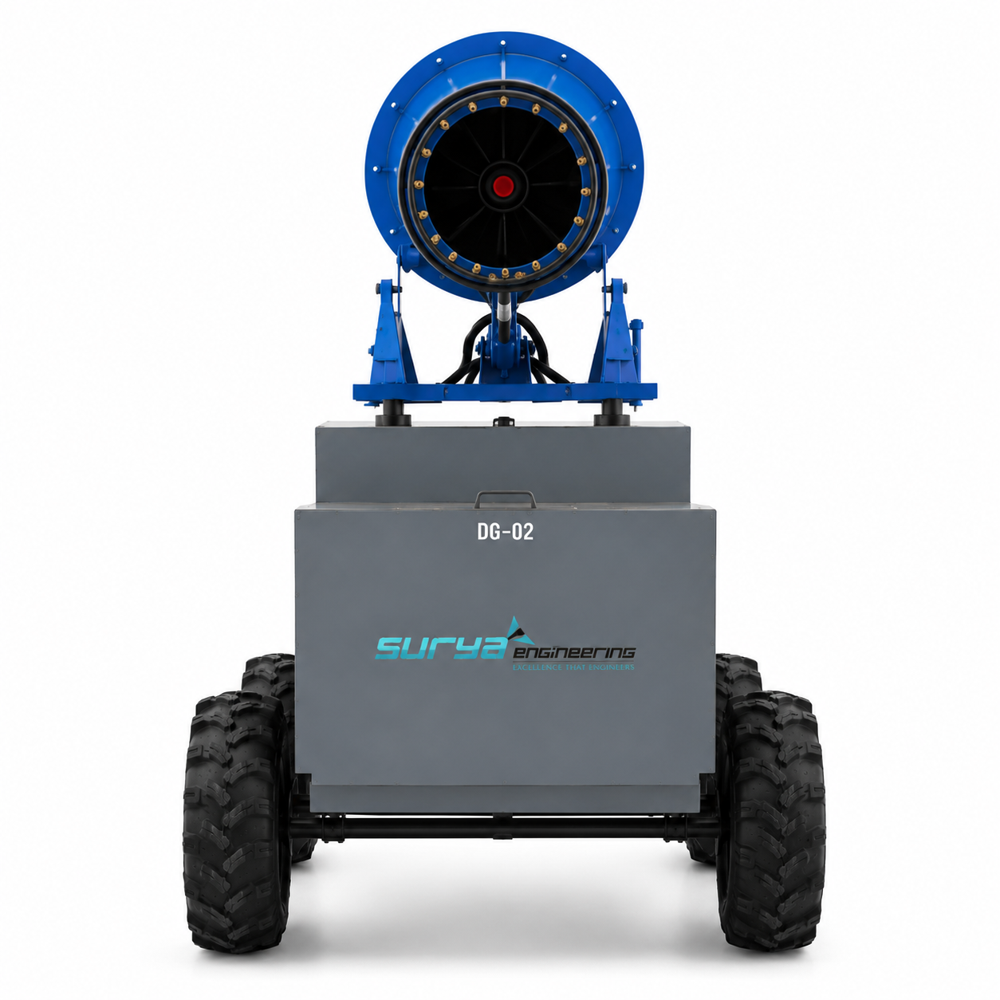

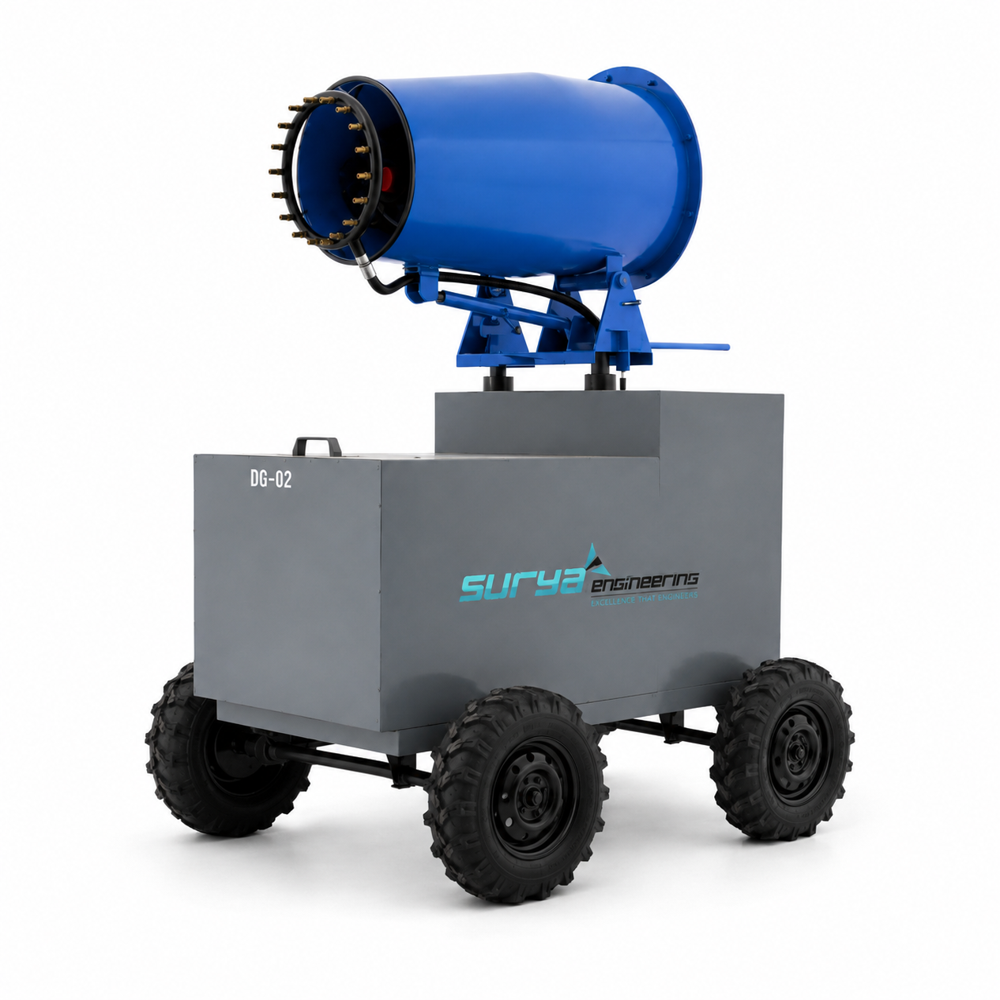

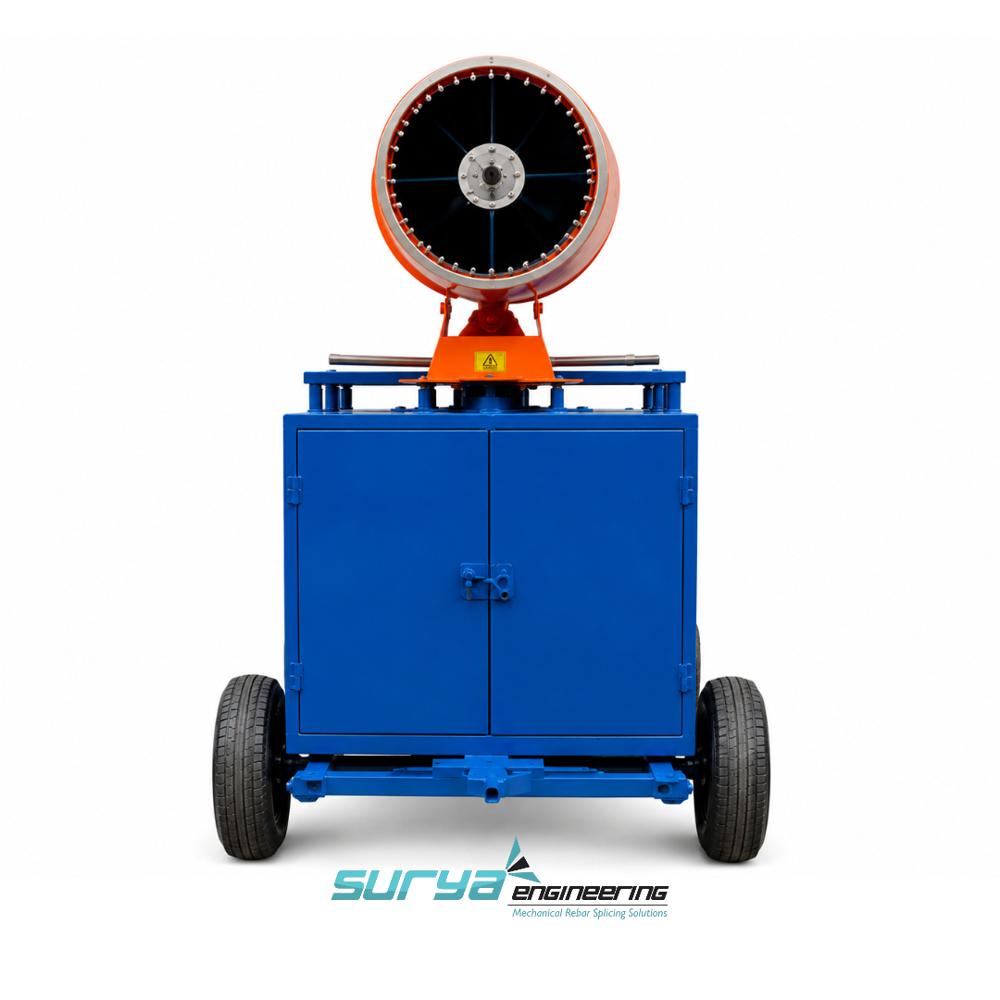

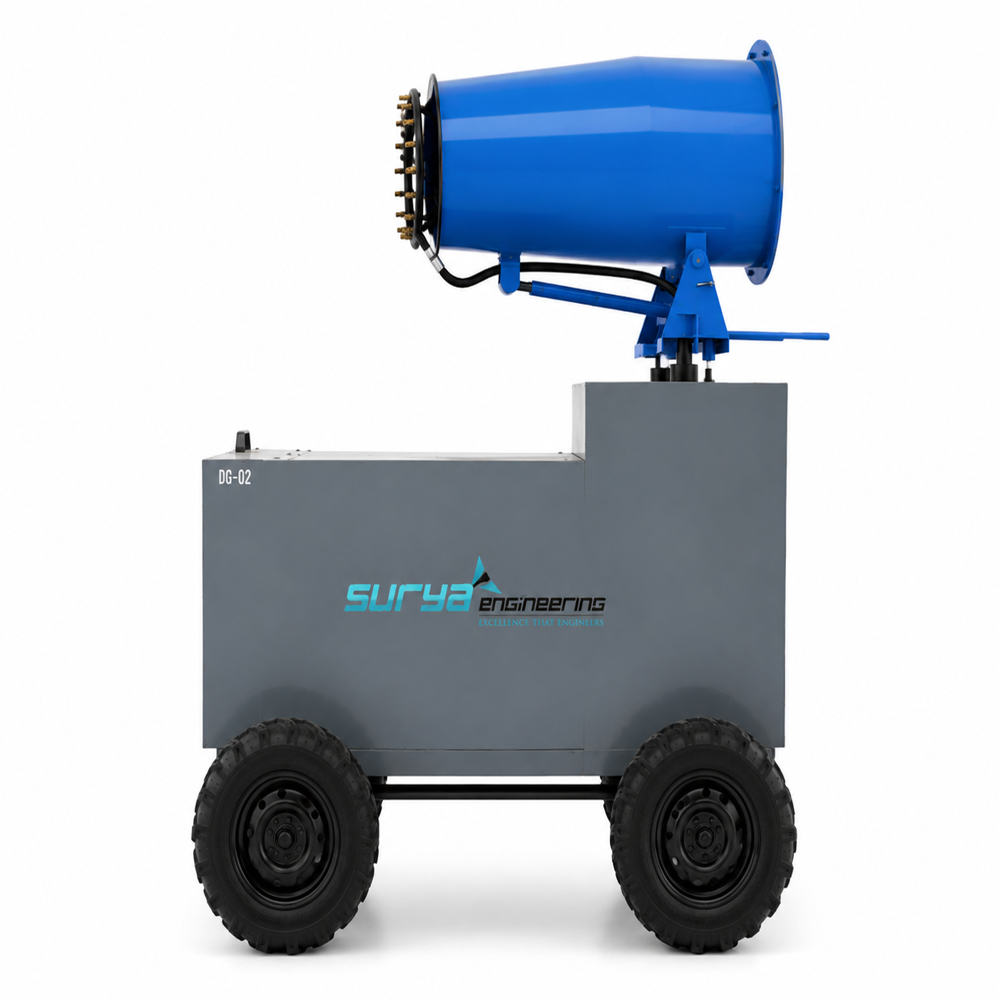

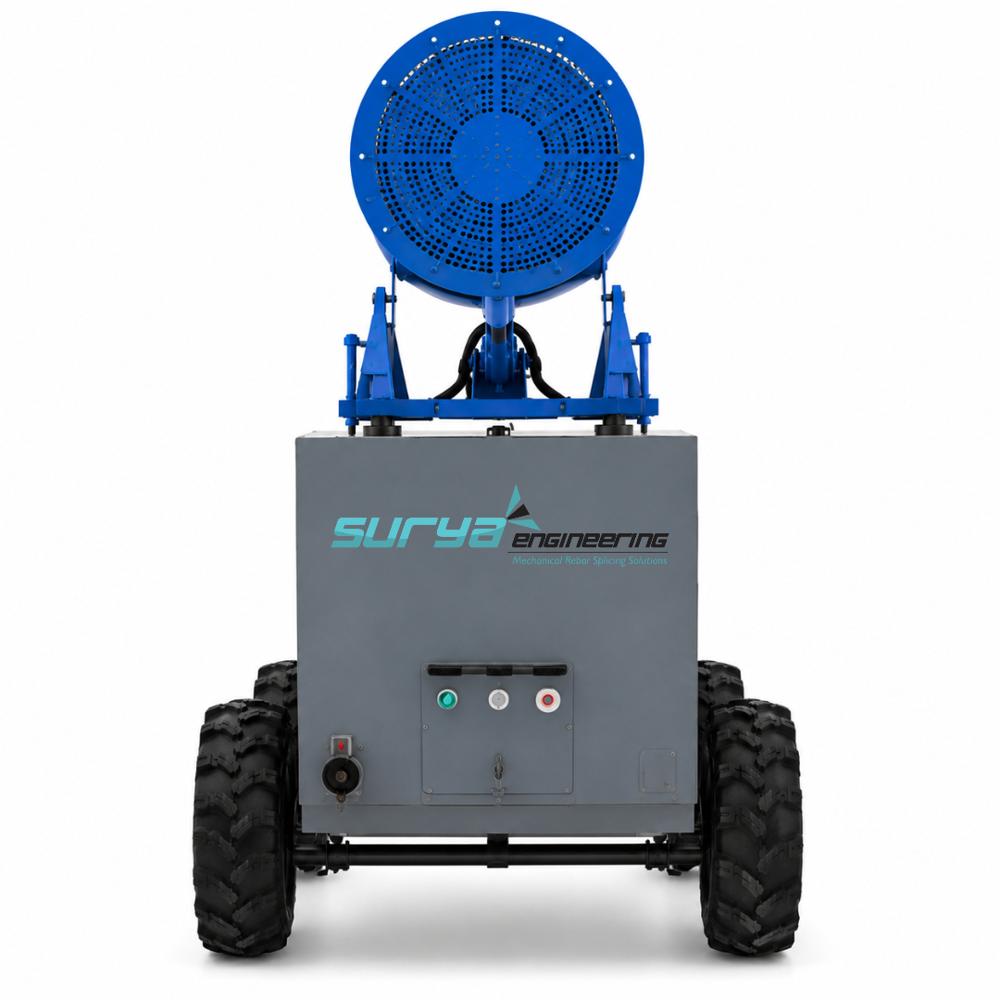

Anti Smog Gun

Anti Smog Gun is a dust suppression machine designed to control airborne dust and particulate matter generated at construction sites, demolition areas, mining operations, roads, material handling yards, and other dusty industrial environments. The system uses a high-pressure water spray and atomized mist to capture and suppress suspended dust particles.

An Anti Smog Gun (also known as a Mist Cannon, Dust Suppression Cannon, or Fog Cannon) is an industrial pollution-control device that sprays atomized water droplets into the air to suppress dust and particulate matter ( $text{PM}_{2.5}$ and $text{PM}_{10}$ ).

The mist binds with airborne dust particles, causing them to increase in weight and settle to the ground via gravity. Anti-smog guns are widely mandated across construction sites, demolition zones, mining operations, and industrial yards.

How It Works

An anti-smog gun works by creating an ultra-fine mist of water that binds with suspended dust and pollutant particles, making them heavy enough to settle on the ground.

Atomization: High-pressure pumps force water through specialized nozzles, breaking it into tiny droplets typically 10 to 100 microns in size.
Propulsion: A high-velocity fan or propeller blows these droplets into the air, creating a "canopy effect" over the target area.
Particle Capture: The fine mist clings to PM10 and PM2.5 particles, increasing their mass and causing them to fall by gravity, similar to natural rain.

Working Mechanism

High-Pressure Atomization: A heavy-duty water pump forces water through specialized micro-nozzles, breaking it into fine droplets ranging from 5 to 50 microns.
High-Velocity Air Flow: A high-speed axial fan blower drives these droplets across distances ranging from 30 to 100+ meters.
Coagulation & Suppression: When micro-droplets collide with suspended dust particles of similar sizes, they attach to them. The heavier combined particles fall out of suspension, clearing airborne haze.

roduct Overview

Specification	Details
Product Name	Anti Smog Gun
Product Type	Dust Suppression System
Primary Function	Airborne Dust Control
Operating Principle	Atomized Water Mist
Application	Construction, Demolition, Mining & Industrial Sites
Water Supply	External Water Tank / Pipeline
Mounting	Trailer / Skid / Fixed Mount, depending on model
Spray Direction	Adjustable
Rotation	Available depending on model
Control	Manual / Electric / Remote, depending on configuration
Power Source	Electric Motor / Diesel Engine, depending on model

Applications in India

Construction & Demolition Sites: Mandatory in Delhi-NCR for sites over 20,000 sq. meters to control dust emissions.
Industrial Areas: Used in factories, warehouses, and mining operations for dust suppression.
Public Spaces: Deployed at bus terminals (ISBTs), traffic intersections, and high-rise buildings in Delhi.
Municipal Use: Delhi PWD hired 200 anti-smog guns at a cost of 5.88 crore for city-wide deployment

Applications

Anti Smog Guns are commonly used for:

Construction sites
Demolition sites
Road construction
Mining and quarry operations
Stone crushing plants
Sand and aggregate yards
Cement and concrete plants
Material stockyards
Coal handling areas
Waste management facilities
Industrial premises
Roadside dust suppression
Excavation and earthwork projects

Benefits

Helps reduce airborne dust
Improves dust control around active work zones
Helps improve visibility in dusty environments
Can reduce dust migration beyond the work area
Covers large open areas
Suitable for temporary and permanent installations
Can be integrated with existing water supply systems
Supports cleaner and more controlled construction environments

Price Range in India

Model / Type	Approximate Price
Trolley-mounted (100 L, 30m range)	1,10,000 1,35,000
Trolley-mounted (30m range)	1,25,000 2,50,000
Semi-automatic (70m throw)	3,50,000
Fully automatic (100m throw)	7,50,000
Truck-mounted (large scale)	20 lakh 38.44 lakh
Bulk hire (200 units, Delhi PWD)	5.88 crore tota

Advanced Dust & Smog Suppression Technology

Our Anti Smog Gun leverages high-pressure hydraulic systems and stainless steel mist nozzles to deliver ultra-fine water droplets, efficiently capturing airborne dust and particulate matter. The 360 rotation and 120 oscillation ensure a broader area of operation, while its low water consumption makes it an environmentally responsible choice.

Comprehensive Industrial Applications

Engineered for versatility, this gun is suitable for industrial, construction, mining, demolition, road dust control, air pollution control, odour management, coal yards, and cement plants. Its robust steel body and powder-coated/painted finish provide excellent durability for challenging environments.

Easy, Automated Operation

With integrated PLC control and computerization, the Anti Smog Gun offers fully automatic functioning, reducing manual intervention. Its consistent performance is supported by a cooling system, high-pressure pump, and intelligent design, streamlining usage for operators and maximizing efficiency.

FAQ's of Anti Smog Gun Suppliers:

Q: How does the Anti Smog Gun help control dust and air pollution?

A: The Anti Smog Gun disperses a fine mist of water through high-pressure hydraulic nozzles (20-80 stainless steel nozzles), which binds dust and airborne pollutants, causing them to settle and reducing overall air pollution at construction sites, mining areas, and industrial facilities.

Q: What are the main benefits of using this Anti Smog Gun in industrial settings?

A: It offers large-area coverage with 360 rotation and 120 oscillation, uses low amounts of water, features high-pressure pumps, and is fully automated with PLC control. This allows efficient dust suppression, operational simplicity, and reduced water wastage, improving site conditions and regulatory compliance.

Q: Where can the Anti Smog Gun be effectively used?

A: It is suitable for a variety of environments such as construction sites, cement plants, coal yards, demolition zones, mining operations, and areas requiring air pollution or odour control. The robust steel construction and powder-coated finish make it ideal for outdoor and industrial use.

Q: What is the process for operating the Anti Smog Gun?

A: Operation is straightforward due to its computerized PLC control system. Users can set desired parameters such as oscillation, rotation, and spray capacity. Once configured, the automatic controls manage mist generation and area coverage with minimal intervention.

Q: When should routine maintenance be performed on the Anti Smog Gun?

A: Routine maintenance should be carried out according to manufacturer guidelines, usually after every significant use or at regular intervals. Regular checks on the hydraulic system, nozzles, and cooling systems ensure optimal performance and longevity.

Q: What distinguishes the Anti Smog Gun in terms of energy and water efficiency?

A: Integrated with low water consumption technology and rated power from 2.2 kW to 22 kW, the gun uses minimal resources while delivering high-pressure misting. This ensures more effective dust control with less energy and water compared to traditional methods.
