Terminator Rebar Coupler

About Terminator Rebar Coupler

What is a Terminator Rebar Coupler?

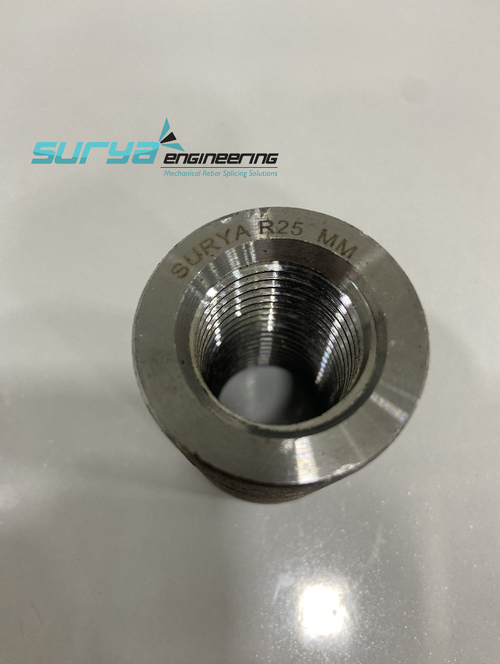

A Terminator Rebar Coupler is a specialized mechanical anchoring device consisting of a heavy-duty steel plate or thick flange integrated with an internal parallel thread. Instead of splicing two bars together end-to-end, a terminator is screwed directly onto the very end of a single rebar.

It acts as a structural "dead-end" nut. The oversized face of the terminator bears directly against the concrete, transferring the full tension load of the rebar through mechanical bearing rather than relying on a long, bent hook embedded deep in the concrete.

Why is it used?

• Eliminates Rebar Hooks: It completely replaces traditional 90-degree or 180-degree hooks at structural terminations.

• Reduces Development Length: By utilizing end-bearing mechanics, it cuts down the anchorage depth or embedment length required by up to 40%.

• Clears Congestion: It clears up the dense web of steel at critical junctions (like beam-to-column or pile-to-cap zones), allowing concrete to flow and consolidate perfectly without creating air pockets or rock voids.

Classification of Terminator Couplers

Depending on the engineering specification and the required structural load, terminators are classified based on the surface area of their anchoring head:

1. 4A Regular Headed Terminators: The head has a net bearing area equal to at least 4 times the cross-sectional area of the rebar. This is the industry standard for standard structural anchoring.

2. 9A Large Headed Terminators: Designed with a massive bearing head equal to 9 times the rebar cross-sectional area, used in high-stress, low-embedment areas such as heavy industrial foundations or nuclear infrastructure.

3. Parallel Threaded vs. Taper Threaded Terminators: Based on the internal thread configuration used to match the pre-machined rebar profile on site.

Applications & Installation

Where are they used?

• Beam-to-Column Joints: Eliminates standard hooks where horizontal beam steel meets vertical column cages.

• Pile Caps & Caissons: Anchors heavy vertical foundation bars where they terminate inside structural capping beams.

• Roof-to-Column Slabs: Provides clean structural dead-ends at the highest floor or roof junctions of high-rises.

• Future Extensions: Installed at current terminal points so that future construction can easily unscrew the terminator and extend the column bars upwards.

Installation Process (Parallel Thread System)

IS Testing Standards: IS 16172:2023 Compliance

In India, all high-performance mechanical anchors and couplers must strictly comply with IS 16172:2023 specifications. When subjected to rigorous third-party or laboratory testing, a compliant terminator joint must clear the following criteria:

• Bar-Break Guarantee (Static Tensile Test): Under heavy pull testing, the mechanical joint must withstand a minimum load of 125% of the rebar's specified yield strength ($f_y$). The steel rebar itself must fracture far away from the couplerthe terminator joint must remain perfectly intact.

• Total Slip Test: Under intense test loading, the relative displacement or permanent slip at the thread junction must be strictly less than 0.1 mm at 60% of $f_y$.

• Cyclic Fatigue Testing: To ensure resilience against seismic shifts or extreme wind loads, the assembly must pass 100 continuous cycles of tension-to-compression stress without any visible cracking or thread degradation.

The Surya Engineering Advantage (Mumbai & PAN India)

As a reliable manufacturer based in Mumbai (Sakinaka) with comprehensive supply chains operating across PAN India, Surya Engineering manufactures premium-grade Terminator Rebar Couplers engineered from high-tensile C-45 Carbon Steel and EN8D grade materials.

Key Benefits of Partnering with Surya Engineering:

• Drastic Material Savings: Eliminating lengthy bent anchor hooks reduces total reinforcement steel weight by up to 1015% across your project's terminal zones.

• Simplified Formwork: No more drilling precise holes or ruining expensive timber formwork to let protruding, crooked starter bars pass through.

• Faster Construction Speeds: Screwing on a terminator takes under a minute, significantly dropping site man-hours compared to complex steel bending and alignment.

• Complete On-Site Support: We don't just ship products; we provide complete automatic threading and cold-forging machinery setups on a rental or service model directly to your site location anywhere in India.

Site Safety Note: By replacing bulky hooked rebars with our compact, IS 16172-certified terminators, your project achieves optimal concrete consolidation and uniform load paths, meeting structural audit guidelines with zero hassle.
