What is U-Shape PVC Footstep?

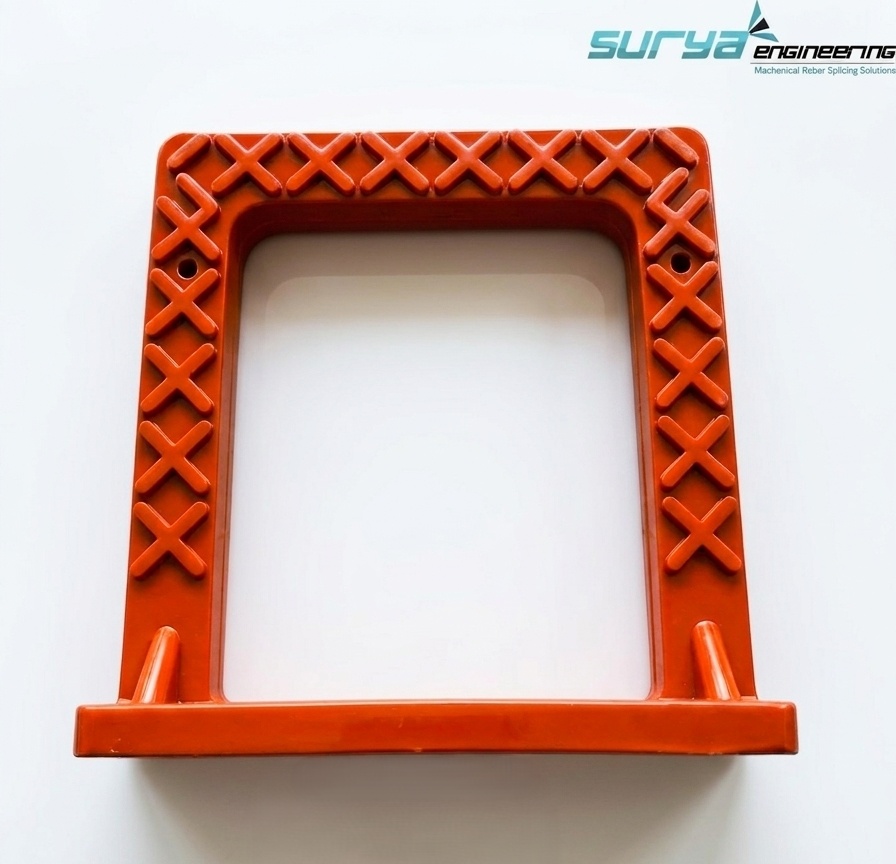

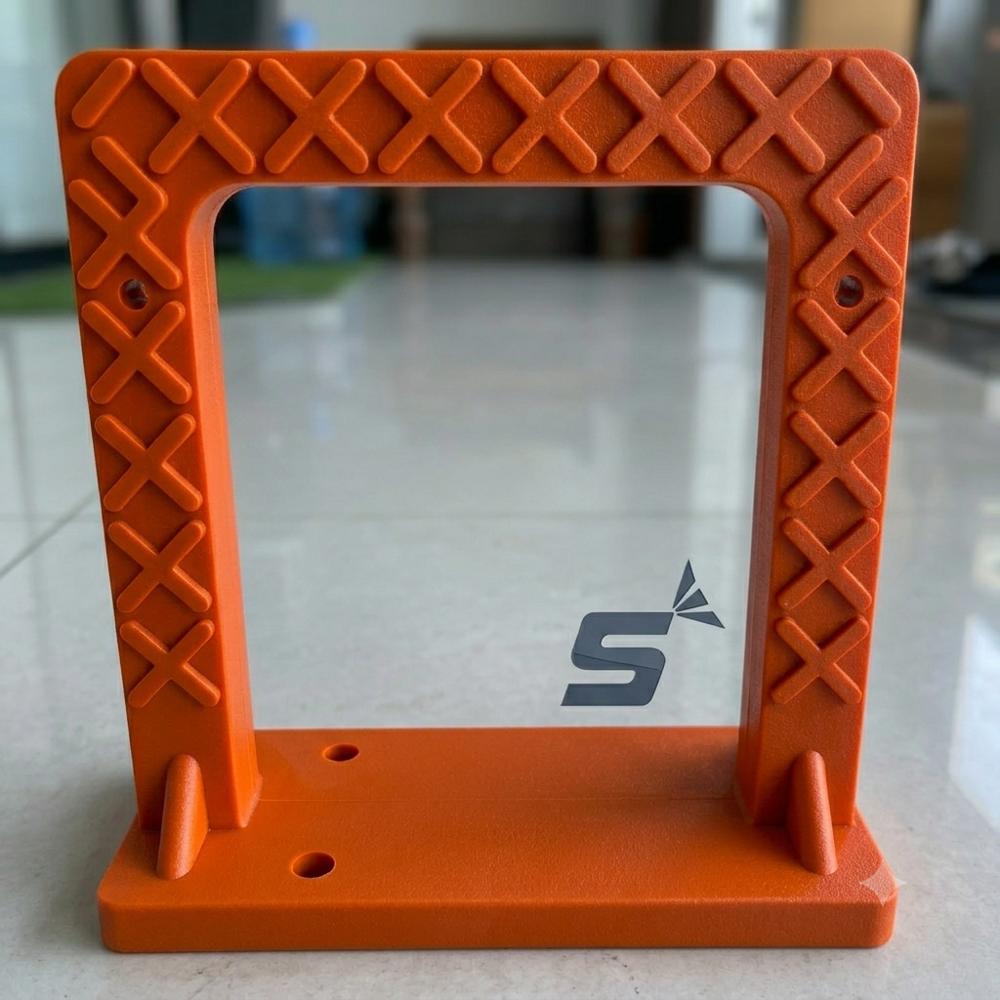

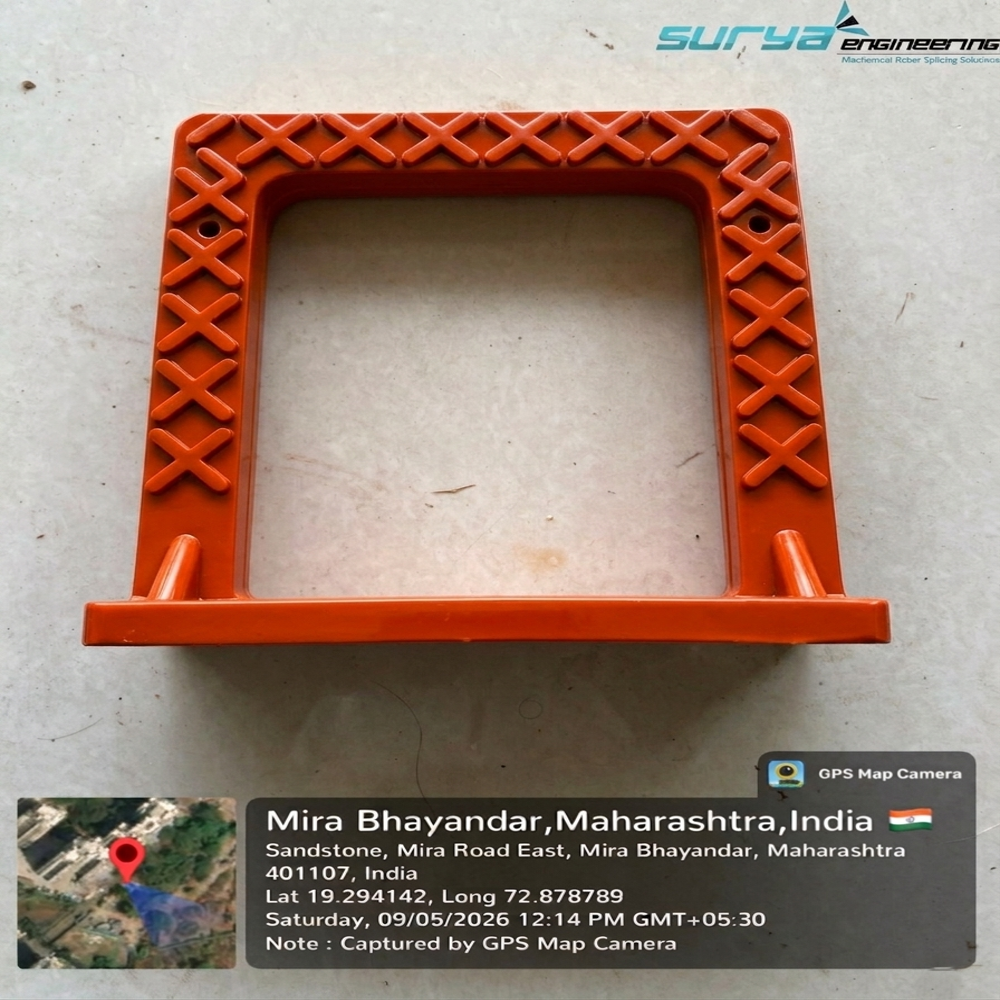

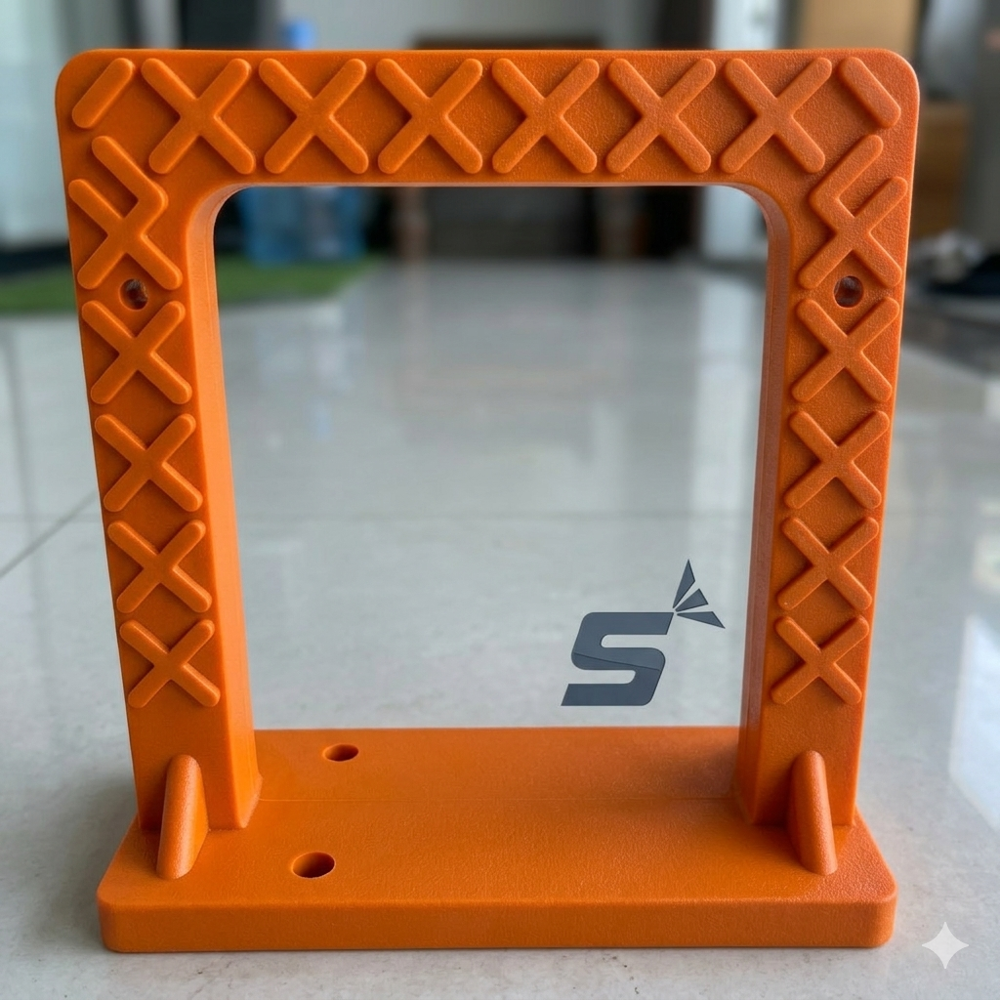

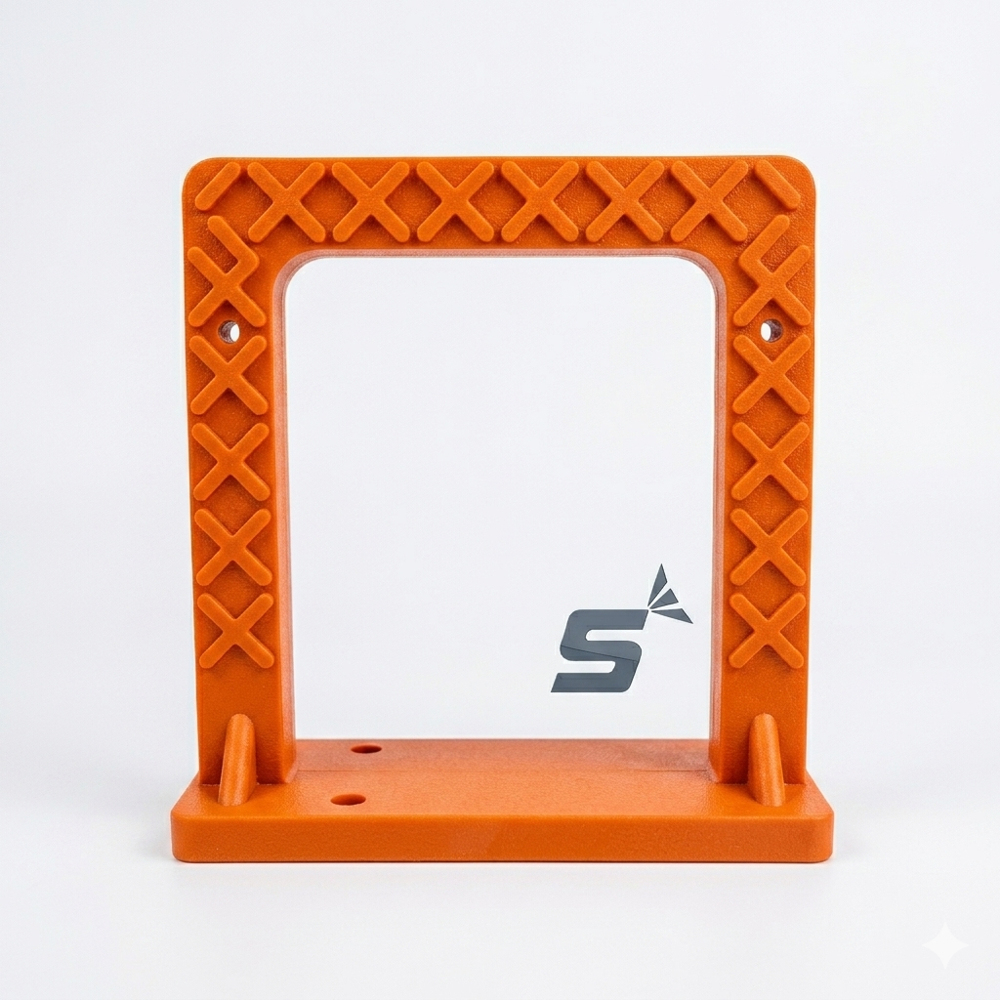

A U-Shape PVC Footstep (also known as U-Shape PVC Rung or U-Shape Manhole Step) is a safety climbing step designed with a distinct "U" shaped appearance. Unlike standard straight or L-shaped footsteps, the U-shape design provides superior grip and stability when embedded in concrete walls.

Why is U-Shape PVC Footstep Used?

U-Shape PVC Footsteps are the preferred choice for safe access to confined spaces. Here's why:

1. Superior U-Shape Design

The U-shaped configuration provides a firm grip inside concrete walls. The two arms of the "U" anchor deeply into the wall, ensuring the step does not rotate or loosen over time.

2. Perfect Alternative to Metal Steps

Traditional Mild Steel and Cast Iron steps rust and corrode in wet environments. U-Shape PVC footsteps completely eliminate this problem.

3. Worker Safety First

The non-slip surface with 2 mm treads and ribbed/chequered design provides excellent grip even in wet or muddy conditions.

4. Long-Lasting Durability

PVC is weather-proof, abrasion-resistant, and non-corrosive, ensuring a long service life with zero maintenance.

5. Theft-Resistant

U-Shape PVC footsteps have no scrap value, making them unattractive for theft a significant advantage over metal steps.

6. Cost-Effective

More affordable than stainless steel alternatives while offering superior durability in most applications.

Classification of U-Shape PVC Footsteps

U-Shape PVC Footsteps are classified based on several parameters:

Based on Material Composition

Based on Steel Reinforcement

Based on Size

Based on Color

• Orange High visibility for enhanced safety

• Black Standard color option

Based on Installation Type

Applications of U-Shape PVC Footstep

U-Shape PVC Footsteps are versatile and used across multiple sectors:

1. Underground Water Tanks

Safe entry and exit for maintenance and cleaning operations

2. Sewerage Manholes

Access for sanitation workers in corrosive sewage environments

3. Overhead Water Tanks

Climbing access for inspection and repair

4. Swimming Pools

Safe steps for pool access and maintenance

5. Sump Tanks

Reliable access for pump maintenance and cleaning

6. Multi-Storied Buildings

Access points in basements, service shafts, and utility areas

7. Industrial Settings

Factories, warehouses, construction sites, and machinery access points

8. Inspection Chambers

Regular inspection and maintenance access

9. Underground Pits

Industrial settings and utility installations

10. Under Construction Sites

Temporary and permanent access solutions

Installation of U-Shape PVC Footsteps

Installing U-Shape PVC Footsteps is a straightforward process that can be done during or after construction:

Installation Process (Drive-in Type):

Step 1: Mark the Positions
With the help of a bubble level rule, mark the ends where the step will be inserted. Take the centre of each side of the rod as reference. Depending on the model, the distance will be 300 mm, 320 mm, 330 mm, 340 mm, or 380 mm, from centre to centre.

Step 2: Maintain Proper Spacing
Repeat the process with each manhole step, leaving a recommended distance of 250 mm between the step irons.

Step 3: Drill the Holes
Once the marks have been made, drill with a concrete drill bit of 25 mm diameter to the required depth, leaving a perfect hole for the insertable part of the manhole steps.

Important: If holes are not made accurately (for example, too large), the step will not be well fixed. In this case, the hole must be filled with mortar, putty, or chemical plug.

Step 4: Insert the Step
Hit the rung with several firm strokes at the sweet spots. Once fixed, strike at the same sweet spots until the total insertion depth is achieved, so that only the rectangular or round part of the step is visible.

The ends of the anchor are round and slightly conical. They act like harpoons once placed, which ensures that the step is totally immobile.

Step 5: Ready to Use
Your manhole step ladder is ready to be used. If the installation was correct, the rungs will withstand tensile forces greater than 800 kg.

Installation Methods Summary:

IS Testing Standards

Surya Engineering manufactures U-Shape PVC Footsteps in compliance with Indian and International Standards to ensure quality and safety:

Key Standards:

Testing Parameters:

Material Specifications:

Advantages of U-Shape PVC Footstep

1. Superior U-Shape Design

The U-shaped configuration provides exceptional grip inside concrete walls and prevents rotation.

2. Unbreakable & Durable

Engineered to be virtually unbreakable with high impact resistance. Steel reinforcement provides strength while PVC encapsulation ensures longevity.

3. Corrosion Resistance

PVC is impervious to chemicals and corrosive agents commonly found in sewage and water environments.

4. Non-Slip Surface

The textured or ribbed surface provides excellent traction even when wet or covered in contaminants.

5. Weather-Proof

Withstands extreme weather conditions including rain, heat, and cold.

6. Lightweight & Easy Handling

PVC is relatively lightweight compared to metal, making installation easier in confined spaces.

7. Low Maintenance

Requires minimal maintenance easy to clean, does not rust, corrode, or rot.

8. Theft-Resistant

Has no scrap value, making it unattractive for theft.

9. Excellent Grip

PVC Encapsulated Rungs provide a very tight grip for worker safety.

10. High Load Capacity

Load capacity easily exceeds 225 kg as per IS-5455.

11. Cost-Effective

More affordable than stainless steel alternatives.

12. Hygienic

PVC is easy to clean and disinfect, maintaining sanitary conditions.

13. Multiple Installation Options

Available in both drive-in and anchor types for flexibility in installation.

Surya Engineering: Your Trusted Manufacturer

Surya Engineering is a premier manufacturer and supplier of U-Shape PVC Footstep Rungs with a pan-India presence

Pan-India Dealer Network:

Surya Engineering serves customers across India with dealers in:

Maharashtra: Mumbai, Pune, Kolhapur, Solapur

South India: Bangalore, Hyderabad, Vijayawada, Vizag, Mysore, Hubli, Mangalore, Chennai, Gadag, Chittoor

West India: Surat, Vadodara, Ahmedabad, Rajkot

North India: Delhi, Kota, Udaipur, Indore, Patna

East India: Kolkata, Raipur, Rourkela

Product Specifications (Surya Engineering U-Shape PVC Footstep):
