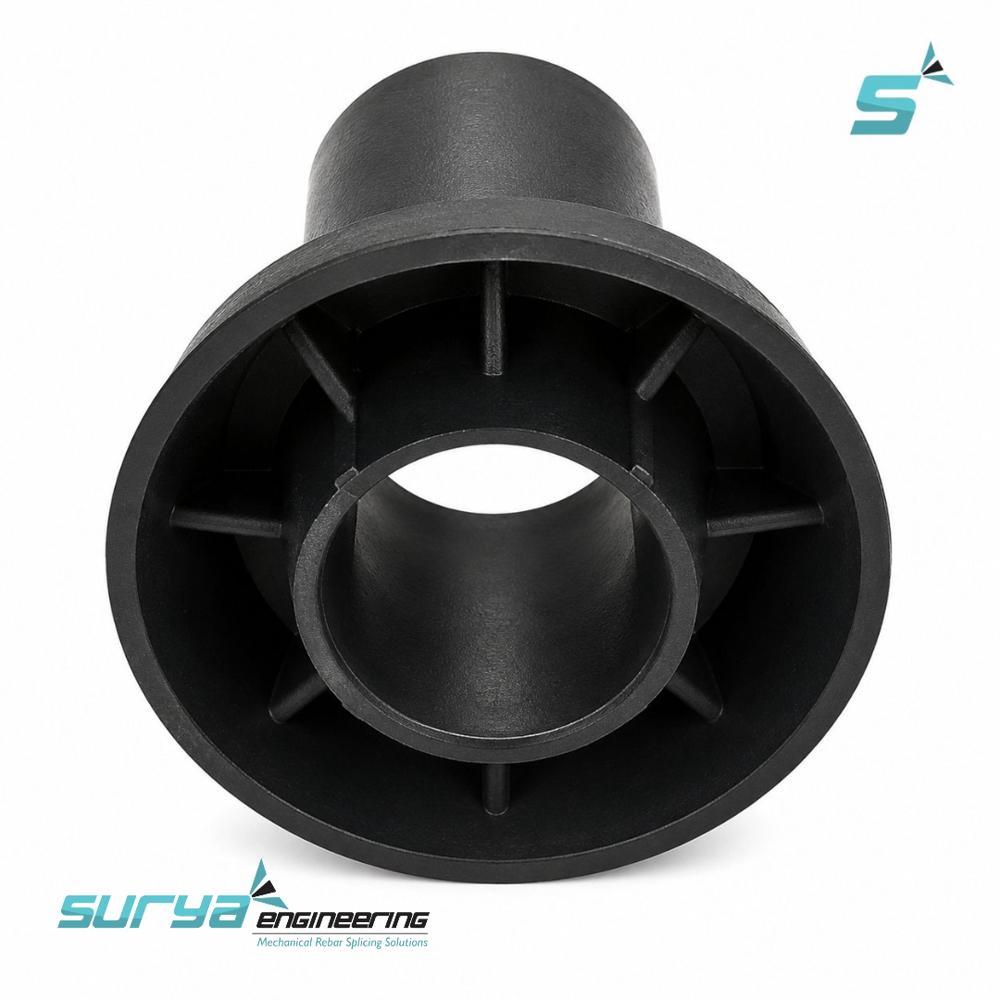

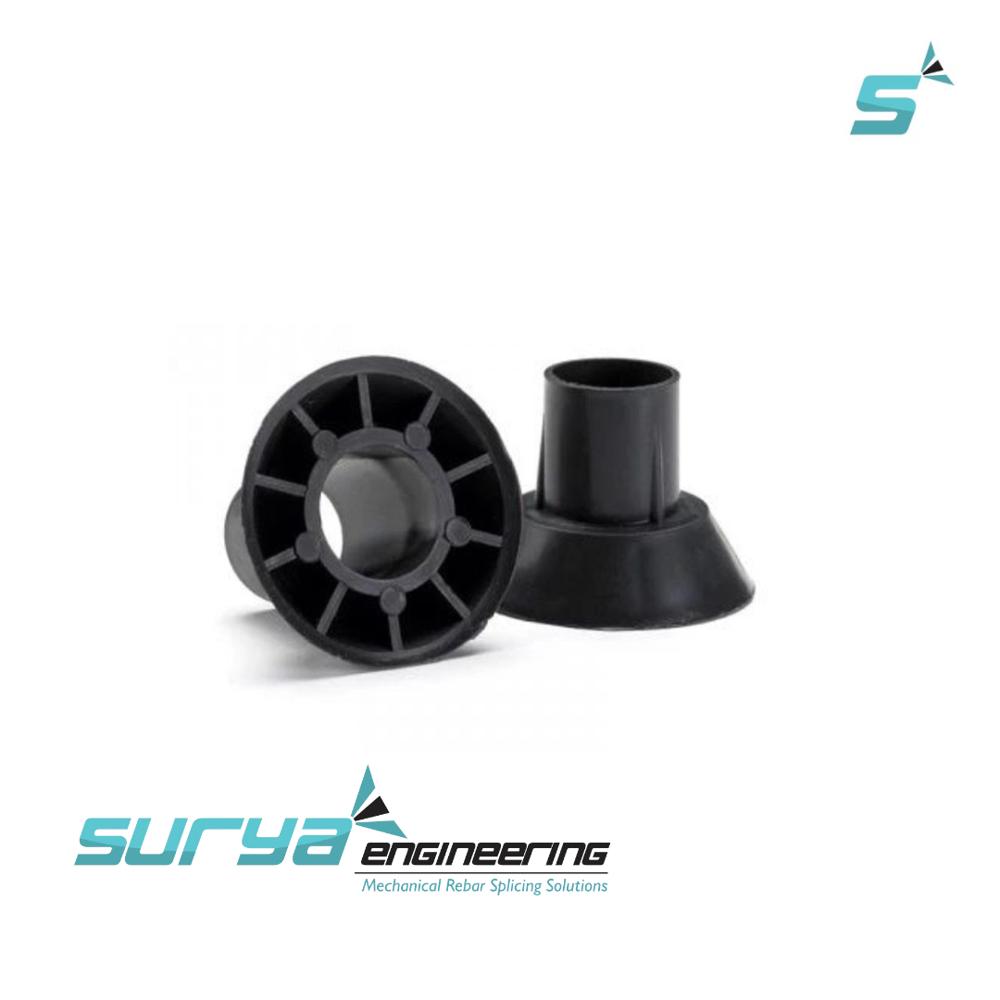

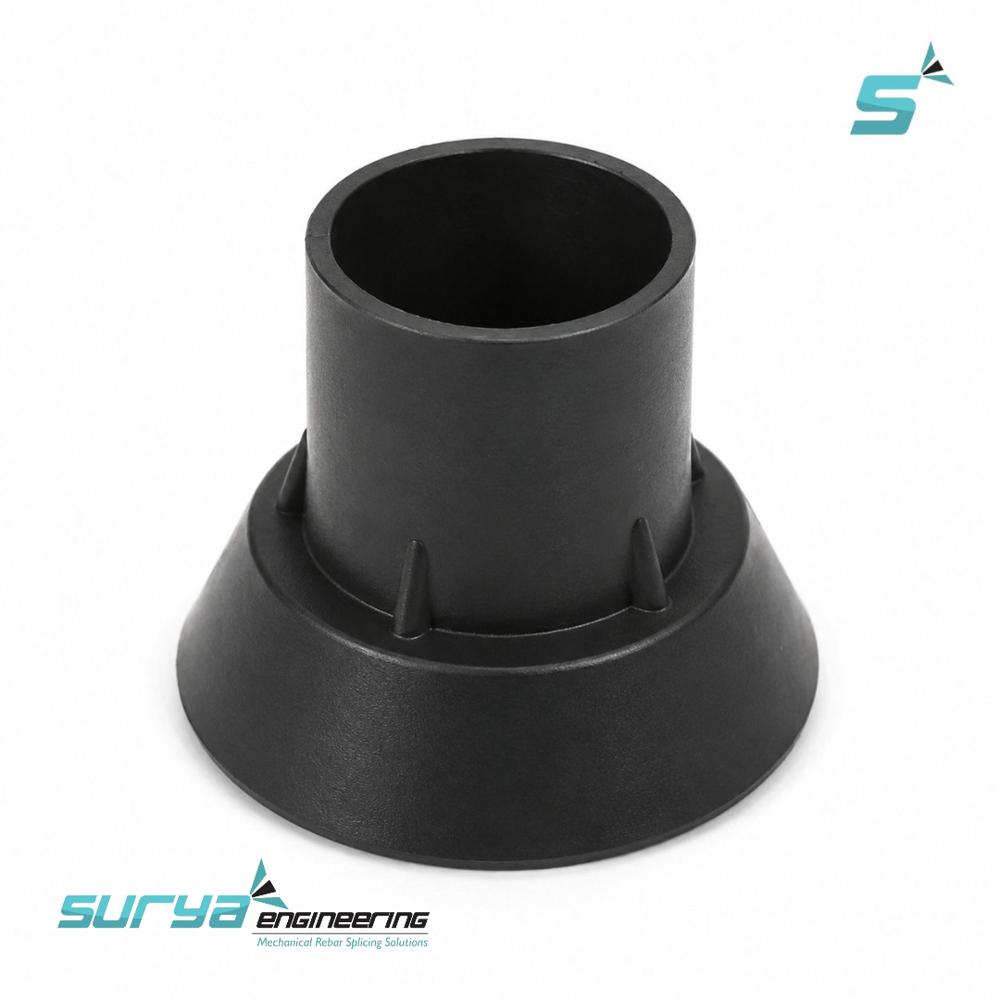

 PVC Cone for Shuttering / Formwork Cones

The PVC Cone for Shuttering (also known as Formwork Cone, Spacer Cone, Tie Rod Cone, or Cone Lock System) is an essential accessory in modern concrete formwork systems. These precision-molded plastic cones serve as spacing components between formwork panels, enabling accurate alignment of tie rods while creating uniform wall thickness in concrete structures.

Manufactured from high-grade virgin PVC (Polyvinyl Chloride) or engineering-grade plastics, our shuttering cones are designed to be used with formwork tie rods, water bars, and snap ties to maintain consistent concrete cover and facilitate easy dismantling of formwork after concrete curing.

Technical Specifications

Performance Features

1. Accurate Concrete Cover & Spacing:
Our PVC cones ensure precise spacing between formwork panels and steel reinforcement, maintaining uniform concrete cover as per structural design requirements. This prevents exposed reinforcement and ensures structural integrity.

2. Secure Tie Rod Alignment:
The cone's internal tapered design securely holds the tie rod in position, preventing lateral movement during concrete pouring and vibration. This eliminates the risk of tie rod misalignment and panel displacement.

3. Easy Stripping & Removal:
The smooth, non-stick surface of PVC cones allows for effortless removal from hardened concrete. After dismantling, the cones can be easily extracted, leaving clean, uniform holes for subsequent filling or sealing.

4. Waterproofing Capability:
When used in combination with water bars or rubber seals, PVC cones can serve as effective water-stopping components, preventing water ingress through tie rod holes in basements, water tanks, and retaining walls.

5. Reusability & Cost Efficiency:
Manufactured from durable, impact-resistant materials, our PVC cones can be reused multiple times (1525 cycles), significantly reducing formwork accessory costs for contractors and rental companies.

6. Lightweight & Easy Handling:
The lightweight nature of PVC cones simplifies transportation, storage, and installation on construction sites, reducing labor costs and handling time.

7. Chemical & Weather Resistance:
PVC material offers exceptional resistance to alkalis, salts, and chemical admixtures found in concrete mixes, as well as resistance to UV radiation and extreme temperatures.

Types of PVC Shuttering Cones

Applications

• Residential & Commercial Buildings: Wall, column, and slab formwork

• Infrastructure Projects: Bridges, flyovers, tunnels, and culverts

• Water Retaining Structures: Water tanks, reservoirs, swimming pools, and sewage treatment plants

• Basements & Retaining Walls: Waterproof concrete structures

• Precast Concrete Elements: Factories, yards, and casting beds

• Industrial Construction: Foundations, machine bases, and heavy equipment platforms

• Marine Structures: Jetties, docks, and coastal protection works

Why Choose Us as Your PVC Cone Manufacturer?

Quality Assurance

As an established PVC cone manufacturer, we implement stringent quality control measures throughout our production process:

Raw Material Testing:

• Density verification

• Melt flow index testing

• Tensile and compressive strength analysis

In-Process Inspection:

• Dimensional accuracy checks

• Visual inspection for surface defects

• Weight consistency monitoring

Final Product Testing:

• Compression strength testing

• Chemical resistance testing

• Temperature resistance testing

• Dimensional tolerance verification

• Reusability cycle testing

Frequently Asked Questions (FAQ) - AEO Optimized

Q1: What is a PVC cone used for in construction?
A PVC cone, also known as a formwork spacer cone, is used to maintain accurate spacing between formwork panels and steel reinforcement bars. It holds tie rods in position and ensures uniform concrete cover, resulting in structurally sound concrete elements.

Q2: How are PVC cones installed in formwork?
PVC cones are placed over the tie rods, positioned between the two formwork panels, and secured with nuts or wedges. The cone ensures the panels remain at the desired distance, preventing collapse under concrete pressure.

Q3: Can PVC cones be reused?
Yes, our high-quality PVC cones can be reused 15 to 25 times with proper handling. Their durable construction and smooth, non-stick surface make them ideal for multiple construction cycles.

Q4: Are PVC cones waterproof?
Yes, PVC material has very low water absorption (<0.5%) and excellent waterproofing properties. When used with rubber seals or water bars, they provide effective water-stopping solutions for basements, tanks, and water-retaining structures.

Q5: What sizes are available for PVC shuttering cones?
We offer standard sizes ranging from 40mm to 120mm diameter and 50mm to 300mm height. Custom sizes can be manufactured upon request.

Q6: What is the difference between a PVC cone and a plastic cone?
PVC (Polyvinyl Chloride) is a specific type of plastic known for its excellent chemical resistance, durability, and cost-effectiveness. "Plastic cone" is a general term; PVC cones are preferred in construction due to their superior strength, alkali resistance, and reusability.

Q7: Do you provide custom colors for PVC cones?
Yes, we offer custom color options including white, orange, blue, yellow, green, and any other color as per your requirement. Color coding can help differentiate between sizes and projects.

Q8: What is the minimum order quantity?
MOQ varies based on size, design, and color specifications. Standard sizes typically have lower MOQ. Please contact our sales team for specific details.

Q9: How are PVC cones shipped?
We package cones in durable polybags, cartons, or as per customer requirements. Bulk orders are shipped in palletized or containerized packaging for safe transit.

Q10: Are your PVC cones environmentally friendly?
We use lead-free, phthalate-free, recyclable PVC compounds compliant with environmental regulations. We also offer recycled material options upon request.

Installation Guide

Step 1: Position the tie rod through the formwork panel's tie rod hole.
Step 2: Place the PVC cone over the tie rod from the outside of the panel.
Step 3: Secure with the appropriate washer, nut, or wedge on both sides.
Step 4: Repeat the process at all tie rod locations on the formwork.
Step 5: Pour concrete and allow proper curing.
Step 6: After concrete hardening, dismantle formwork panels.
Step 7: Extract PVC cones from the concrete using a hammer or extraction tool.
Step 8: Clean and store cones for reuse on future projects.

Serving the Global Construction Industry

As a leading PVC cone manufacturer, we serve construction projects worldwide with premium formwork accessories.

Regional Keywords for GEO Optimization

Global Shipping & Logistics

• Shipping Modes: Air freight, Sea freight (FCL / LCL), Courier (DHL, FedEx, UPS)

• Lead Time: Standard sizes in 715 days; custom orders in 2030 days

• Ports of Export: Major international ports with streamlined customs clearance

• Customs Support: Full documentation and compliance assistance provided

• After-Sales Support: Technical assistance and replacement policies
