What is a Rebar Coupler?

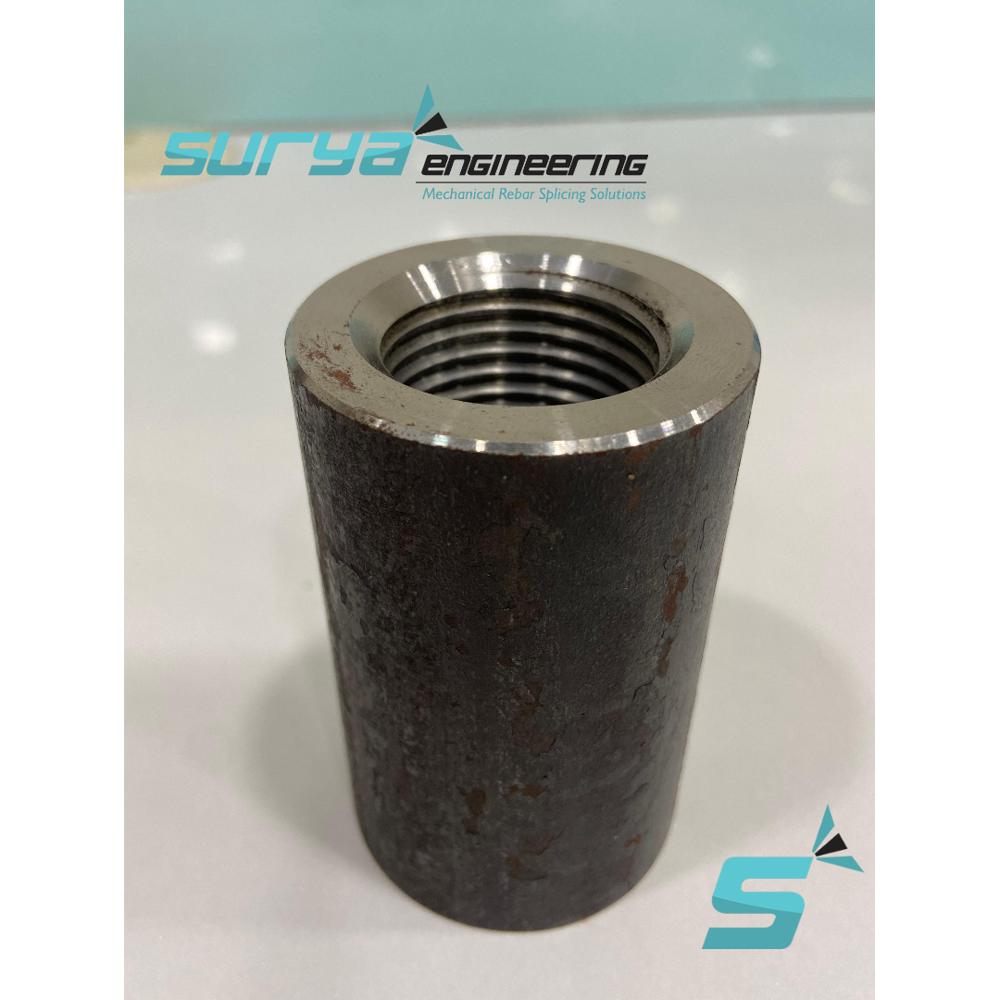

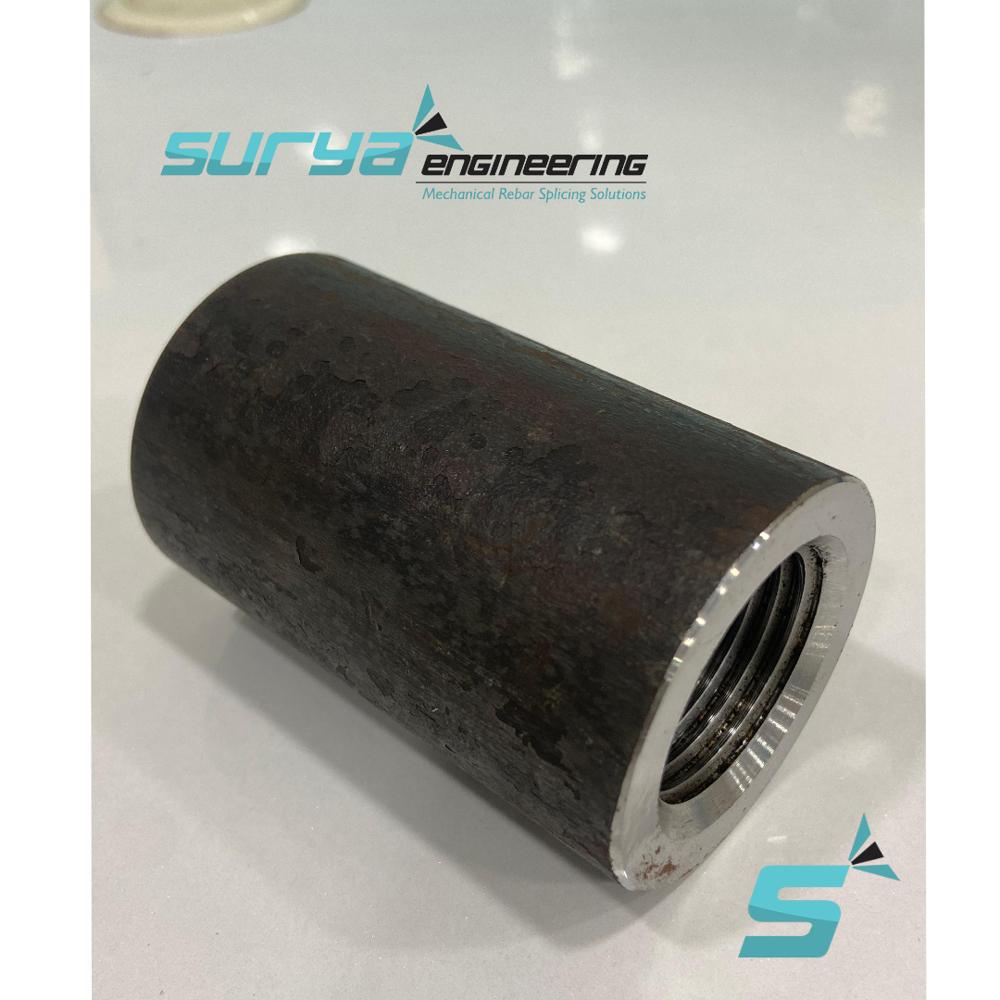

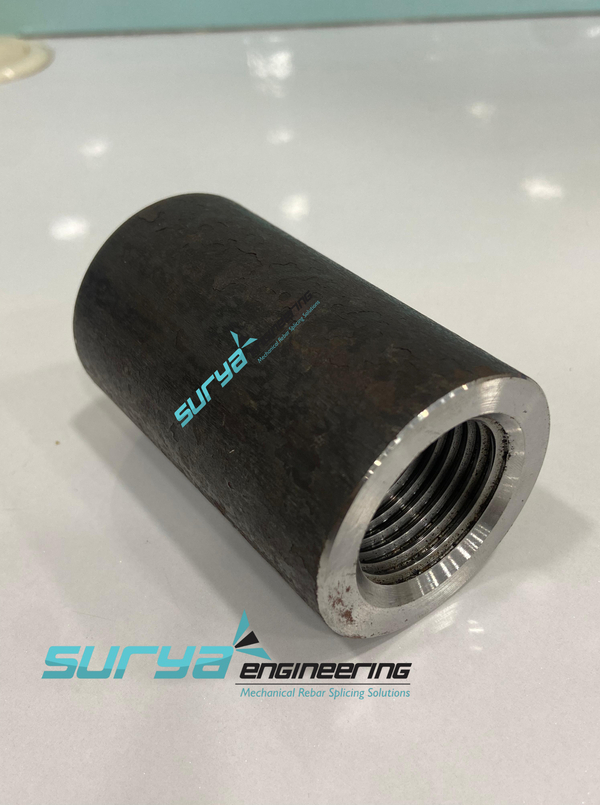

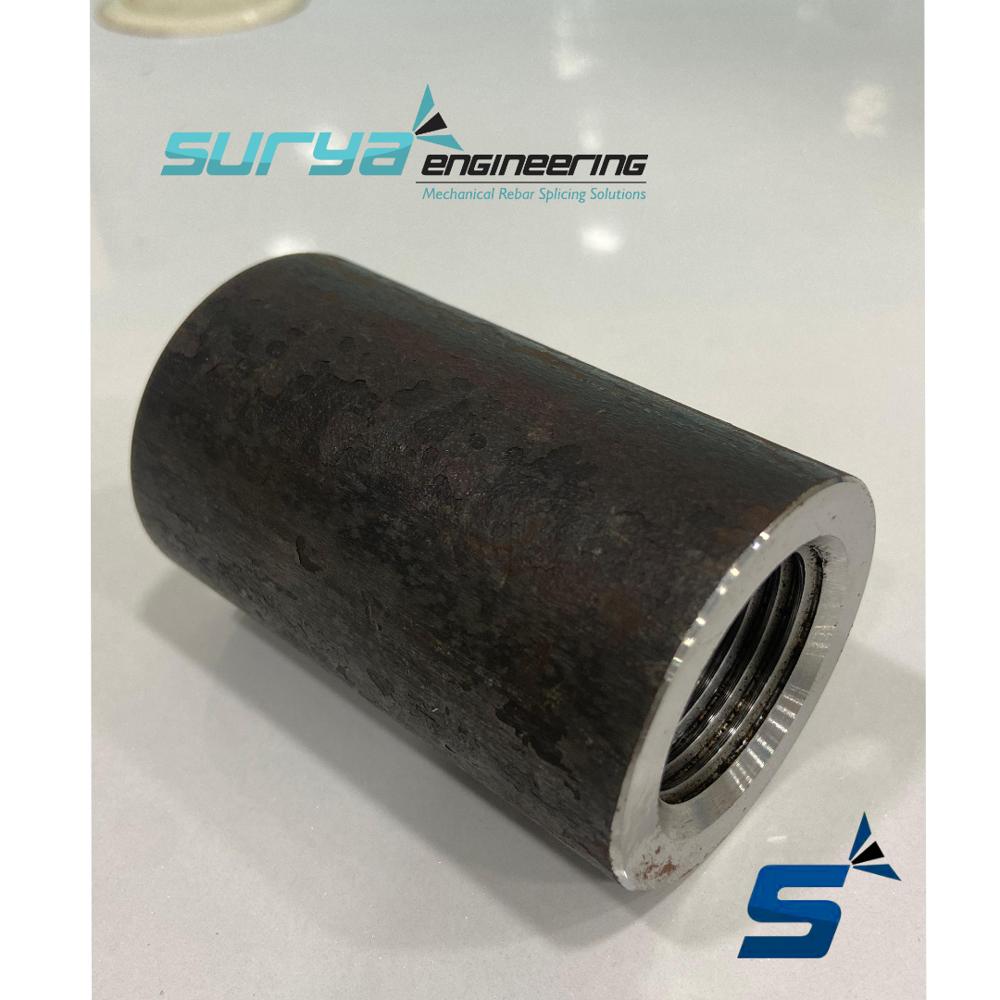

A rebar coupler (also known as a mechanical splice) is a high-strength steel sleeve engineered to connect two reinforcing TMT bars end-to-end.

Traditionally, builders relied on lap splicingoverlapping two steel bars and tying them with wire. While lapping depends on the concrete bond to transfer loads, a rebar coupler creates a direct, seamless steel-to-steel connection, establishing a continuous load path that functions like a single uninterrupted reinforcement bar.

Why is it Used? (Rebar Coupler vs. Lap Splicing)

Engineers and contractors are rapidly transitioning from traditional lapping to mechanical couplers due to several structural challenges:

• Eliminates Steel Congestion: Overlapping thick rebars (especially diameters above 20mm) fills up structural columns with dense steel layers, blocking the smooth flow of concrete aggregate. Couplers maintain a slim profile, preventing air pockets and Honeycombed concrete.

• Massive Steel Savings: Lap lengths typically require an extra 40 to 60 times the diameter of the bar ($40d$ to $60d$). By removing this unnecessary overlap, couplers cut down massive amounts of steel wastage, directly dropping project procurement costs.

• Independent Load Transfer: Lap splices rely entirely on the concrete's bonding strength. If the concrete cracks under seismic stress, the splice can fail. Rebar couplers perform independently of concrete conditions, ensuring full tension and compression transfer.

Classification & Types of Rebar Couplers

At Surya Engineering, we manufacture distinct types of mechanical splices tailored to varying structural design needs:

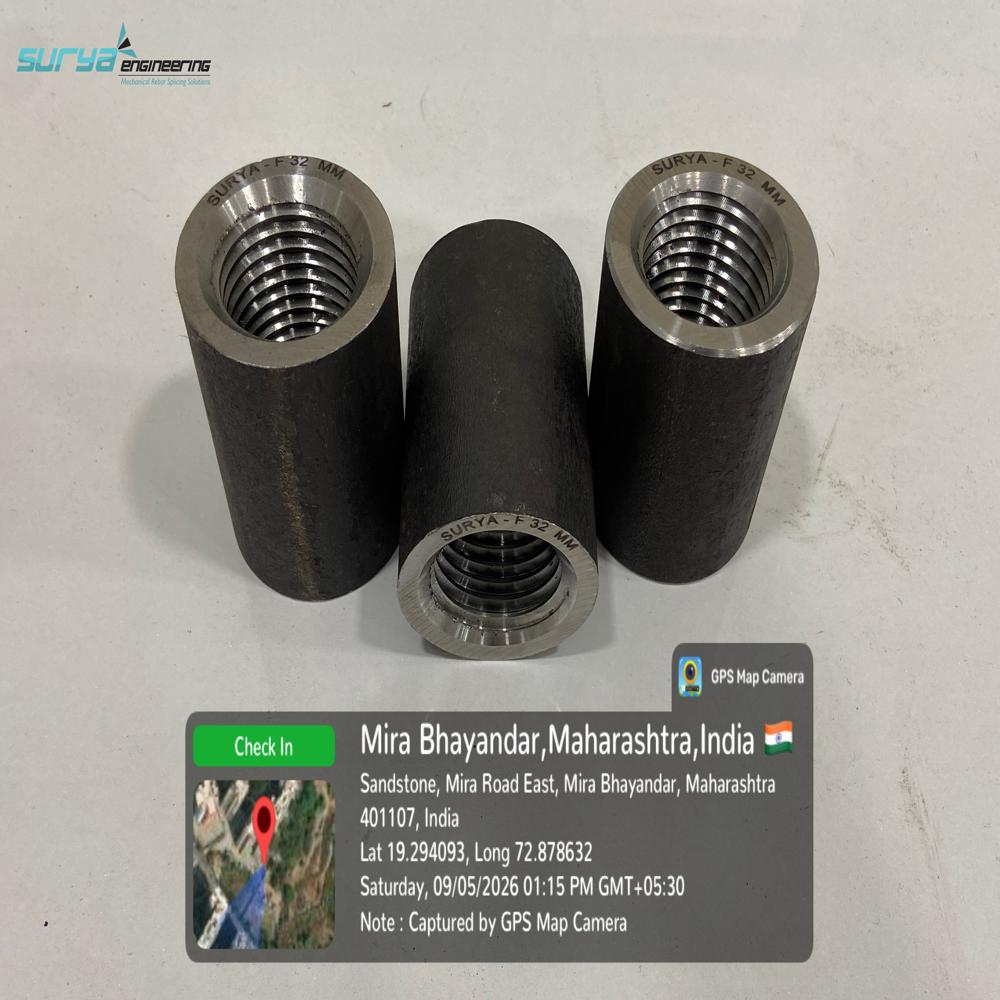

1. Parallel Threaded Rebar Couplers

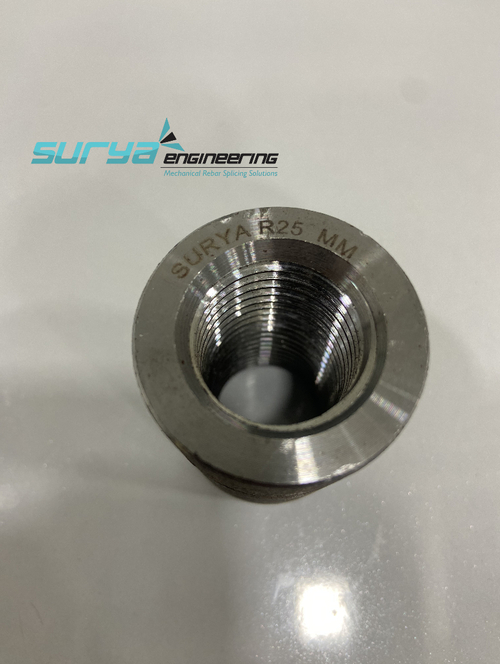

The most widely used couplers in the market. The ends of the TMT bars are square-cut and threaded with standard metric pitches to match the internal threads of the sleeve.

2. Cold Forged (Upset End) Couplers

To prevent any reduction in the bar's core cross-sectional area during threading, the rebar ends are hydraulically pressed (cold forged) to increase their diameter before threads are cut. This ensures the joint is stronger than the parent bar itself.

3. Taper Threaded Couplers

Designed with conical threads, these provide a secure, quick-locking mechanism. They are highly efficient for fast-track projects as they require fewer rotations to fully engage.

4. MBT (Locking Bolted) Couplers

Ideal for retrofitting, structural repairs, or locations where threading machines cannot be deployed. The rebars are slid into a smooth sleeve and locked firmly into place using multiple high-torque break-off bolts.

5. Transition Couplers

Used specifically to seamlessly join two TMT bars of differing diameters (e.g., connecting a 32mm bar to a 25mm bar in multi-story columns).

Applications of Rebar Couplers

From massive infrastructure blueprints to commercial high-rises, rebar couplers are critical components in:

• High-Rise Towers: Utilized in heavy load-bearing vertical columns and core shear walls to manage extreme structural weight.

• Bridges, Flyovers & Metro Viaducts: Perfect for deep pile foundations, pile caps, and massive bridge piers handling dynamic traffic loads.

• Heavy Industrial Foundations: Deployed in power plants, dams, and factories with high-diameter reinforcement requirements.

• Diaphragm Walls & Tunnels: Essential in underground metro stations where space is confined and continuous reinforcement lines are mandatory.

Step-by-Step Installation Process

Achieving a flawless mechanical joint requires precision alignment. The standard field installation sequence involves:

1. Bar End Squaring: Cut the TMT bar ends precisely flat at 90 degrees using a mechanical saw.

2. Threading / Forging: Use a specialized threading machine to form external threads on the bar ends. If using high-performance specifications, cold forge the bar end before threading.

3. Thread Protection: Fit plastic caps over the prepared threads to prevent rust or debris accumulation before assembly.

4. Coupler Engagement: Hand-tighten the coupler onto the first rebar, then align the second rebar into the opposite end.

5. Torque Tightening: Use a calibrated pipe wrench or torque wrench to secure the joint firmly to the prescribed torque limits.

Indian Testing Standards: The IS 16172:2023 Compliance

Safety cannot be compromised in structural engineering. In India, mechanical splices must rigorously conform to IS 16172:2023 (Reinforcement Couplers for Mechanical Splices of Steel Bars in Concrete Specification).

Every batch manufactured by Surya Engineering undergoes comprehensive third-party and in-house laboratory testing via Universal Testing Machines (UTM) to clear the following criteria:

• Static Tensile Test: Assures that the tensile strength of the coupled joint meets or exceeds the specified characteristic yield strength of the TMT bar.

• Slip Test: Measures any microscopic displacement under tension. The permanent slip across the joint must not exceed the stringent limits specified by the Bureau of Indian Standards (BIS).

• Disengagement Test (Clause 9.2.1.1): Simulates imperfect field conditions. The coupler design must ensure safe load transfer even if up to 15% of the total thread length is left unengaged.

• Cyclic & Fatigue Tests: Verifies structural resilience against reverse cyclic loading (earthquake shocks) and high-cycle dynamic stress.

Major Advantages of Choosing Surya Engineering Couplers

• Full Structural Continuity: Creates an uninterrupted steel path capable of withstanding both tension and compression stresses.

• Unmatched Cost Efficiency: Saves tons of scrap steel across large-scale projects, lowering overall transportation, handling, and material expenses.

• Accelerated Construction Timelines: Speeds up the bar-binding cycle, helping developers hand over projects ahead of schedule.

• Design Flexibility: Opens up structural space by reducing column cross-sections, giving architects more floor space index (FSI) to play with.
