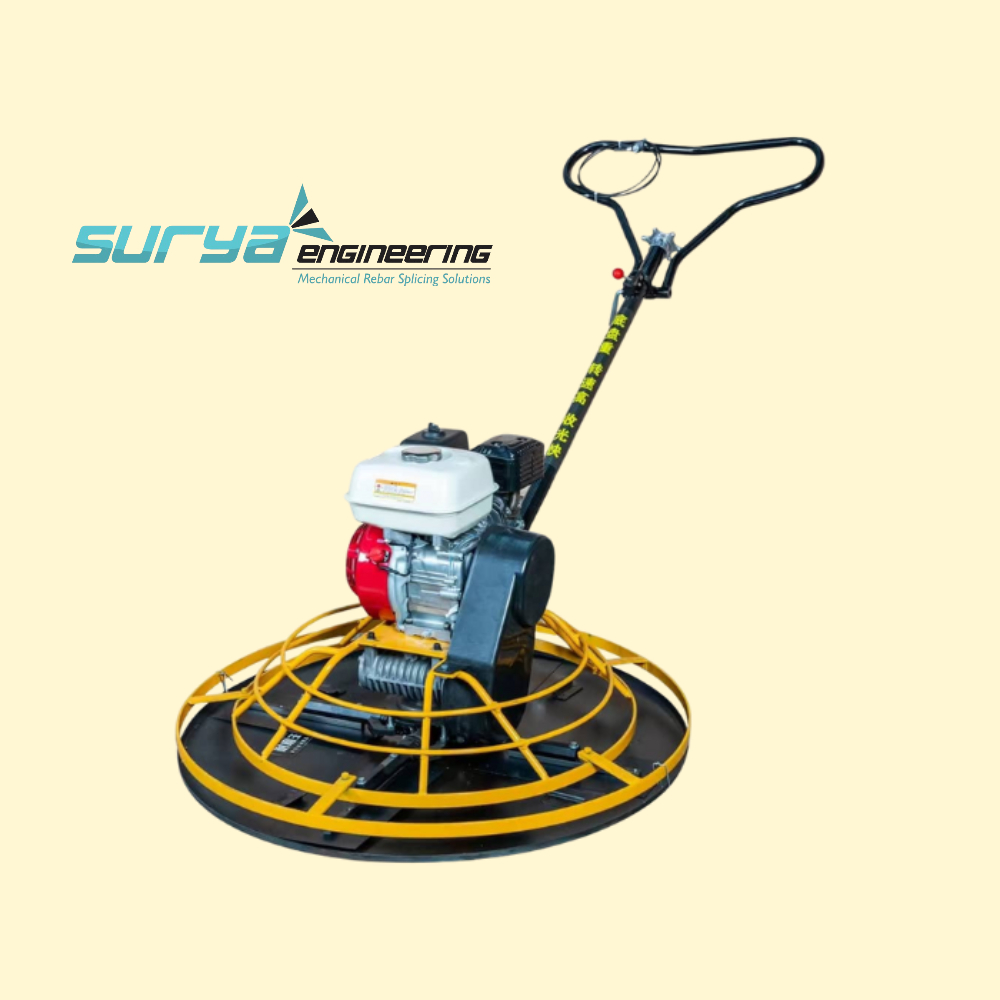

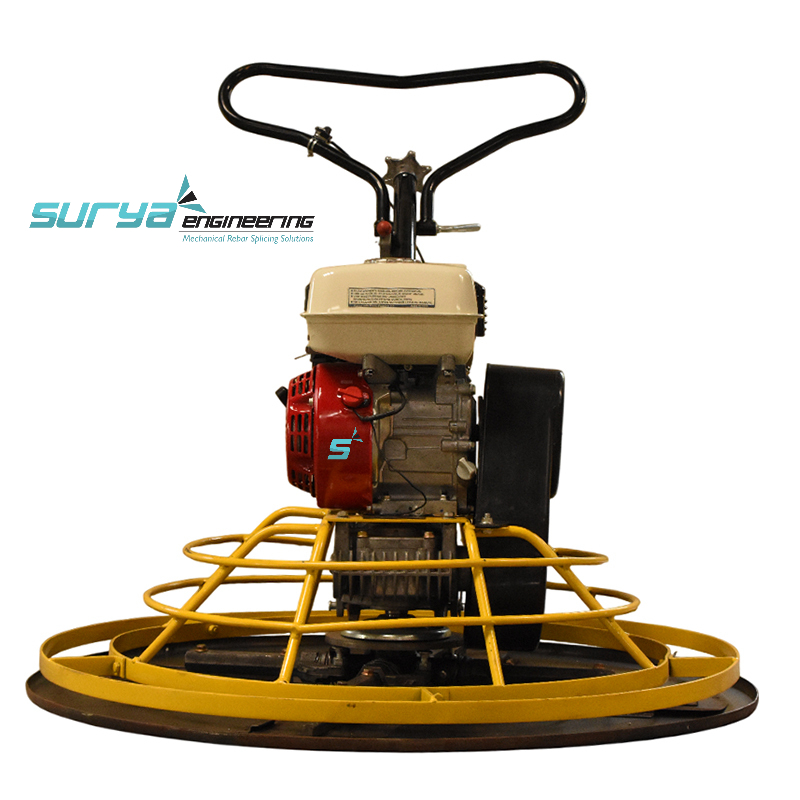

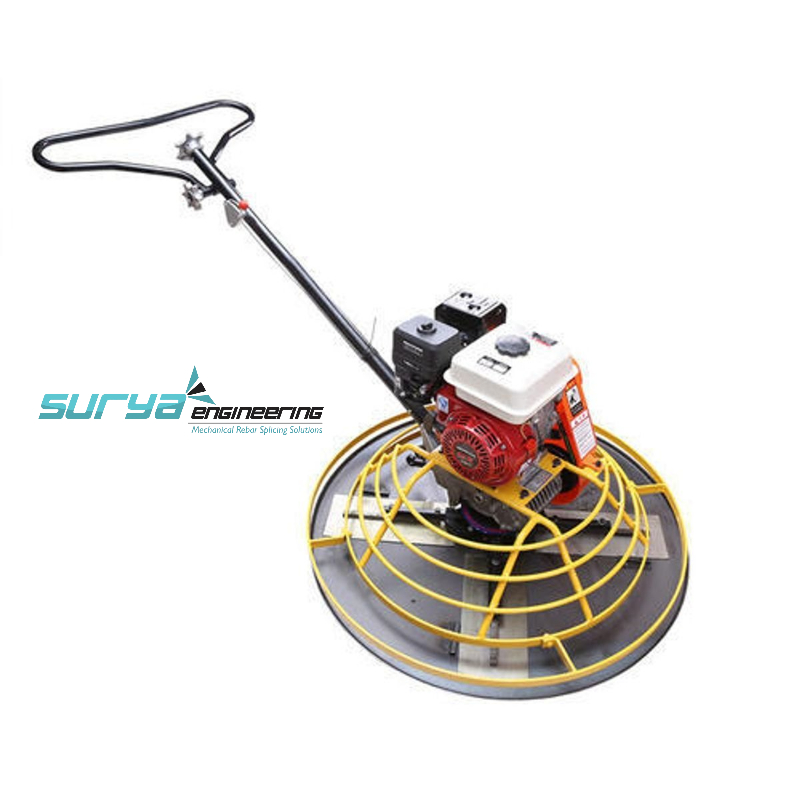

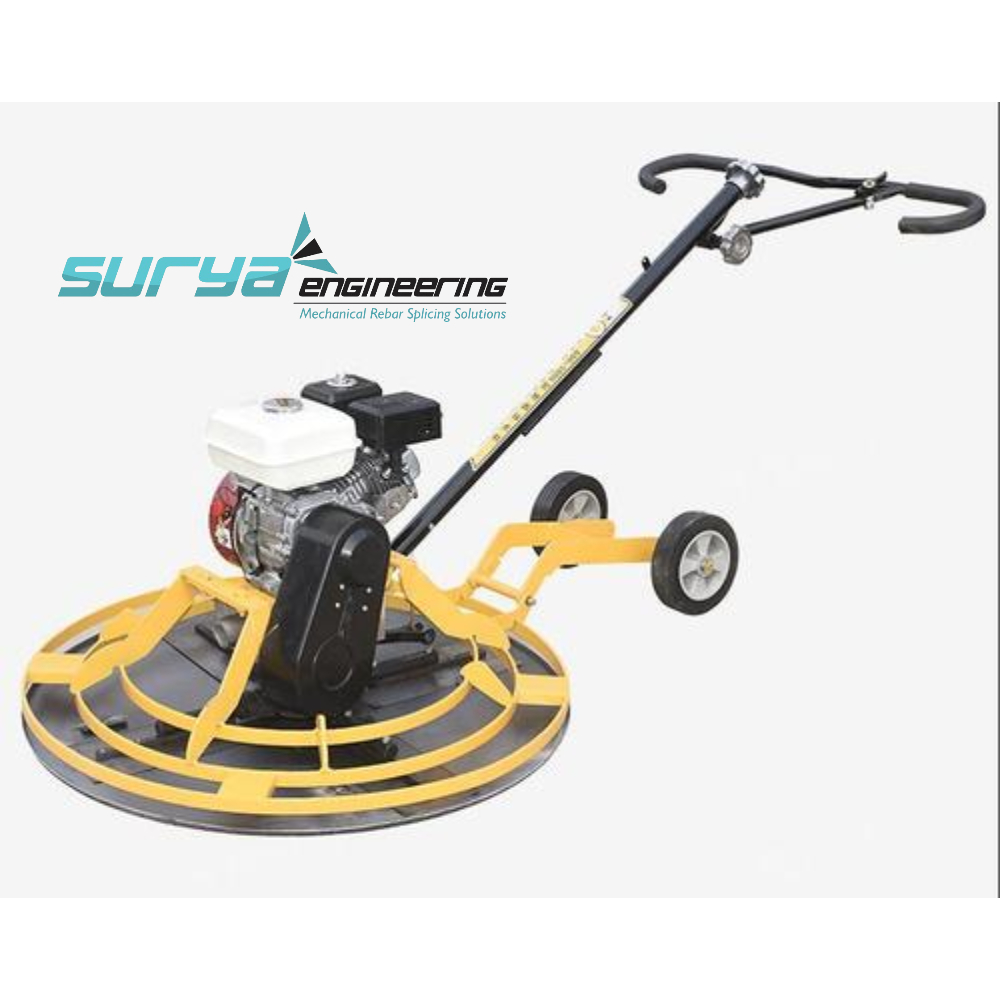

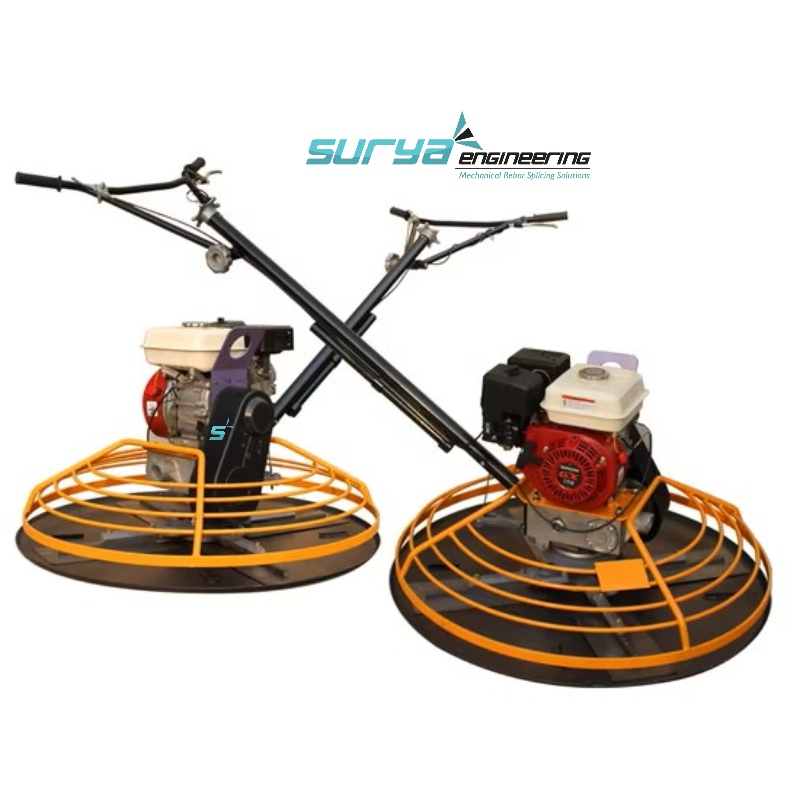

Concerte Power Trowel

Concerte Power Trowel Specification

Understanding your equipments drivetrain is essential for troubleshooting and maintenance.

Engine: The heart. Petrol/Gasoline (universal), Diesel (high torque for heavy-duty), or Electric (zero-emission for indoor work).
Gearbox: The gearbox transmits torque from the engine to the spider assembly. Pro Tip: Inspect gearbox oil for metallic shavingsa tell-tale sign of premature gear wear.
Spider Assembly: The rotating head that holds the blade arms. If the arms are bent or out of alignment, you will never achieve a level floor.
Pitch Control: The mechanismmanual or hydraulicthat adjusts the blade angle. Precise control allows for incremental closing of the concrete surface.

Use this table as a standard operating procedure (SOP) on your job sites.

Phase	Timing (Footprint Test)	Blade/Attachment	Blade Pitch	Rotor Speed	Goal
Floating	1/8" 1/4" deep	Float Pans	0 (Flat)	Low (60-90 RPM)	Leveling, removing high spots
Intermediate	No water sheen	Combo Blades	5 10	Med (90-110 RPM)	Consolidating the surface
Finishing	Hard, surface dry	Finish Blades	10 20	High (120+ RPM)	Densifying & Polishing

To secure high-value contracts (warehouses, data centers), you must master FF (Flatness) and FL (Levelness).

The "Pan" Advantage: Never attempt a final finish without starting with Float Pans. Pans cover a larger surface area, preventing the "dishing" effect caused by narrow blades. They effectively cut down ridges and fill valleys.
Directional Discipline: Always change your pattern by 90 degrees with every pass. If your first pass is North-South, the next must be East-West. This prevents the formation of "waves" in the slab.
The 30% Rule: Always overlap your previous pass by at least 30%. Consistent overlapping is the secret to a uniform sheen.

Problem	Root Cause	Immediate Fix
Machine "Wobbling"	Unbalanced or bent spider arms	Check arm alignment and blade weight uniformity.
Surface "Burning"	Overtroweling / Blade pitch too high	Reduce speed; spray a fine mist of water if necessary.
Concrete "Tearing"	Starting too early	Back off; monitor bleed water.
Engine Stalling	Air filter clog or low idle	Clean air intake; check spark plug gaps.

A well-maintained machine is a profit-generating asset.

Immediate Post-Work Cleaning: Concrete hardens in minutes on the spider assembly. If left, the added weight will unbalance the rotation, destroying your bearings.
Grease Schedule: Lubricate the spider arms daily.
Blade Inspection: Never pair new blades with worn ones. An uneven blade set forces the gearbox to work harder, leading to premature failure. Instead of just "Power Trowel," create pages for:
