Stub Pin - Mivan Pin Latest Price, Manufacturers & Suppliers Specification

Weight
0.12 - 0.25 Kilograms (kg)

Usage
Construction / Formwork Accessories

Color
Golden Yellow / Silver / Black

Diameter
16 Millimeter (mm)

Load Capacity
High Shear & Tensile Capacity Kilograms (kg)

Feature
High Tensile Strength, Rust Proof, High Reusability, Drop Forged

Length
50 Millimeter (mm)

Surface Treatment
yellow Electro-Galvanized / Zinc Plated

Application
Aluminium Formwork Shuttering, Panel Alignment & Interlocking

Material
EN8 Forged Steel / Mild Steel (MS)

Stub Pin - Mivan Pin Latest Price, Manufacturers & Suppliers Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
24 Hours

About Stub Pin - Mivan Pin Latest Price, Manufacturers & Suppliers

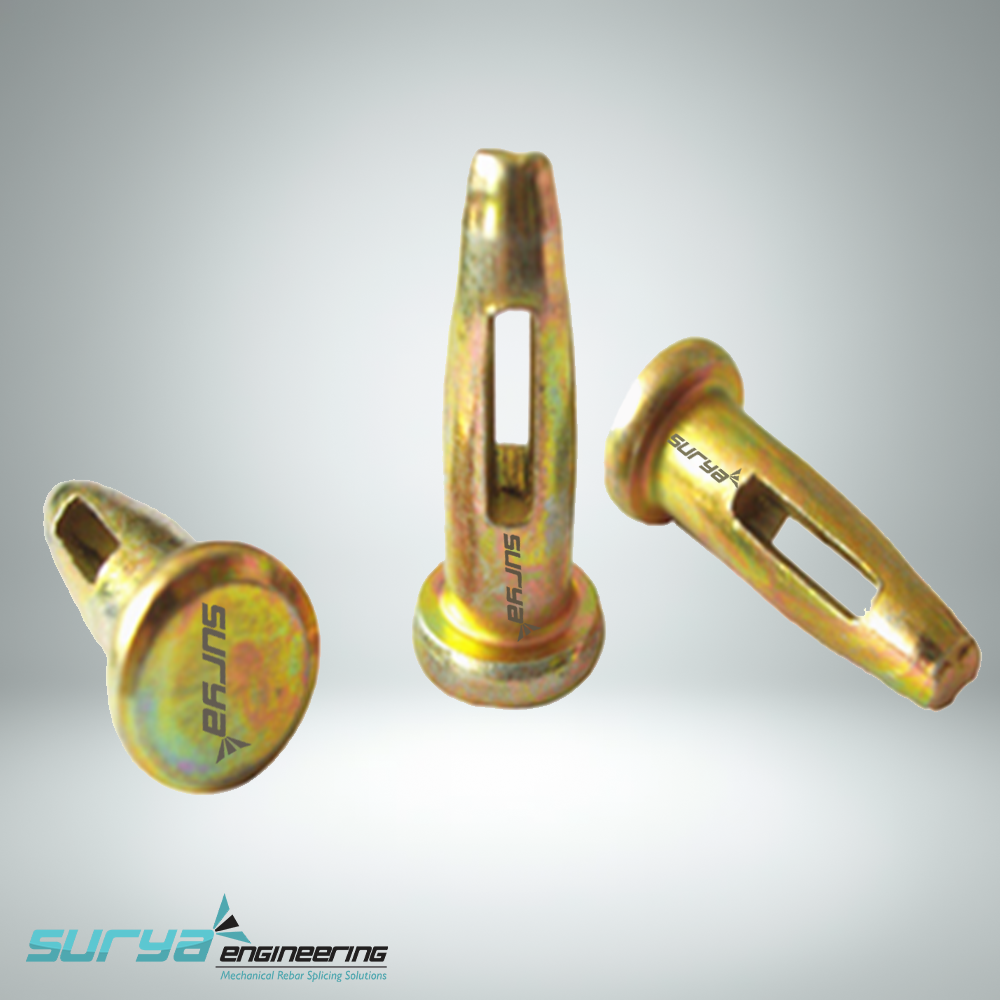

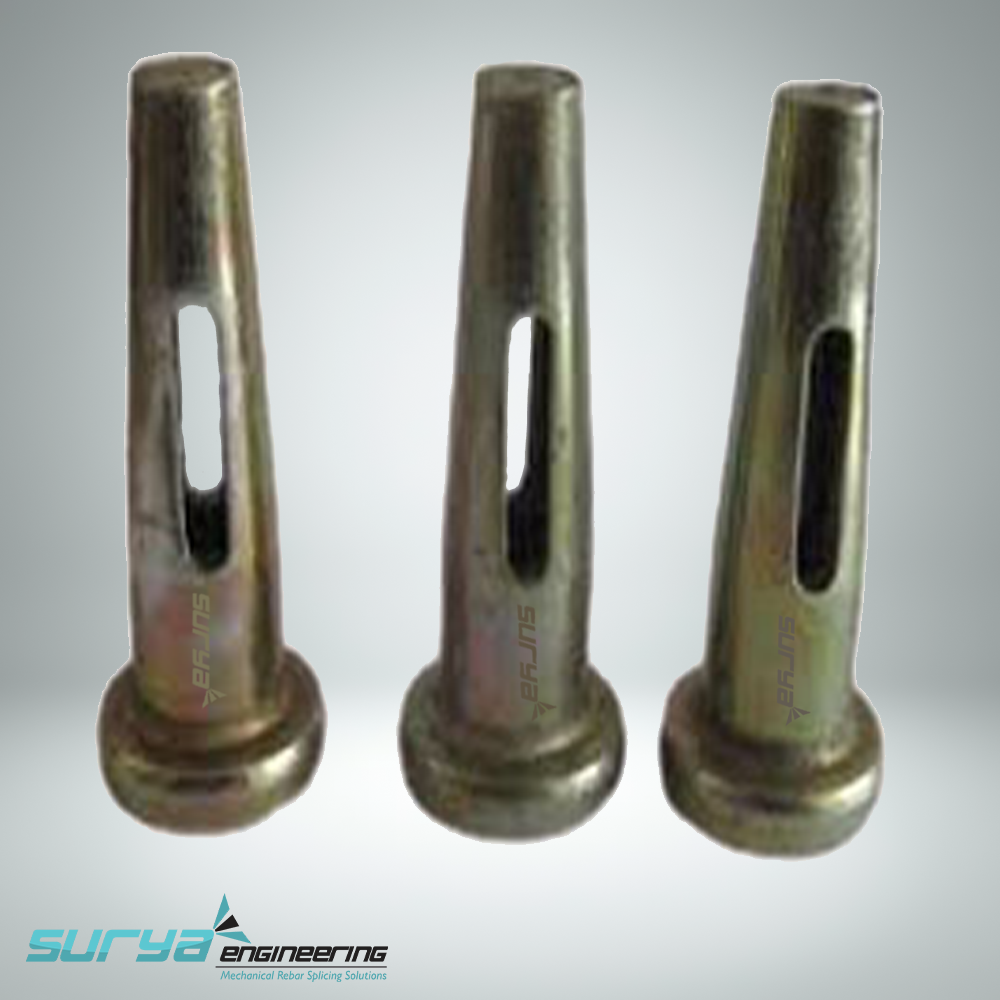

Mivan Stub Pin (Wedge Pin) Commercial Product Specification

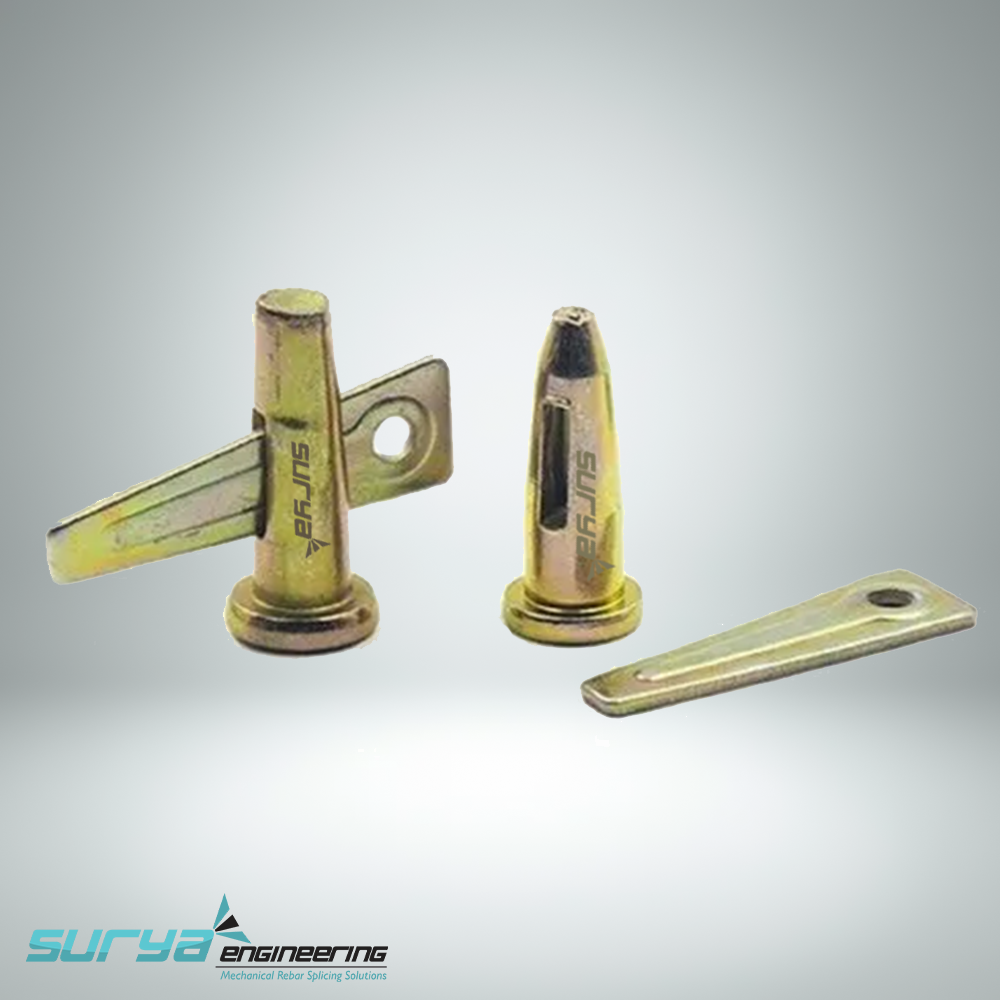

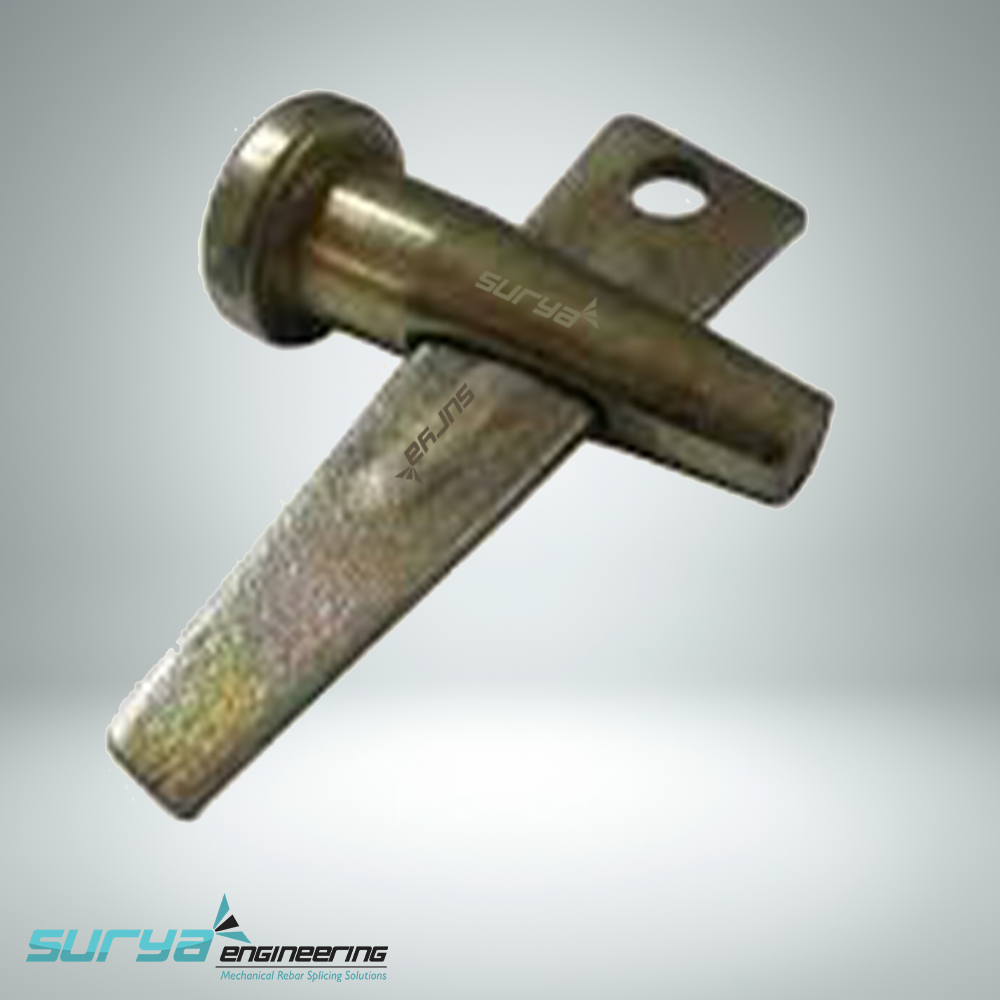

engineered for heavy-duty structural alignment, the Mivan Stub Pin (Wedge Pin) is a precision-machined mechanical fastener designed to secure, align, and lock adjacent aluminium formwork panels. Used in combination with formwork wedges (patti), it withstands extreme hydrostatic pressure during concrete pouring, ensuring dimensional accuracy, zero panel displacement, and slurry-tight joints on high-rise residential and commercial developments.

Manufactured from high-tensile EN8 forged steel and subjected to controlled heat treatment, our stub pins offer exceptional shear resistance and operational longevity across hundreds of concrete casting cycles.

Technical Specifications

Parameter	Specification Details
Material Grade	EN8 Forged Steel / High-Tensile Mild Steel (MS)
Nominal Diameter	16 mm
Standard Lengths	50 mm, 60 mm, 65 mm, 75 mm, 135 mm (Custom lengths available)
Surface Treatment	Yellow Zinc Electro-Plated / Hot-Dip Galvanized (HDG) / Black Oxide
Hardness Range	$50 - 65\text{ HRC}$ (Induction Hardened for Strip-and-Reuse cycles)
Tensile & Shear Capacity	High Shear Strength (Compliant with IS 800 structural standards)
System Compatibility	Mivan, Kumkang, Knauf, Sforms, Gensmart & standard Aluform systems
Primary Application	Wall-to-Wall, Wall-to-Slab, Column, and Beam Panel Interlocking

Key Performance Features

High Structural Integrity: Drop-forged construction prevents bending, shear failure, or elongation under high-rate concrete placement.
Corrosion Resistance: Heavy-duty electro-galvanized coating protects against moisture, alkaline concrete slurry, and site oxidation.
Rapid Site Assembly: Tapered pin nose enables rapid slotting and wedge locking, reducing overall shuttering cycle time per floor.
Superior Cost Efficiency: High surface hardness resists wear from continuous hammering, reducing per-square-meter formwork accessory replacement costs.
Universal Standard Fitting: Engineered to exact tolerances to fit standard panel slots across all major domestic and international formwork brands.

Technical & Quality Assurance

Every batch of Mivan Stub Pins undergoes stringent quality control checks to meet international construction safety benchmarks:

Dimensional Inspection: $100\%$ go/no-go gauge check on pin shank and slot dimensions.
Material Traceability: Manufactured using certified raw materials accompanied by Mill Test Certificates (MTC).
Hardness & Load Testing: Sampled for Rockwell hardness and destructive shear testing to guarantee structural reliability on site.

Packaging & Logistics

Packaging: 500 / 1,000 pieces in heavy-duty HDPE woven bags or export-grade wooden crates.
Supply Ability: PAN-India distribution with bulk dispatch capabilities.
Customization: Custom diameters, lengths, and slot dimensions available against engineering CAD drawings.
