PVC Cable Hanger - Plastic Material, Rectangular Shape, Open Hook Design, Yellow Color | 3-month Warranty, Robust Structure, Hassle-free Performance

PVC Cable Hanger - Plastic Material, Rectangular Shape, Open Hook Design, Yellow Color | 3-month Warranty, Robust Structure, Hassle-free Performance Specification

Standard
IS 14772 / IEC 60670

Features
Heavy Duty, Corrosion Free, UV Resistant, Insulated

Weight
12 gm per pc Grams (g)

Conductor
Fits 16-25mm cable

Diameter
20mm Clamping Dia Millimeter (mm)

Packaging Size
100 Pcs / Box

Tensile Strength
15 Kilopascals (KPa)

Install Type
Screw Mount

Connector Size
Fits 16-25mm cable

Locking Type
Screw Lock

Outer Material
PVC

Product Type
PVC Cable Hanger / P-Clip

Length
35 Millimeter (mm)

Voltage
, I, n, s, u, i, 1, 1, 0, 0, V, t, o, l, a, n, , R, a, t, e, d kilovolt (kV)

Insulation Material
PVC

Application
Industrial, Construction

Jacket Material
PVC

Warranty
1 years

Connector Color
White / Grey / Black

Operating Temperature
-10 C to +70 C Celsius (oC)

Dimension (L*W*H)
40 x 20 x 25 Millimeter (mm)

Material
PVC + Galvanized Iron Insert

Color
White

Size
20mm

PVC Cable Hanger - Plastic Material, Rectangular Shape, Open Hook Design, Yellow Color | 3-month Warranty, Robust Structure, Hassle-free Performance Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
24 Hours

About PVC Cable Hanger - Plastic Material, Rectangular Shape, Open Hook Design, Yellow Color | 3-month Warranty, Robust Structure, Hassle-free Performance

PVC Cable Hanger - Plastic Material, Rectangular Shape, Open Hook Design, Yellow Color | 3-month Warranty, Robust Structure, Hassle-free Performance

PVC Cable Hanger is a purpose-designed cable support accessory for construction sites, electrical installations, industrial projects, and infrastructure work. Its practical hook design allows electrical cables, temporary power cords, hoses, and utility lines to be suspended in an organized manner rather than being left on the floor or loosely placed around reinforcement structures.

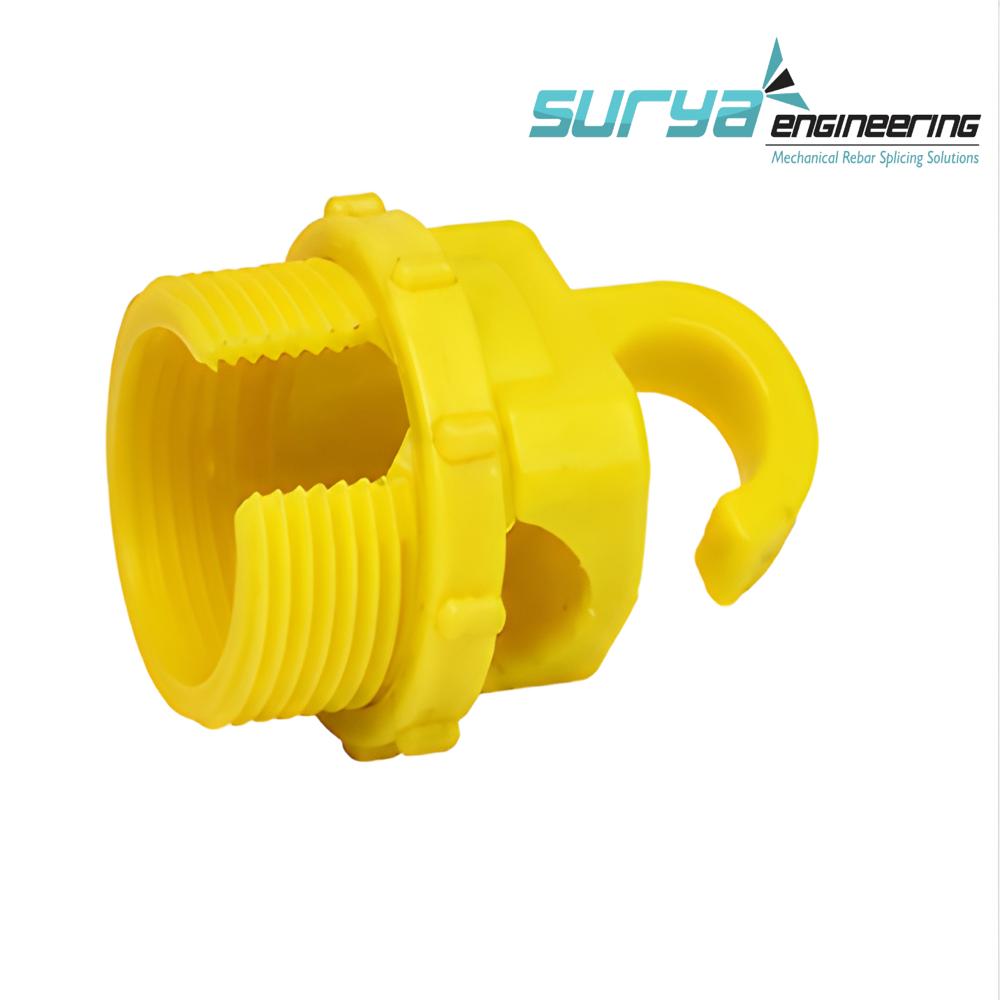

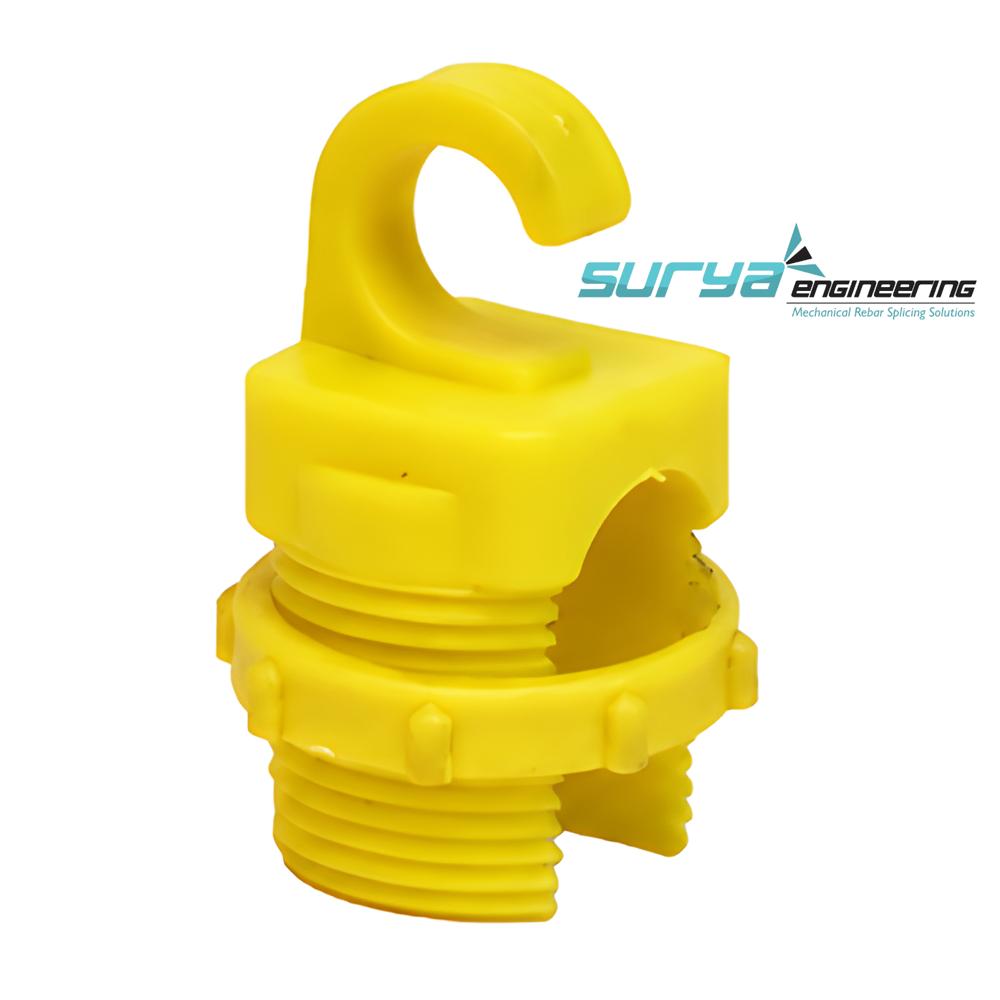

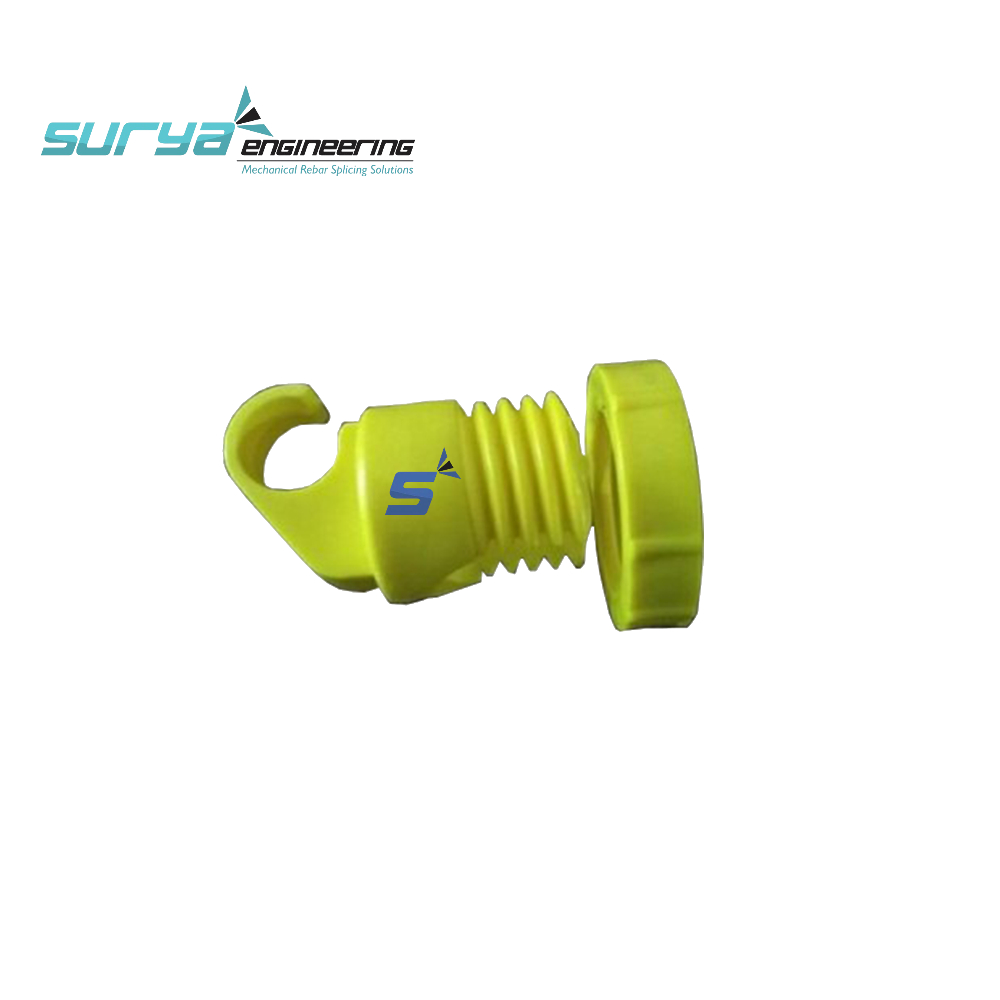

The hanger shown features a top open hook, threaded cylindrical mounting section, and locking collar, providing a convenient way to position and secure the hanger at the required support point. The PVC body is non-conductive, making it suitable for cable-support applications where an insulating support material is preferred.

What Makes This Design Useful?

Unlike a simple loose hook, this type of hanger combines cable suspension and mechanical positioning in one compact component. The threaded section and locking arrangement help the installer position the hanger securely, while the upper hook provides a dedicated point for routing the cable.

This makes it particularly useful during RCC construction, building electrical work, temporary site electrification, maintenance work, and infrastructure projects, where cable routing often has to change as the project progresses.

Key Features

PVC Construction
Manufactured from PVC for a lightweight, durable and insulating cable-support solution.

Non-Conductive Material
The PVC body does not electrically conduct in the same manner as a metal hanger, making it useful where an insulating cable-support component is required.

Threaded Locking Design
The threaded lower section and collar shown in the product help provide a more controlled mounting arrangement than an ordinary open hook.

Open Cable Hook
The upper hook provides a convenient support point for routing cables, wires, cords, or suitable utility lines.

High-Visibility Yellow
The bright yellow body is easy to identify against concrete, reinforcement steel and typical construction-site surroundings.

Lightweight & Easy to Handle
Its compact plastic construction makes transportation and manual installation convenient.

Helps Keep Cables Off the Floor
Suspending cables reduces unnecessary contact with walking areas and helps maintain cleaner site organization.

Reusable for Suitable Applications
The hanger can be repositioned during changing construction activities where the mounting arrangement allows removal and reuse.

Technical Specifications & Unique Data

The following table consolidates typical technical data for this class of product, based on industry specifications and manufacturer listings:

Specification	Typical Value / Range
Material	Virgin PVC (Polyvinyl Chloride)
Color	High-visibility Yellow (standard)
Available Sizes	16mm, 20mm, 25mm, 32mm (rebar diameter)
Load Capacity	20 kg to 25 kg (per hanger)
Unit Weight	Approx. 13 grams
Material Thickness	~2.5 mm
Fire Rating	Non Fire Rated (standard PVC)
Surface Finish	Glossy or Matte
Packaging	100 pieces per pack

Material Properties & Advantages

The choice of PVC for these hangers is deliberate, offering several functional benefits over metal alternatives:

Electrical Insulation: PVC is a non-conductive material, providing an essential layer of electrical insulation when suspending live power cables, which is a critical safety feature on construction sites.
Corrosion & Chemical Resistance: Unlike metal hooks, PVC will not rust or corrode when exposed to moisture, chemicals, or harsh weather conditions, ensuring a longer service life.
Durability: The material is designed to be robust, with good mechanical strength and resistance to UV radiation and aging, making it suitable for both indoor and outdoor use.
Non-Damaging: The smooth, non-abrasive surface of the PVC hook is designed to hold cables securely without damaging their insulation.

Installation & Application

The installation process is straightforward and tool-free, which is a significant advantage for efficiency on a busy site:

Select the Correct Size: Choose the hanger that matches the diameter of the rebar you will be attaching it to. Common sizes range from 16mm to 32mm.

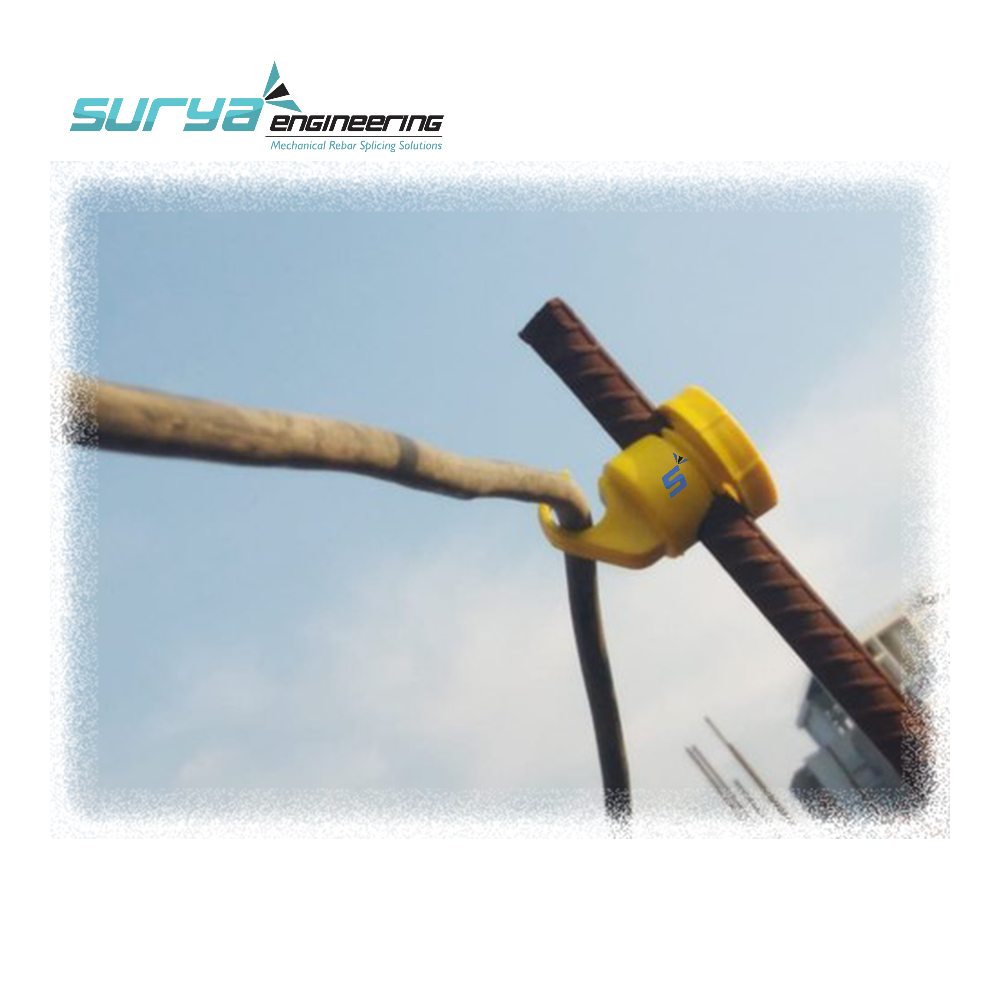

Attach to Rebar: The hanger features a slotted base that allows it to be pushed directly onto the exposed rebar. It stays in place through a friction fit or a threaded connection, depending on the specific model.
Insert the Cable: Route the electrical cable or wire through the top hook section of the hanger. The open hook design allows for easy insertion and removal of cables.

Practical Benefits for Buyers

1. Better Cable Organization

Keeps cables routed through designated support points instead of allowing them to become tangled or scattered.

2. Cleaner Construction Sites

Elevating temporary cables can help reduce floor-level cable clutter and improve general housekeeping.

3. Reduced Cable Abrasion

Keeping cables away from rough floors, sharp construction debris and uncontrolled contact points can help reduce unnecessary mechanical damage.

4. Quick Site-Level Installation

The hook-and-thread arrangement is designed around straightforward manual handling rather than a complicated cable-support assembly.

5. Suitable for Changing Work Conditions

Construction cable routes frequently change. A compact hanger can provide a practical support point as work progresses.

Why Choose PVC Cable Hanger?

The main advantage is that it is not just a hanging hook; it is a compact cable-management and positioning accessory intended for demanding construction environments. Its combination of PVC insulation, visible colour, hook-style cable support, and threaded locking design provides installers with a convenient method of keeping temporary cables and utility lines properly routed.

For professional construction projects, this can contribute to better cable organization, improved housekeeping, easier maintenance access, and more controlled cable routing.
